Smart JSA Bridge
⚠️ [Caution] This sample is for reference only. Risk assessments must be conducted based on actual inspections tailored to specific processes.
Smart JSA Bridge is not responsible for any legal consequences arising from the use of this material.
Chemical & Gas Work JSASample Guides (10 Types)
Standard risk analysis data for processes involving high-pressure gasand toxic chemicals. Please check the detailed images.
Shell & Tube Heat Exchanger Inspection & High-Pressure Water Jet Cleaning
Tissue penetration by high-pressure water, chemical burns from residual fluids
Wear specialized protective suits, fully open drain valves, and follow LOTO procedures
JSA Report Preview

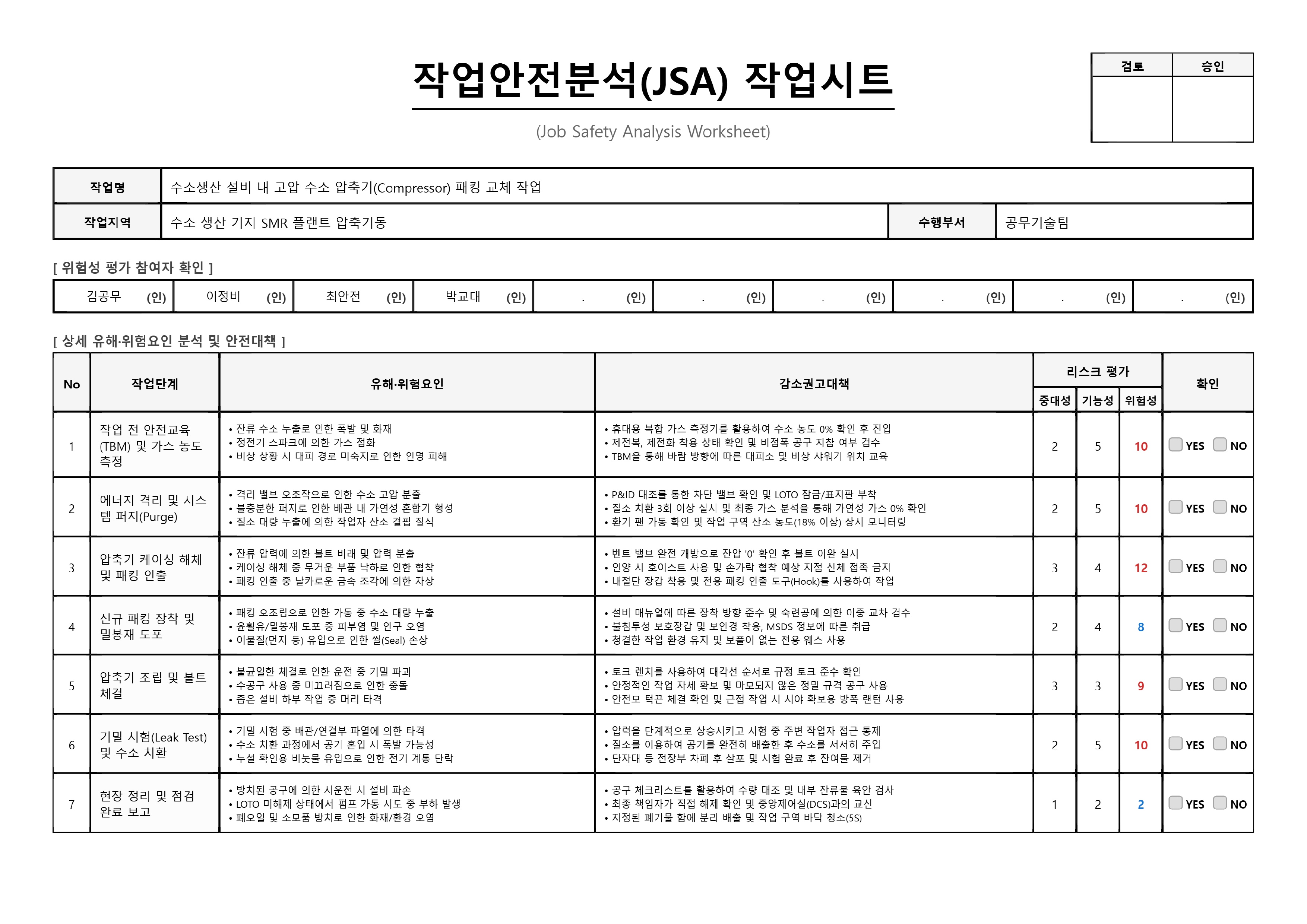

High-Pressure Hydrogen Compressor Packing Replacement
Explosion due to hydrogen leakage, asphyxiation due to nitrogen purging
Verify 0% hydrogen with portable gas detectors, wear anti-static clothing, and use non-sparking tools
JSA Report Preview

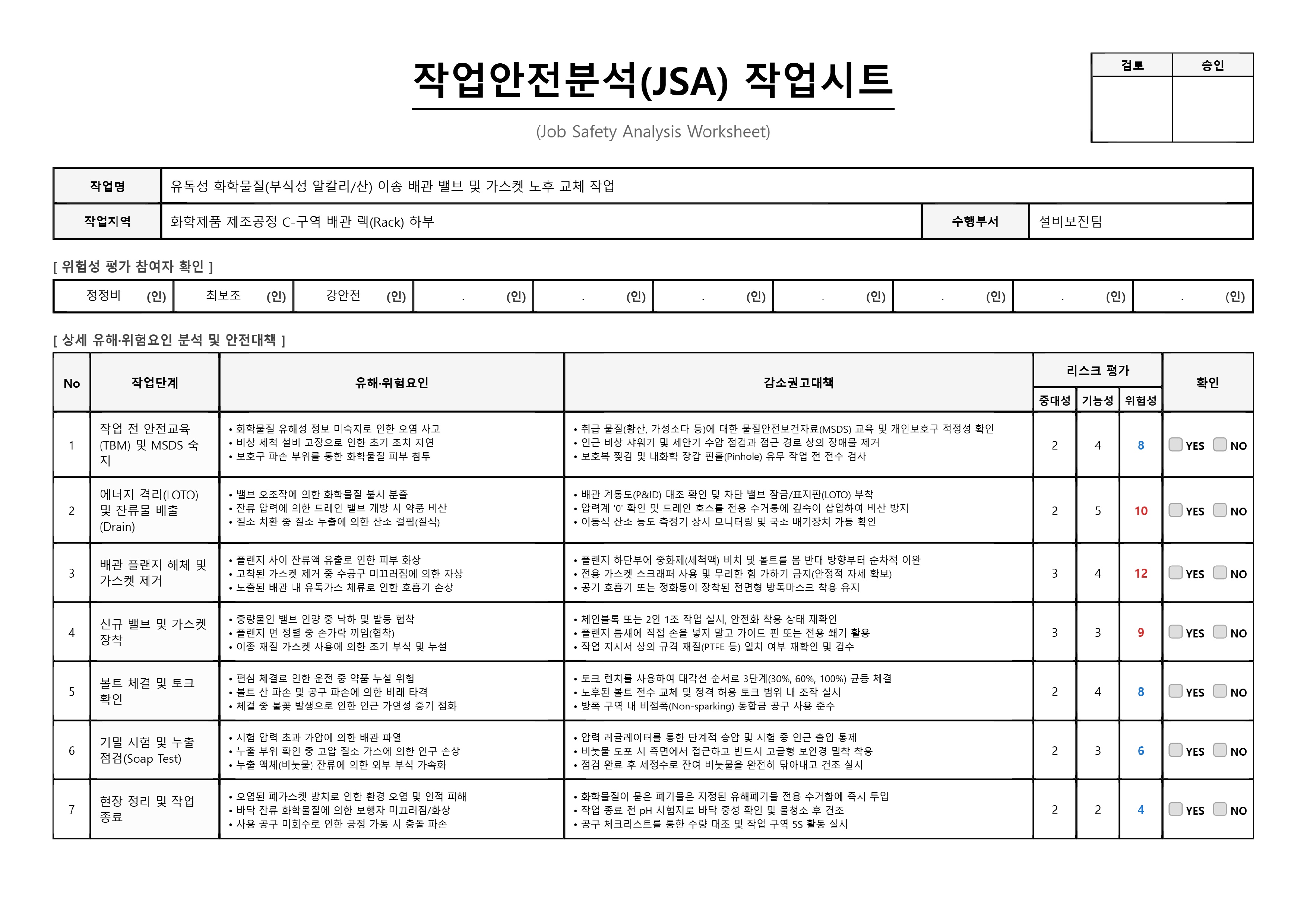

Toxic Chemical Piping Valve & Gasket Replacement
Splashing of residual liquids during flange disassembly, toxic gas poisoning
Wear full-face gas masks, loosen bolts sequentially away from the body
JSA Report Preview

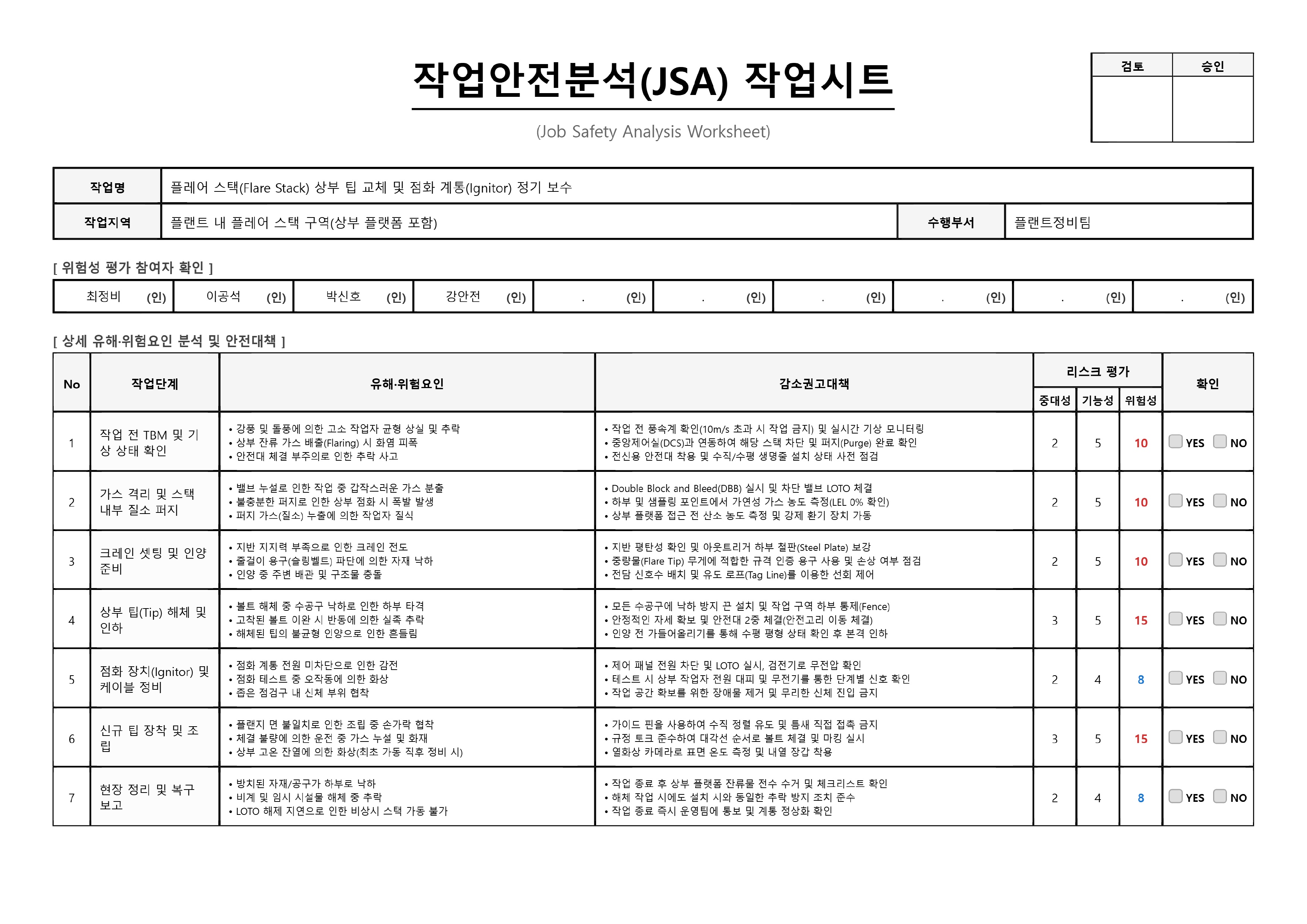

Flare Stack Tip Replacement & Ignition System Maintenance
Falls due to high winds, fire exposure if residual gas ignites
Monitor wind speed (prohibited above 10m/s), use double-lanyard safety harnesses, and verify DCS isolation
JSA Report Preview

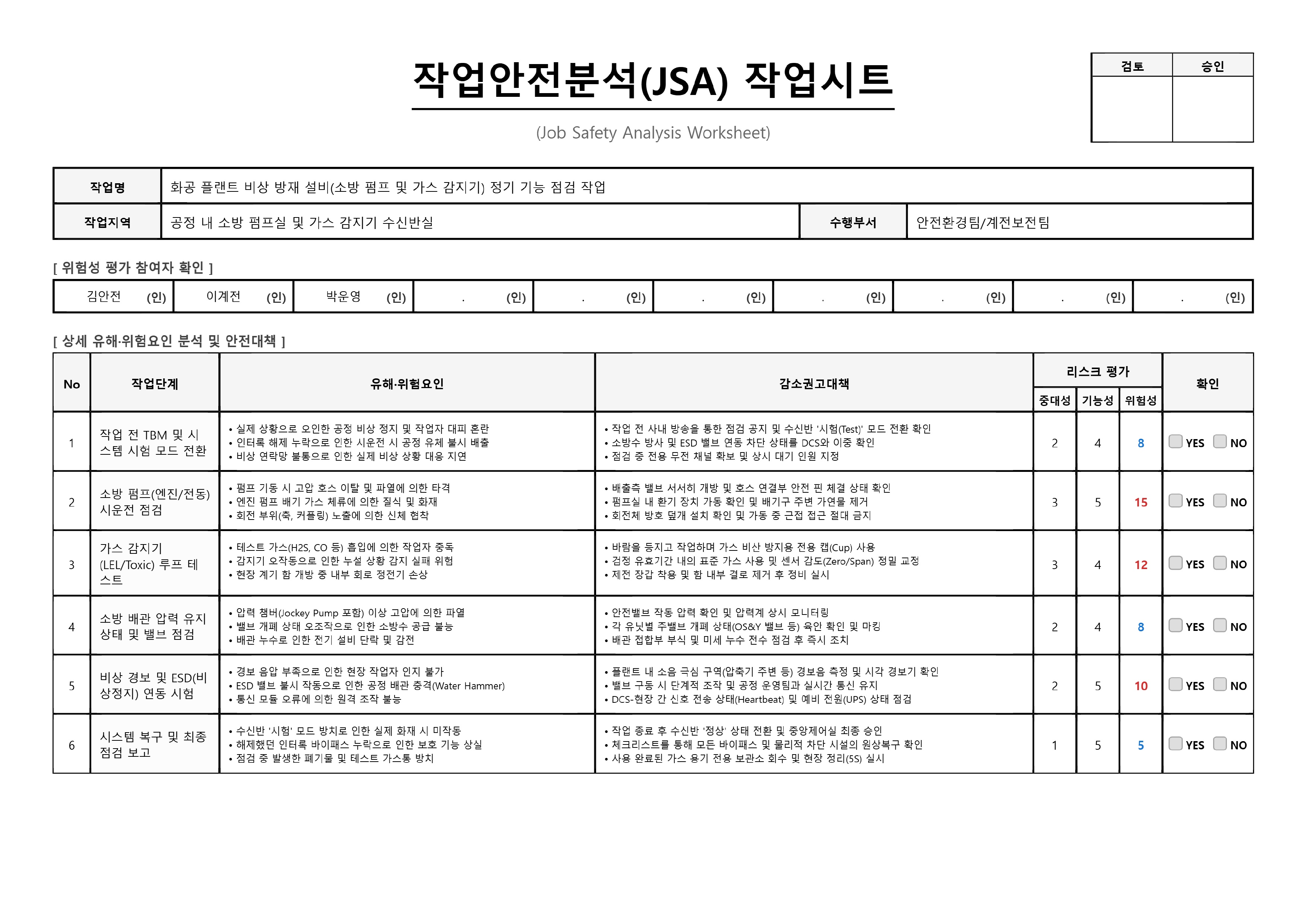

Function Check of Emergency Disaster Prevention Equipment
Impact from hose detachment during high-pressure water discharge, gas inhalation
Verify hose safety pin engagement, work with back to the wind, and use dedicated caps
JSA Report Preview

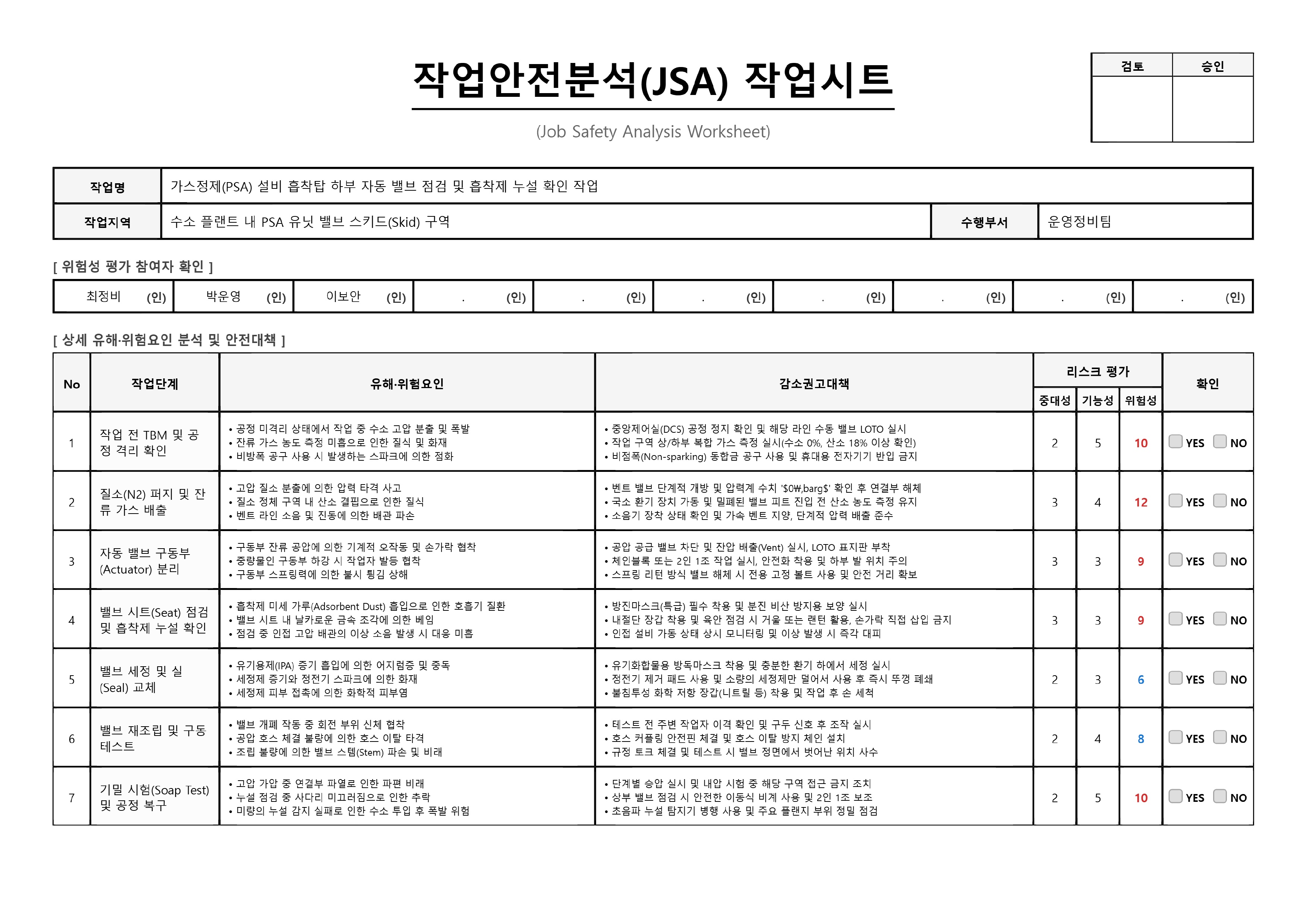

PSA Adsorption Tower Lower Automatic Valve Inspection
Crushing due to unexpected valve operation, respiratory issues from adsorbent dust
Remove residual pneumatic pressure, implement LOTO, and wear high-efficiency dust masks
JSA Report Preview
Internal Visual Inspection & NDT of High-Pressure Hydrogen Storage Tanks
Asphyxiation in confined space, explosion caused by lighting leakage
Measure gas concentration at top/middle/bottom, use forced ventilation and explosion-proof low-voltage (under 24V) lighting
JSA Report Preview

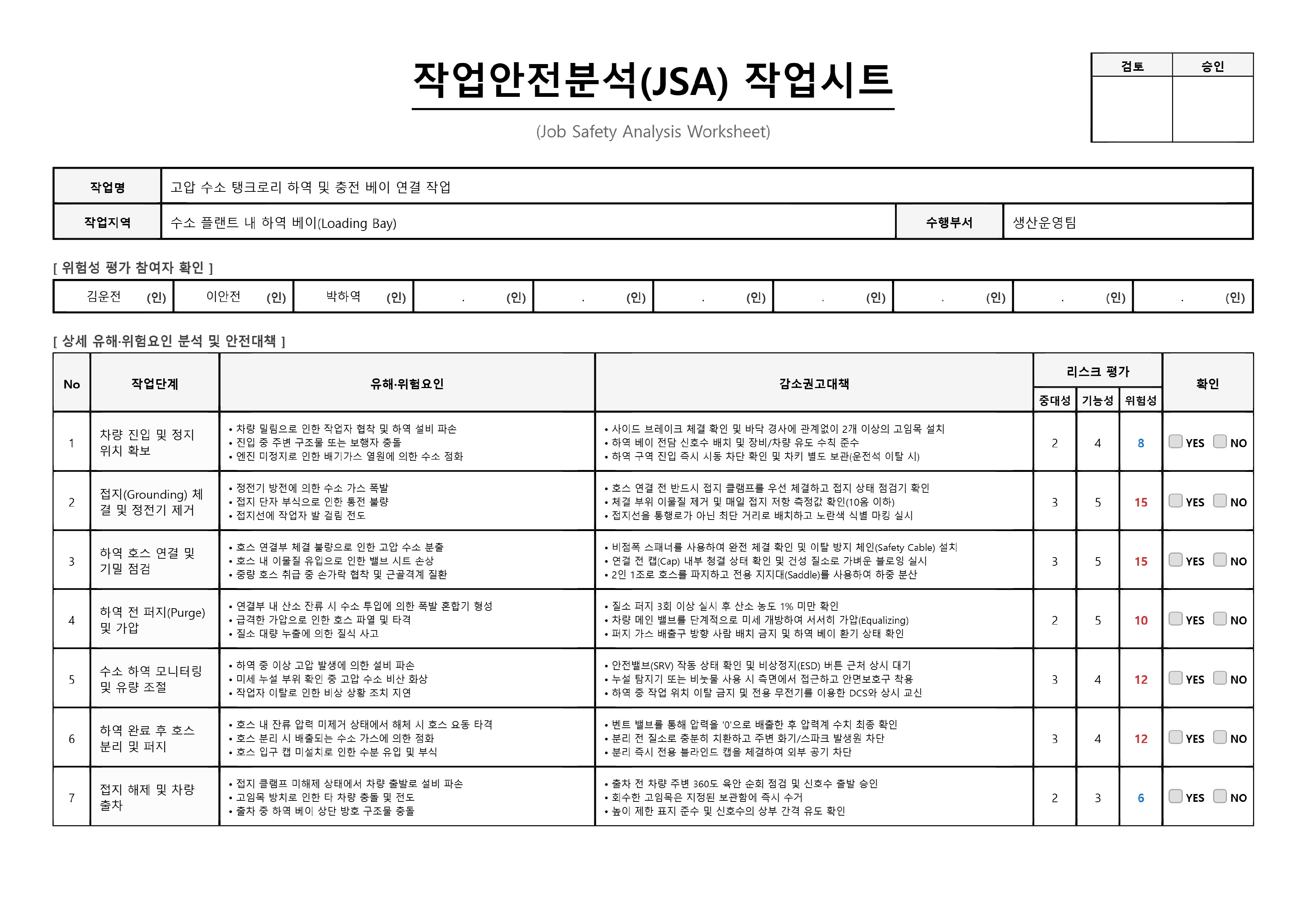

High-Pressure Hydrogen Tanker Unloading & Charging Bay Connection
Crushing due to vehicle rolling, hydrogen gas explosion due to static discharge
Install 2 or more wheel chocks, connect grounding clamps first, and verify resistance
JSA Report Preview

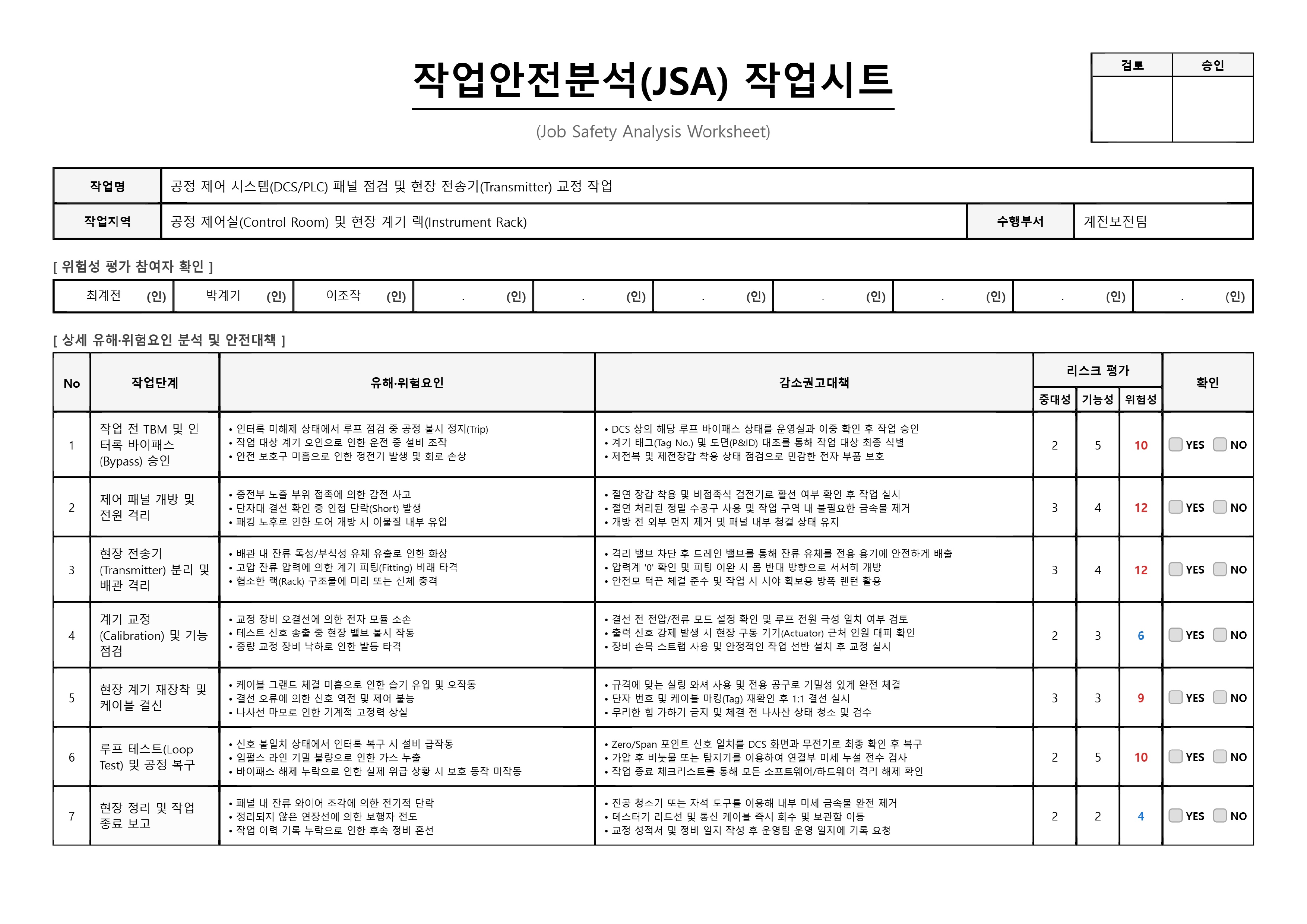

DCS/PLC Panel Inspection & Field Transmitter Calibration
Unexpected process shutdown due to interlock failure, electric shock from live parts
Double-check DCS bypass status, verify use of insulated gloves and anti-static clothing
JSA Report Preview

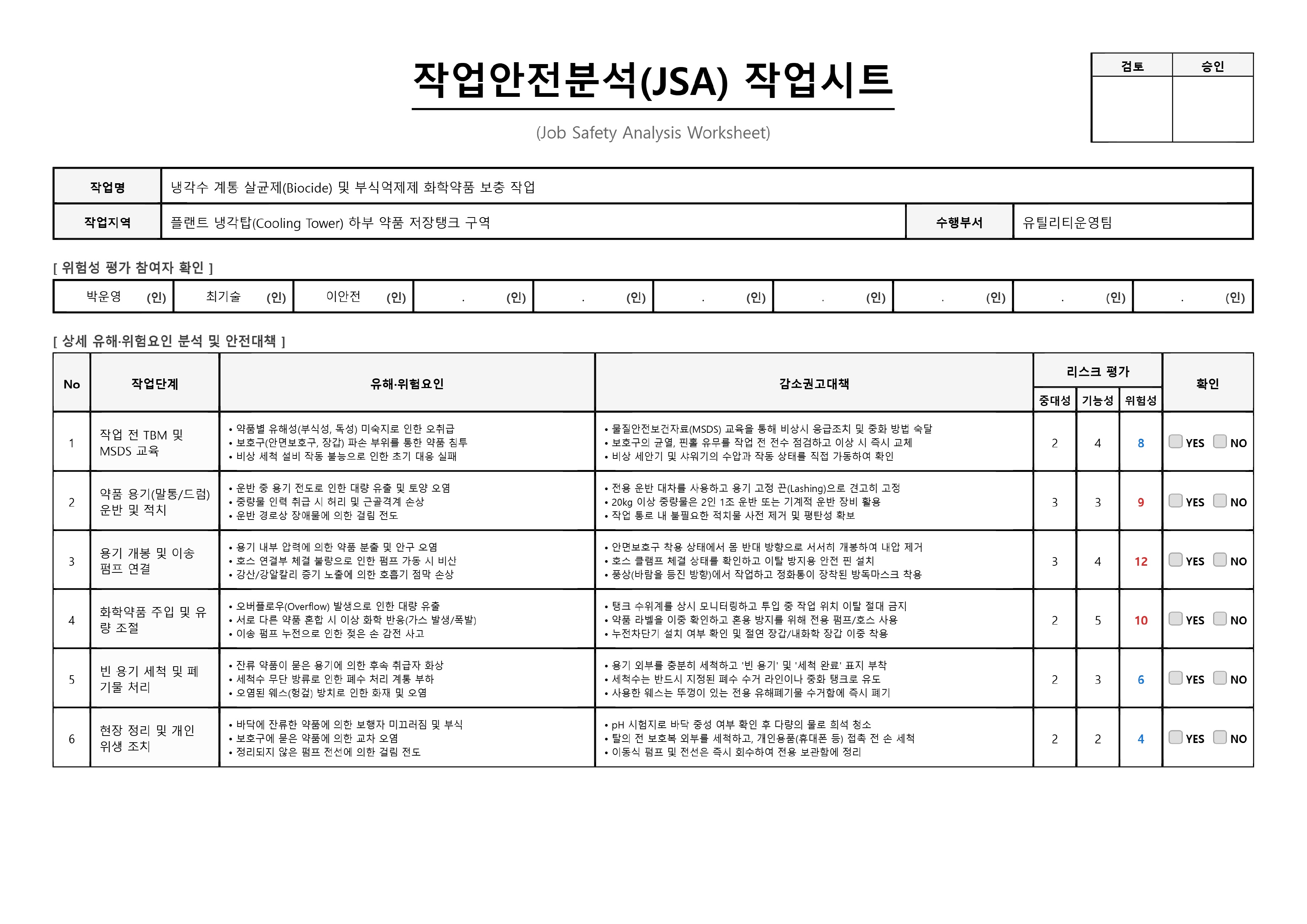

Cooling Water System Biocide & Corrosion Inhibitor Chemical Replenishment
Gas explosion if different chemicals mix, chemical eruption when opening containers
Double-check chemical labels, store separately, and relieve internal pressure while wearing face protection
JSA Report Preview
