Smart JSA Bridge
JSA Risk Assessment Preview for Confined Space (Tank, Manhole) Cleaning
6/25/2026
0. JSA Risk Assessment Preview for Confined Space (Tank, Manhole) Cleaning
| No | Work Step | Hazards | Risk Reduction Measures | Freq | Sev | Risk |
|---|---|---|---|---|---|---|
| 1 | Pre-work Safety Preparation & Atmosphere Verification | • Accumulation of toxic gases such as hydrogen sulfide, carbon monoxide, and carbon dioxide due to microbial decomposition of organic sludge inside the tank • Inhalation of hazardous atmosphere and fatal suffocation caused by uncalibrated gas detector sensors or false readings | • Measure concentrations of oxygen, hydrogen sulfide, carbon monoxide, and flammable gases using a calibrated 4-gas detector before entry, and post the authorized permit at the site • Strictly prohibit entry if atmospheric criteria fall outside safe limits (oxygen less than 18% or more than 23.5%, hydrogen sulfide 10 ppm or more) | 2 | 5 | 10 |
| 2 | Temporary Equipment & Ventilation/Rescue System Installation | • Insufficient fresh air replenishment leading to re-accumulation of hazardous gases during internal cleaning operations • Slipping or falling from access equipment due to unstable or unanchored portable ladders | • Connect heavy-duty, UV-resistant ventilation ducts down to the tank bottom and operate forced-air blowers continuously to maintain adequate air changes • Secure both top and bottom of portable ladders to eliminate displacement, and install a structural rescue tripod with a mechanical winch over the manhole | 1 | 4 | 4 |
| 3 | Positive Isolation & Energy Lockout (LOTO) Verification | • Inadvertent introduction of hazardous process fluids, wastewater, or inert purging gases (such as nitrogen) into the tank due to valve misoperation • Crushing or mechanical impact injuries caused by accidental startup of internal rotating agitators or mixers | • Physically isolate all connected piping by inserting rated blind flanges (spectacle blinds), and apply padlocks and warning tags (LOTO) to isolation valves • Turn off the main circuit breaker at the Motor Control Center (MCC), lock it with a group lockout box, and cross-verify the zero-energy state | 1 | 5 | 5 |
| 4 | Tank Interior Entry & Real-time Telemetry Monitoring | • Slips, trips, and falls while descending the ladder due to wet or slippery residual sludge coated on internal surfaces • Immediate loss of consciousness or anoxic shock caused by localized toxic gas pockets trapped in dead zones | • Ensure all entry personnel wear full-body harnesses connected to the rescue tripod lifeline, and utilize supplied-air respirators or self-contained breathing apparatus • Attach portable personal gas monitors to entrants for continuous atmospheric telemetry, and maintain dedicated radio contact with the hole watch | 2 | 5 | 10 |
| 5 | Sludge Scraping & High-pressure Washing Operations | • Internal fire or explosion caused by electrical sparks from non-explosion-proof power tools or provisional lighting fixtures in flammable vapor zones • Sudden release of high-concentration hydrogen sulfide gases dissolved in sludge during mechanical scraping or hot water washing | • Use only certified intrinsically safe, low-voltage (24V or less) mobile lighting, and enforce the use of non-sparking brass or bronze hand tools • Maximize ventilation flow rates during washing, and utilize external vacuum suction hoses to transfer loosened sludge immediately out of the tank | 2 | 4 | 8 |
| 6 | Equipment Demobilization, Final Headcount & Lockout | • Structural damage or mechanical failure of permanent equipment during startup due to forgotten tools or temporary materials left inside • Unauthorized re-entry or accidental falls into open manholes after work completion | • Remove all temporary ducts, lighting fixtures, and hand tools from the tank, and perform a final cleanup of remaining residue using an industrial vacuum • Cross-check the final exit headcount against the entry log sheet, verify all personnel are clear, and secure the supervisor's signature • Completely seal the manhole cover with a permanent rated gasket, torque the bolts uniformly, and apply a physical padlock to prevent unauthorized access | 1 | 4 | 4 |
1. Field Episode and Hazard Analysis
A. A "Near Miss" Suffocation Incident Caused by Overconfidence

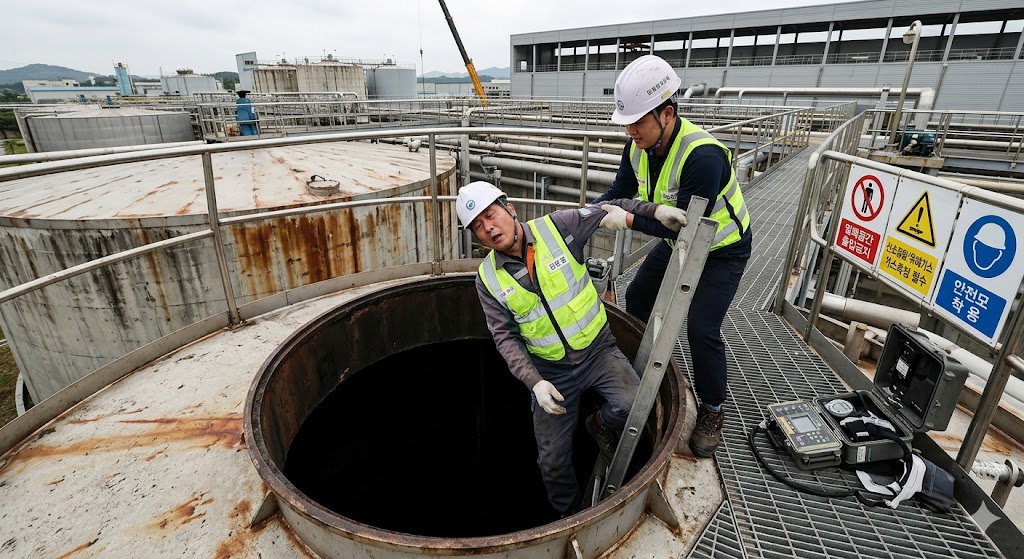

During the scheduled major maintenance period, we were tasked with inspecting the interior and removing residual sludge from a large storage tank at the factory’s wastewater treatment plant, which had been empty and idle for a long time.
Foreman Kim, who prided himself on over 10 years of field experience, thought of it as a routine job. Without waiting for the safety officer to bring the calibrated gas detector, he opened the top manhole of the tank and placed his foot on the ladder.
"The water inside has been gone for over a week, and there's no smell at all, so why make such a fuss? I'll just go in for a moment to check the floor condition and come right out."
The moment he leaned his upper body into the tank and descended a few steps on the ladder, his head suddenly felt dizzy and his vision blurred.
Fortunately, a colleague watching from the manhole grabbed his safety vest and pulled him out of the tank. It was a critical near-miss incident that could have led to a serious accident due to confined space suffocation had he fallen.
Once rescued, Foreman Kim couldn't speak for a while, realizing through his own experience how quickly oxygen deficiency and toxic gases—invisible and odorless—can paralyze the human central nervous system.
B. Analysis of Invisible, Fatal Hazards
According to the Rules on Occupational Safety and Health Standards, a confined space refers to an area where there is a risk of suffocation, fire, or explosion due to oxygen deficiency or toxic gases caused by inadequate ventilation.
In particular, residual sludge deposited on the bottom of tanks in chemical plants or wastewater treatment plants rapidly consumes oxygen during the microbial decomposition of organic matter, generating high concentrations of toxic gases such as hydrogen sulfide, carbon monoxide, and carbon dioxide.
Hydrogen sulfide, in high concentrations, paralyzes the human olfactory nerves, causing people to mistakenly believe there is no odor and enter, leading to respiratory arrest and death after just one breath.
Therefore, entry relying solely on visual confirmation or smell is strictly prohibited, and control through systematic procedures is essential. Furthermore, simple valve isolation is insufficient because pressure differentials can cause hazardous fluids to leak past valve seats; hence, installing physical blind flanges and executing a comprehensive Lockout/Tagout (LOTO) protocol are the only engineering methods capable of completely controlling fluid dynamics risks.
🚨 Permissible Limits for Confined Spaces under the Occupational Safety and Health Act
Oxygen concentration: 18% or more and less than 23.5%
Hydrogen sulfide concentration: Less than 10 ppm
Carbon monoxide concentration: Less than 30 ppm
Carbon dioxide concentration: Less than 1.5%
Flammable gas concentration: Less than 10% of the Lower Flammable Limit (LFL)
2. Standard Input Guide for Smart JSA Bridge (Work Procedure Definition)
These are the standardized work steps and detailed descriptions to be entered into the input fields of the Smart JSA Bridge dashboard so that the system can accurately evaluate compliance and safety metrics for your confined space project. Copy and paste (Ctrl+C) these textual elements directly into the service interface or adapt them to your facility's Permit to Work (PTW) protocols.
[Step 1] Pre-work Safety Preparation & Atmosphere Verification
Detailed Content: Verify approval and post the confined space work permit at the site; measure atmospheric concentrations of oxygen and four major toxic gases at top, middle, and bottom sections using a calibrated gas detector; inspect personal protective equipment.
[Step 2] Temporary Equipment & Ventilation/Rescue System Installation
Detailed Content: Position forced ventilation blowers and extend UV-resistant flexible air ducts down to the tank bottom; verify anti-slip anchoring of portable access ladders; set up a structural rescue tripod equipped with a mechanical emergency winch over the manhole.
[Step 3] Positive Isolation & Energy Lockout (LOTO) Verification
Detailed Content: Disassemble piping flanges and insert rated metal blind flanges on all inlet and outlet lines; apply physical chain locks and warning tags to isolation valves; execute Lock-out on the main motor circuit breaker at the MCC and cross-verify the zero-energy state.
[Step 4] Tank Interior Entry & Real-time Telemetry Monitoring
Detailed Content: Ensure entrants wear full-body safety harnesses securely fastened to the rescue tripod lifeline; mandate the use of supplied-air respirators or air-breathing apparatus during descent; attach portable personal gas monitors for real-time telemetry.
[Step 5] Sludge Scraping & High-pressure Washing Operations
Detailed Content: Install intrinsically safe low-voltage (24V or less) explosion-proof mobile lighting fixtures; enforce the exclusive use of non-sparking hand tools for sludge scraping; connect external vacuum suction hoses to transfer loosened sludge out of the tank in real time.
[Step 6] Equipment Demobilization, Final Headcount & Lockout
Detailed Content: Remove all temporary ventilation ducts, explosion-proof lighting, and hand tools; perform a final vacuum cleanup of residual sludge on the tank floor; cross-check the final exit headcount against the entry log sheet; bolt down the manhole cover with a new gasket and apply a physical lock.
3. Final JSA Output Example Based on Platform Recommendation
This finalized Job Safety Analysis report template represents the specific hazards and mitigation controls selected, verified, and tailored by the safety practitioner from the Smart JSA Bridge recommendation engine to match the precise requirements of the workspace.
| No | Work Step | Hazards | Risk Reduction Measures | Freq | Sev | Risk |
|---|---|---|---|---|---|---|
| 1 | Pre-work Safety Preparation & Atmosphere Verification | • Accumulation of toxic gases such as hydrogen sulfide, carbon monoxide, and carbon dioxide due to microbial decomposition of organic sludge inside the tank • Inhalation of hazardous atmosphere and fatal suffocation caused by uncalibrated gas detector sensors or false readings | • Measure concentrations of oxygen, hydrogen sulfide, carbon monoxide, and flammable gases using a calibrated 4-gas detector before entry, and post the authorized permit at the site • Strictly prohibit entry if atmospheric criteria fall outside safe limits (oxygen less than 18% or more than 23.5%, hydrogen sulfide 10 ppm or more) | 2 | 5 | 10 |
| 2 | Temporary Equipment & Ventilation/Rescue System Installation | • Insufficient fresh air replenishment leading to re-accumulation of hazardous gases during internal cleaning operations • Slipping or falling from access equipment due to unstable or unanchored portable ladders | • Connect heavy-duty, UV-resistant ventilation ducts down to the tank bottom and operate forced-air blowers continuously to maintain adequate air changes • Secure both top and bottom of portable ladders to eliminate displacement, and install a structural rescue tripod with a mechanical winch over the manhole | 1 | 4 | 4 |
| 3 | Positive Isolation & Energy Lockout (LOTO) Verification | • Inadvertent introduction of hazardous process fluids, wastewater, or inert purging gases (such as nitrogen) into the tank due to valve misoperation • Crushing or mechanical impact injuries caused by accidental startup of internal rotating agitators or mixers | • Physically isolate all connected piping by inserting rated blind flanges (spectacle blinds), and apply padlocks and warning tags (LOTO) to isolation valves • Turn off the main circuit breaker at the Motor Control Center (MCC), lock it with a group lockout box, and cross-verify the zero-energy state | 1 | 5 | 5 |
| 4 | Tank Interior Entry & Real-time Telemetry Monitoring | • Slips, trips, and falls while descending the ladder due to wet or slippery residual sludge coated on internal surfaces • Immediate loss of consciousness or anoxic shock caused by localized toxic gas pockets trapped in dead zones | • Ensure all entry personnel wear full-body harnesses connected to the rescue tripod lifeline, and utilize supplied-air respirators or self-contained breathing apparatus • Attach portable personal gas monitors to entrants for continuous atmospheric telemetry, and maintain dedicated radio contact with the hole watch | 2 | 5 | 10 |
| 5 | Sludge Scraping & High-pressure Washing Operations | • Internal fire or explosion caused by electrical sparks from non-explosion-proof power tools or provisional lighting fixtures in flammable vapor zones • Sudden release of high-concentration hydrogen sulfide gases dissolved in sludge during mechanical scraping or hot water washing | • Use only certified intrinsically safe, low-voltage (24V or less) mobile lighting, and enforce the use of non-sparking brass or bronze hand tools • Maximize ventilation flow rates during washing, and utilize external vacuum suction hoses to transfer loosened sludge immediately out of the tank | 2 | 4 | 8 |
| 6 | Equipment Demobilization, Final Headcount & Lockout | • Structural damage or mechanical failure of permanent equipment during startup due to forgotten tools or temporary materials left inside • Unauthorized re-entry or accidental falls into open manholes after work completion | • Remove all temporary temporary ducts, lighting fixtures, and hand tools from the tank, and perform a final cleanup of remaining residue using an industrial vacuum • Cross-check the final exit headcount against the entry log sheet, verify all personnel are clear, and secure the supervisor's signature • Completely seal the manhole cover with a permanent rated gasket, torque the bolts uniformly, and apply a physical padlock to prevent unauthorized access | 1 | 4 | 4 |
4. An Intelligent Risk Assessment Partner that Respects the True Purpose
Risk assessment is not just a perfunctory act of printing out a report. Its true purpose is the implementation of a "self-regulatory prevention system" where workers identify actual hazards and establish and practice countermeasures in advance.
Having AI automatically complete everything can actually increase complacency and undermine the essence of JSA.
Smart JSA Bridge respects this true purpose.
By entering the work procedures and details specified in Section 2, the system selects and presents a list of "recommended hazards" and "mitigation measures" tailored to the process based on its proprietary safety database.
Practitioners should carefully review the list to ensure no items are missing, then select and edit only the items that fit their specific site conditions, tools, and personnel.
Drastically reduce unnecessary administrative time spent filling out spreadsheet cells, while perfectly preserving the expertise and initiative of the personnel reviewing site safety. Experience the most intuitive tool that realizes true risk assessment.
👉 Input Work Procedures into Smart JSA Bridge and Design Your Own JSA (smartjsabridge.com)
