A closing kerf can pinch the rear of the blade and throw stock toward the operator. Verify the fence, compatible spreader, anti-kickback devices and continuous stock support before startup.
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
Stop conditions first
Hold for unsuitable guard, spreader, anti-kickback device, fence lock or feed aid. Stop for binding, lifting, kickback, abnormal noise or dust-control failure; wait for standstill and isolate before removing material near the blade.
1. US legal and technical basis
General-industry woodworking with a hand-fed circular ripsaw. OSHA 1910.213(c) specifies hood guarding, a spreader and nonkickback fingers/dogs; applicable servicing isolation remains separate. Construction use requires its applicable 1926 review.
| Reference | Use and limit |
|---|---|
| OSHA 29 CFR 1910.213 | Selected hand-fed ripsaw paragraph (c): hood, spreader and nonkickback devices; operating aids do not replace the required guards. |
| OSHA 29 CFR 1910.147 | Covered blade changes, clearing and adjustments require appropriate hazardous-energy control and verification. |
| OSHA State Plans | Federal baseline and State Plan coverage reviewed. Confirm the applicable state program and employer coverage; this edition does not establish nationwide compliance. |
Determine whether Federal OSHA or an applicable State Plan governs the employer and work. Standards incorporated into a regulation must be read in their legally applicable edition. Other NFPA/ANSI guidance and manufacturer instructions have distinct roles; they are not automatically federal law.
2. Scope and required inputs
Included
Make through rip cuts in suitable flat, clean wood on a fixed table saw with an identified blade, compatible spreader/riving knife, required guarding and a secured rip fence.
Separate assessment
Crosscutting, grooves/dados/non-through cuts, sawmill logs, freehand cutting, automatic feed and special processes requiring guard removal are excluded. Short, twisted or otherwise unsuitable stock is not accepted by this JSA.
| Input | Evidence needed |
|---|---|
| Select stock and cut | Material/cut identity; Size/defect check; Excluded stock/process; Support plan |
| Isolate and set blade | Energy/rotation state; Blade/model limits; Blade/knife compatibility; Settings/mounting |
| Clear and start | Tool/blade clearance; Dust-control response; PPE/stop access; People and route |
| Clean and transfer | Energy/cleanup state; Tool/chip removal; Fence/setup limits; Defects and receiver |
Selected public official provisions were checked on October 13, 2026. This is not a complete legal audit. No actual equipment manual, site measurements, engineering calculations, product certification or professional technical approval was supplied. Full paid NFPA/ANSI standards and state/local amendments were not reviewed. Check actual equipment, jurisdiction and project requirements before use.
Select task-appropriate eye, hand, foot, skin and hearing protection from the exposure assessment. Where respiratory protection is necessary, use the applicable respiratory-protection program; PPE does not replace isolation, guarding, support or ventilation.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Select stock and cut | 1. Kickback2. Blade fragments3. Loss of feed control4. Wrong process | 1. Nails/splits present2. Stock too short3. Warp ignored4. Crosscut treated as rip | 1. Inspect dimensions/defects2. Reject unsuitable wood3. Confirm through-rip scope4. Plan full stock path | 1. Material/cut identity2. Size/defect check3. Excluded stock/process4. Support plan | ||||
| 2. Isolate and set blade | 1. Blade cut2. Unexpected startup3. Wrong blade failure4. Spreader interference | 1. Connected during setting2. Coasting ignored3. Blade not approved4. Kerf/knife mismatch | 1. Control power and standstill2. Use permitted blade3. Match spreader/riving knife4. Set by actual instructions | 1. Energy/rotation state2. Blade/model limits3. Blade/knife compatibility4. Settings/mounting | ||||
| 3. Prepare fence and guards | 1. Binding/kickback2. Hand contacts blade3. Stock sags4. Recoil not restrained | 1. Fence misaligned/unlocked2. Hood missing3. Supports/feed aid absent4. Anti-kickback device absent | 1. Align and lock fence2. Retain required hood3. Fit supports and feed aids4. Verify anti-kickback devices | 1. Fence alignment/lock2. Hood/spreader function3. Full-path support4. Anti-kickback condition | ||||
| 4. Clear and start | 1. Flying loose object2. Dust exposure3. Noise harm4. Unexpected contact | 1. Tools left near blade2. Capture ineffective3. PPE unassessed4. Startup zone occupied | 1. Remove setup tools2. Check dust-control function3. Use assessed eye/hearing PPE4. Clear blade and outfeed zone | 1. Tool/blade clearance2. Dust-control response3. PPE/stop access4. People and route | ||||
| 5. Feed rip cut | 1. Hand reaches blade2. Kickback strike3. Stock lifts4. Blade overload | 1. Freehand feed2. Hand pushes narrow stock3. Support lost4. Feed forced | 1. Guide with locked fence2. Use suitable push aid3. Maintain steady supported feed4. Stop binding/lifting | 1. Hands/body position2. Feed aid effectiveness3. Stock support/path4. Cut/load behavior | ||||
| 6. Support outfeed and stop | 1. Outfeed hand contact2. Stock twists3. Coasting cut4. Offcut ejection | 1. Helper pulls material2. No support plan3. Pieces retrieved early4. Reach over blade | 1. Support without pulling2. Keep hands from blade3. Wait for full stop4. Retrieve pieces after safe stop | 1. Outfeed support2. Helper role/position3. Complete blade stop4. Offcut retrieval method | ||||
| 7. Hold binding or kickback | 1. Repeat kickback2. Blade-access cut3. Faulted restart4. Damaged stock reused | 1. Stock forced backward2. Power not isolated3. Fence fault ignored4. Sample pass overtrusted | 1. Stop and prevent restart2. Inspect isolated assembly3. Correct guide/guard cause4. Reassess stock and trial | 1. Binding location2. Blade/fence/guard findings3. Support/material changes4. Corrected controlled trial | ||||
| 8. Clean and transfer | 1. Residual blade contact2. Dust exposure3. Wrong setting reused4. Unsuitable stock mixed | 1. Cleaning connected2. Hands clear chips3. Limits unrecorded4. Rejects unmarked | 1. Isolate before cleaning2. Use suitable chip tools3. Record setup restrictions4. Segregate unsuitable material | 1. Energy/cleanup state2. Tool/chip removal3. Fence/setup limits4. Defects and receiver |
Actual risk assessments, measurements, checks, approvals and signatures have not been performed. Keep unverified fields blank and link the actual site records. P/S/R/A mean likelihood, severity, site-method risk and site-defined acceptance/authorization; a score cannot waive a required control.
4. Failure mechanisms and hypothetical case

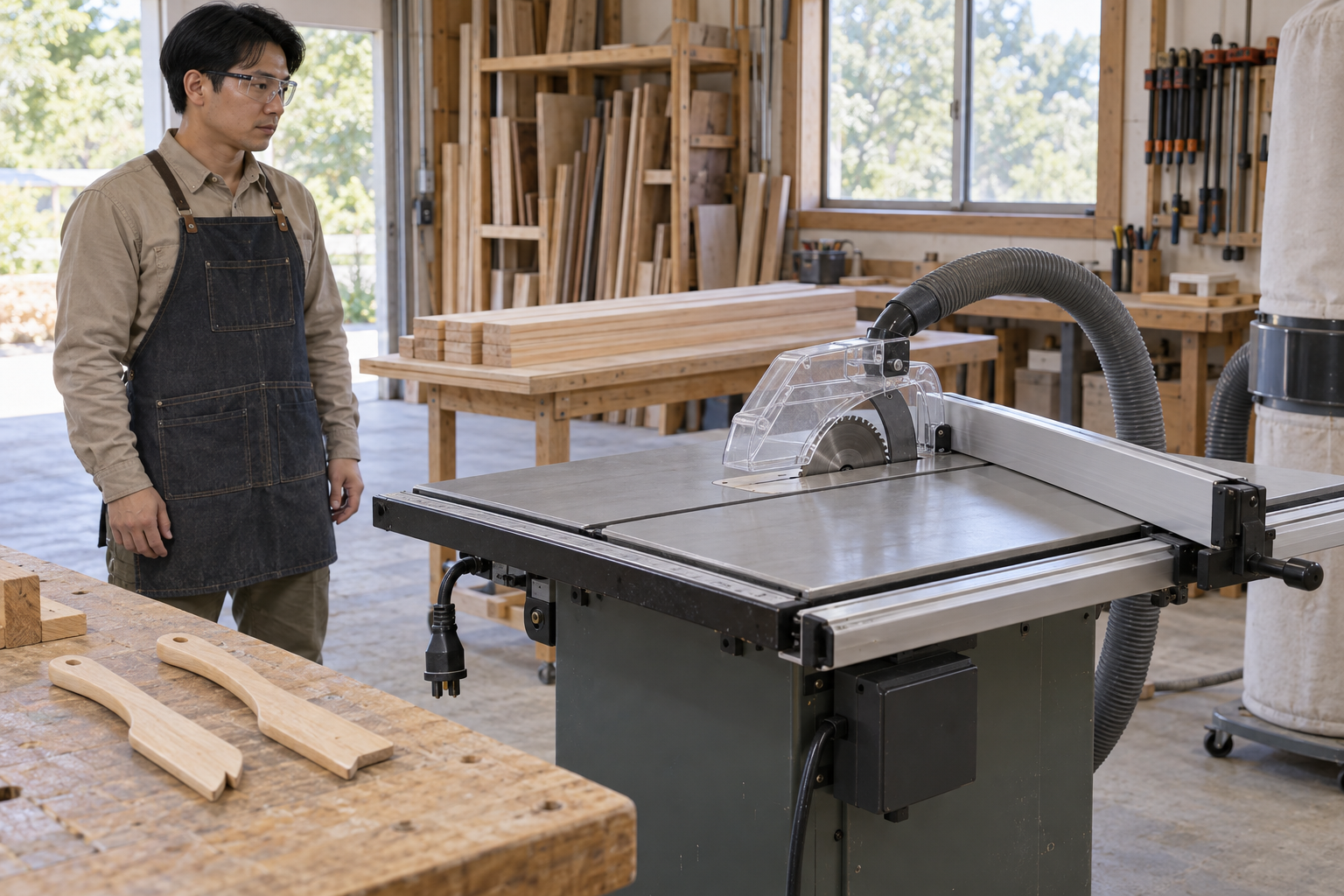

The retained illustration is an AI-generated educational image from the Korean source. It is not an actual incident photograph, approved drawing, equipment certification or proof that the depicted arrangement is safe.
The fence guides the cut, the spreader reduces kerf closing, and the required hood and anti-kickback devices provide other protections. One checked item cannot substitute for the others. Match the blade/kerf and safety assembly to the actual model.
A push stick must control the actual narrow stock through the full permitted cut while keeping hands clear and guarding effective. If that cannot be achieved, select another suitable method rather than remove guards.
The outfeed helper supports material without pulling or steering it. Twisting from either end can defeat the planned feed; suitable supports and agreed roles are required before cutting.
A successful sample cut applies only to that stock and setup. Changed length, warp, hidden metal, fence position or support needs renewed assessment.
Hypothetical decision example
Hypothetical example: the kerf narrows near the end of a board and feed resistance rises. A helper offers to pull from the outfeed side. The cut is stopped safely; after standstill and isolation, the blade, fence, stock and supports are inspected before any restart.
The example is fictional; no incident, measurement, inspection or approval is asserted.
Task flow: Select stock and cut → Isolate and set blade → Prepare fence and guards → Clear and start → Feed rip cut → Support outfeed and stop → Hold binding or kickback → Clean and transfer
5. Hold and proceed decisions
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Guard assembly unsuitable | Do not cut | Model/blade/spreader/guard evidence | Assembly verified |
| Feed resistance increases | Stop; no force or pull | Isolated blade/fence/stock review | Cause corrected |
| Outfeed unsupported | Revise support plan | Full stock path and helper role | Continuous support ready |
| New stock/setup | Reassess before cut | Dimensions, defects and feed aids | New conditions accepted |
Similar observation, different conclusion
| Observation | Supported conclusion | What remains unresolved |
|---|---|---|
| Cut width set | Nominal width selected | Fence alignment/lock unproved |
| Push stick on bench | An aid is available | Full-path control still unproved |
6. Roles and supervision
| Role | Responsibility |
|---|---|
| Work supervisor | Coordinate select stock and cut, affected operations, stop signals and stage transitions. |
| Technical/equipment reviewer | Verify Material/cut identity, Size/defect check, actual instructions and unresolved technical limits. |
| Task crew | Apply the stated controls, report changes and keep actual checks and signatures factual. |
| Inspector/test lead | Connect Outfeed support, Helper role/position to the required acceptance criteria. |
| Receiving authority | Accept the recorded restrictions, Fence/setup limits, Defects and receiver, and follow-up ownership. |
These are responsibility examples, not invented statutory credentials. Verify actual competence, training and authority for the assigned work.
Supervision and handover controls
| Stage | Management controls | Evidence |
|---|---|---|
| Plan review | 1. Assign technical owner2. Close task-specific questions3. Inspect dimensions/defects | 1. Material/cut identity2. Size/defect check3. Support plan |
| Competence | 1. Verify required competence2. Assign stop authority3. Control power and standstill | 1. Energy/rotation state2. Training and task briefing3. Settings/mounting |
| Prestart evidence | 1. Inspect actual equipment2. Link evidence to this stage3. Remove setup tools | 1. Tool/blade clearance2. Dust-control response3. People and route |
| Change control | 1. Stop and secure the area2. Review affected controls3. Stop and prevent restart | 1. Binding location2. Blade/fence/guard findings3. Corrected controlled trial |
| Shift handover | 1. Identify remaining restrictions2. Confirm receiving responsibility3. Isolate before cleaning | 1. Energy/cleanup state2. Tool/chip removal3. Defects and receiver |
| Closeout | 1. Record defect disposition2. Archive factual evidence3. Isolate before cleaning | 1. Energy/cleanup state2. Tool/chip removal3. Defects and receiver |
7. Hold points and record quality
| Hold point | Evidence before release | Actual record |
|---|---|---|
| HP-0 Start | Make through rip cuts in suitable flat, clean wood on a fixed table saw with an identified blade, compatible spreader/riving knife, required guarding and a secured rip fence. | |
| HP-1 Isolate and set blade | Energy/rotation state; Blade/model limits; Blade/knife compatibility; Settings/mounting | |
| HP-2 Clear and start | Tool/blade clearance; Dust-control response; PPE/stop access; People and route | |
| HP-3 Hold binding or kickback | Binding location; Blade/fence/guard findings; Support/material changes; Corrected controlled trial | |
| HP-4 Clean and transfer | Energy/cleanup state; Tool/chip removal; Fence/setup limits; Defects and receiver |
Hold points are internal evidence gates. They do not establish that a statutory permit exists or has been approved. Recheck affected gates after changes, faults and shift handover.
Record comparison - hypothetical templates
The 16 boxes below identify record elements, not completed checks or approvals. They are static symbols. Link equipment/location, date, actual findings and the separate record reference; preserve unresolved items.
| Record | Insufficient entry | Required record elements |
|---|---|---|
| Select stock and cut | "Checked" without supporting facts | □ Material/cut identity□ Size/defect check□ Excluded stock/process□ Support plan |
| Prepare fence and guards | "Checked" without supporting facts | □ Fence alignment/lock□ Hood/spreader function□ Full-path support□ Anti-kickback condition |
| Feed rip cut | "Checked" without supporting facts | □ Hands/body position□ Feed aid effectiveness□ Stock support/path□ Cut/load behavior |
| Hold binding or kickback | "Checked" without supporting facts | □ Binding location□ Blade/fence/guard findings□ Support/material changes□ Corrected controlled trial |
8. Pre-work checks and emergency response
| Check required | Result | Checker/action |
|---|---|---|
| Select stock and cut: Material/cut identity | ||
| Isolate and set blade: Energy/rotation state | ||
| Prepare fence and guards: Fence alignment/lock | ||
| Clear and start: Tool/blade clearance | ||
| Feed rip cut: Hands/body position | ||
| Support outfeed and stop: Outfeed support | ||
| Hold binding or kickback: Binding location | ||
| Clean and transfer: Energy/cleanup state |
Stop work
Hold for unsuitable guard, spreader, anti-kickback device, fence lock or feed aid. Stop for binding, lifting, kickback, abnormal noise or dust-control failure; wait for standstill and isolate before removing material near the blade.
Emergency response
Stop the saw from a safe position and keep clear of the blade and kickback path. Do not catch ejected stock or reach for offcuts while the blade coasts. Control power before clearing a trapped part or accessing the blade. Call 911 for serious cuts or impact injury and activate trained first aid. Do not restart to release a person or continue until the stock and guarding fault are resolved.
9. Official sources and review limits
Official public-source check: October 13, 2026. The review concerns the selected passages described below, not endorsement of this article.
| Official source | Checked scope and limit |
|---|---|
| OSHA 29 CFR 1910.213 | Selected hand-fed ripsaw paragraph (c): hood, spreader and nonkickback devices; operating aids do not replace the required guards. |
| OSHA 29 CFR 1910.147 | Covered blade changes, clearing and adjustments require appropriate hazardous-energy control and verification. |
| OSHA State Plans | Federal baseline and State Plan coverage reviewed. Confirm the applicable state program and employer coverage; this edition does not establish nationwide compliance. |
Selected public official provisions were checked on October 13, 2026. This is not a complete legal audit. No actual equipment manual, site measurements, engineering calculations, product certification or professional technical approval was supplied. Full paid NFPA/ANSI standards and state/local amendments were not reviewed. Check actual equipment, jurisdiction and project requirements before use.
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
10. PDF use and frequently asked questions
PDF A summarizes core controls; B emphasizes technical failures; C covers supervision, records and handover. Each uses six stages from or aligned with the eight-stage body. All actual risk, measurement, check and signature fields are blank. Use a separate linked record where more space is needed.
Can the spreader be removed for narrow stock?
Do not defeat the required protection. Use a suitable guarded method or another process.
May binding stock be pulled backward while running?
No. Stop, wait for complete standstill and control power before investigating.
Can a helper replace the outfeed support plan?
No. Plan stable support and a role that does not pull or twist the stock.
Are wood-handling gloves appropriate during feed?
Assess entanglement and the actual machine instructions separately from isolated material handling. Keep gloves and hands away from the rotating blade.
Has a professional approved this JSA?
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
11. Authorship and revision history
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
| Date/version | Editorial history | Technical approval |
|---|---|---|
| September 26, 2026 / Korean v1.0 | Korean source: initial article, evidence, hypothetical decisions and body/PDF editorial checks. | Professional technical approval not performed |
| October 14, 2026 / US v1.0 | US localization: Preserves through-rip scope, closing-kerf/helper-pull case and full-path feed support. Adds explicit US hood, spreader and nonkickback requirements and keeps model-specific dimensions and glove assessment separate. | Not performed |
