This revision covers planning, rigging, protected transfer, controlled descent, light facade painting, recovery and handover of a single-person suspended chair. First assess a scaffold or elevating platform that avoids prolonged suspension.
Two ropes need independent protection throughout their paths
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site authorisation are required before use.
Stop work
Stop for rope damage, displaced edge protection, uncertain anchors, loss of communication, uncontrolled movement or impaired recovery capability. Do not bypass an arrester or continue a lateral traverse to finish a small area.
1. Legal and technical scope
| Basis | Application limits |
|---|---|
| OSHA · 1926.451 | Read relevant fall-protection and independent-lifeline clauses, especially (g)(3); no equipment design certification. |
United States: OSHA 1926.451 scaffold provisions were consulted. Determine whether the job is construction or a general-industry rope-descent activity; state-plan requirements may add duties. Paid ANSI/ASSP standards were not read.
1926.451(g)(3) requires the applicable vertical lifeline to be independent of the scaffold and protected from sharp edges; scaffold and fall-protection anchors must not be conflated. The retained 5,000 lb title does not certify every working suspension anchor.
2. Scope and required inputs
Included scope
This revision covers planning, rigging, protected transfer, controlled descent, light facade painting, recovery and handover of a single-person suspended chair. First assess a scaffold or elevating platform that avoids prolonged suspension.
Separate review
Powered cradles, crane-suspended baskets, improvised seats, structural demolition and specialist rope rescue are outside this reference. Rope access and a suspension scaffold are not interchangeable regulatory categories.
| Required input | What to verify |
|---|---|
| Select access | Access assessment · Approved work scope · Rescue demonstration · Exclusion plan |
| Verify anchors | Anchor design · Independent load paths · Equipment records · Rescue load case |
| Rig and protect | Edge route inspection · Connector orientation · End protection · Compatibility evidence |
| Board the chair | Transfer arrangement · Backup connection · Buddy check · Tool retention |
| Inspect and hand over | Inspection record · Quarantine identity · Storage conditions · Handover responsibility |
The retained title is not an anchor certificate. Do not adopt a universal 15 kN, 22 kN, rope diameter, knot tail, wind speed or side-reach angle from the original. The competent design must cover the actual system, support structure, fall clearance and rescue load. No actual equipment manual or paid standard was audited.
Select a compatible full-body fall-protection system, seating support, connectors and helmet for the actual arrangement; the seat is not the fall-arrest harness. Select eye, skin and respiratory protection from coating data and exposure assessment. Do not attach tool tethers where they compromise the life-safety system.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Technical and procedural controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Select access | 1. Fall at roof edge2. Unsuitable chair3. Delayed rescue4. Public exposure | 1. Platform option skipped2. Work scope unclear3. No rescue route4. Open pavement | 1. Assess safer access2. Define chair limits3. Plan assisted recovery4. Barrier the drop zone | 1. Access assessment2. Approved work scope3. Rescue demonstration4. Exclusion plan | ||||
| 2. Verify anchors | 1. Anchor pull-out2. Shared failure3. Rope rupture4. Roof overload | 1. Unverified structure2. Common weak support3. Damaged rope4. Unknown loads | 1. Verify load paths2. Separate safety system3. Reject damaged lines4. Check roof capacity | 1. Anchor design2. Independent load paths3. Equipment records4. Rescue load case | ||||
| 3. Rig and protect | 1. Edge cutting2. Connector opening3. Rope run-out4. Device mismatch | 1. Moving edge pad2. Cross-loaded gate3. Insufficient length4. Wrong rope diameter | 1. Secure edge protection2. Lock rated connectors3. Check full rope reach4. Match rope and device | 1. Edge route inspection2. Connector orientation3. End protection4. Compatibility evidence | ||||
| 4. Board the chair | 1. Unprotected transfer2. Shock loading3. Harness misconnection4. Dropped tools | 1. Backup attached late2. Jump into seat3. Wrong attachment point4. Loose containers | 1. Connect before exposure2. Transfer under control3. Check harness routing4. Secure tools and paint | 1. Transfer arrangement2. Backup connection3. Buddy check4. Tool retention | ||||
| 5. Descend and work | 1. Pendulum impact2. Rope abrasion3. Solvent damage4. Paint inhalation | 1. Side reach excessive2. Guard displaced3. Spilled coating4. Wrong respirator | 1. Remain in planned lane2. Watch both rope paths3. Keep chemicals off ropes4. Control coating exposure | 1. Weather and movement2. Protector position3. Coating safety data4. Respiratory selection | ||||
| 6. Respond to defect | 1. Suspended casualty2. Continued line damage3. Rescuer fall4. Uncontrolled lowering | 1. Alarm ignored2. Blind continued descent3. Improvised rescue4. Wrong control action | 1. Stop and communicate2. Secure safe position3. Use planned rescue team4. Quarantine damaged kit | 1. Casualty location2. Safe recovery route3. Rescue team readiness4. Defect isolation | ||||
| 7. Land and recover | 1. Early disconnection2. Falling equipment3. Trip at landing4. Tensioned release | 1. Unstable landing2. Loose bucket3. Uncontrolled rope loop4. Anchor untied loaded | 1. Reach safe landing2. Keep attachment until safe3. Recover kit in bags4. Unload before de-rigging | 1. Landing clearance2. Safe disconnection point3. Tool count4. Zero suspended load | ||||
| 8. Inspect and hand over | 1. Hidden rope damage2. Unsafe reuse3. Chemical contamination4. Unprotected roof edge | 1. No post-use check2. Defect unrecorded3. Wrong cleaning method4. Barriers removed early | 1. Inspect contact zones2. Tag and isolate defects3. Clean per instructions4. Hand over roof protection | 1. Inspection record2. Quarantine identity3. Storage conditions4. Handover responsibility |
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.

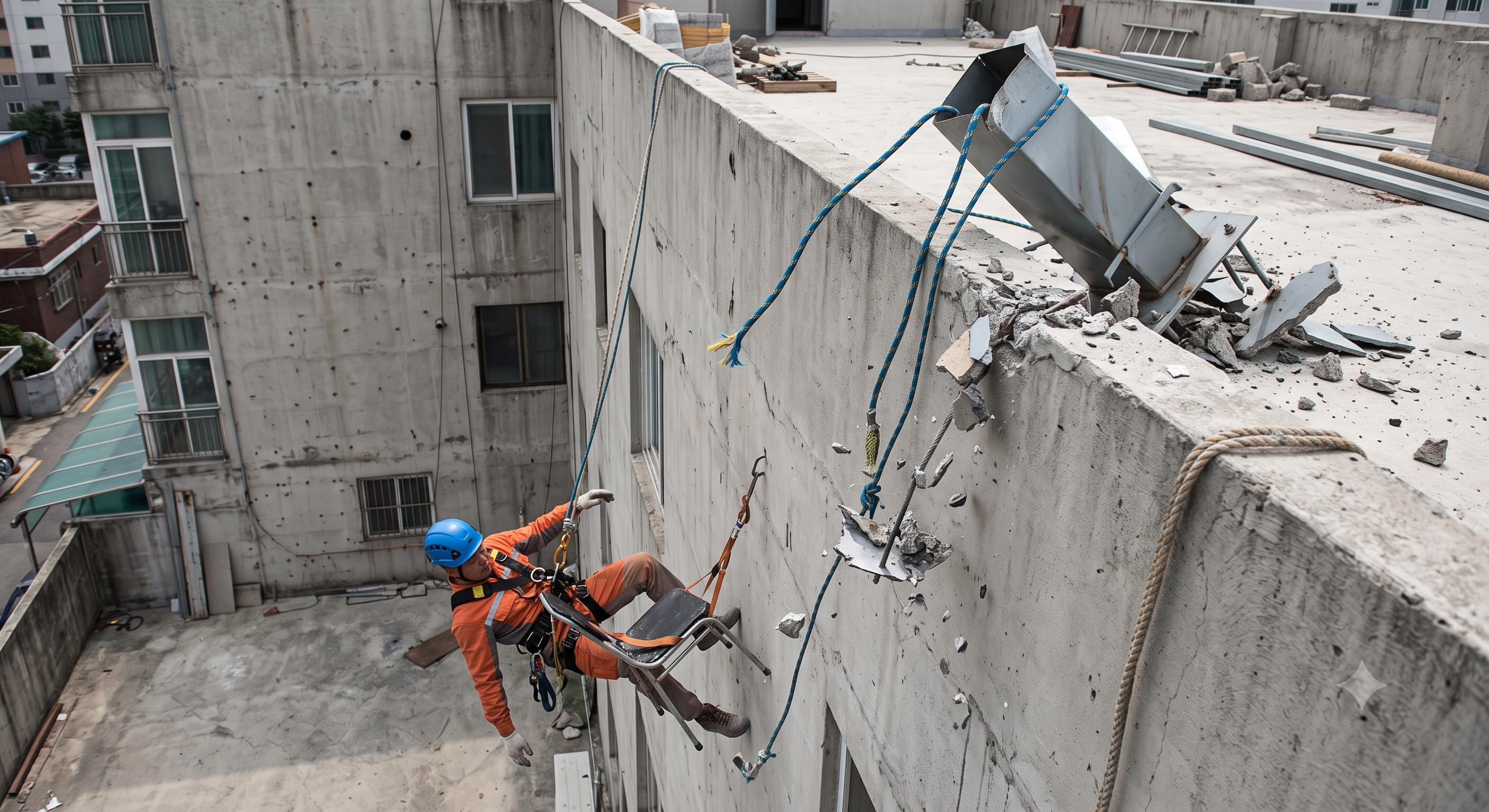

4. Fictional scenario and failure mechanisms
Retained educational illustration; not evidence of an actual incident or site suitability. Its creation method, including possible AI use, has not been verified.
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Item | Fictional scenario |
|---|---|
| Initial situation | A painter proposes moving sideways around a facade return. |
| Changed condition | Both ropes cross the same coping joint; one protector has shifted. |
| Failure path | Anchor independence below the roof finish and the new rope path are unverified. |
| Possible outcome | Hold the transfer or move to the planned safe recovery point; do not continue to test the rope by loading it. |
| Prevention barrier | Obtain a support assessment, protected routes and a rehearsed recovery method before a new work release. |
Failure mechanisms
Separate attachment labels do not eliminate a shared weak host structure or common cutting edge.
Lateral movement changes rope contact and pendulum exposure; a protector must remain effective as the lines move.
A simple weight or energy equation does not predict the peak arrest force of a complete harness, rope, absorber and anchor system.
Decision sequence
| Decision stage | What to verify |
|---|---|
| Known facts | Locate the actual load-bearing supports and both rope paths. |
| Unresolved matters | Identify missing structural, compatibility and rescue evidence. |
| Reason to hold | Hold access while either protection path is uncertain. |
| Required evidence | Record competent design, rigging inspection and controlled rescue demonstration. |
| Restart decision | Release only the defined work lane; reassess each relocation. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Unknown anchor | Hold loading; obtain structural assessment | Anchor identity, design and installation record | Load paths verified |
| Shifted edge guard | Stop; reposition and secure protection | Inspection across full working movement | Both rope paths protected |
| Wind or lateral motion | Recover to safe location; reassess method | Weather record and system limits | Movement within plan |
| Damaged line | Isolate line; replace and inspect system | Defect record and replacement compatibility | Defective line excluded |
Similar situations, different decisions
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Comparison | Situation A | Situation B |
|---|---|---|
| Two attachment points | Two eyes on an unverified sheet-metal housing | Separate systems with verified host load paths |
| Rope looks intact | Only a distant visual check | Identity, tactile inspection and contact-zone check |
| Worker has landed | Feet touch an unstable ledge | Safe standing and disconnection point confirmed |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Select access | Assign access planner · Check alternatives · Name rescue lead |
| Verify anchors | Commission anchor design · Check common failure · Verify rescue loading |
| Rig and protect | Approve rope/device pairing · Assign edge inspection · Record rigging check |
| Board the chair | Brief transfer sequence · Verify backup connection · Control public exclusion |
| Respond to defect | Maintain work suspension · Coordinate recovery team · Require defect release |
| Inspect and hand over | Transfer equipment history · Control quarantined kit · Assign roof handover |
Supervision, records, handover
| Job stage | Technical and procedural controls | Site verification |
|---|---|---|
| Select access | 1. Assign access planner2. Check alternatives3. Name rescue lead | 1. Access assessment2. Approved work scope3. Rescue demonstration |
| Verify anchors | 1. Commission anchor design2. Check common failure3. Verify rescue loading | 1. Anchor design2. Independent load paths3. Equipment records |
| Rig and protect | 1. Approve rope/device pairing2. Assign edge inspection3. Record rigging check | 1. Edge route inspection2. Connector orientation3. End protection |
| Board the chair | 1. Brief transfer sequence2. Verify backup connection3. Control public exclusion | 1. Transfer arrangement2. Backup connection3. Buddy check |
| Respond to defect | 1. Maintain work suspension2. Coordinate recovery team3. Require defect release | 1. Casualty location2. Safe recovery route3. Rescue team readiness |
| Inspect and hand over | 1. Transfer equipment history2. Control quarantined kit3. Assign roof handover | 1. Inspection record2. Quarantine identity3. Storage conditions |
7. Hold points and record comparison
| Hold point | Evidence before release | Confirmation / approval |
|---|---|---|
| Start | This revision covers planning, rigging, protected transfer, controlled descent, light facade painting, recovery and handover of a single-person suspended chair. First assess a scaffold or elevating platform that avoids prolonged suspension. | |
| HP-1 Verify anchors | Anchor design · Independent load paths · Equipment records · Rescue load case | |
| HP-2 Rig and protect | Edge route inspection · Connector orientation · End protection · Compatibility evidence | |
| HP-3 Board the chair | Transfer arrangement · Backup connection · Buddy check · Tool retention | |
| HP-4 Respond to defect | Casualty location · Safe recovery route · Rescue team readiness · Defect isolation |
Complete after actual checks. Recheck after changes, defects or shift handover.
Record comparison examples
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
The boxes are static record prompts, not interactive or saved approvals. A tick does not establish suitability or permission to restart. Record the evidence, person, time and unresolved issues; retain the change history.
| Record type | Insufficient record | Record checklist |
|---|---|---|
| Verify anchors | Checked. | □ Anchor design□ Independent load paths□ Equipment records□ Rescue load case |
| Rig and protect | Checked. | □ Edge route inspection□ Connector orientation□ End protection□ Compatibility evidence |
| Board the chair | Checked. | □ Transfer arrangement□ Backup connection□ Buddy check□ Tool retention |
| Inspect and hand over | Checked. | □ Inspection record□ Quarantine identity□ Storage conditions□ Handover responsibility |
8. Site checklist and emergency response
| Check item | Result | Person / action |
|---|---|---|
| □ Select access: Access assessment | ||
| □ Verify anchors: Anchor design | ||
| □ Rig and protect: Edge route inspection | ||
| □ Board the chair: Transfer arrangement | ||
| □ Descend and work: Weather and movement | ||
| □ Respond to defect: Casualty location | ||
| □ Land and recover: Landing clearance | ||
| □ Inspect and hand over: Inspection record | ||
| □ Release / handover authority |
Stop work
Stop for rope damage, displaced edge protection, uncertain anchors, loss of communication, uncontrolled movement or impaired recovery capability. Do not bypass an arrester or continue a lateral traverse to finish a small area.
Emergency response
Use the planned assisted recovery with trained personnel and compatible equipment. Maintain communication, protect rescuers and call the designated emergency service. Do not improvise another person on the same anchor or cut a loaded line; rapid recovery must follow the assessed method.
9. Sources and review limits
2026-10-12
| Source | Scope and limitations |
|---|---|
| OSHA · 1926.451 | Read relevant fall-protection and independent-lifeline clauses, especially (g)(3); no equipment design certification. |
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site authorisation are required before use.
10. PDF guidance and FAQ
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
Content group ID
jsa-suspended-scaffold
What work does this reference cover?
This revision covers planning, rigging, protected transfer, controlled descent, light facade painting, recovery and handover of a single-person suspended chair. First assess a scaffold or elevating platform that avoids prolonged suspension.
Do the headline numbers prove the site is safe?
The retained title is not an anchor certificate. Do not adopt a universal 15 kN, 22 kN, rope diameter, knot tail, wind speed or side-reach angle from the original. The competent design must cover the actual system, support structure, fall clearance and rescue load. No actual equipment manual or paid standard was audited.
Which personal protection is needed?
Select a compatible full-body fall-protection system, seating support, connectors and helmet for the actual arrangement; the seat is not the fall-arrest harness. Select eye, skin and respiratory protection from coating data and exposure assessment. Do not attach tool tethers where they compromise the life-safety system.
What happens if rescue is required?
Use the planned assisted recovery with trained personnel and compatible equipment. Maintain communication, protect rescuers and call the designated emergency service. Do not improvise another person on the same anchor or cut a loaded line; rapid recovery must follow the assessed method.
Has a professional verified or approved this document?
No. Public sources and editorial, layout and consistency checks were reviewed using AI. No site inspection or professional technical approval has been performed. Obtain appropriate professional review before use.
11. Revision history and authorship
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site authorisation are required before use.
| Date | Version | Change | Review status |
|---|---|---|---|
| 2026-09-06 | Original version unmarked | Original preserved | No professional approval |
| 2026-10-12 | 2026.10.12 | Decisions, records, JSA and PDFs revised | No professional approval |
The original incident, death, investigation, fines and force estimates were unsupported as factual history. They are replaced by an explicit hypothetical decision example. Preserved useful independent-line, edge-protection, tool-retention and recovery controls; removed universal numeric guarantees and unsupported professional approval.
