Flux identity, wire pairing and storage history matter even when granules look dry. An unmarked container cannot be accepted by appearance. Identify any joints already welded with uncertain material.
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
Stop before proceeding
Stop if flux untraceable, rail condition unknown, feed adjustment needed. Keep the affected operation on hold until the listed evidence and proceed conditions are satisfied; a low risk score does not release missing safeguards.
1. Legal and technical scope
General-industry fabrication uses applicable 1910.252 welding controls, 1910.212 guarding and 1910.147 for covered servicing. Construction welding uses the applicable Part 1926 provisions, including 1926.352. Lincoln guidance is product-specific technical material; use the actual consumable SDS, equipment instructions and approved WPS. No universal redrying temperature, time or recycled-flux ratio is adopted.
Confirm whether federal OSHA or an OSHA-approved State Plan covers this employer and worksite; state requirements and public-sector coverage can differ. Apply the task-specific provisions and limitations identified above.
| Basis | Application |
|---|---|
| OSHA 29 CFR 1910.252 | Welding fire, exposure and protective arrangements. |
| OSHA 29 CFR 1910.147 | Carriage and feed servicing energy control. |
| OSHA 29 CFR 1926.352 | Construction welding fire prevention where that work classification applies. |
| Lincoln submerged arc flux safe use | 2018 guide reviewed for electrical, fume and heat hazards; actual current product SDS still required. |
| Lincoln storage and handling M-14 | PDF page 627 reviewed for product-dependent storage, redrying and recycling; not a full catalog review. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-13. Individual state rules require a site-specific check. |
2. Scope and required inputs
Included scope
Prepare plate, fixtures and rail carriage; control wire and flux identity; perform automatic submerged arc welding; then stop, isolate, cool, recover flux, inspect and hand over joints.
Separate assessment
Integrated positioners or roller beds, multielectrode changes, internal electrical repair and improvised regeneration of unidentified flux require separate review.
| Input | Evidence needed |
|---|---|
| Identify joint and WPS | Joint and base material; Wire flux and WPS; Fixture and fit; Fire and ventilation plan. |
| Prepare consumables | Flux lot and packaging; Storage and drying; Recovery permission; Wire and feed guard. |
| Run automatic weld | Operator and stop; Travel and heat; Fire and extraction; Joint conditions. |
| Close and handoff | Temperature marking; Parking and power; Open-item disposition; Weld consumable history. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Technical and procedural controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Identify joint and WPS | 1. Wrong weld properties2. Joint moves3. Fire4. Untraceable weld | 1. Wire flux mismatch2. Fixture inadequate3. Fuel nearby4. Joint ID absent | 1. Match approved pairing2. Verify plate support3. Plan hot-work controls4. Identify weld intervals | 1. Joint and base material2. Wire flux and WPS3. Fixture and fit4. Fire and ventilation plan | ||||
| 2. Set rail carriage | 1. Carriage falls2. Pinch injury3. Cable pulls4. Unexpected travel | 1. Rail loose2. Access unguarded3. Cable too short4. Stop defective | 1. Secure rated rail support2. Control travel boundary3. Provide cable allowance4. Check travel stop functions | 1. Rail and end stops2. Carriage stability3. Cable path4. Stop and exclusion | ||||
| 3. Prepare consumables | 1. Dust exposure2. Defective weld3. Mixed flux4. Wire-feed injury | 1. SDS ignored2. Storage unknown3. Container unlabeled4. Feed accessed live | 1. Control handling dust2. Verify storage history3. Keep lots identified4. Isolate feed for access | 1. Flux lot and packaging2. Storage and drying3. Recovery permission4. Wire and feed guard | ||||
| 4. Check power and setup | 1. Electric shock2. Wrong heat input3. Unexpected feed4. Fume exposure | 1. Insulation damaged2. Polarity wrong3. Guard bypassed4. Extraction absent | 1. Inspect welding circuit2. Match approved settings3. Verify feed protection4. Check exposure controls | 1. Insulation and return2. Polarity current speed3. Feed guard4. Ventilation and PPE | ||||
| 5. Run automatic weld | 1. Carriage crush2. Hot-metal burn3. Fire4. Weld defect | 1. Person in travel path2. Flux hides heat3. Watch absent4. Conditions drift | 1. Keep travel area clear2. Mark hot work zone3. Maintain fire controls4. Monitor recorded settings | 1. Operator and stop2. Travel and heat3. Fire and extraction4. Joint conditions | ||||
| 6. Recover and inspect | 1. Hot slag burn2. Unexpected motion3. Flux contamination4. Defect hidden | 1. Cooling assumed2. Stop only trusted3. Recovered lots mixed4. Slag masks weld | 1. Isolate before access2. Verify cooling3. Separate recovered flux4. Perform specified examination | 1. Isolation and rest2. Temperature and slag3. Recovered flux status4. Joint inspection | ||||
| 7. Hold uncertain flux | 1. Repeat defect2. Affected joint lost3. Unsafe rework4. Unapproved restart | 1. New flux seen as cure2. Usage map absent3. Cause unreviewed4. History ignored | 1. Quarantine uncertain material2. Identify prior intervals3. Obtain technical disposition4. Release new work separately | 1. Container and lot2. Affected weld range3. Examination and repair4. Restart authority | ||||
| 8. Close and handoff | 1. Hot joint contact2. Carriage moves3. Unaccepted weld used4. Consumable history lost | 1. Heat unmarked2. Park unsecured3. Open defects4. Records separated | 1. Mark residual heat2. Secure carriage and power3. Close required examinations4. Transfer joint and lot records | 1. Temperature marking2. Parking and power3. Open-item disposition4. Weld consumable history |
P = likelihood; S = severity; R = risk under the site method; A = the site-defined acceptance/authorization decision. Complete only after actual assessment. Blank cells and checklist prompts are not completed inspections.
4. Fictional scenario and failure mechanisms

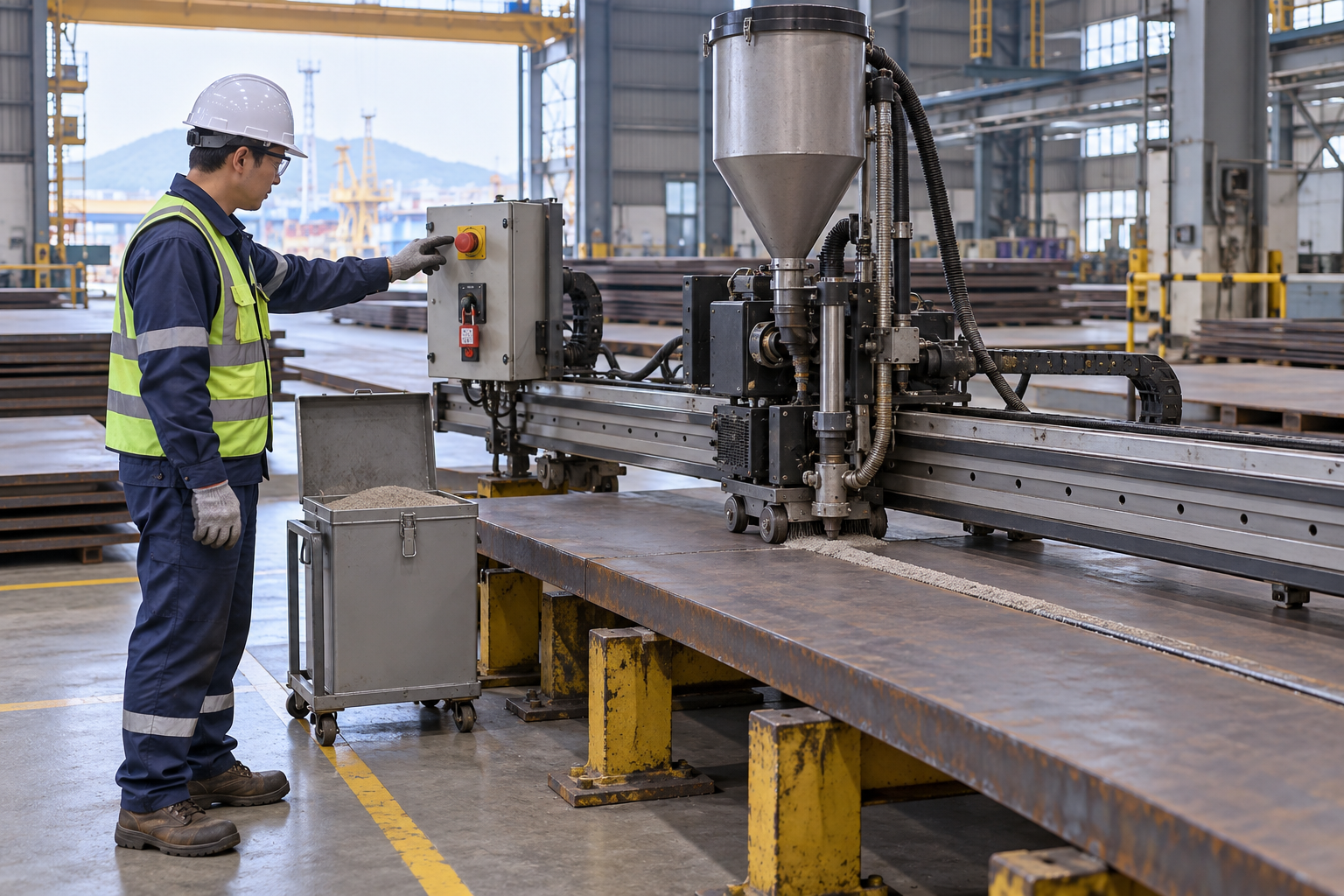

Retained AI-generated educational illustration from the source edition; not a real incident photograph, approved installation drawing or evidence of equipment suitability.
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Item | Fictional scenario |
|---|---|
| Initial | An opened flux container is ready for the next joint. |
| Change | Its label and storage history are missing. |
| Failure | Dry appearance is treated as proof of suitability. |
| Outcome | Consumable conformity and affected weld coverage cannot be established. |
| Barrier | Hold the container, identify prior weld intervals and separately decide material disposition, joint examination and new-work release. |
Why the controls matter
Flux identity, wire pairing and storage history matter even when granules look dry. An unmarked container cannot be accepted by appearance. Identify any joints already welded with uncertain material.
Redrying does not universally correct contamination or missing traceability. First establish product identity and permission to reuse, then follow its specified process. New flux does not retrospectively accept earlier welds.
Emergency stopping the carriage does not isolate wire feed, power or residual motion for access. Flux can hide hot metal and slag; verify safe access and temperature before recovery and cleaning.
Decision sequence
| Step | Decision |
|---|---|
| Known | Its label and storage history are missing. |
| Unknown | Actual condition, extent of damage and suitability of operator and stop, travel and heat remain to be established. |
| Hold | Dry appearance is treated as proof of suitability. |
| Evidence | Link operator and stop, travel and heat, fire and extraction, joint conditions, container and lot, affected weld range to the affected equipment or work area. |
| Next | Hold the container, identify prior weld intervals and separately decide material disposition, joint examination and new-work release. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Flux untraceable | Hold container and affected joints | Lot storage and usage map | Disposition established |
| Rail condition unknown | Hold travel | Support stops and cable path | Travel envelope verified |
| Feed adjustment needed | Stop and isolate | Power feed and residual motion | Safe access verified |
| New flux installed | Review earlier welds separately | Affected joints and examination | Both releases documented |
Similar appearance, different evidence
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Comparison | Supported decision | Insufficient basis |
|---|---|---|
| Condition | Lot storage and usage map | Flux untraceable has not been resolved. |
| Evidence | Power feed and residual motion | A photograph or a completed-looking task without the relevant inspection record. |
| Release | Both releases documented | Completion of one step does not release the excluded tasks in section 2. |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Assign the task boundary, stop authority, interfaces and emergency communication for submerged arc welding with rail carriage. |
| Technical lead | Confirm Joint and base material; Wire flux and WPS; Fixture and fit; Fire and ventilation plan. Resolve design and manufacturer limits before work. |
| Authorized crew | Apply Flux lot and packaging; Storage and drying; Recovery permission; Wire and feed guard. Stop when the working arrangement changes. |
| Inspector / receiving lead | Review Operator and stop; Travel and heat; Fire and extraction; Joint conditions. Transfer Temperature marking; Parking and power; Open-item disposition; Weld consumable history. |
Role labels allocate responsibilities; they do not confer a legal qualification. Verify the competence, training and authority required for the actual task.
Record and handoff perspective
| Stage | Record controls | Verification |
|---|---|---|
| Identify joint and WPS | 1. Record joint and base material2. Record wire flux and wps3. Record fixture and fit | 1. Wire flux and WPS2. Fixture and fit3. Fire and ventilation plan |
| Prepare consumables | 1. Record flux lot and packaging2. Record storage and drying3. Record recovery permission | 1. Storage and drying2. Recovery permission3. Wire and feed guard |
| Check power and setup | 1. Record insulation and return2. Record polarity current speed3. Record feed guard | 1. Polarity current speed2. Feed guard3. Ventilation and PPE |
| Run automatic weld | 1. Record operator and stop2. Record travel and heat3. Record fire and extraction | 1. Travel and heat2. Fire and extraction3. Joint conditions |
| Hold uncertain flux | 1. Record container and lot2. Record affected weld range3. Record examination and repair | 1. Affected weld range2. Examination and repair3. Restart authority |
| Close and handoff | 1. Record temperature marking2. Record parking and power3. Record open-item disposition | 1. Parking and power2. Open-item disposition3. Weld consumable history |
7. Hold points and record comparison
| Hold point | Evidence before release | Actual record |
|---|---|---|
| HP-0 Start | Prepare plate, fixtures and rail carriage; control wire and flux identity; perform automatic submerged arc welding; then stop, isolate, cool, recover flux, inspect and hand over joints. | |
| HP-1 Set rail carriage | Rail and end stops; Carriage stability; Cable path; Stop and exclusion | |
| HP-2 Prepare consumables | Flux lot and packaging; Storage and drying; Recovery permission; Wire and feed guard | |
| HP-3 Recover and inspect | Isolation and rest; Temperature and slag; Recovered flux status; Joint inspection | |
| HP-4 Close and handoff | Temperature marking; Parking and power; Open-item disposition; Weld consumable history |
These are internal hold points, not issued permits. Recheck affected points after a change, fault or shift handoff; link the actual approval record.
Record comparison
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
The boxes are static record prompts, not interactive or saved approvals. A tick does not establish suitability or permission to restart. Record the evidence, person, time and unresolved issues; retain the change history.
| Record | Insufficient | Record checklist |
|---|---|---|
| Identify joint and WPS | "Checked" without target, criteria or result | □ Joint and base material□ Wire flux and WPS□ Fixture and fit□ Fire and ventilation plan |
| Prepare consumables | "Checked" without target, criteria or result | □ Flux lot and packaging□ Storage and drying□ Recovery permission□ Wire and feed guard |
| Run automatic weld | "Checked" without target, criteria or result | □ Operator and stop□ Travel and heat□ Fire and extraction□ Joint conditions |
| Close and handoff | "Checked" without target, criteria or result | □ Temperature marking□ Parking and power□ Open-item disposition□ Weld consumable history |
8. Site checklist and emergency response
| Check | Result | Person / action |
|---|---|---|
| □ Identify joint and WPS: Joint and base material | ||
| □ Set rail carriage: Rail and end stops | ||
| □ Prepare consumables: Flux lot and packaging | ||
| □ Check power and setup: Insulation and return | ||
| □ Run automatic weld: Operator and stop | ||
| □ Recover and inspect: Isolation and rest | ||
| □ Hold uncertain flux: Container and lot | ||
| □ Close and handoff: Temperature marking | ||
| □ Emergency access and handoff restrictions |
Stop work
Stop if flux untraceable, rail condition unknown, feed adjustment needed. Keep the affected operation on hold until the listed evidence and proceed conditions are satisfied; a low risk score does not release missing safeguards.
Emergency response
Stop from a safe location, exclude people from the affected danger zone and activate the site emergency plan. Call 911 for injury or immediate danger. Do not enter an unstable, energized or confined danger area for an improvised rescue; trained responders must control the specific energy and access hazards.
9. Sources and review limits
Public-source review: 2026-10-14. Official regulation pages and specific technical references are distinguished below; no agency or manufacturer has approved this content.
| Source | Reviewed scope and limitation |
|---|---|
| OSHA 29 CFR 1910.252 | Welding fire, exposure and protective arrangements. |
| OSHA 29 CFR 1910.147 | Carriage and feed servicing energy control. |
| OSHA 29 CFR 1926.352 | Construction welding fire prevention where that work classification applies. |
| Lincoln submerged arc flux safe use | 2018 guide reviewed for electrical, fume and heat hazards; actual current product SDS still required. |
| Lincoln storage and handling M-14 | PDF page 627 reviewed for product-dependent storage, redrying and recycling; not a full catalog review. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-13. Individual state rules require a site-specific check. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
10. PDF guidance and FAQ
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
Content group
jsa-submerged-arc
Is dry-looking flux acceptable?
Only with verified identity, storage and approved pairing.
Can all questionable flux be redried?
No. Follow product-specific reuse criteria after resolving identity and contamination.
Does emergency stop allow nozzle adjustment?
No. Establish the required isolation and safe access state.
Does new flux release earlier joints?
No. Track and assess the prior affected intervals separately.
Has a professional approved this JSA?
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
11. Revision history and authorship
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
Korean source created 2026-09-20. This US edition adapts the Korean source; earlier editorial revisions do not constitute professional approval of this edition.
| Date | Edition | Change | Review status |
|---|---|---|---|
| 2026-09-20 | Korean source v1.0 | Source editorial publication or revision; retained as provenance of the Korean edition. | Editorial record only; no professional approval of this US edition. |
| 2026-09-23 | Korean source v1.1 | Source editorial publication or revision; retained as provenance of the Korean edition. | Editorial record only; no professional approval of this US edition. |
| 2026-10-14 | 1.0 | US localization: preserve task judgments; replace Korean legal applicability with scoped US references. | AI editorial and output checks; no professional technical approval. |
