Solar Module Roof Lifting and Mounting JSA

Solar Module Roof Lifting and Mounting JSA: task-specific hazards, stop conditions, evidence gates and three blank worksheets. AI reference requiring qualified site review.

Controlled lifting, temporary roof staging and mechanical mounting of identified photovoltaic modules on an accepted roof, with protected DC leads and a separate electrical handover.

Hold for unknown temporary roof capacity, unprotected skylights or edges, changed landing location, uncontrolled wind effects, damaged modules or leads, wrong clamps, failed weatherproofing or loss of safe access.

Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.

1. Legal and technical scope

For construction installation, use the applicable OSHA 1926 fall-protection and lifting provisions. Section 1926.501 includes walking-surface integrity and edge or opening hazards; do not assume a roofing-work exception applies merely because solar installation occurs on a roof. Determine electrical requirements from the actual construction or maintenance activity and system. Electrical installation and commissioning are outside this mechanical-lifting JSA.

Determine Federal OSHA or the applicable OSHA-approved State Plan, including public/private employer coverage. State Plans must be at least as effective and can impose different or additional requirements. The actual activity determines construction versus general-industry scope. Manufacturer instructions, consensus standards, project design and site approvals have distinct roles; this page is not a finding of nationwide compliance.

BasisApplication and limits
OSHA 1926.501Walking-surface strength and applicable fall protection; actual roof and access conditions govern.
OSHA Solar Energy: FallsSolar installation access, skylight hazards and safe lifting guidance. Construction and maintenance scopes differ.
OSHA Solar Energy: ElectricalShock and arc hazards and the need to determine the applicable electrical work scope. Its summary is not an authorization for live work.
OSHA 1926.251Applicable construction rigging controls; actual lifting equipment may have additional requirements.

2. Scope and required inputs

Included: Controlled lifting, temporary roof staging and mechanical mounting of identified photovoltaic modules on an accepted roof, with protected DC leads and a separate electrical handover.

Separate review: Live string wiring, load-breaking connector work, commissioning, structural redesign, fragile-roof repair and unreviewed changes to lifting or staging require separate procedures.

InputRequired evidence
Review roof and stagingSupport and roof evidence; Bundle worker and equipment loads; Fragile areas and access; Module and layout IDs
Establish roof accessRoof-edge protection; Skylight and opening controls; Safe access and tool control; Rescue route and equipment
Install rails and modulesRail clamp and module match; Attachment zone and tightening; Penetration and seal inspection; Module glass and frame condition
Inspect and hand overAttachment and module checks; DC lead and electrical status; Roof seal and access condition; Receiving owner and restrictions

Review temporary concentrated loads from bundles, workers and equipment as well as final installed loads. Confirm roof and support drawings, fragile areas, lift configuration, module packaging and wind limits, landing restraints, compatible rails and clamps, attachment zones and actual tightening requirements. No universal wind speed, roof load, clamp location or torque is assigned.

3. Eight-stage JSA

P = likelihood; S = severity; R = risk under the site method; A = acceptance or authorization as defined by the site. Leave these blank until actual assessment and control verification. A low score does not override a legal requirement, product limit or unreleased hold point.

Job stageHazards and effectsFailure factorsRequired controlsSite verificationPSRA
1. Review roof and staging1. Local roof collapse2. Fall through fragile area3. Blocked rescue route4. Wrong module installation1. Bundle point load omitted2. Skylight strength assumed3. Staging covers access4. Module IDs mixed1. Review temporary load map2. Identify fragile roof zones3. Preserve protected routes4. Match modules and drawings1. Support and roof evidence2. Bundle worker and equipment loads3. Fragile areas and access4. Module and layout IDs
2. Prepare lifting operation1. Falling modules2. Wind-driven load strike3. Rigging failure4. Power-line contact1. Package lift method unknown2. Wind limits unreviewed3. Lift gear unsuitable4. Overhead route ignored1. Use approved package lift2. Apply actual weather limits3. Inspect rated lifting equipment4. Review route and utilities1. Package weight and center2. Wind and lift orientation3. Rigging and equipment basis4. Clear route and exclusion
3. Establish roof access1. Edge fall2. Skylight fall3. Dropped-tool injury4. Delayed rescue1. Protection incomplete2. Opening mistaken for floor3. Tools unsecured4. Rescue access blocked1. Install required fall protection2. Protect openings and weak areas3. Control tools and area below4. Verify rescue arrangement1. Roof-edge protection2. Skylight and opening controls3. Safe access and tool control4. Rescue route and equipment
4. Lift land and restrain1. Bundle slide2. Panel uplift3. Roof overload4. Worker crushed by load1. Restraint absent2. Lift released too early3. Landing point changed4. Hands under package1. Land at accepted location2. Apply planned wind restraint3. Hold changed staging locations4. Keep clear of load pinch zones1. Actual landing location2. Temporary load distribution3. Stability and restraint check4. Release authority
5. Install rails and modules1. Module detachment2. Roof leakage3. Glass breakage4. Fastener failure1. Wrong clamp combination2. Penetration seal damaged3. Module used as walkway4. Torque or zone improvised1. Match mounting components2. Apply specified weatherproofing3. Keep people off modules4. Use actual attachment requirements1. Rail clamp and module match2. Attachment zone and tightening3. Penetration and seal inspection4. Module glass and frame condition
6. Protect DC leads1. Electric shock2. DC arc injury3. Damaged insulation4. Wrong electrical handover1. AC off treated as DC safe2. Connector opened under load3. Lead pinched under module4. Damaged parts left unmarked1. Treat generation as possible2. Exclude live connector work3. Protect and secure leads4. Identify electrical restrictions1. Lead and connector condition2. Cable routing and protection3. Qualified electrical owner4. Electrical work boundary
7. Hold changes or damage1. Repeated overload2. Damaged module use3. Uncontrolled wind exposure4. Lost fall protection1. New bundle point unreviewed2. Cracks dismissed3. Weather changes ignored4. Route narrows unnoticed1. Stop affected work2. Quarantine damaged components3. Recheck actual weather limits4. Restore protected access1. Changed location and load2. Damage and disposition3. Wind and restraint condition4. Access and rescue continuity
8. Inspect and hand over1. Hidden mounting defect2. Unaccepted electrical use3. Water intrusion4. Open roof hold forgotten1. Clamp check omitted2. Mechanical completion equals start3. Seal check skipped4. Restrictions not transferred1. Inspect mounting and roof2. Separate electrical acceptance3. Record weatherproofing status4. Transfer layout and holds1. Attachment and module checks2. DC lead and electrical status3. Roof seal and access condition4. Receiving owner and restrictions

4. Hypothetical scenario and failure mechanisms

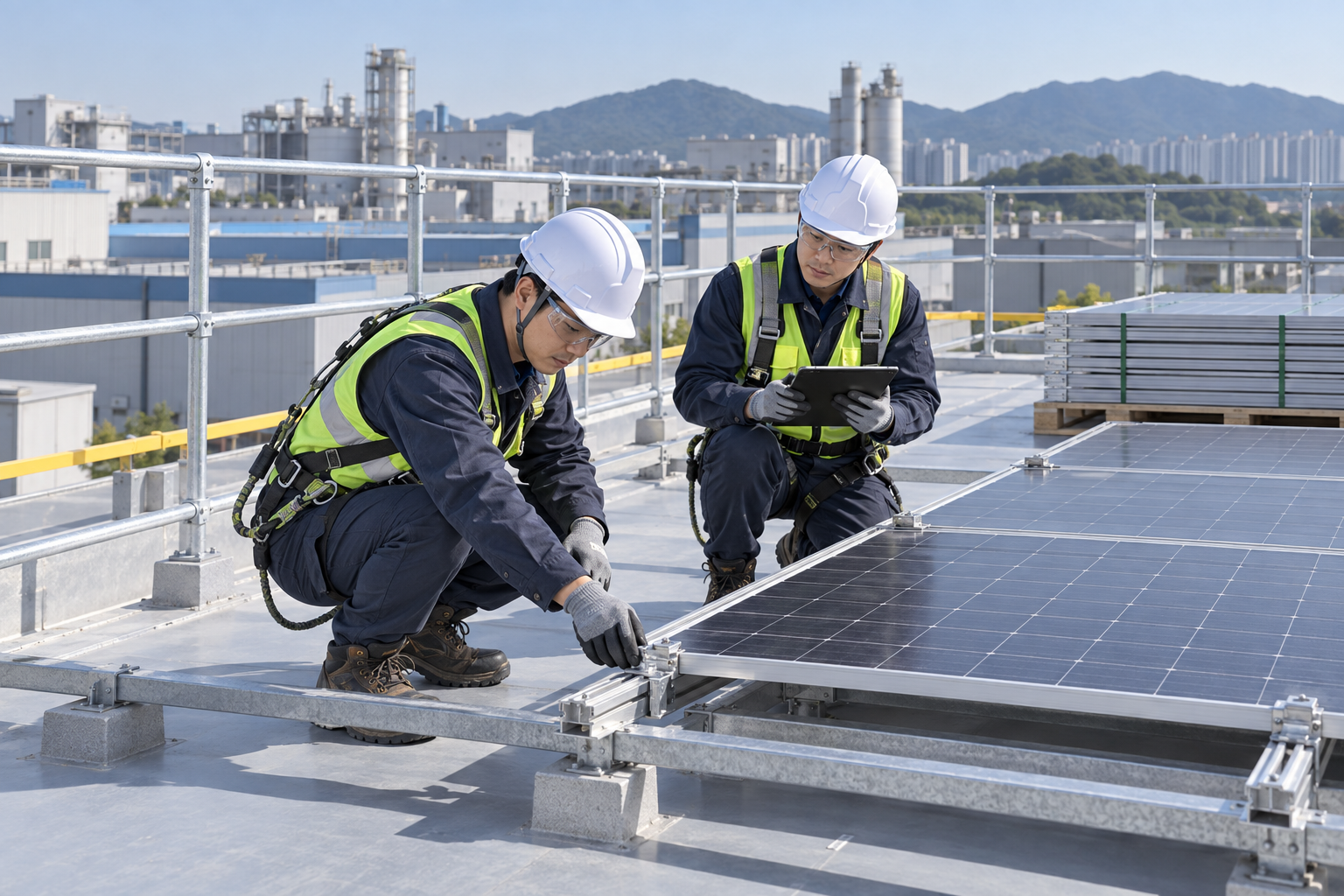

Retained AI-generated educational concept for Solar Module Roof Lifting and MountingRetained source illustration: an AI-generated educational concept, not a real incident photograph or evidence of equipment suitability.

The following scenario, comparisons and example records are hypothetical teaching material. They do not reproduce actual incidents, measurements, signatures or approvals.

ItemHypothetical situation
Initial stateA bundle is scheduled to land at a reviewed roof staging location.
ChangeThe crew moves the landing point beside a skylight to shorten handling distance.
Failure pathThe completed-array structural approval is offered as evidence for the new concentrated bundle load.
Possible harmA temporary local overload or blocked protected route can cause roof failure or a fall through the skylight.
BarrierHold the lift, review the changed temporary load and access arrangement, and resume only after the new landing and restraint conditions are accepted.

A distributed installed array and a tightly stacked bundle impose different loading patterns. Locate the temporary load relative to actual structural supports and include workers and handling equipment. A final-design approval does not automatically accept every staging point.

The exposed area of a module or package can produce substantial wind force. Review the approved lifting orientation, packaging and handling limits, then secure the landed load before releasing the lift. A load touching the roof can still slide, tip or lift.

As modules fill the roof, access routes narrow and can shift toward edges, hatches and skylights. Preserve the planned protected route and rescue access throughout installation. Do not stand or walk on modules to bypass a blocked route.

Illuminated photovoltaic modules can produce DC electricity before connection to an inverter. An AC disconnect does not establish that module leads are safe. Protect and identify leads, quarantine damage and transfer electrical work to qualified personnel under a separate procedure.

DecisionReason and evidence
Known factsThe crew moves the landing point beside a skylight to shorten handling distance.
UnresolvedThe completed-array structural approval is offered as evidence for the new concentrated bundle load.
Hold reasonHold for unknown temporary roof capacity, unprotected skylights or edges, changed landing location, uncontrolled wind effects, damaged modules or leads, wrong clamps, failed weatherproofing or loss of safe access.
Evidence neededRail clamp and module match; Attachment zone and tightening; Penetration and seal inspection; Module glass and frame condition.
Next decisionHold the lift, review the changed temporary load and access arrangement, and resume only after the new landing and restraint conditions are accepted.

5. Conditional decisions and common errors

ConditionActionEvidenceProceed when
Landing location changesHold the lift and review temporary loads.Revised staging and support map.Location accepted.
Wind control uncertainHold lifting and secure staged materials.Actual handling limits and conditions.Conditions accepted.
Lead or glass damagedQuarantine the affected module.Damage and qualified disposition.Component accepted.
Mechanical work completeKeep electrical release separate.Mounting, roof and lead records.Handover boundaries clear.
ComparisonSituation ASituation B
Roof design approvedThe temporary bundle location and point loads are specifically reviewed.Only the completed distributed array is considered.
Bundle landedLanding stability and wind restraints are accepted before release.Roof contact alone is treated as stability.

6. Roles and responsibilities

RoleResponsibility
Work supervisorConfirm scope, task sequence, exclusion and stop authority. Coordinate review roof and staging with affected operations.
Technical reviewerResolve the actual design and equipment limits: Support and roof evidence; Bundle worker and equipment loads; Fragile areas and access; Module and layout IDs.
Work crewPerform establish roof access using the approved procedure; report any mismatch before proceeding.
Inspector / assessorVerify Lead and connector condition; Cable routing and protection; Qualified electrical owner; Electrical work boundary. Record what was actually checked and what remains unresolved.
Release / receiving authorityConfirm Attachment and module checks; DC lead and electrical status; Roof seal and access condition; Receiving owner and restrictions. Transfer restrictions and the next permitted stage.

These are responsibility examples, not invented statutory credentials. Meet the actual training, competent-person, qualified-person and licensing requirements for the assigned work. Anyone may raise a hazard and request a stop; only the designated authority may release the affected stage after evidence is reviewed.

7. Hold points and record comparison

Hold pointEvidence before releaseConfirmation / approval
HP-0 StartScope, jurisdiction, equipment identity, responsible people and emergency arrangements.
HP-1 Review roof and stagingSupport and roof evidence; Bundle worker and equipment loads; Fragile areas and access; Module and layout IDs
HP-2 Establish roof accessRoof-edge protection; Skylight and opening controls; Safe access and tool control; Rescue route and equipment
HP-3 Lift land and restrainActual landing location; Temporary load distribution; Stability and restraint check; Release authority
HP-4 Inspect and hand overAttachment and module checks; DC lead and electrical status; Roof seal and access condition; Receiving owner and restrictions

Hold points are internal evidence gates. They do not replace statutory permits or actual signatures. Recheck affected gates after a change, abnormal event or shift transfer. The blank record must identify the evidence, person, time, limits and release scope.

RecordInsufficient recordRecord checklist
RoofDesign approved□ Support and roof evidence□ Bundle worker and equipment loads□ Fragile areas and access□ Module and layout IDs
LandingBundle down□ Actual landing location□ Temporary load distribution□ Stability and restraint check□ Release authority
MountingClamps look tight□ Rail clamp and module match□ Attachment zone and tightening□ Penetration and seal inspection□ Module glass and frame condition
HandoverAC switched off□ Attachment and module checks□ DC lead and electrical status□ Roof seal and access condition□ Receiving owner and restrictions

The □ boxes are static prompts, not saved or interactive approvals. Each checks one record element. A tick alone does not establish suitability or permission to restart. Link equipment IDs and supporting records; retain unresolved matters and the earlier record when conditions change.

8. Site checklist and emergency response

Check itemResultPerson / action
Support and roof evidence
Package weight and center
Roof-edge protection
Actual landing location
Rail clamp and module match
Lead and connector condition
Changed location and load
Attachment and module checks
Emergency arrangements and unresolved restrictions communicated

Stop work: Hold for unknown temporary roof capacity, unprotected skylights or edges, changed landing location, uncontrolled wind effects, damaged modules or leads, wrong clamps, failed weatherproofing or loss of safe access.

Emergency response: Stop lifting, secure the area and activate the planned roof rescue arrangement for a fall or unstable load. Keep clear of damaged electrical parts and contact the electrical response lead. Call 911 for serious injury; do not improvise an unprotected roof rescue.

9. Sources and review limits

Official-source review date: October 14, 2026. The following review is limited to the public provisions or selected manufacturer material identified below. It does not establish that any authority approved this article or the actual installation.

  • OSHA 1926.501: Walking-surface strength and applicable fall protection; actual roof and access conditions govern.
  • OSHA Solar Energy: Falls: Solar installation access, skylight hazards and safe lifting guidance. Construction and maintenance scopes differ.
  • OSHA Solar Energy: Electrical: Shock and arc hazards and the need to determine the applicable electrical work scope. Its summary is not an authorization for live work.
  • OSHA 1926.251: Applicable construction rigging controls; actual lifting equipment may have additional requirements.
  • OSHA State Plans: jurisdiction and coverage overview; identify the actual state program before use.

Paid consensus standards and site-specific calculations, manuals, inspection records and product certificates were not independently obtained or verified unless specifically identified. Korean legal citations remain in the preserved Korean source as source history; they are not represented as US legal duties.

10. PDF guidance and FAQ

PDF A covers basic task controls; B examines technical failures; C focuses on supervision, evidence and handover. Each has six rows and three items per main cell. They are complementary extracts: apply all eight body stages and the applicable site procedure. An omitted stage is not permission to omit its controls. PDF HP-0 through HP-4 are worksheet labels; match the event, evidence and authority rather than assuming they match another permit by number.

P/S/R/A, actual measurements, confirmations and signatures remain blank. The PDFs are uncompleted reference worksheets, not issued work permits.

Content group ID: jsa-solar-rooflift

Does the completed roof design approve temporary bundles anywhere?

No. Review the actual concentrated temporary loads and locations.

Can rigging be released as soon as the bundle touches the roof?

Only after the planned stable landing and restraint conditions are verified.

Does switching off AC make module leads safe?

No. Illuminated modules can generate DC; use the separate qualified electrical procedure.

May installed modules be used as a walkway?

Do not walk on modules. Maintain the accepted protected access route.

Has a professional verified or approved this document?

No. This is AI-assisted reference material. Editorial and layout checks are not a physical inspection or professional technical approval. Obtain qualified professional review and required site approval before use.

11. Revision history and authorship

Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.

This system has not physically inspected the equipment, structures, ground, atmosphere or worksite. The document does not replace legal advice, manufacturer procedures, engineering design, inspection certificates, qualification evidence, the site risk assessment or an actual work permit.

Before use, a suitably qualified and authorized person must review the actual equipment, loads, methods, protection, inspection and emergency arrangements and resolve open issues. Record the real reviewer, organization, qualifications, delegated authority, reviewed documents, date, signature, exclusions and conditions of approval separately.
