JSA Risk Assessment Preview: Dump Truck Soil Transport and Unloading Operations
7/30/2026
0. JSA Risk Assessment Preview: Dump Truck Soil Transport and Unloading Operations
| No. | Job Step | Hazard Factors | Risk Control Measures | Probability | Severity | Risk Level |
|---|---|---|---|---|---|---|
| 1 | Soil Loading and Tarping Operations | • Struck-by injuries from excavator buckets or falling debris due to overloading • Fall from heights while tarping or caught-in hazards from automated tarp systems | • Adhere to safe loading limits (max 80% capacity); drivers must remain in the cab during loading • Mandate the use of automated tarping systems; verify secure closure before moving | 2 | 3 | 6 |
| 2 | Haul Road Transit and On-Site Movement | • Collisions with other heavy equipment or ground workers due to speeding or poor visibility • Vehicle skidding and rollover when navigating uneven, uncompacted, or rutted haul roads | • Strictly enforce site speed limits (e.g., 15 mph); maintain continuous headlight and beacon operation • Segregate pedestrian walkways from haul routes; implement regular grading and water sprinkling | 2 | 3 | 6 |
| 3 | Entering Fill Area and Reversing | • Crushing or run-over fatalities of spotters or ground workers in the dump truck's blind spots • Secondary collisions with compaction equipment (dozers, rollers) crossing reversing paths | • Deploy a dedicated reversing spotter; verify functional backup alarms and rearview cameras prior to entry • Execute reversing solely under the spotter's clear hand signals; strictly enforce exclusion zones | 2 | 4 | 8 |
| 4 | Hoisting the Bed (Dumping) and Unloading | • Tip-over of the dump truck due to center of gravity shifts when raising the bed on soft or sloped ground • Engulfment of ground workers from sudden soil discharge if the tailgate malfunctions | • Restrict unloading to compacted, level ground only; verify lateral level alignment before hoisting • Establish a physical exclusion zone around the dumping radius; strictly prohibit moving the truck while hoisting | 2 | 4 | 8 |
| 5 | Lowering the Bed and Clearing Residual Soil | • Electrocution or fire from contacting overhead power lines while driving with the bed raised • Crushed-by fatalities from sudden bed collapse while manually clearing residual soil underneath | • Visually confirm the bed is fully lowered and PTO is disengaged before moving the vehicle • Shut off the engine and install approved truck bed props (body blocks) before any manual clearing | 2 | 3 | 6 |
| 6 | Wheel Washing and Exiting to Public Roads | • Public traffic accidents caused by mud track-out creating slippery road conditions • Side-impact collisions between the dump truck and public vehicles at the site egress point | • Mandate passage through wheel wash stations; ensure tires and undercarriage are clear of soil • Deploy MUTCD-compliant flaggers at the egress point; enter public roads only under traffic control | 1 | 3 | 3 |
1. On-Site Incident & Hazard Analysis

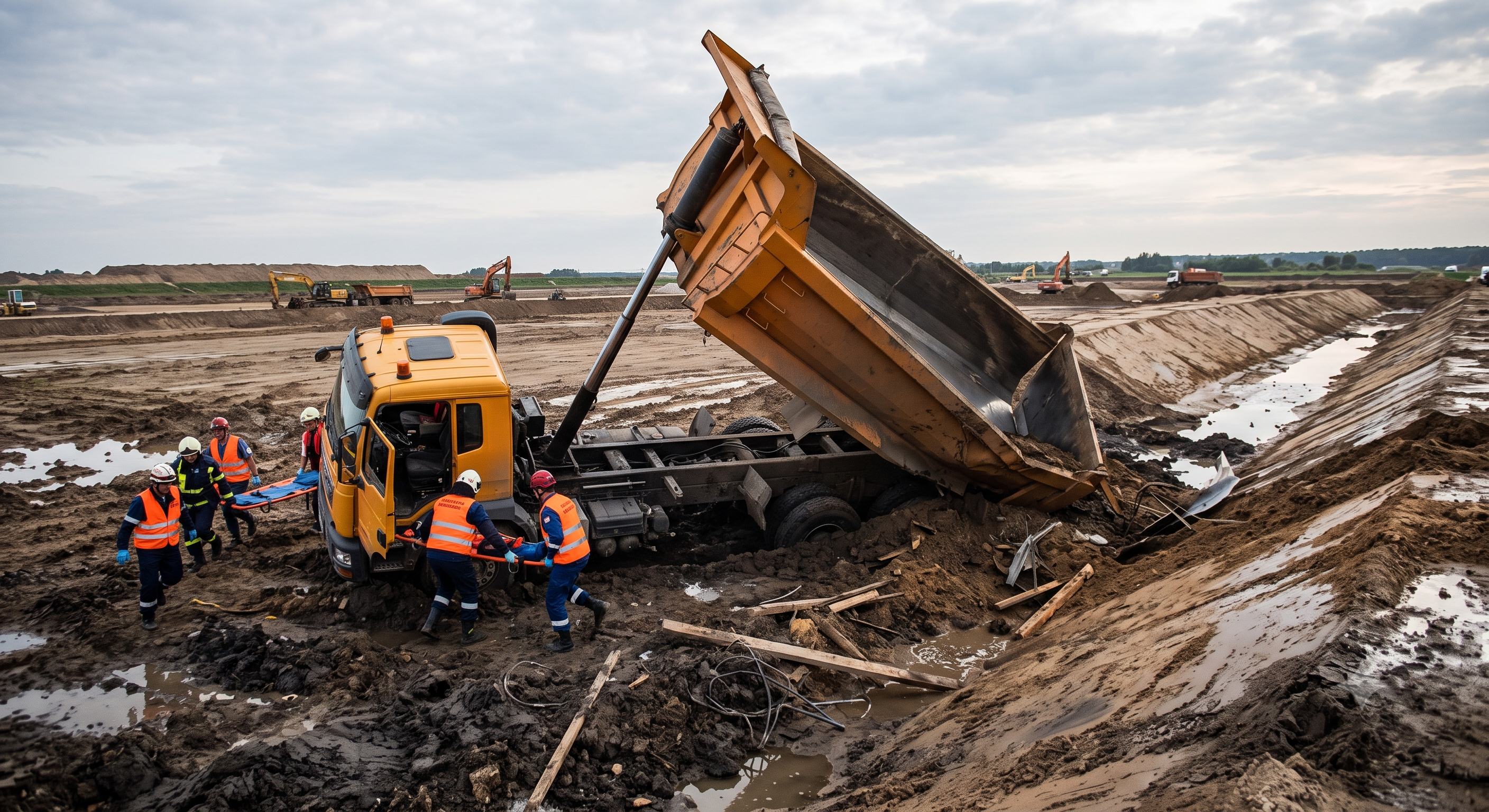

A. [Hypothetical Sample Case] Dump Truck Tip-Over and Worker Crushing During Soft Ground Unloading
Note: The following is an illustrative, hypothetical incident designed solely for risk assessment training.
During a large-scale residential development project, a 25-ton articulated dump truck was unloading fill dirt at an embankment site. Rain from the previous day had significantly softened the ground, but to maintain the aggressive project schedule, unloading operations continued without additional soil compaction or the use of steel road plates. The dump truck reversed into the fill area, stopped, and raised its bed to the maximum angle to discharge the wet soil.
As the bed hoisted, the truck's center of gravity shifted drastically upward. At that critical moment, the right rear tires sank into the uncompacted, muddy ground, unable to bear the concentrated load. This differential settlement caused the chassis to tilt more than 15 degrees. The overturning moment instantly exceeded the truck's stability limit, causing the massive vehicle to tip over onto its right side. A ground worker, who was standing in the right-side blind spot checking the fill grade, was catastrophically crushed beneath the falling truck bed. This hypothetical scenario starkly illustrates the extreme vulnerability of dump trucks to center-of-gravity shifts on unstable ground and the fatal consequences of failing to enforce strict exclusion zones around unloading operations.
B. Structural, Mechanical, and Regulatory Hazard Mechanisms
Dump trucks inherently possess significant structural and dynamic risks during soil transport and unloading. The most critical engineering hazard is the vertical shift in the center of gravity (COG) during the dumping process. When the bed is hoisted, the COG rises sharply. If the ground is uneven, sloped, or soft (yielding unevenly under tires), a minimal lateral load (including wind load) can generate an overturning moment that overcomes the vehicle's restoring force, resulting in a rapid tip-over.
Additionally, dump trucks have an elevated cab and a long chassis, creating massive front and rear blind spots. It is nearly impossible for an operator to visually detect a pedestrian or small equipment directly behind the vehicle during reversing. Furthermore, driving with the bed raised drastically increases the risk of snagging overhead power lines (electrocution) or striking overhead structures. Therefore, ensuring ground compaction, utilizing dedicated spotters, installing bed props during maintenance, and verifying bed descent are mandatory engineering and administrative controls under US federal safety regulations.
🚨 US Federal Regulations & Safety Standards (OSHA 29 CFR)
OSHA 29 CFR 1926.601 (Motor Vehicles): Requires that all vehicles with an obstructed view to the rear must be equipped with a reverse signal alarm audible above the surrounding noise level or be guided by an observer/spotter.
OSHA 29 CFR 1926.601(b)(10) (Truck Bed Props): Strictly mandates that trucks equipped with dump bodies must have positive means of support, permanently attached, and capable of being locked in position to prevent accidental lowering of the body during maintenance or inspection work.
OSHA 29 CFR 1926.602 (Material Handling Equipment): Requires roadways and grades to be maintained to safely accommodate the movement of the equipment involved.
MUTCD (Manual on Uniform Traffic Control Devices) Part 6: Mandates the use of flaggers and advance warning signs when construction vehicles interact with public roadways to prevent collisions and manage track-out hazards.
2. Standard Data Entry Guide for Smart JSA Bridge
To ensure the Smart JSA Bridge platform generates safety control measures fully compliant with OSHA construction standards, enter the following standardized job steps into the system:
[Step 1] Soil Loading and Tarping Operations
Detailed Description: Maintain safe distances from excavators; load to max 80% capacity; verify automated tarping is fully deployed before transit.
[Step 2] Haul Road Transit and On-Site Movement
Detailed Description: Strictly enforce 15 mph speed limits; use headlights and beacons; separate pedestrian paths; implement dust control and grading.
[Step 3] Entering Fill Area and Reversing
Detailed Description: Deploy dedicated reversing spotters; verify operational backup alarms and cameras; strictly prohibit personnel in blind spots.
[Step 4] Hoisting the Bed (Dumping) and Unloading
Detailed Description: Confirm compacted, level ground before hoisting; ensure lateral stability; establish physical exclusion zones around the unloading radius.
[Step 5] Lowering the Bed and Clearing Residual Soil
Detailed Description: Visually verify full bed descent and PTO disengagement before moving; install OSHA-compliant body blocks before manual clearing.
[Step 6] Wheel Washing and Exiting to Public Roads
Detailed Description: Mandate wheel wash station use to prevent mud track-out; deploy MUTCD-compliant flaggers; enter public roads safely.
3. Recommended Final JSA Document (Database Sample)
Below is the final JSA document generated based on automated system recommendations and adapted for US civil earthwork and construction standards:
| No. | Job Step | Hazard Factors | Risk Control Measures | Probability | Severity | Risk Level |
|---|---|---|---|---|---|---|
| 1 | Soil Loading and Tarping Operations | • Struck-by injuries from excavator buckets or falling debris due to overloading • Fall from heights while tarping or caught-in hazards from automated tarp systems | • Adhere to safe loading limits (max 80% capacity); drivers must remain in the cab during loading • Mandate the use of automated tarping systems; verify secure closure before moving | 2 | 3 | 6 |
| 2 | Haul Road Transit and On-Site Movement | • Collisions with other heavy equipment or ground workers due to speeding or poor visibility • Vehicle skidding and rollover when navigating uneven, uncompacted, or rutted haul roads | • Strictly enforce site speed limits (e.g., 15 mph); maintain continuous headlight and beacon operation • Segregate pedestrian walkways from haul routes; implement regular grading and water sprinkling | 2 | 3 | 6 |
| 3 | Entering Fill Area and Reversing | • Crushing or run-over fatalities of spotters or ground workers in the dump truck's blind spots • Secondary collisions with compaction equipment (dozers, rollers) crossing reversing paths | • Deploy a dedicated reversing spotter; verify functional backup alarms and rearview cameras prior to entry • Execute reversing solely under the spotter's clear hand signals; strictly enforce exclusion zones | 2 | 4 | 8 |
| 4 | Hoisting the Bed (Dumping) and Unloading | • Tip-over of the dump truck due to center of gravity shifts when raising the bed on soft or sloped ground • Engulfment of ground workers from sudden soil discharge if the tailgate malfunctions | • Restrict unloading to compacted, level ground only; verify lateral level alignment before hoisting • Establish a physical exclusion zone around the dumping radius; strictly prohibit moving the truck while hoisting | 2 | 4 | 8 |
| 5 | Lowering the Bed and Clearing Residual Soil | • Electrocution or fire from contacting overhead power lines while driving with the bed raised • Crushed-by fatalities from sudden bed collapse while manually clearing residual soil underneath | • Visually confirm the bed is fully lowered and PTO is disengaged before moving the vehicle • Shut off the engine and install approved truck bed props (body blocks) before any manual clearing | 2 | 3 | 6 |
| 6 | Wheel Washing and Exiting to Public Roads | • Public traffic accidents caused by mud track-out creating slippery road conditions • Side-impact collisions between the dump truck and public vehicles at the site egress point | • Mandate passage through wheel wash stations; ensure tires and undercarriage are clear of soil • Deploy MUTCD-compliant flaggers at the egress point; enter public roads only under traffic control | 1 | 3 | 3 |
4. JSA Engineering Mechanism for Earthworks: Tip-Over Prevention and Blind Spot Control
Dump truck soil transport and unloading operations demand rigorous engineering controls and strict compliance with OSHA regulations to prevent catastrophic vehicle tip-overs, fatal crushed-by incidents in blind spots, and electrocutions from overhead power lines. Vague instructions such as "be careful when reversing" or "watch out when dumping" are entirely inadequate for OSHA compliance audits and fail to prevent jobsite fatalities.
Smart JSA Bridge utilizes an automated risk analysis algorithm calibrated against OSHA 29 CFR 1926 Subpart O and MUTCD Part 6 standards to deliver real-time, actionable hazard controls.
By inputting 6 structured job steps, the algorithm calculates required technical controls—including mandatory ground compaction criteria for unloading, spotter positioning protocols for reversing, strict specifications for installing truck bed props (body blocks) during maintenance, and MUTCD-compliant traffic control layouts for site egress.
Project Managers, Safety Directors, and Earthwork Superintendents can customize these parameters with a single click to match specific dump truck fleet specifications and civil engineering logistics plans across US construction projects.
Streamline your safety documentation workflow while ensuring total statutory compliance for high-risk heavy machinery operations. Generate your customized risk assessment today.
👉 Enter job steps on Smart JSA Bridge and generate your custom JSA (smartjsabridge.com)
