Shaft-Alignment JSA: Soft Foot, Repeatable Measurements and Final Piping State

Shaft alignment of rotating equipment JSA: task controls, failure mechanisms, stop conditions and handover checks for US site review. AI reference; professional review required.

An alignment reading belongs to a particular temperature, bolt condition and piping state. Preserve those conditions with the result and remeasure when they change.

This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.

Stop conditions first

Hold guard removal for unverified startup/backflow isolation, standstill or manual rotation method. Stop adjustment for unstable feet, nonrepeatable readings, forced piping, base distortion or unknown targets.

1. US legal and technical basis

General-industry maintenance under applicable OSHA 1910.147 energy control and 1910.212 machine guarding. The equipment/coupling instructions determine alignment targets; laser-tool suggestions do not replace those targets.

ReferenceUse and limit
OSHA 29 CFR 1910.147Covered alignment/adjustment work requires control of startup, stored energy and other motion sources.
OSHA 29 CFR 1910.212Guarding of rotating parts; restore applicable guards before operational release.
SKF Soft Foot app instructionsSelected soft-foot contact/contamination and correction-remeasurement discussion; app values are not universal machine acceptance limits.
Goulds Pumps Model 3610 IOMOfficial indexed page 25 passages: piping/adjustment rechecks, tightened feet during measurement and distinction between cold and operating-temperature limits. Full manual not reviewed.
OSHA State PlansFederal baseline and State Plan coverage reviewed. Confirm the applicable state program and employer coverage; this edition does not establish nationwide compliance.

Determine whether Federal OSHA or an applicable State Plan governs the employer and work. Standards incorporated into a regulation must be read in their legally applicable edition. Other NFPA/ANSI guidance and manufacturer instructions have distinct roles; they are not automatically federal law.

2. Scope and required inputs

Included

Align an isolated motor and driven machine using laser or dial instruments, inspect base/soft foot, adjust with suitable shims and supports, remeasure the final state and hand over for separate startup.

Separate assessment

Powered rotation with guards open, live hand adjustment, invented thermal-growth targets and unassessed piping modification or operating vibration acceptance are excluded.

InputEvidence needed
Confirm targets and scopeManufacturer criteria; Operating/work boundary; Temperature/growth basis; Machine/coupling ID
Isolate and verify stopMotor/remote lockout; Process boundary; Residual motion/force; Safe access evidence
Measure initial conditionHands/coupling clearance; Sensor/pipe clearance; Instrument safety class; Dimensions/angles/readings
Restore and transferGuard/fasteners; Tool/sensor removal; Alignment/temp records; Startup scope/receiver

Selected public official provisions were checked on October 13, 2026. This is not a complete legal audit. No actual equipment manual, site measurements, engineering calculations, product certification or professional technical approval was supplied. Full paid NFPA/ANSI standards and state/local amendments were not reviewed. Check actual equipment, jurisdiction and project requirements before use.

Select task-appropriate eye, hand, foot, skin and hearing protection from the exposure assessment. Where respiratory protection is necessary, use the applicable respiratory-protection program; PPE does not replace isolation, guarding, support or ventilation.

3. Eight-stage JSA

Job stageHazards and effectsFailure factorsControlsSite verificationPSRA
1. Confirm targets and scope1. Vibration damage2. Unexpected rotation3. Pipe strain4. Wrong operating release1. Target unknown2. Operations not coordinated3. Thermal growth ignored4. Machine ID wrong1. Match equipment targets2. Define work boundary3. Separate cold/hot basis4. Identify machine/coupling1. Manufacturer criteria2. Operating/work boundary3. Temperature/growth basis4. Machine/coupling ID
2. Isolate and verify stop1. Motor starts2. Backflow turns shaft3. Coasting contact4. Guard-removal injury1. Remote source missed2. Process not isolated3. Standstill unverified4. Control stop only1. Isolate startup sources2. Control process forces3. Verify full standstill4. Open guard after verification1. Motor/remote lockout2. Process boundary3. Residual motion/force4. Safe access evidence
3. Check base and instruments1. False readings2. Base distortion3. Sensor falls4. Shim cuts1. Soft foot ignored2. Fasteners loose3. Sensor mount weak4. Dirty/damaged shims1. Assess foot contact2. Inspect base/anchors3. Verify instrument/mounts4. Use clean suitable shims1. Foot contact/distortion2. Support/bolt state3. Instrument/mount check4. Shim stack/condition
4. Measure initial condition1. Manual-rotation pinch2. Sensor collision3. Laser eye exposure4. Wrong data interpretation1. Rotation improvised2. Interference missed3. Beam viewed directly4. Dimensions entered wrong1. Use instructed manual method2. Check full sensor travel3. Follow laser safety instructions4. Record exact measurement state1. Hands/coupling clearance2. Sensor/pipe clearance3. Instrument safety class4. Dimensions/angles/readings
5. Shim and move safely1. Foot crush2. Machine shifts3. Shim ejects4. Shaft forced sideways1. Foot lifted unsupported2. Adjuster overloaded3. Hand pushes shim4. Coupling pulls alignment1. Support designated lift points2. Move within planned limits3. Use shim insertion tools4. Avoid forced shaft alignment1. Support stability2. Adjuster/movement3. Hand/shim position4. Coupling constraint
6. Remeasure final state1. Alignment shifts on tightening2. Pipe strain3. Instrument left attached4. Wrong thermal target1. Final check omitted2. Piping effect ignored3. Sensor not counted4. Cold/hot limits mixed1. Remeasure after tightening2. Check connected piping effects3. Remove instruments safely4. Compare correct targets1. Final offset/angle2. Soft-foot/piping state3. Instrument/tool count4. Temperature/target/result
7. Hold unstable results1. Stored force releases2. Foot/base damage3. Unexpected rotation4. Repeated wrong correction1. Shims added blindly2. Bolts force position3. Isolation disturbed4. Instrument fault ignored1. Resolve measurement cause2. Review base/contact3. Reverify isolation4. Repeat consistent measurements1. Cause/correction2. Foot/base findings3. Energy/force state4. Measurement repeatability
8. Restore and transfer1. Rotating contact2. Sensor ejection3. Operating vibration4. Unauthorized start1. Guard absent2. Tools remain3. Results not transferred4. Startup release omitted1. Restore complete guarding2. Reconcile tools/sensors3. Transfer alignment conditions4. Authorize separate startup1. Guard/fasteners2. Tool/sensor removal3. Alignment/temp records4. Startup scope/receiver

Actual risk assessments, measurements, checks, approvals and signatures have not been performed. Keep unverified fields blank and link the actual site records. P/S/R/A mean likelihood, severity, site-method risk and site-defined acceptance/authorization; a score cannot waive a required control.

4. Failure mechanisms and hypothetical case

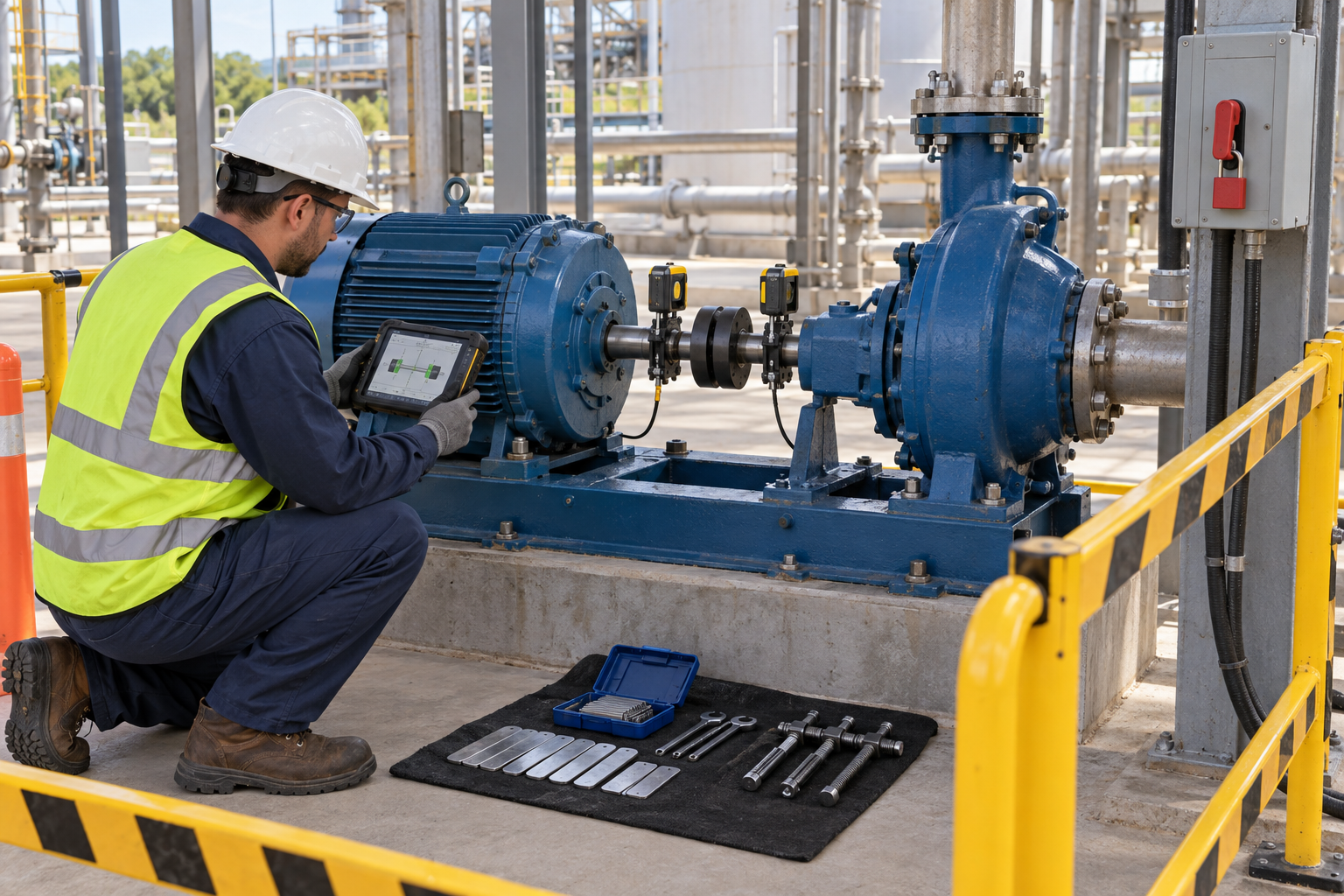

AI-generated educational illustration: Shaft alignment of rotating equipment

The retained illustration is an AI-generated educational image from the Korean source. It is not an actual incident photograph, approved drawing, equipment certification or proof that the depicted arrangement is safe.

Soft foot is uneven or unsuitable foot-to-base contact that can distort or move the machine when bolts are tightened. Dirt, damaged shims and angled contact need cause correction rather than blind addition of shim thickness.

A favorable display is only useful when sensor mounting, dimensions, rotation positions, bolt state and temperature are correct and repeatable. Investigate changing readings before moving the machine again.

Piping connection and final bolt tightening can change shaft position. Do not pull the machine into alignment with coupling or pipe bolts; resolve the cause and check the completed installation state.

Cold targets can differ from operating targets because of thermal growth. Alignment acceptance, instrument removal, guard restoration and startup authorization remain separate checks.

Hypothetical decision example

Hypothetical example: initial cold readings are saved, then piping is forced into place and foot bolts are retightened. The initial result is proposed as final. Handover is held while pipe strain, foot contact and alignment are reassessed in the final condition.

The example is fictional; no incident, measurement, inspection or approval is asserted.

Task flow: Confirm targets and scope → Isolate and verify stop → Check base and instruments → Measure initial condition → Shim and move safely → Remeasure final state → Hold unstable results → Restore and transfer

5. Hold and proceed decisions

ConditionActionEvidenceProceed when
Readings varyHold adjustmentMounts, inputs and repeated readingsMeasurement repeatable
Soft foot presentCorrect contact causeFoot/shim/base evidenceFoot condition verified
Piping state changesResolve strain; remeasureFinal bolt/piping/temperature recordFinal alignment accepted
Ready for startupRemove tools; restore guardsResult limits and startup planHandover authorized

Similar observation, different conclusion

ObservationSupported conclusionWhat remains unresolved
Display within targetOne reading meets entered targetInputs and final condition unproved
Cold alignment acceptedCold condition assessedOperating thermal/vibration checks separate

6. Roles and supervision

RoleResponsibility
Work supervisorCoordinate confirm targets and scope, affected operations, stop signals and stage transitions.
Technical/equipment reviewerVerify Manufacturer criteria, Operating/work boundary, actual instructions and unresolved technical limits.
Task crewApply the stated controls, report changes and keep actual checks and signatures factual.
Inspector/test leadConnect Final offset/angle, Soft-foot/piping state to the required acceptance criteria.
Receiving authorityAccept the recorded restrictions, Alignment/temp records, Startup scope/receiver, and follow-up ownership.

These are responsibility examples, not invented statutory credentials. Verify actual competence, training and authority for the assigned work.

Supervision and handover controls

StageManagement controlsEvidence
Plan review1. Assign technical owner2. Close task-specific questions3. Match equipment targets1. Manufacturer criteria2. Operating/work boundary3. Machine/coupling ID
Competence1. Verify required competence2. Assign stop authority3. Isolate startup sources1. Motor/remote lockout2. Training and task briefing3. Safe access evidence
Prestart evidence1. Inspect actual equipment2. Link evidence to this stage3. Use instructed manual method1. Hands/coupling clearance2. Sensor/pipe clearance3. Dimensions/angles/readings
Change control1. Stop and secure the area2. Review affected controls3. Resolve measurement cause1. Cause/correction2. Foot/base findings3. Measurement repeatability
Shift handover1. Identify remaining restrictions2. Confirm receiving responsibility3. Restore complete guarding1. Guard/fasteners2. Tool/sensor removal3. Startup scope/receiver
Closeout1. Record defect disposition2. Archive factual evidence3. Restore complete guarding1. Guard/fasteners2. Tool/sensor removal3. Startup scope/receiver

7. Hold points and record quality

Hold pointEvidence before releaseActual record
HP-0 StartAlign an isolated motor and driven machine using laser or dial instruments, inspect base/soft foot, adjust with suitable shims and supports, remeasure the final state and hand over for separate startup.
HP-1 Isolate and verify stopMotor/remote lockout; Process boundary; Residual motion/force; Safe access evidence
HP-2 Measure initial conditionHands/coupling clearance; Sensor/pipe clearance; Instrument safety class; Dimensions/angles/readings
HP-3 Hold unstable resultsCause/correction; Foot/base findings; Energy/force state; Measurement repeatability
HP-4 Restore and transferGuard/fasteners; Tool/sensor removal; Alignment/temp records; Startup scope/receiver

Hold points are internal evidence gates. They do not establish that a statutory permit exists or has been approved. Recheck affected gates after changes, faults and shift handover.

Record comparison - hypothetical templates

The 16 boxes below identify record elements, not completed checks or approvals. They are static symbols. Link equipment/location, date, actual findings and the separate record reference; preserve unresolved items.

RecordInsufficient entryRequired record elements
Confirm targets and scope"Checked" without supporting facts□ Manufacturer criteria□ Operating/work boundary□ Temperature/growth basis□ Machine/coupling ID
Check base and instruments"Checked" without supporting facts□ Foot contact/distortion□ Support/bolt state□ Instrument/mount check□ Shim stack/condition
Shim and move safely"Checked" without supporting facts□ Support stability□ Adjuster/movement□ Hand/shim position□ Coupling constraint
Hold unstable results"Checked" without supporting facts□ Cause/correction□ Foot/base findings□ Energy/force state□ Measurement repeatability

8. Pre-work checks and emergency response

Check requiredResultChecker/action
Confirm targets and scope: Manufacturer criteria
Isolate and verify stop: Motor/remote lockout
Check base and instruments: Foot contact/distortion
Measure initial condition: Hands/coupling clearance
Shim and move safely: Support stability
Remeasure final state: Final offset/angle
Hold unstable results: Cause/correction
Restore and transfer: Guard/fasteners

Stop work

Hold guard removal for unverified startup/backflow isolation, standstill or manual rotation method. Stop adjustment for unstable feet, nonrepeatable readings, forced piping, base distortion or unknown targets.

Emergency response

Stop manual movement and keep hands clear of couplings, machine feet and shifting supports. Maintain isolation and stabilize the machine with the approved method before rescue or recovery. Do not jog the motor or loosen load-bearing supports to release a trapped part. Call 911 for serious crushing or entanglement injury and tell responders the equipment, isolation and support state.

9. Official sources and review limits

Official public-source check: October 13, 2026. The review concerns the selected passages described below, not endorsement of this article.

Official sourceChecked scope and limit
OSHA 29 CFR 1910.147Covered alignment/adjustment work requires control of startup, stored energy and other motion sources.
OSHA 29 CFR 1910.212Guarding of rotating parts; restore applicable guards before operational release.
SKF Soft Foot app instructionsSelected soft-foot contact/contamination and correction-remeasurement discussion; app values are not universal machine acceptance limits.
Goulds Pumps Model 3610 IOMOfficial indexed page 25 passages: piping/adjustment rechecks, tightened feet during measurement and distinction between cold and operating-temperature limits. Full manual not reviewed.
OSHA State PlansFederal baseline and State Plan coverage reviewed. Confirm the applicable state program and employer coverage; this edition does not establish nationwide compliance.

Selected public official provisions were checked on October 13, 2026. This is not a complete legal audit. No actual equipment manual, site measurements, engineering calculations, product certification or professional technical approval was supplied. Full paid NFPA/ANSI standards and state/local amendments were not reviewed. Check actual equipment, jurisdiction and project requirements before use.

This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.

10. PDF use and frequently asked questions

PDF A summarizes core controls; B emphasizes technical failures; C covers supervision, records and handover. Each uses six stages from or aligned with the eight-stage body. All actual risk, measurement, check and signature fields are blank. Use a separate linked record where more space is needed.

Does a green laser display finish the job?

No. Verify inputs, repeatability, final connection state and the actual equipment target, then restore guarding.

Is more shim always the soft-foot correction?

No. Identify contamination, damaged contact, distortion or angled foot conditions and remeasure after correction.

Should all cold targets be zero?

Use the approved equipment thermal-growth basis and operating requirements.

Can the motor be jogged for measurement?

Powered rotation with exposed couplings is outside this scope. Use the instructed manual method under verified energy control.

Has a professional approved this JSA?

This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.

11. Authorship and revision history

This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.

Date/versionEditorial historyTechnical approval
September 19, 2026 / Korean v1.1Korean source: retained previously displayed draft version and source-check date; no professional review record asserted.Professional technical approval not performed
September 26, 2026 / Korean v1.2Korean source: revised task decisions, record checklists, JSA and three PDFs; editorial/source and layout checks.Professional technical approval not performed
October 14, 2026 / US v1.0US localization: Preserves soft-foot cause analysis, final piping/bolt-state case and cold-versus-operating targets. Uses US maintenance controls and limited SKF/Goulds passages without copying product tolerances.Not performed
