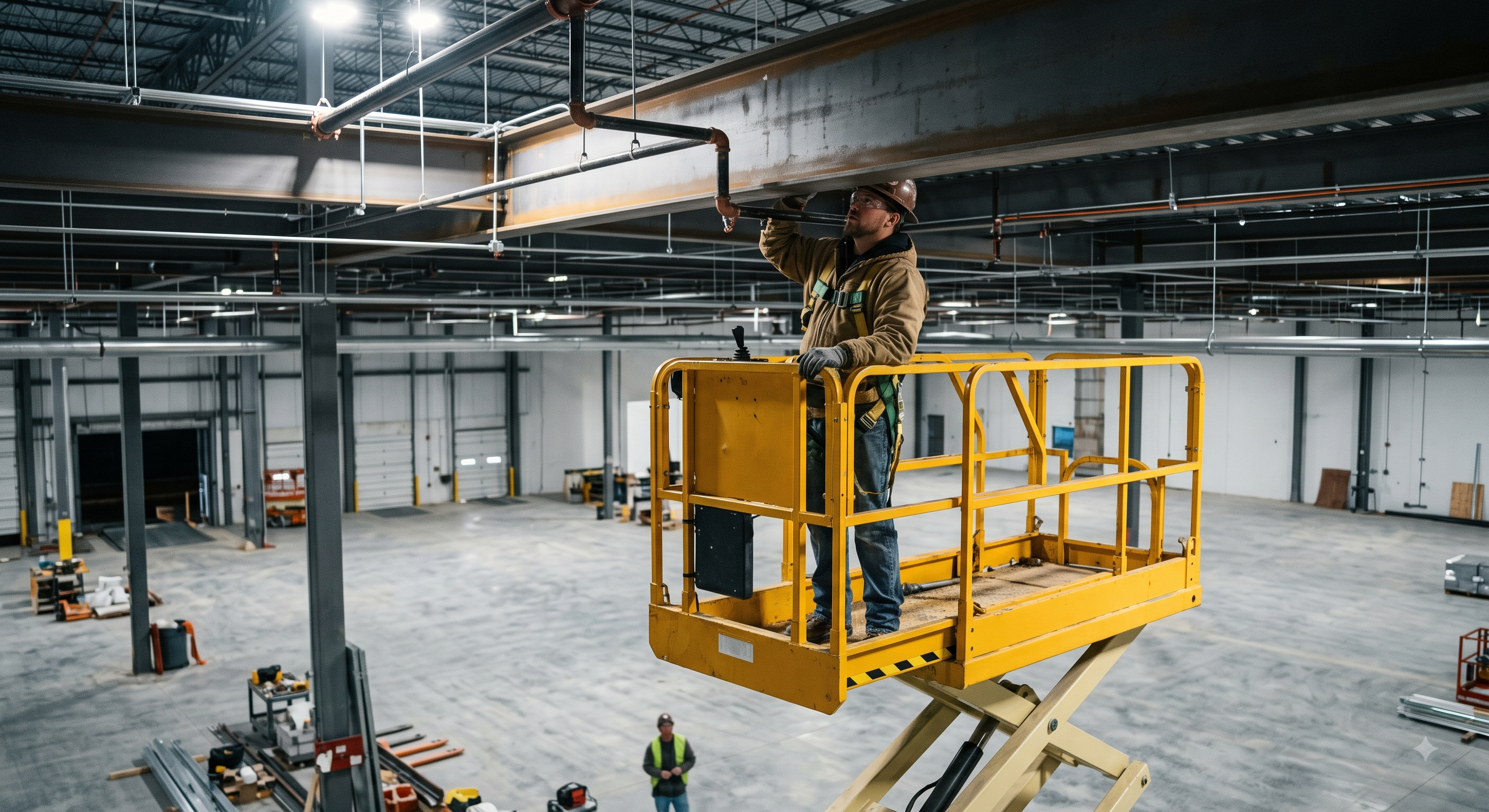

JSA Risk Assessment Preview: Overhead Equipment Installation using a MEWP (Scissor Lift)
8/18/2026
0. JSA Risk Assessment Preview: Overhead Equipment Installation using a MEWP (Scissor Lift)
| No. | Job Step | Hazard Factors | Risk Control Measures | Probability | Severity | Risk Level |
|---|---|---|---|---|---|---|
| 1 | Pre-task Planning and MEWP Relocation | • MEWP tip-over caused by driving into floor openings, drop-offs, or debris on the travel path • Struck-by incidents involving ground personnel or temporary structures during transit | • Inspect the travel path to ensure a level, firm surface and verify that all floor openings are securely covered • Deploy a ground spotter for blind spots and drive at a safe, controlled speed | 2 | 4 | 8 |
| 2 | MEWP Pre-use Inspection and Boarding | • Operating the equipment with malfunctioning safety devices (e.g., secondary guarding, tilt alarms) • Fall from the platform due to failure to secure the Personal Fall Arrest System (PFAS) | • Conduct a mandatory pre-start visual and functional inspection (controls, alarms, emergency descent) • Mandate 100% tie-off using a full-body harness and lanyard attached strictly to the manufacturer-designated anchor point | 2 | 4 | 8 |
| 3 | Vertical Elevation of the MEWP | • Fatal crushing/pinching between the operator's body and overhead structures (beams, pipes) during ascent • MEWP tip-over or structural failure caused by exceeding the Safe Working Load (SWL) | • Ensure secondary guarding (anti-crush sensors/bars) is active; visually confirm overhead clearance before lifting • Strictly adhere to the manufacturer's rated workload and limit the number of occupants accordingly | 2 | 4 | 8 |
| 4 | Overhead Equipment Installation | • Fall from height caused by the operator standing on guardrails or leaning excessively out of the platform • Fatalities or injuries to ground workers caused by dropped hand tools or installation materials | • Maintain both feet firmly on the platform floor at all times (never use ladders or step on mid-rails to gain height) • Use tool tethers for all hand tools and establish a hard-barricaded exclusion zone directly below the work area | 2 | 4 | 8 |
| 5 | Lowering and Relocating the MEWP | • Catastrophic tip-over caused by driving (tramming) the MEWP while the platform is elevated over uneven ground • Crushing/amputation of a ground worker's limbs within the scissor link mechanism during descent | • Strictly enforce the rule: Fully lower the platform to the stowed position before relocating or driving the MEWP • Visually verify the surrounding area is clear of personnel before lowering and ensure descent alarms are functioning | 2 | 4 | 8 |
| 6 | Task Completion and MEWP Parking/Charging | • MEWP roll-away on inclines or unauthorized operation by untrained personnel • Electrocution, battery explosion, or fire during the charging process due to damaged cables | • Park on a designated level surface, engage the brakes, chock the wheels, and remove the key to prevent unauthorized use • Charge the MEWP in a well-ventilated area, use the dedicated charging cable, and remove surrounding combustibles | 2 | 3 | 6 |
1. On-Site Incident & Hazard Analysis
A. [Hypothetical Sample Case] Fatal Crushing Incident Due to Bypassed Secondary Guarding Device
Note: The following is an illustrative, hypothetical incident designed solely for risk assessment training.
At a large-scale logistics center construction site in New Jersey, a pipefitter was operating a scissor lift (MEWP) to install overhead fire sprinkler piping. The task required precise positioning directly beneath a heavy steel I-beam at a height of 26 feet. Because the lift's "secondary guarding device" (a physical anti-crush trip bar) frequently triggered and halted the machine's ascent when it came close to the overhead beam, the operator found it frustrating and time-consuming. In an attempt to expedite the work, the operator intentionally disconnected the sensor cable, disabling the anti-crush safety mechanism.
Later that afternoon, the operator pushed the joystick forward to elevate the platform while keeping his eyes fixed upward on the pipe connection point, leaning slightly over the control panel. Without the safety device to stop the ascent, the platform continued to rise until the operator's chest and neck were forcefully pinned between the MEWP's control panel and the overhead steel beam. The crushing force of the hydraulic lift caused immediate asphyxiation. A ground worker noticed the emergency but was unfamiliar with the manual emergency lowering valve at the base of the lift, delaying the rescue by nearly four minutes. The operator was pronounced dead at the scene. The OSHA investigation concluded that the willful bypassing of the manufacturer's safety device and the lack of ground personnel trained in emergency retrieval procedures were the direct causes of the fatality. This hypothetical scenario starkly illustrates that safety sensors on MEWPs are not inconveniences; they are critical life-saving engineering controls.
B. Structural, Mechanical, and Regulatory Hazard Mechanisms
A Mobile Elevating Work Platform (MEWP), particularly a scissor lift, is designed to provide vertical access in narrow spaces. Its two most lethal mechanical vulnerabilities are "Overturning (Tip-over)" and "Crushing/Pinching." When a MEWP is elevated to its maximum height, its Center of Gravity shifts drastically upward. In this state, even minor floor irregularities, slight inclines, or lateral forces exerted by the operator can generate a fatal overturning moment. For this reason, driving a scissor lift while elevated is a severe violation of safe operating procedures; the machine must only be elevated on a firm, level surface.
Furthermore, overhead installation work places the operator's upper body in close proximity to structural hazards. The hydraulic thrust of a MEWP is powerful enough to easily fracture human bones. The primary engineering control to prevent this is the "secondary guarding system" (anti-crush sensors or bars). If this device touches an obstacle, it instantly cuts off the lifting hydraulics. Bypassing this system is akin to disabling a vehicle's brakes. Additionally, to mitigate fall hazards, operators must never stand on the mid-rails or toe boards to gain extra reach. The structural integrity of fall protection relies entirely on the operator keeping both feet on the platform deck and maintaining 100% tie-off using a lanyard connected to the manufacturer's designated anchor point.
🚨 US Federal Regulations & Safety Standards (OSHA & ANSI/SAIA)
OSHA 29 CFR 1926.453 (Aerial Lifts): Mandates that a body belt shall be worn and a lanyard attached to the boom or basket when working from an aerial lift. (Note: Fall arrest systems utilizing full-body harnesses are the current industry standard replacing body belts). Employees shall always stand firmly on the floor of the basket and shall not sit or climb on the edge of the basket.
ANSI/SAIA A92.22 (Safe Use of MEWPs): Requires a site-specific risk assessment and a rescue plan to be in place before MEWP operation. It explicitly forbids the overriding or disabling of safety devices, including secondary guarding and tilt alarms.
OSHA 29 CFR 1926.451 (Scaffolds - General Requirements): Requires that scaffolds (including MEWPs) not be loaded in excess of their maximum intended loads or rated capacities.
ANSI/SAIA A92.24 (Training Requirements for the Use of MEWPs): Dictates that only trained and authorized personnel shall operate a MEWP, and at least one designated person on the ground must be trained in the operation of the emergency lower controls.
2. Standard Data Entry Guide for Smart JSA Bridge
To ensure the Smart JSA Bridge platform generates safety control measures fully compliant with OSHA and ANSI A92 standards, enter the following standardized job steps into the system:
[Step 1] Pre-task Planning and MEWP Relocation
Detailed Description: Inspect the travel path for level ground; verify floor covers; deploy a spotter; drive at low speeds.
[Step 2] MEWP Pre-use Inspection and Boarding
Detailed Description: Conduct a functional test of safety devices (anti-crush, tilt alarm); mandate 100% tie-off to designated anchor points.
[Step 3] Vertical Elevation of the MEWP
Detailed Description: Keep secondary guarding active; visually verify overhead clearance; strictly adhere to the Safe Working Load (SWL).
[Step 4] Overhead Equipment Installation
Detailed Description: Keep both feet on the platform deck; prohibit standing on guardrails; use tool tethers; establish a ground exclusion zone.
[Step 5] Lowering and Relocating the MEWP
Detailed Description: Fully lower the platform before driving (tramming); check for ground personnel; activate the descent alarm.
[Step 6] Task Completion and MEWP Parking/Charging
Detailed Description: Park on level ground; chock wheels; remove the key; charge in a well-ventilated area free of combustibles.
3. Recommended Final JSA Document (Database Sample)
Below is the final JSA document generated based on automated system recommendations and adapted for US interior construction and MEWP safety standards:
| No. | Job Step | Hazard Factors | Risk Control Measures | Probability | Severity | Risk Level |
|---|---|---|---|---|---|---|
| 1 | Pre-task Planning and MEWP Relocation | • MEWP tip-over caused by driving into floor openings, drop-offs, or debris on the travel path • Struck-by incidents involving ground personnel or temporary structures during transit | • Inspect the travel path to ensure a level, firm surface and verify that all floor openings are securely covered • Deploy a ground spotter for blind spots and drive at a safe, controlled speed | 2 | 4 | 8 |
| 2 | MEWP Pre-use Inspection and Boarding | • Operating the equipment with malfunctioning safety devices (e.g., secondary guarding, tilt alarms) • Fall from the platform due to failure to secure the Personal Fall Arrest System (PFAS) | • Conduct a mandatory pre-start visual and functional inspection (controls, alarms, emergency descent) • Mandate 100% tie-off using a full-body harness and lanyard attached strictly to the manufacturer-designated anchor point | 2 | 4 | 8 |
| 3 | Vertical Elevation of the MEWP | • Fatal crushing/pinching between the operator's body and overhead structures (beams, pipes) during ascent • MEWP tip-over or structural failure caused by exceeding the Safe Working Load (SWL) | • Ensure secondary guarding (anti-crush sensors/bars) is active; visually confirm overhead clearance before lifting • Strictly adhere to the manufacturer's rated workload and limit the number of occupants accordingly | 2 | 4 | 8 |
| 4 | Overhead Equipment Installation | • Fall from height caused by the operator standing on guardrails or leaning excessively out of the platform • Fatalities or injuries to ground workers caused by dropped hand tools or installation materials | • Maintain both feet firmly on the platform floor at all times (never use ladders or step on mid-rails to gain height) • Use tool tethers for all hand tools and establish a hard-barricaded exclusion zone directly below the work area | 2 | 4 | 8 |
| 5 | Lowering and Relocating the MEWP | • Catastrophic tip-over caused by driving (tramming) the MEWP while the platform is elevated over uneven ground • Crushing/amputation of a ground worker's limbs within the scissor link mechanism during descent | • Strictly enforce the rule: Fully lower the platform to the stowed position before relocating or driving the MEWP • Visually verify the surrounding area is clear of personnel before lowering and ensure descent alarms are functioning | 2 | 4 | 8 |
| 6 | Task Completion and MEWP Parking/Charging | • MEWP roll-away on inclines or unauthorized operation by untrained personnel • Electrocution, battery explosion, or fire during the charging process due to damaged cables | • Park on a designated level surface, engage the brakes, chock the wheels, and remove the key to prevent unauthorized use • Charge the MEWP in a well-ventilated area, use the dedicated charging cable, and remove surrounding combustibles | 2 | 3 | 6 |
4. JSA Engineering Mechanism for MEWP Operations: Crush Prevention and Tip-over Control
Operating a MEWP for overhead installations places workers in a high-risk environment where mechanical power meets restrictive structural clearance. Vague instructions such as "be careful when lifting" or "tie off securely" are completely inadequate for OSHA compliance audits and fail to prevent fatal crushing incidents and catastrophic tip-overs on the job site.
Smart JSA Bridge utilizes an automated risk analysis algorithm calibrated against OSHA 29 CFR 1926.453 and ANSI/SAIA A92 standards to deliver real-time, actionable mechanical and behavioral hazard controls.
By inputting 6 structured job steps, the algorithm calculates required technical controls—including the absolute operational rule of lowering the platform before tramming to prevent overturning moments, the mandatory verification of secondary guarding (anti-crush) devices to prevent overhead pinning, and the specific PFAS tie-off requirements engineered into the MEWP's designated anchor points.
Project Managers, MEP (Mechanical, Electrical, Plumbing) Superintendents, and Safety Directors can customize these parameters with a single click to match specific floor conditions, ceiling heights, and MEWP manufacturer specifications across US construction projects.
Streamline your safety documentation workflow while ensuring total statutory compliance for high-risk aerial lift operations. Generate your customized risk assessment today.
