A finished scaffold can conceal an unsafe erection sequence. This revision separates the base, first lift, platforms, ties and further lifts so that support, restraint and fall protection are checked before the next load or person is introduced. The US edition separates the qualified designer’s role from the competent person’s erection and inspection decisions.
Keep every erection stage stable and protected
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site authorisation are required before use.
Stop work
Stop for settlement, movement, missing restraint, uncertain support, damaged parts, unsafe access, uncontrolled public entry, electrical exposure or weather outside the planned envelope. Do not continue upward to reach a convenient tie position.
1. Legal and technical scope
| Basis | Application limits |
|---|---|
| OSHA — 1926.451 | Official text reviewed for qualified design, supports, ties, compatibility, access, inspection and erection fall protection; suspended-scaffold requirements are outside this article. |
OSHA 29 CFR 1926.451 is the federal construction scaffold basis reviewed. State-plan requirements and the scaffold type must also be checked. ANSI/ASSP A10.8 in the retained title was not reviewed in full.
Section 1926.451(g)(2) requires a competent person to assess feasibility and safety of fall protection for supported-scaffold erectors; feasible protection that creates no greater hazard must be provided. This is not a blanket exemption. Section (f)(3) requires visible-defect inspection before each shift and after events affecting integrity. A coloured tag is not the inspection itself. Tie geometry, platform gaps and access provisions have conditions and exceptions; the original universal numbers are not retained as design instructions.
2. Scope and required inputs
Included scope
Erection of a supported façade scaffold using the selected tube-and-fitting or proprietary system: receipt, bases, structural frame, decks, edge protection, progressive ties and handover.
Separate review
Suspended or mobile scaffolds, cantilevers, bridges, loading towers, powered hoists and dismantling require their own assessment. Adding a hoist, fan, mesh or sheeting changes the design assumptions and requires review before installation.
| Required input | What to verify |
|---|---|
| Configuration | System identity, current drawing, height, bay sizes, lift sequence, loads and any enclosed surfaces. |
| Support and anchors | Ground or slab capacity, buried voids, drainage, spreaders, host structure, anchor specification and required testing. |
| Execution | Competent supervisor and trained crew, protected access, material handling route, electrical controls, exclusion area and rescue arrangements. |
No actual site, substrate, product manual, calculations or test results were supplied. Torque, tie spacing, anchor test load and sampling, jack extension, tolerances, wind limits and bearing details must come from applicable rules and the verified design/manufacturer documents. Values in the old text are not default acceptance criteria.
Select head, hand, foot and eye protection for handling and drilling hazards. Plan collective fall protection and the personal fall protection required for the erection method, with compatible anchorage, clearance and rescue. PPE does not stabilise the scaffold or replace the exclusion area.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Technical and procedural controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Plan | 1. Falls at erection2. Frame overturn3. Public struck4. Live-line contact | 1. Wrong configuration2. Unplanned sheeting3. Unknown support4. Unverified competence | 1. Confirm design scope2. Plan each stable stage3. Segregate work zone4. Coordinate electrical controls | 1. Drawing revision2. Load and tie schedule3. Crew and rescue plan4. Service clearance | ||||
| 2. Receive parts | 1. Vehicle strike2. Hand crush3. Rolling tubes4. Member failure | 1. Mixed components2. Cracked fittings3. Unsecured stacks4. Unsafe unload route | 1. Separate pedestrians2. Reject damaged parts3. Use secured stillages4. Plan assisted handling | 1. Component identity2. Damage inspection3. Delivery route4. Storage limits | ||||
| 3. Prepare bases | 1. Local settlement2. Frame tilt3. Jack slip4. Ground collapse | 1. Soft backfill2. Hidden voids3. Overextended jack4. Undersized spreader | 1. Verify bearing support2. Centre base plates3. Set jacks to manual4. Provide drainage | 1. Bearing assessment2. Spreader detail3. Jack extension4. Base level | ||||
| 4. Build first lift | 1. Joint slip2. Frame racking3. Fall from frame4. Dropped tools | 1. Loose connection2. Missing diagonal3. Bare-member access4. Unrestrained tools | 1. Use specified joints2. Brace progressively3. Use protected access4. Retain hand tools | 1. Joint setting2. Brace pattern3. Level and plumb4. Protected work position | ||||
| 5. Fit deck and rails | 1. Deck uplift2. Edge fall3. Foot through gap4. Falling objects | 1. Unlatched deck2. Incomplete rails3. Wrong board span4. Missing toe board | 1. Secure all deck locks2. Install planned rails3. Use rated decking4. Fit toe protection | 1. Deck bearing2. Lock engagement3. Edge and opening guard4. Access gate | ||||
| 6. Install ties | 1. Scaffold overturn2. Anchor pullout3. Local cracking4. Drill exposure | 1. Delayed tie install2. Weak substrate3. Wrong embedment4. Unplanned relocation | 1. Tie as work rises2. Verify host structure3. Follow anchor design4. Control dust and drilling | 1. Tie position2. Anchor identity3. Specified test record4. Installation record | ||||
| 7. Raise next lifts | 1. Sway and buckling2. Overloaded bay3. Fall during transfer4. Weather instability | 1. Excess free height2. Loads on one bay3. Protection lagging4. Added sheeting | 1. Respect staged height2. Control landing loads3. Advance fall protection4. Review wind exposure | 1. Next-stage restraint2. Permitted bay load3. Protected route4. Weather decision | ||||
| 8. Inspect and hand over | 1. Unsafe trade entry2. Hidden defect3. Unauthorised change4. Falling debris | 1. Incomplete inspection2. Unclear load limits3. Ties removed later4. Loose stored fittings | 1. Close incomplete access2. Inspect actual layout3. Record use restrictions4. Remove loose material | 1. Inspection report2. Defects closed3. Load and access limits4. Handover recipients |
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
4. Fictional scenario and failure mechanisms
Retained educational illustration; not evidence of an actual incident.
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Item | Fictional scenario |
|---|---|

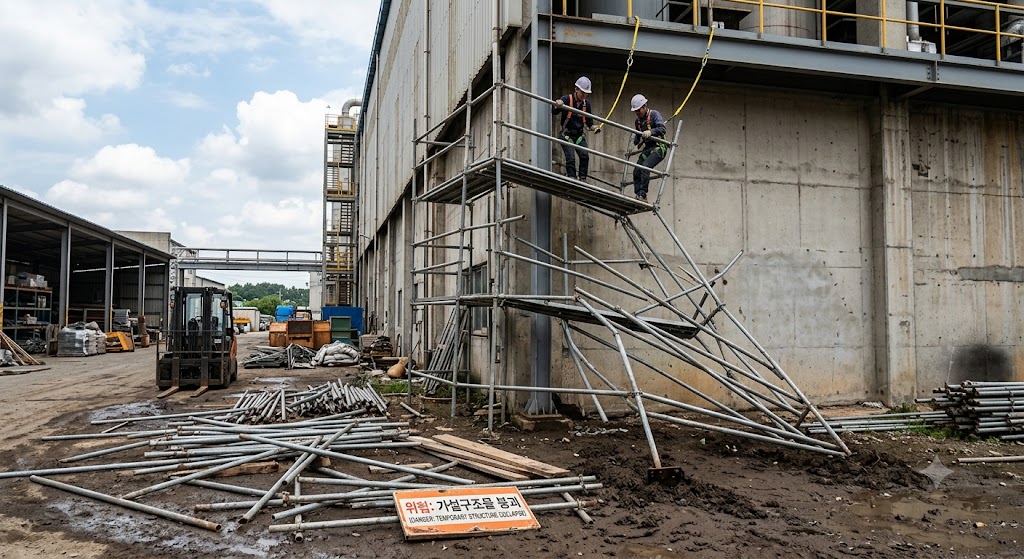

| Initial situation | A fictional crew is erecting a façade scaffold beside recently backfilled ground. The planned tie positions and erection sequence are available. |
| Changed condition | Rain softens one support area while the crew proposes adding another lift before the next tie is fitted. |
| Failure path | Uneven settlement tilts the frame; the increased unrestrained height raises sway and joint demands. A later tie cannot undo damage already introduced. |
| Possible outcome | Possible consequences include deck displacement, a fall or local collapse. No actual displacement, injury count or test result is claimed. |
| Prevention barrier | Hold the next lift, isolate access and obtain a support and staged-stability review. Correct the base and restraint before a competent reinspection and recorded release. |
Failure mechanisms
A spreader reduces average ground pressure only when its area, stiffness, bearing and the underlying ground are adequate. A large board over a void is not proof of support; drainage and later settlement matter.
Braces control frame distortion; ties transfer lateral forces into a verified host structure. They have different functions. A façade cladding panel or convenient pipe is not automatically a structural anchorage.
For an ideal isolated column, Euler buckling resistance varies inversely with effective length squared. That relationship does not establish a 75% loss of capacity for an assembled scaffold: joints, restraint, imperfections, eccentric loads and system behaviour require design analysis.
Deck locks prevent unintended movement, while edge protection limits falls. Neither compensates for weak bases or missing ties. Mesh and sheeting increase wind exposure; the usable load also depends on the number of loaded platforms.
Decision sequence
| Decision stage | What to verify |
|---|---|
| Known facts | Visible wet ground and the missing planned tie are observations, not measured capacity results. |
| Unresolved matters | Support capacity after rain, actual settlement, effective restraint and possible damage remain unresolved. |
| Reason to hold | The next lift adds height and load to an unverified temporary state; keep workers and materials off the affected area. |
| Required evidence | Obtain the revised support detail, stage-specific restraint, actual inspection results and any specified anchor tests. |
| Restart decision | The designated authority may release only the corrected, inspected stage and stated load limits; brief the crew and retain the decision. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Wet or settled base | Stop loading and assess support. | Ground assessment and corrected base detail. | Support verified; frame rechecked |
| Tie position unavailable | Hold the next lift; seek redesign. | Accepted replacement tie and sequence. | Replacement restraint installed |
| Deck or guard incomplete | Block entry; complete protection. | Locks, edges and safe access checked. | Protected access confirmed |
| Mesh, hoist or load added | Reassess stability before change. | Revised design and installation check. | Change inspected and released |
Similar situations, different decisions
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Comparison | Situation A | Situation B |
|---|---|---|
| Base condition | A dry-looking surface can conceal weak fill. | A verified support detail includes ground and drainage, not just timber size. |
| Tie substitution | Moving a tie to an easier location changes force paths. | A reviewed replacement addresses position, host capacity and erection stage. |
| Status tag | A green tag with no current record leaves scope unclear. | A traceable inspection states configuration, restrictions and who may use it. |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Design / technical lead | Define the covered configuration, erection states, support reactions, ties and change limits; resolve deviations before work advances. |
| Erection supervisor | Brief the sequence, confirm competence and protection, control each hold point and stop unsupported progression. |
| Erection crew | Check components, follow the system sequence and report mismatches; do not improvise ties, couplers or platforms. |
| Ground coordinator | Control deliveries and the drop zone; coordinate lifting signals and protect public routes without leaving a coverage gap. |
| Inspector and recipient | Record the actual configuration and unresolved defects; release only the agreed scope and pass load, access and change restrictions to users. |
Supervision, records, handover
| Job stage | Technical and procedural controls | Site verification |
|---|---|---|
| Brief design | 1. Issue current design2. Assign hold authority3. Brief protected sequence | 1. Drawing issue2. Role allocation3. Rescue readiness |
| Release bases | 1. Obtain support evidence2. Record base inspection3. Hold uncertain areas | 1. Support record2. Base location3. Inspector identity |
| Direct erection | 1. Control each lift2. Coordinate lifting3. Maintain exclusion | 1. Briefing record2. Lift-stage check3. Zone coverage |
| Track ties | 1. Map installed ties2. Log specified tests3. Escalate missing ties | 1. Tie register2. Test reference3. Deviation closure |
| Control change | 1. Review proposed change2. Update restrictions3. Record shift handover | 1. Revision reference2. Load restriction3. Open issues |
| Hand over | 1. Close inspection defects2. Issue release record3. Explain change limits | 1. Inspection reference2. Release scope3. Recipient record |
7. Hold points and record comparison
| Hold point | Evidence before release | Confirmation / approval |
|---|---|---|
| Start | Erection of a supported façade scaffold using the selected tube-and-fitting or proprietary system: receipt, bases, structural frame, decks, edge protection, progressive ties and handover. | |
| HP-1 Prepare bases | Bearing assessment · Spreader detail · Jack extension · Base level | |
| HP-2 Fit deck and rails | Deck bearing · Lock engagement · Edge and opening guard · Access gate | |
| HP-3 Install ties | Tie position · Anchor identity · Specified test record · Installation record | |
| HP-4 Inspect and hand over | Inspection report · Defects closed · Load and access limits · Handover recipients |
Complete after actual checks. Recheck after changes, defects or shift handover.
Record comparison examples
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
The boxes are static record prompts, not interactive or saved approvals. A tick does not establish suitability or permission to restart. Record the evidence, person, time and unresolved issues; retain the change history.
| Record type | Insufficient record | Record checklist |
|---|---|---|
| Bases | Only “OK” | □ Bearing assessment□ Spreader detail□ Jack extension□ Base level |
| First lift | Only “OK” | □ Joint setting□ Brace pattern□ Level and plumb□ Protected work position |
| Ties | Only “OK” | □ Tie position□ Anchor identity□ Specified test record□ Installation record |
| Handover | Only “OK” | □ Inspection report□ Defects closed□ Load and access limits□ Handover recipients |
8. Site checklist and emergency response
| Check item | Result | Person / action |
|---|---|---|
| □ Plan: Drawing revision | ||
| □ Receive parts: Component identity | ||
| □ Prepare bases: Bearing assessment | ||
| □ Build first lift: Joint setting | ||
| □ Fit deck and rails: Deck bearing | ||
| □ Install ties: Tie position | ||
| □ Raise next lifts: Next-stage restraint | ||
| □ Inspect and hand over: Inspection report | ||
| □ Release / handover authority |
Stop work
Stop for settlement, movement, missing restraint, uncertain support, damaged parts, unsafe access, uncontrolled public entry, electrical exposure or weather outside the planned envelope. Do not continue upward to reach a convenient tie position.
Emergency response
Raise the site alarm, isolate the collapse or falling-object area and activate the prepared rescue plan. Keep untrained persons off unstable members; prevent a second casualty. Notify the responsible supervisor and emergency responders, preserve evidence and require technical reassessment before reuse.
9. Sources and review limits
2026-10-12
| Source | Scope and limitations |
|---|---|
| OSHA — 1926.451 | Official text reviewed for qualified design, supports, ties, compatibility, access, inspection and erection fall protection; suspended-scaffold requirements are outside this article. |
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site authorisation are required before use.
10. PDF guidance and FAQ
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
Content group ID
jsa-scaffolding-erection
Can ties wait until the scaffold is fully built?
No. The erection sequence must establish stable intermediate states. Fit the required restraint as the scaffold rises; stop when a planned tie cannot be installed.
Does one anchor pull test prove every tie is suitable?
No. Verify the design, host material, installation and specified test method, sample and acceptance criteria. A result applies only within its documented scope.
Can a harness replace the planned platform and rails?
Plan collective protection and safe access first, with the fall protection required by the applicable rules and erection method. Personal equipment also needs suitable anchorage, clearance and rescue.
Is a green tag permission to alter the scaffold?
No. Users must follow the recorded limits. Changes to ties, decks, sheeting or loads require review and a new release where applicable.
Has a professional verified or approved this document?
No. Public sources and editorial, layout and consistency checks were reviewed using AI. No site inspection or professional technical approval has been performed. Obtain appropriate professional review before use.
11. Revision history and authorship
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site authorisation are required before use.
| Date | Version | Change | Review status |
|---|---|---|---|
| 2026-09-16 | Original version unmarked | Original preserved | No professional approval |
| 2026-10-12 | 2026.10.12 | Decisions, records, JSA and PDFs revised | No professional approval |
Retained the original identity, title, image and source history. Preserved valid controls for handling, bases, bracing, decks, progressive ties and inspection, now split into eight stages. Removed universal torque, timber, plumbness, test-load, sampling and exclusion-distance claims; corrected the Euler-capacity inference and converted the alleged incident into a fictional teaching scenario. Unsupported professional-review and automatic-compliance claims are replaced with an explicit AI reference notice. Actual scores, measurements and approvals remain blank.
