CASE STUDY

JSA Risk Assessment Preview: Asphalt Paving Operations Using Asphalt Pavers

7/26/2026

0. JSA Risk Assessment Preview: Asphalt Paving Operations Using Asphalt Pavers

No.Job StepHazard FactorsRisk Control MeasuresProbabilitySeverityRisk Level
1Temporary Traffic Control (TTC) Zone Setup and Preparation• High-speed errant vehicles breaching the work zone causing struck-by fatalities and mass collisions
• Flaggers being struck by public traffic during the deployment of traffic control devices
• Install MUTCD-compliant Advance Warning signs, concrete barriers, and traffic cones; deploy dual flaggers
• Flaggers must wear ANSI Class 3 high-visibility apparel and use STOP/SLOW paddles; strictly prohibit entering active lanes
236
2Dump Truck Asphalt Unloading and Paver Approach• Caught-between and crushing injuries involving the paver operator or ground workers during dump truck reversing
• Dump truck rollover when raising the bed (dumping) on uneven, soft, or sloped ground
• Assign dedicated reversing spotters for dump trucks; verify backup alarms and rearview cameras are fully operational
• Restrict dumping operations to level, compacted ground only; maintain designated safe clearance between truck and paver
236
3Asphalt Paver Laydown (Paving) Operations• Thermal burns from hot-mix asphalt (HMA exceeding 300°F/150°C) and respiratory illness from asphalt fume inhalation
• Amputation and caught-in hazards from the paver's hydraulic folding hopper wings and augers
• Mandate heat-resistant safety boots, gloves, and respirators; position workers upwind to minimize fume exposure
• Sound warning horns before folding hopper wings; ensure all workers are clear; establish exclusion zones around moving parts
236
4Compaction Operations (Tandem/Pneumatic Tire Rollers)• Struck-by or run-over fatalities of workers on foot positioned in the extensive blind spots of reversing rollers
• Roller overturn and operator fall hazards caused by edge collapse when compacting unconfined pavement edges
• Strictly prohibit workers on foot within the roller's operating radius; activate proximity sensors and cameras
• Maintain safe setback distances during edge compaction; operators must wear seatbelts within a certified ROPS cab
236
5Manual Patching, Luting, and Surface Finishing• Ground workers being struck by reversing rollers while manually luting directly behind the paver screed
• Eye and skin thermal burns from splattering hot asphalt mix during manual shoveling and leveling
• Establish clear hand signal communication between operators and ground workers; prohibit working in reversing paths
• Mandate ANSI-approved safety glasses and long-sleeved FR clothing; implement a buddy system for mutual monitoring
236
6Equipment Cleaning, Trailer Loading, and TTC Removal• Fire and explosion hazards when using diesel fuel or flammable solvents to clean asphalt off equipment
• Equipment sliding, rollover, and crushing hazards while loading pavers and rollers onto lowboy trailers
• Strictly prohibit smoking and open flames in cleaning areas; mandate the use of approved, eco-friendly asphalt release agents
• Ensure trailer is parked on level ground; use dedicated spotters during loading; secure equipment with 4-point chain binders
122



1. On-Site Incident & Hazard Analysis

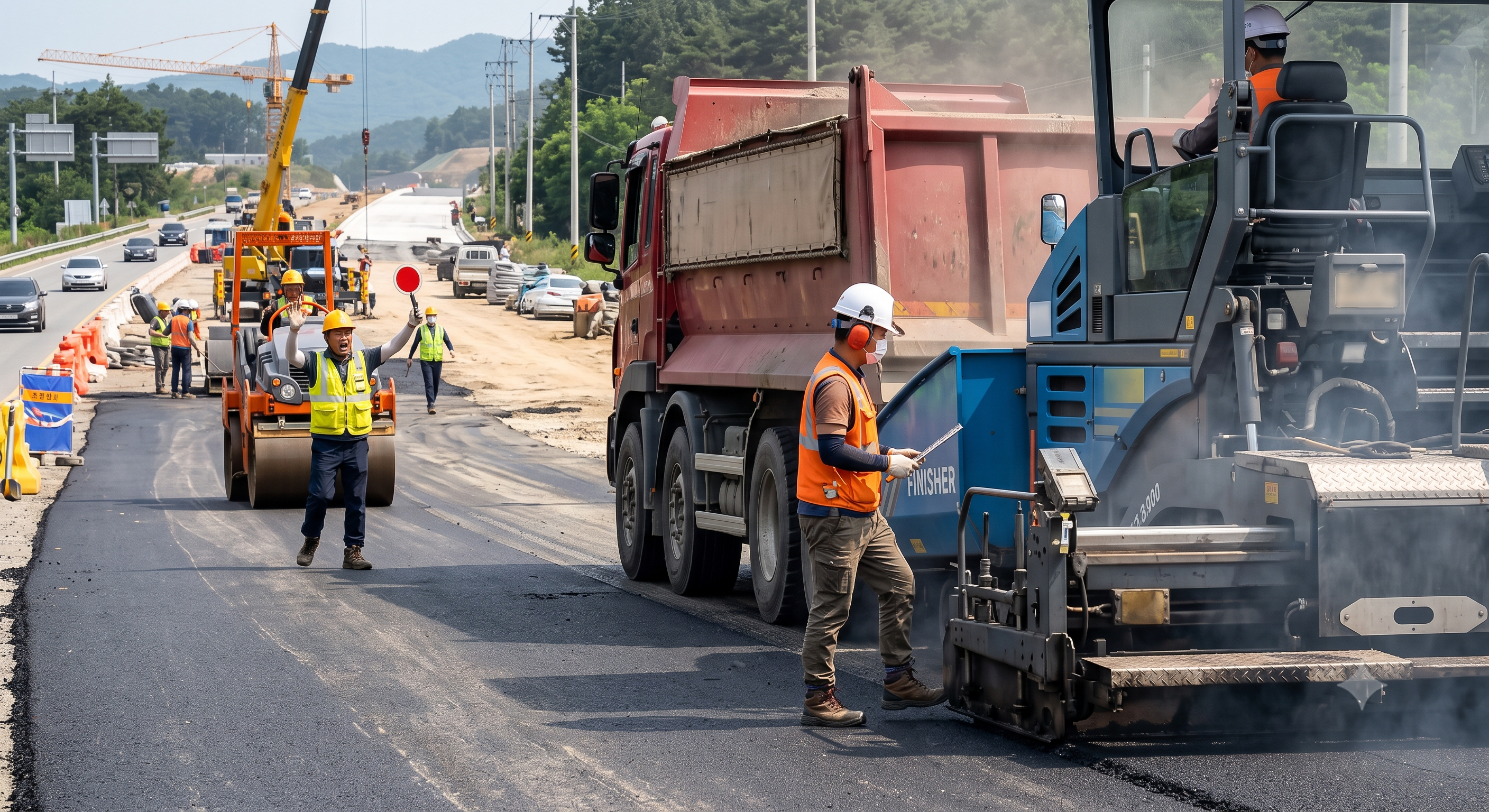

Asphalt Paving Operations Incident



A. [Hypothetical Sample Case] Worker Caught Between Reversing Dump Truck and Asphalt Paver


Note: The following is an illustrative, hypothetical incident designed solely for risk assessment training.

During a simulated highway widening project, a paving crew was laying down the surface course using a track-mounted asphalt paver. A dump truck loaded with hot-mix asphalt (HMA) was reversing to dock with the paver's hopper for unloading. A dedicated spotter was present; however, the overlapping noise from the compaction rollers and the heavy diesel engines severely impaired verbal communication and audible warnings on site.

At that moment, a quality control technician, who was measuring mat thickness behind the paver screed, walked along the side of the paver and entered the immediate blind spot directly behind the reversing dump truck. Although the truck's backup alarm was functioning, the technician was wearing heavy hearing protection and did not perceive the warning. The truck driver's rear camera lens was obscured by dust, rendering the technician invisible to the operator. The truck continued reversing, resulting in a catastrophic caught-between incident where the technician was pinned against the paver hopper. This hypothetical scenario highlights the lethal consequences of blind spot intrusions, communication breakdowns in high-noise environments, and the failure to enforce strict exclusion zones between interacting heavy machinery.


B. Structural, Mechanical, and Safety Engineering Hazard Mechanisms


Asphalt paving operations involve a highly synchronized but inherently dangerous choreography of heavy machinery—dump trucks, pavers, and rollers—moving continuously in close proximity within a constrained Temporary Traffic Control (TTC) zone. Structurally, the operator cabins of these large machines suffer from extensive blind spots. The specific interface where a dump truck reverses to discharge asphalt into a paver hopper is a critical "pinch point" where the distance between two massive moving objects approaches zero.

Mechanically, the asphalt paver features powerful hydraulic components, such as folding hopper wings and rotating augers, which generate massive shearing forces capable of severe amputation. Furthermore, Hot-Mix Asphalt (HMA) is typically delivered at temperatures exceeding 300°F (150°C). This presents not only immediate thermal burn hazards upon contact but also emits concentrated asphalt fumes containing volatile organic compounds (VOCs). Prolonged inhalation impairs cognitive function and reaction times, indirectly increasing the likelihood of struck-by accidents. Therefore, establishing rigid equipment exclusion zones, deploying dedicated spotters, and enforcing the use of heat-resistant PPE and respirators are mandatory engineering and administrative controls under OSHA regulations.


🚨 US Federal Regulations & Safety Standards (OSHA 29 CFR & MUTCD)

OSHA 29 CFR 1926.601 (Motor Vehicles): Requires that all vehicles with an obstructed view to the rear must be equipped with a reverse signal alarm audible above the surrounding noise level or be guided by an observer/spotter.

OSHA 29 CFR 1926.200 (Accident Prevention Signs and Tags): Mandates the use of traffic control signs and devices that conform to the Manual on Uniform Traffic Control Devices (MUTCD) to protect workers from public vehicular traffic.

OSHA 29 CFR 1926.55 (Gases, Vapors, Fumes, Dusts, and Mists): Requires employers to implement engineering controls or provide appropriate respirators (e.g., N95 or P100) to protect workers from overexposure to asphalt fumes.

NIOSH Asphalt Paving Guidelines: Recommends the implementation of engineering controls, such as local exhaust ventilation systems on asphalt pavers, and the use of eco-friendly release agents instead of flammable diesel fuel for equipment cleaning.



2. Standard Data Entry Guide for Smart JSA Bridge


To ensure the Smart JSA Bridge platform generates safety control measures fully aligned with OSHA standards and MUTCD guidelines, enter the following standardized job steps into the system:

  • [Step 1] Temporary Traffic Control (TTC) Zone Setup and Preparation

    • Detailed Description: Install MUTCD-compliant barriers and advance warning signs; deploy dual flaggers with ANSI Class 3 apparel; prohibit public traffic intrusion physically.

  • [Step 2] Dump Truck Asphalt Unloading and Paver Approach

    • Detailed Description: Assign dedicated reversing spotters; verify operational backup alarms and cameras; perform unloading only on level ground to prevent truck rollovers.

  • [Step 3] Asphalt Paver Laydown (Paving) Operations

    • Detailed Description: Sound horns before operating hydraulic hopper wings; mandate heat-resistant boots, gloves, and respirators; establish exclusion zones around augers.

  • [Step 4] Compaction Operations (Tandem/Pneumatic Tire Rollers)

    • Detailed Description: Strictly enforce exclusion zones for workers on foot around rollers; activate proximity sensors; mandate seatbelt use inside ROPS-certified cabins.

  • [Step 5] Manual Patching, Luting, and Surface Finishing

    • Detailed Description: Prohibit manual work in the direct reversing path of equipment; establish clear hand signals; mandate long-sleeved FR clothing and safety glasses.

  • [Step 6] Equipment Cleaning, Trailer Loading, and TTC Removal

    • Detailed Description: Prohibit open flames and diesel fuel for cleaning; use eco-friendly release agents; use spotters for lowboy trailer loading; secure equipment with chain binders.



3. Recommended Final JSA Document (Database Sample)


Below is the final JSA document generated based on automated system recommendations and adapted for US highway and civil construction standards:

No.Job StepHazard FactorsRisk Control MeasuresProbabilitySeverityRisk Level
1Temporary Traffic Control (TTC) Zone Setup and Preparation• High-speed errant vehicles breaching the work zone causing struck-by fatalities and mass collisions
• Flaggers being struck by public traffic during the deployment of traffic control devices
• Install MUTCD-compliant Advance Warning signs, concrete barriers, and traffic cones; deploy dual flaggers
• Flaggers must wear ANSI Class 3 high-visibility apparel and use STOP/SLOW paddles; strictly prohibit entering active lanes
236
2Dump Truck Asphalt Unloading and Paver Approach• Caught-between and crushing injuries involving the paver operator or ground workers during dump truck reversing
• Dump truck rollover when raising the bed (dumping) on uneven, soft, or sloped ground
• Assign dedicated reversing spotters for dump trucks; verify backup alarms and rearview cameras are fully operational
• Restrict dumping operations to level, compacted ground only; maintain designated safe clearance between truck and paver
236
3Asphalt Paver Laydown (Paving) Operations• Thermal burns from hot-mix asphalt (HMA exceeding 300°F/150°C) and respiratory illness from asphalt fume inhalation
• Amputation and caught-in hazards from the paver's hydraulic folding hopper wings and augers
• Mandate heat-resistant safety boots, gloves, and respirators; position workers upwind to minimize fume exposure
• Sound warning horns before folding hopper wings; ensure all workers are clear; establish exclusion zones around moving parts
236
4Compaction Operations (Tandem/Pneumatic Tire Rollers)• Struck-by or run-over fatalities of workers on foot positioned in the extensive blind spots of reversing rollers
• Roller overturn and operator fall hazards caused by edge collapse when compacting unconfined pavement edges
• Strictly prohibit workers on foot within the roller's operating radius; activate proximity sensors and cameras
• Maintain safe setback distances during edge compaction; operators must wear seatbelts within a certified ROPS cab
236
5Manual Patching, Luting, and Surface Finishing• Ground workers being struck by reversing rollers while manually luting directly behind the paver screed
• Eye and skin thermal burns from splattering hot asphalt mix during manual shoveling and leveling
• Establish clear hand signal communication between operators and ground workers; prohibit working in reversing paths
• Mandate ANSI-approved safety glasses and long-sleeved FR clothing; implement a buddy system for mutual monitoring
236
6Equipment Cleaning, Trailer Loading, and TTC Removal• Fire and explosion hazards when using diesel fuel or flammable solvents to clean asphalt off equipment
• Equipment sliding, rollover, and crushing hazards while loading pavers and rollers onto lowboy trailers
• Strictly prohibit smoking and open flames in cleaning areas; mandate the use of approved, eco-friendly asphalt release agents
• Ensure trailer is parked on level ground; use dedicated spotters during loading; secure equipment with 4-point chain binders
122



4. JSA Engineering Mechanism for Paving Operations: Struck-By Prevention and Thermal Control


Asphalt paving operations using asphalt pavers demand rigorous engineering controls and strict compliance with OSHA regulations and MUTCD guidelines to prevent fatal struck-by/caught-between incidents involving heavy machinery, catastrophic traffic zone breaches, and severe thermal burns. Vague instructions such as "watch out for trucks" or "be careful around hot asphalt" are entirely inadequate for OSHA compliance audits and fail to prevent jobsite fatalities.

Smart JSA Bridge utilizes an automated risk analysis algorithm calibrated against OSHA 29 CFR 1926 Subpart O and MUTCD Part 6 standards to deliver real-time, actionable hazard controls.

By inputting 6 structured job steps, the algorithm calculates required technical controls—including mandatory spotter positioning for dump truck reversing, exclusion zone radii for compaction rollers, MUTCD-compliant traffic barrier setups, and specific PPE requirements to mitigate asphalt fume and thermal exposure.

Project Managers, Safety Directors, and Paving Superintendents can customize these parameters with a single click to match specific machinery fleets and highway traffic control plans across US civil construction projects.

Streamline your safety documentation workflow while ensuring total statutory compliance for high-risk heavy machinery operations. Generate your customized risk assessment today.
