Ground preparation, controlled lifting, flange assembly and planned transfer of new short rectangular HVAC duct sections and elbows to accepted permanent supports.
Hold for unknown section weight or center of gravity, unaccepted anchors or hangers, unstable access, distorted flanges, unexpected sag, hanger movement or interference during load transfer.
Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.
1. Legal and technical scope
For construction installation, apply OSHA 1926.251 to covered rigging and the applicable access and fall-protection provisions, including 1926.501 where applicable. Scaffold or lift-specific provisions depend on the equipment used. Product joint instructions and the accepted structural support design remain separate from federal occupational-safety rules.
Determine Federal OSHA or the applicable OSHA-approved State Plan, including public/private employer coverage. State Plans must be at least as effective and can impose different or additional requirements. The actual activity determines construction versus general-industry scope. Manufacturer instructions, consensus standards, project design and site approvals have distinct roles; this page is not a finding of nationwide compliance.
| Basis | Application and limits |
|---|---|
| OSHA 1926.251 | Construction rigging selection, inspection and use. |
| OSHA 1926.501 | Applicable walking-surface integrity and fall-protection duties; select access-equipment-specific requirements separately. |
| Lindab rectangular duct assembly instructions | Selected storage, flange, gasket and assembly guidance for the illustrated product. European classifications, dimensions and support spacing are not universal US design criteria. |
2. Scope and required inputs
Included: Ground preparation, controlled lifting, flange assembly and planned transfer of new short rectangular HVAC duct sections and elbows to accepted permanent supports.
Separate review: Large air-handling modules, long assembled duct lifts, structural support design, fire or smoke system performance approval, live duct cutting, entry inside ductwork and field welding require separate review.
| Input | Required evidence |
|---|---|
| Review section and supports | Section and assembly ID; Weight and center evidence; Support layout and acceptance; Lift and access configuration |
| Prepare grounded joint | Ground support stability; Hands clear of pinch points; Product instructions and PPE; Dry fit and gasket position |
| Connect hangers and flanges | Hanger and anchor identity; Connection sequence; Fastener and gasket inspection; Lift still supporting load |
| Inspect and hand over | Support and joint checks; Leakage test status; As-built section route; Receiving owner and restrictions |
Confirm section identification, assembly weight and center of gravity, approved lift method, support layout and anchor acceptance, access equipment, gasket and sealant compatibility, fastener specification and inspection before insulation. Obtain the actual design and product instructions; no universal hanger spacing, bolt torque or leakage class is established here.
3. Eight-stage JSA
P = likelihood; S = severity; R = risk under the site method; A = acceptance or authorization as defined by the site. Leave these blank until actual assessment and control verification. A low score does not override a legal requirement, product limit or unreleased hold point.
| Job stage | Hazards and effects | Failure factors | Required controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Review section and supports | 1. Duct collapse2. Unbalanced suspended load3. Anchor failure4. Wrong assembly | 1. Mass or center unknown2. Lift configuration changed3. Support design absent4. Section IDs mixed | 1. Identify complete lifted section2. Confirm weight and center3. Accept hanger and anchor basis4. Match route and section IDs | 1. Section and assembly ID2. Weight and center evidence3. Support layout and acceptance4. Lift and access configuration | ||||
| 2. Inspect and prepare zone | 1. Sharp-edge cuts2. Platform fall3. Dropped materials4. Flange leakage | 1. Damaged edges ignored2. Access unsuitable3. Work below continues4. Flange bent in storage | 1. Inspect duct and joint parts2. Provide suitable protected access3. Exclude people below4. Hold distorted connection parts | 1. Edge and flange condition2. Access equipment acceptance3. Controlled fall zone4. Gasket and fastener identity | ||||
| 3. Prepare grounded joint | 1. Duct roll or slide2. Finger crush3. Sealant exposure4. Misaligned connection | 1. Cradle unstable2. Hands between flanges3. Product hazards ignored4. Joint forced together | 1. Support on stable cradles2. Use controlled alignment tools3. Follow sealant precautions4. Check fit before lifting | 1. Ground support stability2. Hands clear of pinch points3. Product instructions and PPE4. Dry fit and gasket position | ||||
| 4. Lift and align | 1. Falling duct2. Suspended-load strike3. Access collision4. Rigging damage | 1. Lift point unsuitable2. People enter fall zone3. Travel obstructed4. Sharp edge contacts sling | 1. Use approved lift arrangement2. Maintain exclusion and signals3. Move within planned clearance4. Protect rigging as specified | 1. Rigging and load balance2. Signal owner and clear zone3. Platform and duct separation4. Landing alignment | ||||
| 5. Connect hangers and flanges | 1. Unstable partial support2. Finger pinch3. Fastener failure4. Air leakage | 1. Lift released early2. Hands used as alignment aid3. Wrong joint hardware4. Gasket displaced | 1. Retain lifting support2. Use suitable alignment aids3. Install specified hardware4. Inspect continuous joint seal | 1. Hanger and anchor identity2. Connection sequence3. Fastener and gasket inspection4. Lift still supporting load | ||||
| 6. Transfer load deliberately | 1. Hanger pullout2. Elbow sag3. Duct distortion4. Worker struck below | 1. Support path unaccepted2. Transfer abrupt3. Flange mistaken for support4. People remain underneath | 1. Verify permanent load path2. Follow planned gradual transfer3. Observe hanger and duct response4. Keep clear throughout transfer | 1. Support acceptance record2. Transfer sequence and observer3. Movement and load response4. Release authorization | ||||
| 7. Hold movement or damage | 1. Progressive collapse2. Concealed joint defect3. Unsafe body support4. Repeated support failure | 1. Sag dismissed2. Insulation hides defect3. Worker catches duct4. Cause remains unknown | 1. Stop transfer and clear zone2. Maintain approved safe support3. Prohibit body support4. Review anchors mass and geometry | 1. Affected section and hanger2. Observed movement3. Safe support condition4. Repair and reinspection basis | ||||
| 8. Inspect and hand over | 1. Unseen loose connection2. Premature system use3. Leaking concealed joint4. Lost support restriction | 1. Final inspection omitted2. Assembly equals release3. Test requirement skipped4. Hold not transferred | 1. Inspect before concealment2. Separate assembly and use release3. Record required leakage tests4. Transfer drawings and open holds | 1. Support and joint checks2. Leakage test status3. As-built section route4. Receiving owner and restrictions |
4. Hypothetical scenario and failure mechanisms

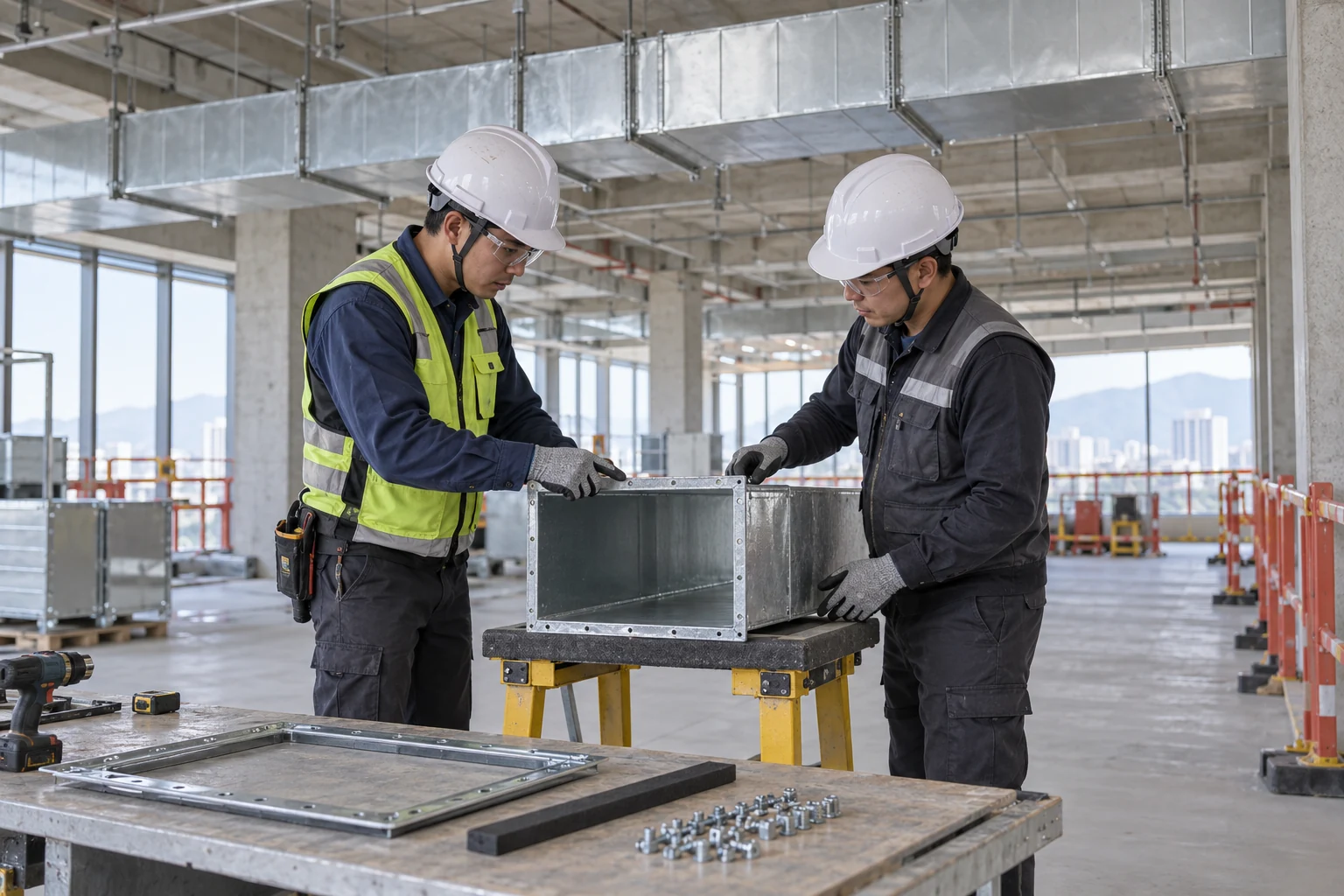

Retained source illustration: an AI-generated educational concept, not a real incident photograph or evidence of equipment suitability.The following scenario, comparisons and example records are hypothetical teaching material. They do not reproduce actual incidents, measurements, signatures or approvals.
| Item | Hypothetical situation |
|---|---|
| Initial state | An elbow section is held by lifting equipment while its flanges and hangers are connected. |
| Change | As the lifting support is lowered, one hanger leans and the elbow sags. |
| Failure path | A helper offers to hold the duct on a shoulder while another worker tightens the flange bolts. |
| Possible harm | Body support exposes the helper to collapse and pinch hazards and does not correct the uncertain permanent load path. |
| Barrier | Clear the fall zone, retain or restore support only through the planned equipment method, and obtain technical review of the load path before another transfer. |
A completed flange joint connects duct sections but does not demonstrate the adequacy of their supporting structure. Track the load through the duct connection, hanger, anchor and building attachment; accept that path before releasing lifting support.
Elbows and partially assembled sections can have an offset center of gravity. Review the lifted configuration and access clearances, protect sharp edges and use only the approved lifting arrangement. A personnel platform is not automatically approved to lift or support ductwork.
A continuous gasket or sealant bead can still conceal flange damage or incompatible materials. Check the actual joint system and installation sequence. Visual sealing inspection does not replace specified leakage testing.
Unexpected movement during transfer is evidence requiring a hold, even when bolt counts appear correct. Keep people clear, record the affected hanger and section, and resolve support and alignment before insulating or concealing connections.
| Decision | Reason and evidence |
|---|---|
| Known facts | As the lifting support is lowered, one hanger leans and the elbow sags. |
| Unresolved | A helper offers to hold the duct on a shoulder while another worker tightens the flange bolts. |
| Hold reason | Hold for unknown section weight or center of gravity, unaccepted anchors or hangers, unstable access, distorted flanges, unexpected sag, hanger movement or interference during load transfer. |
| Evidence needed | Support acceptance record; Transfer sequence and observer; Movement and load response; Release authorization. |
| Next decision | Clear the fall zone, retain or restore support only through the planned equipment method, and obtain technical review of the load path before another transfer. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Hanger acceptance missing | Retain safe support and hold transfer. | Anchor and hanger design records. | Load path accepted. |
| Unexpected sag | Clear zone and stop transfer. | Section movement and support condition. | Technical disposition completed. |
| Flange damage | Separate affected section. | Joint inspection and repair basis. | Joint accepted. |
| Insulation requested | Hold concealment until inspection. | Support, joint and test status. | Required inspections complete. |
| Comparison | Situation A | Situation B |
|---|---|---|
| Flange bolts installed | Permanent support path and controlled transfer are accepted. | Bolt count alone is used to release the lift. |
| Seal looks continuous | Joint materials and specified test status are recorded. | Appearance is treated as a passed leakage test. |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Confirm scope, task sequence, exclusion and stop authority. Coordinate review section and supports with affected operations. |
| Technical reviewer | Resolve the actual design and equipment limits: Section and assembly ID; Weight and center evidence; Support layout and acceptance; Lift and access configuration. |
| Work crew | Perform prepare grounded joint using the approved procedure; report any mismatch before proceeding. |
| Inspector / assessor | Verify Support acceptance record; Transfer sequence and observer; Movement and load response; Release authorization. Record what was actually checked and what remains unresolved. |
| Release / receiving authority | Confirm Support and joint checks; Leakage test status; As-built section route; Receiving owner and restrictions. Transfer restrictions and the next permitted stage. |
These are responsibility examples, not invented statutory credentials. Meet the actual training, competent-person, qualified-person and licensing requirements for the assigned work. Anyone may raise a hazard and request a stop; only the designated authority may release the affected stage after evidence is reviewed.
7. Hold points and record comparison
| Hold point | Evidence before release | Confirmation / approval |
|---|---|---|
| HP-0 Start | Scope, jurisdiction, equipment identity, responsible people and emergency arrangements. | |
| HP-1 Review section and supports | Section and assembly ID; Weight and center evidence; Support layout and acceptance; Lift and access configuration | |
| HP-2 Lift and align | Rigging and load balance; Signal owner and clear zone; Platform and duct separation; Landing alignment | |
| HP-3 Transfer load deliberately | Support acceptance record; Transfer sequence and observer; Movement and load response; Release authorization | |
| HP-4 Inspect and hand over | Support and joint checks; Leakage test status; As-built section route; Receiving owner and restrictions |
Hold points are internal evidence gates. They do not replace statutory permits or actual signatures. Recheck affected gates after a change, abnormal event or shift transfer. The blank record must identify the evidence, person, time, limits and release scope.
| Record | Insufficient record | Record checklist |
|---|---|---|
| Lift | Duct ready | □ Section and assembly ID□ Weight and center evidence□ Support layout and acceptance□ Lift and access configuration |
| Joint | Bolts installed | □ Hanger and anchor identity□ Connection sequence□ Fastener and gasket inspection□ Lift still supporting load |
| Transfer | Lift removed | □ Support acceptance record□ Transfer sequence and observer□ Movement and load response□ Release authorization |
| Handover | Seal looks good | □ Support and joint checks□ Leakage test status□ As-built section route□ Receiving owner and restrictions |
The □ boxes are static prompts, not saved or interactive approvals. Each checks one record element. A tick alone does not establish suitability or permission to restart. Link equipment IDs and supporting records; retain unresolved matters and the earlier record when conditions change.
8. Site checklist and emergency response
| Check item | Result | Person / action |
|---|---|---|
| Section and assembly ID | ||
| Edge and flange condition | ||
| Ground support stability | ||
| Rigging and load balance | ||
| Hanger and anchor identity | ||
| Support acceptance record | ||
| Affected section and hanger | ||
| Support and joint checks | ||
| Emergency arrangements and unresolved restrictions communicated |
Stop work: Hold for unknown section weight or center of gravity, unaccepted anchors or hangers, unstable access, distorted flanges, unexpected sag, hanger movement or interference during load transfer.
Emergency response: Stop movement from a safe location and clear the falling-load area. Do not catch or shoulder a failing section. Use the site rescue plan with stabilized loads and controlled equipment; call 911 for serious injury.
9. Sources and review limits
Official-source review date: October 14, 2026. The following review is limited to the public provisions or selected manufacturer material identified below. It does not establish that any authority approved this article or the actual installation.
- OSHA 1926.251: Construction rigging selection, inspection and use.
- OSHA 1926.501: Applicable walking-surface integrity and fall-protection duties; select access-equipment-specific requirements separately.
- Lindab rectangular duct assembly instructions: Selected storage, flange, gasket and assembly guidance for the illustrated product. European classifications, dimensions and support spacing are not universal US design criteria.
- OSHA State Plans: jurisdiction and coverage overview; identify the actual state program before use.
Paid consensus standards and site-specific calculations, manuals, inspection records and product certificates were not independently obtained or verified unless specifically identified. Korean legal citations remain in the preserved Korean source as source history; they are not represented as US legal duties.
10. PDF guidance and FAQ
PDF A covers basic task controls; B examines technical failures; C focuses on supervision, evidence and handover. Each has six rows and three items per main cell. They are complementary extracts: apply all eight body stages and the applicable site procedure. An omitted stage is not permission to omit its controls. PDF HP-0 through HP-4 are worksheet labels; match the event, evidence and authority rather than assuming they match another permit by number.
P/S/R/A, actual measurements, confirmations and signatures remain blank. The PDFs are uncompleted reference worksheets, not issued work permits.
Content group ID: jsa-rectangular-duct-section-assembly
Do flange bolts prove that lifting support can be removed?
No. Accept the complete permanent support path and planned transfer response first.
Can a worker hold a sagging duct temporarily?
Do not use body support. Clear the fall zone and use the approved equipment and technical recovery plan.
Does a continuous seal prove leak tightness?
No. Complete the inspection and leakage testing required by the actual specification.
Is one hanger spacing suitable for every section?
No. Section geometry, weight, supports, anchors and the approved design determine the arrangement.
Has a professional verified or approved this document?
No. This is AI-assisted reference material. Editorial and layout checks are not a physical inspection or professional technical approval. Obtain qualified professional review and required site approval before use.
11. Revision history and authorship
Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.
This system has not physically inspected the equipment, structures, ground, atmosphere or worksite. The document does not replace legal advice, manufacturer procedures, engineering design, inspection certificates, qualification evidence, the site risk assessment or an actual work permit.
Before use, a suitably qualified and authorized person must review the actual equipment, loads, methods, protection, inspection and emergency arrangements and resolve open issues. Record the real reviewer, organization, qualifications, delegated authority, reviewed documents, date, signature, exclusions and conditions of approval separately.
| Date | Version | Change | Review status |
|---|---|---|---|
| 2026-10-08 | 1.0 | Korean source revision retained in the source snapshot. | Historical editorial status; not US professional approval. |
| 2026-10-14 | US 1.0 | US localization of the assigned Korean source; task reasoning, educational image and history retained; US scope and sources reviewed. | AI-assisted editorial work; professional approval not performed. |
