0. JSA Risk Assessment Preview: High-Pressure Plunger Pump Installation & Power Connection
| No. | Job Step | Hazard Factors | Risk Reduction Measures | Probability | Severity | Risk Level |
|---|---|---|---|---|---|---|
| 1 | Mobilization & Unloading of Pump Package & Accessories | • Crushing risk under suspended loads due to sling belt failure during unloading • Structural overpressure hazard caused by substandard pump specifications | • Inspect all synthetic web slings and eyebolts prior to lifting; establish barricades • Cross-verify nameplate specs and pump performance certificates against target test pressure | 2 | 3 | 6 |
| 2 | Equipment Positioning & Leveling | • Risk of pump tipping or line disconnection due to operational vibration on uneven ground • Pinched fingers/feet while positioning heavy baseplates and shock mounts | • Install steel shims and anti-vibration pads; visually verify horizontal level • Execute positioning with a 2-person team using manual lever blocks for fine adjustments | 2 | 2 | 4 |
| 3 | Connection of High-Pressure Suction/Discharge Lines & Relief Lines | • Flange rupture or whip hazard from inadequate bolt torque during pressurization • Piping fatigue failure and high-velocity fluid leaks driven by reciprocating pulsation | • Insert rated spiral wound gaskets; torque flange bolts in a cross-pattern to target specs • Install a pressure safety valve (PSV) and attach whip-check safety cables to discharge lines | 2 | 3 | 6 |
| 4 | Temporary Cable Laying & Electrical Power Connection | • Electric shock risk from undersized breakers or damaged cable insulation in temporary panels • Motor casing lockup or reverse rotation caused by incorrect phase wiring | • Connect to a panel equipped with a certified GFCI/ELB; verify ground continuity • Perform an uncoupled jog test (inching) to verify motor rotation direction before final coupling | 2 | 3 | 6 |
| 5 | Control Valve Alignment & Pressure Gauge Zero-Point Calibration | • Sudden overpressure explosion if pump is started with the discharge isolation valve closed • Incorrect pressure readings leading to over-pressurization due to uncalibrated gauges | • Fully open the pump bypass valve and cross-check discharge valve positions before starting • Install calibrated pressure gauges within valid test dates and verify zero-point alignment | 2 | 3 | 6 |
| 6 | Commissioning Zone Perimeter Setup & Final Inspection | • High-velocity fluid strike hazard to unauthorized personnel entering the test area • Tripping hazards and cable damage caused by scattered tools and temporary wiring | • Erect warning barriers within a 30 ft radius with "HIGH PRESSURE TESTING - KEEP OUT" signs • Route temporary cables through protective covers or trays; clear non-essential tools | 1 | 2 | 2 |
1. Field Episode & Hazard Factor Analysis

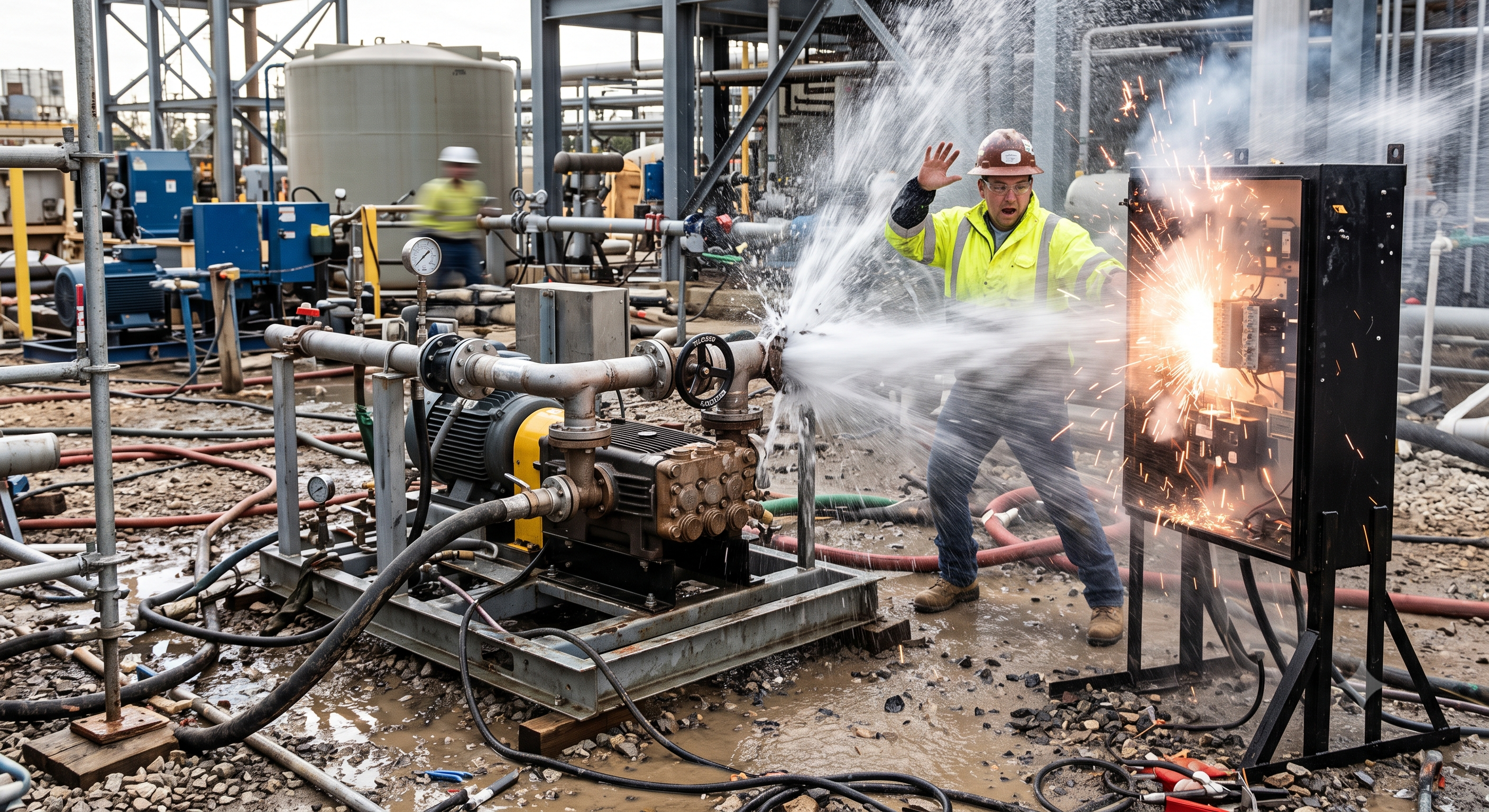

A. Near-Miss Incident: Discharge Port Rupture and Panel Flashover Caused by Closed Bypass Valve
During a field hydrostatic test requiring steady pressurization above 1,450 psi (100 bar), a field crew set up a high-pressure plunger pump package. After filling the target pipe loop with water, the commissioning technician rushed the pump startup. Crucially, he failed to verify that the bypass line valve on the discharge manifold was fully open before pressing the start button on the temporary breaker panel.
Because a positive displacement reciprocating pump forces liquid out at a constant volume regardless of resistance, starting it against a closed line causes discharge pressure ($P = F / A$) to spike beyond structural thresholds in seconds. Almost instantly, the trapped fluid burst the temporary flange weld with a deafening blast. The high-pressure water spray struck an adjacent temporary power distribution board, causing a short circuit and exposing nearby workers to an arc flash and shock risk. Although the upstream Ground Fault Circuit Interrupter (GFCI) tripped instantly and prevented fatalities, the incident highlighted the critical importance of valve alignment checks and electrical moisture ingress prevention during high-pressure pump setups.
B. Fluid Dynamic & Electrical Hazard Mechanisms in Reciprocating Pump Setups
Installing high-pressure plunger pumps involves managing both dynamic mechanical forces and high-energy electrical inputs. A positive displacement plunger pump produces a cyclic, pulsating flow profile. These high-frequency fluid pulses induce heavy mechanical vibration along the discharge piping network. Without properly torqued flange bolting, rigid pipe supports, and anti-vibration padding, this continuous pulsation can loosen threaded connections, shear flange bolts, or cause fatigue cracks in temporary fittings.
At the same time, high-horsepower motors draw heavy inrush currents during startup, which accelerates thermal degradation in temporary power cables. In hydrostatic testing environments where water leakage is common, any fluid spray contacting compromised cable joints or unsealed electrical enclosures presents an immediate ground fault or shock hazard. Effective risk control requires dual protection: mechanical overpressure relief via safety valves (PSVs) and electrical fault isolation via GFCI systems and structural equipment grounding.
🚨 OSHA & Applicable Regulatory Standards
OSHA 1926.300 / ASME B31.3 - Pressure Relief Protection: Positive displacement pumps used in high-pressure testing must be equipped with a properly rated Pressure Safety Valve (PSV) set at or below the Maximum Allowable Working Pressure (MAWP) of the weakest component in the system.
OSHA 1926.404 - Ground Fault Protection: Temporary electrical setups powering high-pressure pumps must utilize Ground Fault Circuit Interrupters (GFCI) and meet strict equipment grounding conductor (EGC) continuity standards.
OSHA 1910.212 - Pre-Operation Direction Checks: Electrical motors driving positive displacement machinery must undergo a uncoupled rotation check (jog/inch test) prior to mechanical connection to prevent reverse torque damage.
OSHA 1926.200 - High-Pressure Work Zone Exclusion: High-pressure testing areas must be clearly demarked with physical barricades and warning signage restricting access exclusively to authorized testing personnel.
2. Smart JSA Bridge Input Standard Guide (Standard Operating Procedures)
To allow Smart JSA Bridge to generate precise engineering controls and regulatory safeguards, enter the following standardized job steps and details into the system:
[Step 1] Mobilization & Unloading of Pump Package & Accessories
Detailed Description: Inspect synthetic web slings, shackles, and eyebolts for wear prior to lifting; establish barricades and assign a signalperson around the drop zone; verify pump nameplate ratings against target test pressures.
[Step 2] Equipment Positioning & Leveling
Detailed Description: Check ground stability at the installation site; place steel shims and anti-vibration pads under the pump baseplate; use a 2-person team with manual lever blocks to position and level the unit.
[Step 3] Connection of High-Pressure Suction/Discharge Lines & Relief Lines
Detailed Description: Fit rated spiral wound gaskets between high-pressure flanges; torque bolts in a cross-pattern to specified limits; install a rated Pressure Safety Valve (PSV) on the discharge port; attach whip-check safety cables across hose and pipe joints.
[Step 4] Temporary Cable Laying & Electrical Power Connection
Detailed Description: Connect temporary power cables to a breaker panel protected by a certified GFCI/ELB; verify motor frame grounding continuity; perform an uncoupled jog test to confirm correct motor shaft rotation.
[Step 5] Control Valve Alignment & Pressure Gauge Zero-Point Calibration
Detailed Description: Verify that the pump bypass valve is fully open prior to energizing; install calibrated pressure gauges with active inspection tags; verify that gauge pointers rest accurately at zero pressure.
[Step 6] Commissioning Zone Perimeter Setup & Final Inspection
Detailed Description: Set up safety barricades at a 30 ft radius around the pump area; post "HIGH PRESSURE TESTING" warning signs; install cable bridges over footpaths; remove unused tools and clear emergency access routes.
3. Recommended Platform Data Output: Final JSA Example
Below is the final, field-validated JSA output produced by selecting and refining the platform's auto-recommended hazard controls based on actual site conditions:
| No. | Job Step | Hazard Factors | Risk Reduction Measures | Probability | Severity | Risk Level |
|---|---|---|---|---|---|---|
| 1 | Mobilization & Unloading of Pump Package & Accessories | • Crushing risk under suspended loads due to sling belt failure during unloading • Structural overpressure hazard caused by substandard pump specifications | • Inspect all synthetic web slings and eyebolts prior to lifting; establish barricades • Cross-verify nameplate specs and pump performance certificates against target test pressure | 2 | 3 | 6 |
| 2 | Equipment Positioning & Leveling | • Risk of pump tipping or line disconnection due to operational vibration on uneven ground • Pinched fingers/feet while positioning heavy baseplates and shock mounts | • Install steel shims and anti-vibration pads; visually verify horizontal level • Execute positioning with a 2-person team using manual lever blocks for fine adjustments | 2 | 2 | 4 |
| 3 | Connection of High-Pressure Suction/Discharge Lines & Relief Lines | • Flange rupture or whip hazard from inadequate bolt torque during pressurization • Piping fatigue failure and high-velocity fluid leaks driven by reciprocating pulsation | • Insert rated spiral wound gaskets; torque flange bolts in a cross-pattern to target specs • Install a pressure safety valve (PSV) and attach whip-check safety cables to discharge lines | 2 | 3 | 6 |
| 4 | Temporary Cable Laying & Electrical Power Connection | • Electric shock risk from undersized breakers or damaged cable insulation in temporary panels • Motor casing lockup or reverse rotation caused by incorrect phase wiring | • Connect to a panel equipped with a certified GFCI/ELB; verify ground continuity • Perform an uncoupled jog test (inching) to verify motor rotation direction before final coupling | 2 | 3 | 6 |
| 5 | Control Valve Alignment & Pressure Gauge Zero-Point Calibration | • Sudden overpressure explosion if pump is started with the discharge isolation valve closed • Incorrect pressure readings leading to over-pressurization due to uncalibrated gauges | • Fully open the pump bypass valve and cross-check discharge valve positions before starting • Install calibrated pressure gauges within valid test dates and verify zero-point alignment | 2 | 3 | 6 |
| 6 | Commissioning Zone Perimeter Setup & Final Inspection | • High-velocity fluid strike hazard to unauthorized personnel entering the test area • Tripping hazards and cable damage caused by scattered tools and temporary wiring | • Erect warning barriers within a 30 ft radius with "HIGH PRESSURE TESTING - KEEP OUT" signs • Route temporary cables through protective covers or trays; clear non-essential tools | 1 | 2 | 2 |
4. High-Pressure Pump JSA Design Mechanism for Pulsation & Overpressure Control
Setting up a high-pressure plunger pump for hydrostatic testing requires precise engineering calculations to address risks such as pressure spikes, pulsation vibration, and temporary electrical faults. Generic warnings like "be careful with high pressure" or "check electrical wires" are insufficient to prevent severe field accidents like line ruptures or arc flashes.
Smart JSA Bridge uses an automated risk matching engine to evaluate mechanical, fluid, and electrical variables, outputting field-tested safety controls in real time.
By entering the 6-step job sequence into the platform, the algorithm calculates key technical controls—such as PSV setpoints, GFCI sensitivity thresholds, and whip-check safety cable standards—aligned with OSHA and ASME regulations.
Commissioning engineers and safety managers can customize these parameters with a single click, tailoring relief valve specs and electrical protection levels to match their exact site requirements.
Streamline your documentation workflow while maintaining complete technical control over high-pressure operations. Build your custom risk assessment today.
👉 Enter your job steps on Smart JSA Bridge and design your custom JSA (smartjsabridge.com)
