Calibration intentionally restores energy and motion. Treat maintenance access, controlled testing and re-isolation as distinct states with an identified person controlling each transition.
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
Stop conditions first
Hold access or testing for uncertain residual force, process boundary, fail behavior or movement range. Do not supply test energy with anyone in the stem/lever path or with maintenance restraints left contrary to the test procedure.
1. US legal and technical basis
General-industry maintenance of a pneumatic control valve and actuator. OSHA 1910.147 applies to covered hazardous-energy servicing, including the specified testing/positioning transition. Electrical work and covered process hazards also require their applicable provisions.
| Reference | Use and limit |
|---|---|
| OSHA 29 CFR 1910.147 | Selected stored-energy verification and paragraph (f)(1) testing/positioning sequence: clear equipment/personnel, authorized device removal, controlled test and reapplication of energy control. |
| Fisher FIELDVUE DVC6200 SIS manual | Selected calibration warning on full-stroke movement and isolation from process pressure/fluid. Model example only, not an instruction to operate an unidentified controller or a SIS validation. |
| Swagelok Tube Fitting Instructions MS-12-01 | Matched fitting parts and distinction between initial installation and reassembly; actual fitting instructions govern. |
| OSHA State Plans | Federal baseline and State Plan coverage reviewed. Confirm the applicable state program and employer coverage; this edition does not establish nationwide compliance. |
Determine whether Federal OSHA or an applicable State Plan governs the employer and work. Standards incorporated into a regulation must be read in their legally applicable edition. Other NFPA/ANSI guidance and manufacturer instructions have distinct roles; they are not automatically federal law.
2. Scope and required inputs
Included
Identify valve/actuator behavior, control air/signal/process and stored forces, connect matched tubing, perform an authorized bounded stroke calibration, re-isolate for access and restore through the defined handover.
Separate assessment
Improvised spring-housing disassembly, unreviewed automatic full-stroke testing, pressure/seat-leak testing and substitution for a safety-instrumented-system validation are excluded.
| Input | Evidence needed |
|---|---|
| Plan actuator and test | Valve/actuator IDs; Fluid/pressure boundary; Reference/range/units; Test/restore plan |
| Prepare test boundary | Movement/personnel boundary; Hoses/tubes/ratings; Signal/operating state; Materials and ports |
| Connect tubing | Fitting/material identity; Assembly and routing; Port correspondence; Fail setup evidence |
| Close and transfer | Final energy state; Mode/settings; Calibration/separate tests; Operator/holds/time |
Selected public official provisions were checked on October 13, 2026. This is not a complete legal audit. No actual equipment manual, site measurements, engineering calculations, product certification or professional technical approval was supplied. Full paid NFPA/ANSI standards and state/local amendments were not reviewed. Check actual equipment, jurisdiction and project requirements before use.
Select task-appropriate eye, hand, foot, skin and hearing protection from the exposure assessment. Where respiratory protection is necessary, use the applicable respiratory-protection program; PPE does not replace isolation, guarding, support or ventilation.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Plan actuator and test | 1. Unexpected motion2. Process release3. Wrong calibration4. Failed restoration | 1. Fail inputs confused2. Differential pressure ignored3. Criteria undefined4. Transition owner absent | 1. Identify actual drive/fail setup2. Assess process effects3. Define test limits/criteria4. Assign transition authority | 1. Valve/actuator IDs2. Fluid/pressure boundary3. Reference/range/units4. Test/restore plan | ||||
| 2. Prepare test boundary | 1. Stem crush2. Hose detaches3. Remote-command motion4. Wrong component | 1. Movement area open2. Pressure rating wrong3. Operations uncoordinated4. Fittings mixed | 1. Exclude full motion range2. Match supply/components3. Control remote signals4. Identify fitting system | 1. Movement/personnel boundary2. Hoses/tubes/ratings3. Signal/operating state4. Materials and ports | ||||
| 3. Isolate stored forces | 1. Spring-driven crush2. Residual-air release3. Gravity movement4. Process-fluid release | 1. Signal alone disabled2. Other chambers trapped3. Spring force ignored4. Process boundary incomplete | 1. Isolate energy sources2. Safely vent specified points3. Control all stored forces4. Verify process isolation | 1. LOTO/vent evidence2. Actuator configuration3. Approved restraint/state4. Process boundary | ||||
| 4. Connect tubing | 1. Tube ejects2. Air leakage3. Wrong port motion4. Reversed fail action | 1. Mixed fitting parts2. Bad seating/tightening3. Ports confused4. Configuration not checked | 1. Follow fitting instructions2. Support/protect tubing3. Match port tags/drawing4. Verify fail configuration | 1. Fitting/material identity2. Assembly and routing3. Port correspondence4. Fail setup evidence | ||||
| 5. Transition and calibrate | 1. Full-stroke crush2. Overpressure3. Process upset4. Unexpected remote motion | 1. People in travel range2. Regulator set wrong3. Bypass unmanaged4. Transition steps skipped | 1. Clear people/tools/restraints2. Apply authorized test sequence3. Use defined pressure/test points4. Control signals with operations | 1. Clear movement boundary2. Supply/regulator limits3. As-found/as-left reference4. Bypass/test authorization | ||||
| 6. End test and re-isolate | 1. Unexpected restart2. Retained-restraint collision3. Wrong final setting4. Safety function unavailable | 1. Access before isolation2. Tools left near stem3. Fail checks omitted4. Bypass not restored | 1. Deenergize and reapply controls2. Reconcile tools/restraints3. Record specified fail results4. Restore by authorized sequence | 1. Safe reaccess state2. Tool/restraint count3. Final settings/results4. Operations restoration | ||||
| 7. Hold fault and retest | 1. Live fitting release2. Drive against restraint3. Lost drift evidence4. Wrong process action | 1. Live adjustment attempted2. State transition missed3. As-found overwritten4. Fail condition confused | 1. Isolate before correction2. Repeat transition checks3. Preserve original results4. Retest only accepted scope | 1. Residual-force verification2. People/tools/restraints3. Before/after settings4. Air/signal-loss conditions | ||||
| 8. Close and transfer | 1. Test energy remains2. Wrong mode retained3. Unverified performance claim4. Faulted valve used | 1. End state unknown2. Final mode omitted3. Calibration called leak test4. Restriction not passed on | 1. Confirm test termination2. Record normal/isolated state3. State exact verified scope4. Transfer results and limits | 1. Final energy state2. Mode/settings3. Calibration/separate tests4. Operator/holds/time |
Actual risk assessments, measurements, checks, approvals and signatures have not been performed. Keep unverified fields blank and link the actual site records. P/S/R/A mean likelihood, severity, site-method risk and site-defined acceptance/authorization; a score cannot waive a required control.
4. Failure mechanisms and hypothetical case

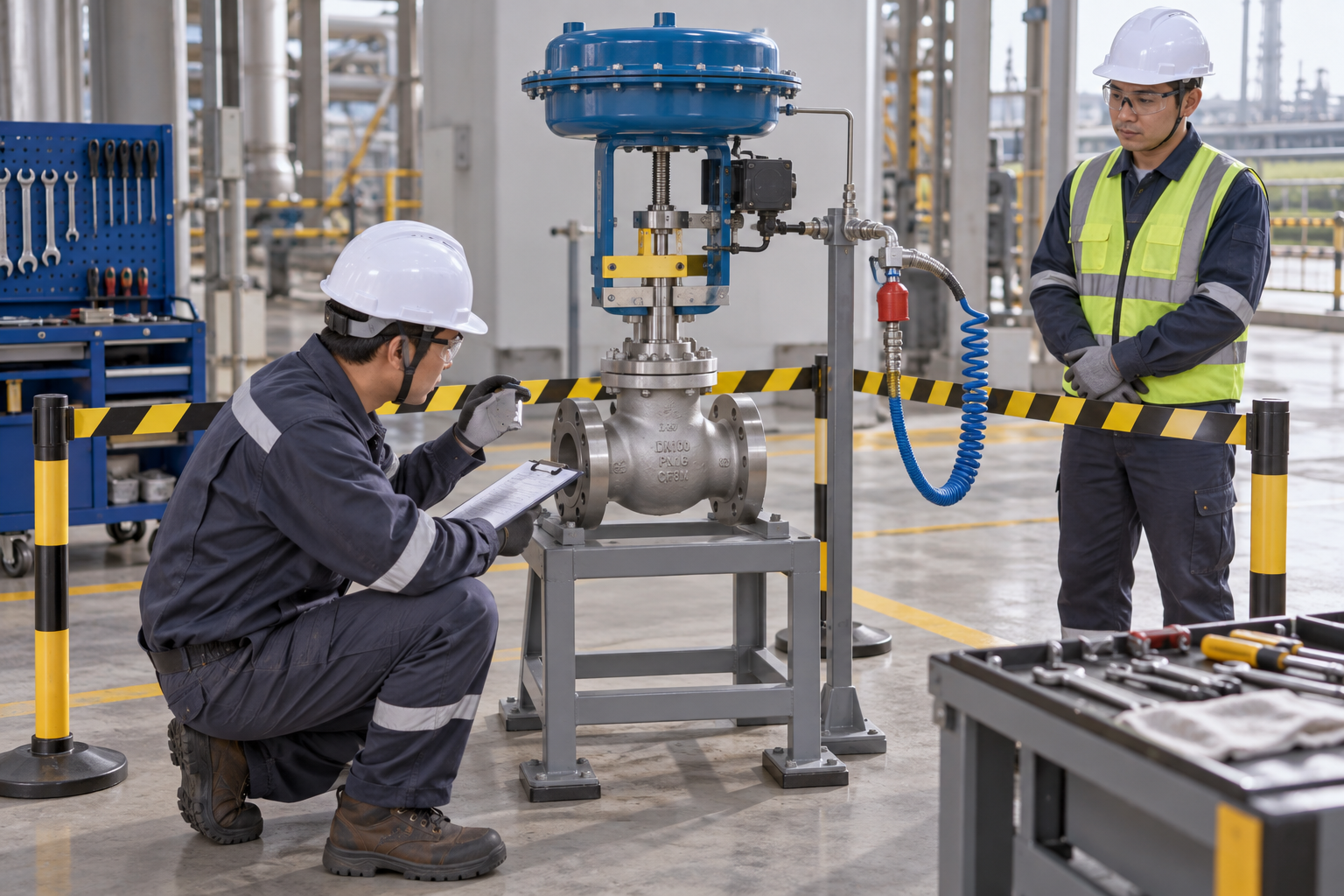

The retained illustration is an AI-generated educational image from the Korean source. It is not an actual incident photograph, approved drawing, equipment certification or proof that the depicted arrangement is safe.
A supply gauge at zero does not prove other chambers, springs, gravity or process differential pressure are harmless. Use the actual actuator energy-control method; do not improvise a block or open a spring housing.
Temporary removal of energy-control devices for testing requires the applicable sequence: clear tools/materials and people, remove devices by the authorized procedure, energize for the controlled test, then deenergize and reapply controls before further servicing.
Automatic calibration can move a valve through its full stroke. Loss of air and loss of electrical signal may produce different responses; establish actual configuration and process consequences before testing.
Retain as-found results before adjustment and link as-left results to the same reference, units, points, directions and criteria. Stroke calibration does not establish seat tightness, pressure integrity or overall SIS function.
Hypothetical decision example
Hypothetical example: air is shut off and the supply gauge reads zero. A technician approaches the stem without checking the spring, other pressure chambers or process forces. Access is held until the complete stored-force state and equipment-specific restraint procedure are established.
The example is fictional; no incident, measurement, inspection or approval is asserted.
Task flow: Plan actuator and test → Prepare test boundary → Isolate stored forces → Connect tubing → Transition and calibrate → End test and re-isolate → Hold fault and retest → Close and transfer
5. Hold and proceed decisions
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Gauge zero only | Hold access/disconnection | All stored forces and isolation | Access state verified |
| Fail behavior differs | Do not supply test energy | Actuator configuration and process review | Test scope accepted |
| Test requires motion | Perform controlled transition | Clear people/tools; test authorization | Test boundary ready |
| Adjustment complete | Retain separate result sets | As-found/as-left and restore evidence | Defined scope accepted |
Similar observation, different conclusion
| Observation | Supported conclusion | What remains unresolved |
|---|---|---|
| Supply gauge zero | One pressure point reads zero | Spring/process forces unproved |
| End position looks right | One position observed | Intermediate accuracy and restoration unproved |
6. Roles and supervision
| Role | Responsibility |
|---|---|
| Work supervisor | Coordinate plan actuator and test, affected operations, stop signals and stage transitions. |
| Technical/equipment reviewer | Verify Valve/actuator IDs, Fluid/pressure boundary, actual instructions and unresolved technical limits. |
| Task crew | Apply the stated controls, report changes and keep actual checks and signatures factual. |
| Inspector/test lead | Connect Safe reaccess state, Tool/restraint count to the required acceptance criteria. |
| Receiving authority | Accept the recorded restrictions, Calibration/separate tests, Operator/holds/time, and follow-up ownership. |
These are responsibility examples, not invented statutory credentials. Verify actual competence, training and authority for the assigned work.
Supervision and handover controls
| Stage | Management controls | Evidence |
|---|---|---|
| Plan review | 1. Assign technical owner2. Close task-specific questions3. Identify actual drive/fail setup | 1. Valve/actuator IDs2. Fluid/pressure boundary3. Test/restore plan |
| Competence | 1. Verify required competence2. Assign stop authority3. Exclude full motion range | 1. Movement/personnel boundary2. Training and task briefing3. Materials and ports |
| Prestart evidence | 1. Inspect actual equipment2. Link evidence to this stage3. Follow fitting instructions | 1. Fitting/material identity2. Assembly and routing3. Fail setup evidence |
| Change control | 1. Stop and secure the area2. Review affected controls3. Isolate before correction | 1. Residual-force verification2. People/tools/restraints3. Air/signal-loss conditions |
| Shift handover | 1. Identify remaining restrictions2. Confirm receiving responsibility3. Confirm test termination | 1. Final energy state2. Mode/settings3. Operator/holds/time |
| Closeout | 1. Record defect disposition2. Archive factual evidence3. Confirm test termination | 1. Final energy state2. Mode/settings3. Operator/holds/time |
7. Hold points and record quality
| Hold point | Evidence before release | Actual record |
|---|---|---|
| HP-0 Start | Identify valve/actuator behavior, control air/signal/process and stored forces, connect matched tubing, perform an authorized bounded stroke calibration, re-isolate for access and restore through the defined handover. | |
| HP-1 Prepare test boundary | Movement/personnel boundary; Hoses/tubes/ratings; Signal/operating state; Materials and ports | |
| HP-2 Connect tubing | Fitting/material identity; Assembly and routing; Port correspondence; Fail setup evidence | |
| HP-3 Hold fault and retest | Residual-force verification; People/tools/restraints; Before/after settings; Air/signal-loss conditions | |
| HP-4 Close and transfer | Final energy state; Mode/settings; Calibration/separate tests; Operator/holds/time |
Hold points are internal evidence gates. They do not establish that a statutory permit exists or has been approved. Recheck affected gates after changes, faults and shift handover.
Record comparison - hypothetical templates
The 16 boxes below identify record elements, not completed checks or approvals. They are static symbols. Link equipment/location, date, actual findings and the separate record reference; preserve unresolved items.
| Record | Insufficient entry | Required record elements |
|---|---|---|
| Plan actuator and test | "Checked" without supporting facts | □ Valve/actuator IDs□ Fluid/pressure boundary□ Reference/range/units□ Test/restore plan |
| Isolate stored forces | "Checked" without supporting facts | □ LOTO/vent evidence□ Actuator configuration□ Approved restraint/state□ Process boundary |
| Transition and calibrate | "Checked" without supporting facts | □ Clear movement boundary□ Supply/regulator limits□ As-found/as-left reference□ Bypass/test authorization |
| Hold fault and retest | "Checked" without supporting facts | □ Residual-force verification□ People/tools/restraints□ Before/after settings□ Air/signal-loss conditions |
8. Pre-work checks and emergency response
| Check required | Result | Checker/action |
|---|---|---|
| Plan actuator and test: Valve/actuator IDs | ||
| Prepare test boundary: Movement/personnel boundary | ||
| Isolate stored forces: LOTO/vent evidence | ||
| Connect tubing: Fitting/material identity | ||
| Transition and calibrate: Clear movement boundary | ||
| End test and re-isolate: Safe reaccess state | ||
| Hold fault and retest: Residual-force verification | ||
| Close and transfer: Final energy state |
Stop work
Hold access or testing for uncertain residual force, process boundary, fail behavior or movement range. Do not supply test energy with anyone in the stem/lever path or with maintenance restraints left contrary to the test procedure.
Emergency response
Stop the test through the planned safe controls and keep people away from the stem, lever and hose-release paths. Arrange isolation of air, signal and process energy and verified stored-force control before approach. Do not release a spring housing or loosen a pressurized fitting to free a trapped part. Call 911 for serious crush or exposure and provide the actuator, process and current test-energy state to responders.
9. Official sources and review limits
Official public-source check: October 13, 2026. The review concerns the selected passages described below, not endorsement of this article.
| Official source | Checked scope and limit |
|---|---|
| OSHA 29 CFR 1910.147 | Selected stored-energy verification and paragraph (f)(1) testing/positioning sequence: clear equipment/personnel, authorized device removal, controlled test and reapplication of energy control. |
| Fisher FIELDVUE DVC6200 SIS manual | Selected calibration warning on full-stroke movement and isolation from process pressure/fluid. Model example only, not an instruction to operate an unidentified controller or a SIS validation. |
| Swagelok Tube Fitting Instructions MS-12-01 | Matched fitting parts and distinction between initial installation and reassembly; actual fitting instructions govern. |
| OSHA State Plans | Federal baseline and State Plan coverage reviewed. Confirm the applicable state program and employer coverage; this edition does not establish nationwide compliance. |
Selected public official provisions were checked on October 13, 2026. This is not a complete legal audit. No actual equipment manual, site measurements, engineering calculations, product certification or professional technical approval was supplied. Full paid NFPA/ANSI standards and state/local amendments were not reviewed. Check actual equipment, jurisdiction and project requirements before use.
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
10. PDF use and frequently asked questions
PDF A summarizes core controls; B emphasizes technical failures; C covers supervision, records and handover. Each uses six stages from or aligned with the eight-stage body. All actual risk, measurement, check and signature fields are blank. Use a separate linked record where more space is needed.
Does venting remove spring force?
No. Verify all stored forces through the actual actuator procedure.
Can calibration run with a maintenance block in place?
Only the prescribed test configuration may be used. Resolve restraints and personnel before energizing; never drive against an improvised block.
Is automatic calibration always a small movement?
No. It may command full stroke, so review process consequences and the entire movement zone.
Does calibration prove shutoff or SIS performance?
No. Identify the verified calibration scope and keep separate tests and validation requirements distinct.
Has a professional approved this JSA?
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
11. Authorship and revision history
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
| Date/version | Editorial history | Technical approval |
|---|---|---|
| September 20, 2026 / Korean v1.0 | Korean source: initial article, evidence, hypothetical decisions and body/PDF editorial checks. | Professional technical approval not performed |
| September 23, 2026 / Korean v1.1 | Korean source: revised task decisions, record checklists, JSA and three PDFs; editorial/source and layout checks. | Professional technical approval not performed |
| October 13, 2026 / US v1.0 | US localization: Preserves zero-gauge versus spring/process-force case, maintenance/test state changes, distinct fail inputs and as-found/as-left records. Adds OSHA testing/positioning sequence and a limited Fisher automatic-travel example. | Not performed |
