Planetary Mixer Bowl and Agitator Cleaning JSA

Manufacturer-permitted removal, cleaning, sanitizing and reassembly of removable bowls and agitators on an identified food-service planetary mixer, with controlled energy and supported parts.

Hold for uncertain isolation or residual motion, unsupported bowl or agitator, unidentified parts, cracks, incomplete latching, failed guards, interference or suspected water entry into electrical parts.

Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.

1. Legal and technical scope

Apply OSHA 1910.147 to covered general-industry cleaning and servicing exposure and 1910.212 to applicable machine guarding. The cord-and-plug exception in 1910.147(a)(2)(iii)(A) is conditional on hazard control by unplugging and exclusive plug control. Chemical protection and hygiene requirements remain separate; an interlock is not an energy-isolating device.

Determine Federal OSHA or the applicable OSHA-approved State Plan, including public/private employer coverage. State Plans must be at least as effective and can impose different or additional requirements. The actual activity determines construction versus general-industry scope. Manufacturer instructions, consensus standards, project design and site approvals have distinct roles; this page is not a finding of nationwide compliance.

2. Scope and required inputs

Included: Manufacturer-permitted removal, cleaning, sanitizing and reassembly of removable bowls and agitators on an identified food-service planetary mixer, with controlled energy and supported parts.

Separate review: Entry into large mixers, automated feed lines, drive or bowl-lift repairs, clearance adjustment, modification and heated mixing require separate procedures. This JSA does not establish food-hygiene acceptance criteria.

Confirm mixer, bowl and agitator IDs, actual removal order, bowl weight and handling assistance, safe lift position, cleaning and sanitizing products, and reassembly checks. Follow the applicable energy-control procedure; a guard interlock is not isolation. Keep clean and dirty parts separated and apply the actual hygiene procedure before food-use release.

3. Eight-stage JSA

P = likelihood; S = severity; R = risk under the site method; A = acceptance or authorization as defined by the site. Leave these blank until actual assessment and control verification. A low score does not override a legal requirement, product limit or unreleased hold point.

4. Hypothetical scenario and failure mechanisms

The following scenario, comparisons and example records are hypothetical teaching material. They do not reproduce actual incidents, measurements, signatures or approvals.

Opening the cage can stop motion while power remains available. Wait for the agitator to stop and apply the applicable isolation and verification before cleaning access. For cord-and-plug equipment, the OSHA exception requires unplugging to control the hazard and exclusive control of the plug by the servicing employee; it is not an automatic exception for every portable mixer.

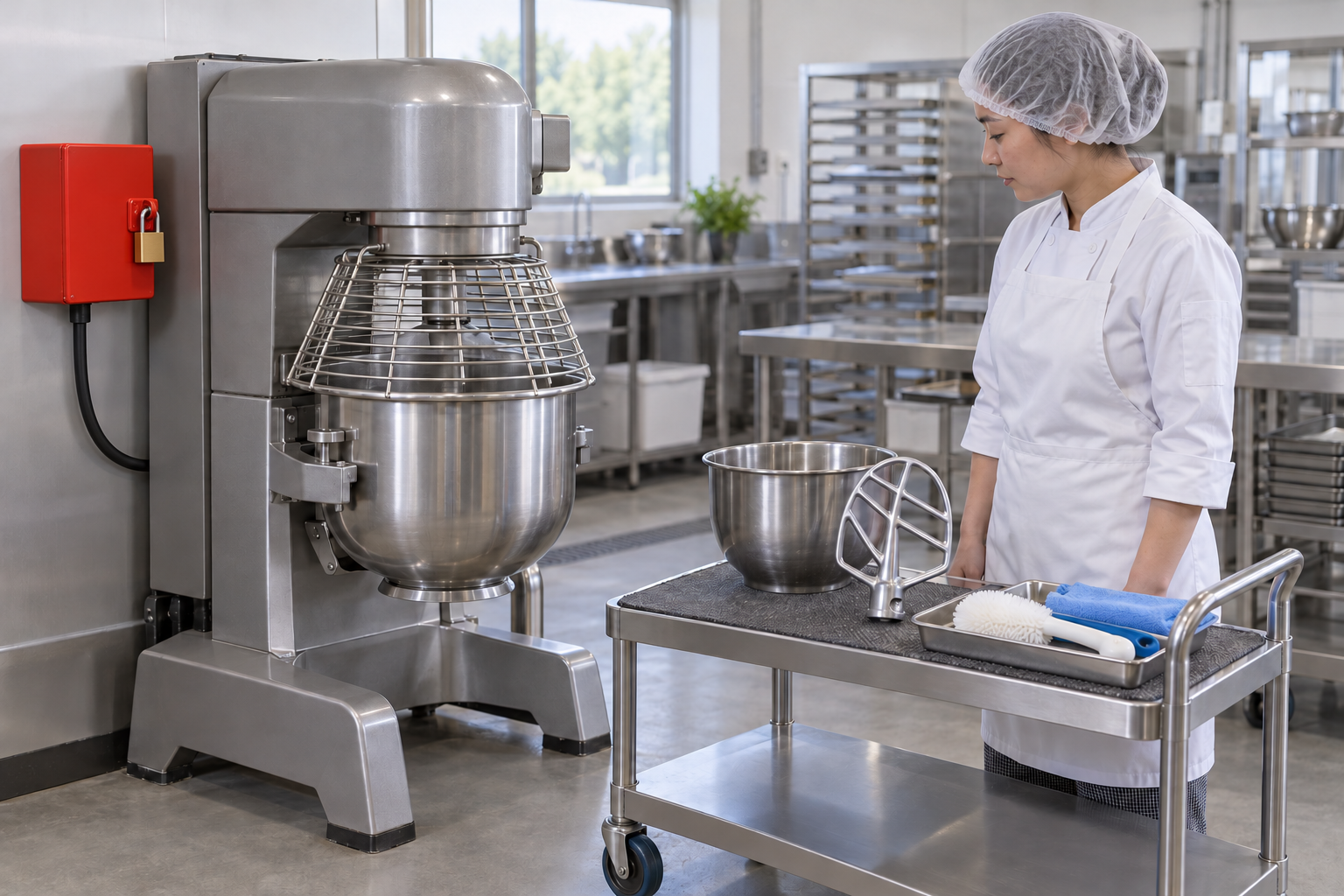

Bowl position and component support are separate from electrical state. Follow the actual removal sequence and support each part before releasing its retainer. Use suitable assistance for a heavy or awkward bowl and keep fingers clear of lift and latch points.

Similar size does not prove bowl and agitator compatibility. Preserve component identity through the wash area, check latches and guarding, and hold any contact or abnormal clearance. Cleaning personnel must not improvise a mechanical adjustment.

Clean food-contact surfaces do not prove machine safety, and a successful guarded check does not prove sanitation. Record both decisions separately. Protect the drive and electrical parts from water; use the actual permitted wipe or wash method rather than assuming the whole machine can be hosed.

5. Conditional decisions and common errors

6. Roles and responsibilities

These are responsibility examples, not invented statutory credentials. Meet the actual training, competent-person, qualified-person and licensing requirements for the assigned work. Anyone may raise a hazard and request a stop; only the designated authority may release the affected stage after evidence is reviewed.

7. Hold points and record comparison

Hold points are internal evidence gates. They do not replace statutory permits or actual signatures. Recheck affected gates after a change, abnormal event or shift transfer. The blank record must identify the evidence, person, time, limits and release scope.

The □ boxes are static prompts, not saved or interactive approvals. Each checks one record element. A tick alone does not establish suitability or permission to restart. Link equipment IDs and supporting records; retain unresolved matters and the earlier record when conditions change.

8. Site checklist and emergency response

Stop work: Hold for uncertain isolation or residual motion, unsupported bowl or agitator, unidentified parts, cracks, incomplete latching, failed guards, interference or suspected water entry into electrical parts.

Emergency response: Stop from a safe position for entrapment or falling parts and prevent further movement. Do not catch a rotating agitator or bypass a guard for rescue. Call 911 for serious injury and use the site rescue plan with controlled energy and supported parts.

9. Sources and review limits

Official-source review date: October 14, 2026. The following review is limited to the public provisions or selected manufacturer material identified below. It does not establish that any authority approved this article or the actual installation.

• OSHA 1910.147: Servicing scope, energy isolation and conditional cord-and-plug exception.
• OSHA 1910.212: Applicable guarding of rotating and point-of-operation hazards.
• Hobart Legacy+ F48153, May 2021: Selected unloading, wire-cage, cleaning and interference guidance. No hose cleaning of the example machine; actual model sequence and hygiene requirements must be obtained.
• OSHA State Plans: jurisdiction and coverage overview; identify the actual state program before use.

Paid consensus standards and site-specific calculations, manuals, inspection records and product certificates were not independently obtained or verified unless specifically identified. Korean legal citations remain in the preserved Korean source as source history; they are not represented as US legal duties.

10. PDF guidance and FAQ

PDF A covers basic task controls; B examines technical failures; C focuses on supervision, evidence and handover. Each has six rows and three items per main cell. They are complementary extracts: apply all eight body stages and the applicable site procedure. An omitted stage is not permission to omit its controls. PDF HP-0 through HP-4 are worksheet labels; match the event, evidence and authority rather than assuming they match another permit by number.

P/S/R/A, actual measurements, confirmations and signatures remain blank. The PDFs are uncompleted reference worksheets, not issued work permits.

Content group ID: jsa-planetary-mixer-cleaning

Is opening the cage enough for cleaning?

No. Verify complete stop and apply the actual energy-control procedure.

Is unplugging always sufficient?

Only where it controls the relevant unexpected-start hazard and the servicing employee maintains exclusive plug control; evaluate all other energy and support hazards.

Can similar-size bowls be exchanged?

Use the manufacturer-permitted bowl and agitator combination, not appearance alone.

May the mixer run to settle a rubbing agitator?

No. Stop and reisolate, verify assembly and refer the defect to qualified maintenance.

Has a professional verified or approved this document?

No. This is AI-assisted reference material. Editorial and layout checks are not a physical inspection or professional technical approval. Obtain qualified professional review and required site approval before use.

11. Revision history and authorship

Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.

This system has not physically inspected the equipment, structures, ground, atmosphere or worksite. The document does not replace legal advice, manufacturer procedures, engineering design, inspection certificates, qualification evidence, the site risk assessment or an actual work permit.

Before use, a suitably qualified and authorized person must review the actual equipment, loads, methods, protection, inspection and emergency arrangements and resolve open issues. Record the real reviewer, organization, qualifications, delegated authority, reviewed documents, date, signature, exclusions and conditions of approval separately.
