Stop before starting
Stop for changed excavation conditions, unverified protection, water inflow, unstable pipe, damaged rigging, unexpected joining resistance or missing inspection before covering. Keep pressure testing, live tie-ins and entry on separate authorization.
1. Legal and technical scope
| Basis | Scope and limits |
|---|---|
| OSHA 1926.651 | Utilities, access, water, adjacent hazards and excavation inspection. |
| OSHA 1926.652 | Excavation protective systems within their stated scope. |
| OSHA 1926.251 | Material-handling rigging requirements. |
For construction, apply 1926.651 excavation requirements and 1926.652 protective-system requirements according to actual depth, ground and exposure. Use competent-person inspections and an accepted protective method, not an assumed exemption. Rigging must meet the applicable 1926.251 provisions. Pressure testing and any confined-space entry need their own scope review. Determine State Plan requirements and the approved pipe/joint design.
2. Scope and required inputs
Included work
Receiving and restraining pipe, preparing an accepted excavation and bedding, lowering and aligning pipe, making the specified material-specific joint, inspecting and handing over for approved backfill.
Separate assessment
Live-system cutover, pressure-test execution, commissioning, entry into pipe or confined spaces, trenchless work and unreviewed excavation repair require separate plans.
| Required input | Evidence to obtain |
|---|---|
| Review route and interfaces | Route and utilities; System isolation; Pipe and joint type; Test and entry exclusions |
| Accept excavation | Competent inspection; Protection and water; Edge loads; Access acceptance |
| Receive and restrain pipe | Pipe weight and condition; Chocks and supports; Rigging and lift points; Storage arrangement |
| Lower to bedding | Lift and exclusion; Bedding condition; Pipe stability; Release authority |
No actual equipment model, SDS, site measurements, design calculations or authorization record was supplied. Product-specific limits and methods must be verified before use. Federal OSHA is a baseline within its scope; determine the applicable State Plan and local requirements. Manufacturer guidance is not government approval; an incorporated standard differs from voluntary guidance. No nationwide-compliance or expert-approval claim is made.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Technical and procedural controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Review route and interfaces | 1. Utility strike2. Unexpected inflow3. Wrong pipe4. Unsafe test boundary | 1. Survey incomplete2. Live tie-in missed3. Material confused4. Testing combined | 1. Locate services2. Control existing flows3. Match pipe design4. Separate testing scope | 1. Route and utilities2. System isolation3. Pipe and joint type4. Test and entry exclusions | ||||
| 2. Accept excavation | 1. Cave-in2. Water rise3. Equipment surcharge4. Blocked escape | 1. Protection inadequate2. Water change ignored3. Loads near edge4. Access omitted | 1. Use accepted protective system2. Control water3. Manage edge loads4. Inspect access and ground | 1. Competent inspection2. Protection and water3. Edge loads4. Access acceptance | ||||
| 3. Receive and restrain pipe | 1. Rolling pipe strike2. Rigging failure3. Stack collapse4. Socket damage | 1. Chocks absent2. Lift point improvised3. Stack unsupported4. Handling impacts | 1. Chock stored pipe2. Use approved rigging3. Follow stacking limits4. Protect ends and joints | 1. Pipe weight and condition2. Chocks and supports3. Rigging and lift points4. Storage arrangement | ||||
| 4. Lower to bedding | 1. Suspended-load strike2. Pipe roll3. Hand crush4. Trench instability | 1. People under load2. Bedding uneven3. Hands guide gap4. Signal unclear | 1. Clear lowering zone2. Use one agreed signal3. Land on accepted bedding4. Verify restraint before approach | 1. Lift and exclusion2. Bedding condition3. Pipe stability4. Release authority | ||||
| 5. Align and join | 1. Pinch injury2. Sudden pipe motion3. Seal damage4. Process burn | 1. Hands in gap2. Excess force3. Gasket displaced4. Method mismatched | 1. Use suitable alignment tools2. Keep clear of loaded path3. Inspect seal and surfaces4. Follow material-specific method | 1. Alignment and grade2. Force or resistance change3. Seal and insertion4. Joint procedure record | ||||
| 6. Inspect and prepare handoff | 1. Hidden leak path2. Wrong gradient3. Pressure-thrust injury4. Unauthorized entry | 1. Joint not checked2. Survey omitted3. Test caps improvised4. Pipe entered casually | 1. Inspect before covering2. Record grade and location3. Separate test authorization4. Prevent unplanned entry | 1. Joint inspection2. Survey and elevation3. Test-plan boundary4. Entry controls | ||||
| 7. Hold movement or fault | 1. Excavation collapse2. Pipe release3. Residual-pressure injury4. Repeat joint defect | 1. Ground change ignored2. Supports disturbed3. Energy assumed absent4. Seal forced again | 1. Secure area and pipe2. Review changed support3. Control residual energy4. Inspect accepted correction | 1. Fault and location2. Ground and pipe support3. Energy safe state4. Correction and release | ||||
| 8. Backfill and transfer | 1. Pipe distortion2. Pipe float3. Hidden defect4. Future utility strike | 1. One-sided compaction2. Water unmanaged3. Hold covered4. As-built absent | 1. Use approved material sequence2. Maintain balanced support3. Keep held joints exposed4. Record final location | 1. Backfill and compaction2. Water and pipe movement3. As-built depth and route4. Recipient and holds |
P = likelihood; S = severity; R = risk under the site method; A = site-defined acceptance/authorization. These actual assessment cells are blank. A low score never overrides a missing safeguard or a legal or manufacturer restriction.
4. Fictional scenario and failure mechanisms

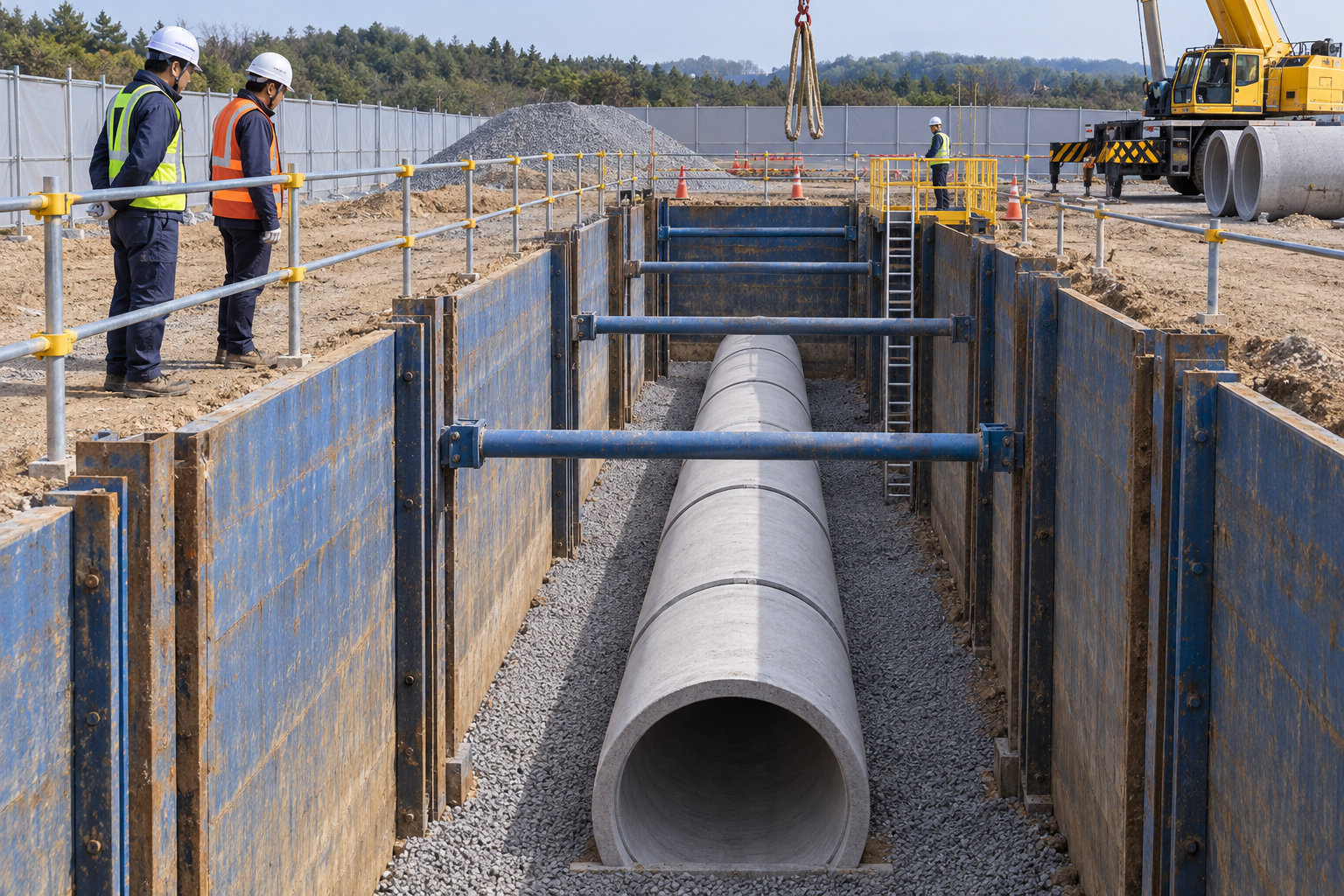

This illustration provides educational context. It is not an actual incident photograph or evidence of equipment suitability; any AI-generated depiction is illustrative only.
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Stage | Fictional situation |
|---|---|
| Initial situation | A fictional crew encounters unusually high resistance while joining a pipe. |
| Changed condition | A helper reaches toward the seal while the pulling tool remains loaded. |
| Failure path | The crew applies more force without reviewing alignment and gasket condition. |
| Possible outcome | The pipe could jump, crush a hand and leave a concealed joint defect. |
| Prevention barrier | Stop applying force, secure the pipe and release stored energy by the accepted method before inspecting and correcting the joint. |
Failure mechanisms
High socket insertion resistance is a reason to check alignment, cleanliness and gasket position. Increasing pulling force while hands remain near the joint can produce sudden movement and crush injuries without correcting a folded or displaced seal.
A pipe can roll after the lifting equipment sets it down. Bedding and positive restraint must establish stability before people approach or rigging is released. Do not lift from a socket or attachment that the approved method does not permit.
A visually complete joint does not authorize pressure testing. Test boundaries, caps, thrust restraint, stored energy and exclusion require a separate reviewed test plan. Before covering, record alignment, grade and joint disposition; controlled backfill on both sides helps avoid displacement and distortion.
Work sequence: Review route and interfaces → Accept excavation → Receive and restrain pipe → Lower to bedding → Align and join → Inspect and prepare handoff → Hold movement or fault → Backfill and transfer. This is a teaching flow, not a device drawing or a complete operating procedure.
5. Conditional decisions and common errors
| Situation | Required action | Evidence | Proceed when |
|---|---|---|---|
| Ground or water changes | Clear affected excavation | Competent inspection and support plan | Excavation accepted |
| Pipe remains unstable | Keep people clear | Bedding and rolling restraint | Pipe stable |
| Joint resists insertion | Stop applied force | Alignment, seal and cleanliness | Joint method restored |
| Backfill requested | Inspect before covering | Grade, joints and survey records | Covering released |
Similar observations, different decisions
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Observation | Insufficient conclusion | Required distinction |
|---|---|---|
| Pipe landed | Hoist no longer moving | Rolling stability separate |
| Joint looks complete | External appearance | Pressure-test readiness separate |
| One side compacted | Some backfill placed | Balanced support unproved |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Confirm route and utilities and the task scope, resources, interfaces and stop authority. |
| Qualified technical reviewer | Review competent inspection, model limits, compatibility and unresolved technical conditions within assigned competence. |
| Work crew | Apply the listed controls, report changes and stop when evidence or safeguards are missing. |
| Inspector / assessor | Record actual alignment and grade and other relevant checks; do not mark unverified conditions as accepted. |
| Handover authority | Reconcile backfill and compaction, restrictions and outstanding actions before the next task. Role labels do not establish a legal credential. |
Supervision and handover focus
| Stage | Management action | Evidence |
|---|---|---|
| Review route and interfaces | 1. Record route and utilities2. Record system isolation3. Record pipe and joint type | 1. Route and utilities2. System isolation3. Pipe and joint type |
| Accept excavation | 1. Record competent inspection2. Record protection and water3. Record edge loads | 1. Competent inspection2. Protection and water3. Edge loads |
| Lower to bedding | 1. Record lift and exclusion2. Record bedding condition3. Record pipe stability | 1. Lift and exclusion2. Bedding condition3. Pipe stability |
| Align and join | 1. Record alignment and grade2. Record force or resistance change3. Record seal and insertion | 1. Alignment and grade2. Force or resistance change3. Seal and insertion |
| Hold movement or fault | 1. Record fault and location2. Record ground and pipe support3. Record energy safe state | 1. Fault and location2. Ground and pipe support3. Energy safe state |
| Backfill and transfer | 1. Record backfill and compaction2. Record water and pipe movement3. Record as-built depth and route | 1. Backfill and compaction2. Water and pipe movement3. As-built depth and route |
7. Hold points and record comparison
| Hold point | Evidence before release | Actual approval |
|---|---|---|
| HP-0 Scope | Receiving and restraining pipe, preparing an accepted excavation and bedding, lowering and aligning pipe, making the specified material-specific joint, inspecting and handing over for approved backfill. | |
| HP-1 Accept excavation | Competent inspection; Protection and water; Edge loads; Access acceptance | |
| HP-2 Lower to bedding | Lift and exclusion; Bedding condition; Pipe stability; Release authority | |
| HP-3 Hold movement or fault | Fault and location; Ground and pipe support; Energy safe state; Correction and release | |
| HP-4 Backfill and transfer | Backfill and compaction; Water and pipe movement; As-built depth and route; Recipient and holds |
Hold points are internal project checks. They are not universal statutory permits and do not grant work permission. Reassess after defects, changed conditions and shift changes.
Record comparison
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
The boxes are static record prompts, not interactive or saved approvals. A tick does not establish suitability or permission to restart. Record the evidence, person, time and unresolved issues; retain the change history.
| Record | Insufficient record | Record checklist |
|---|---|---|
| Review route and interfaces | Only marked “OK” | □ Route and utilities□ System isolation□ Pipe and joint type□ Test and entry exclusions |
| Lower to bedding | Only marked “OK” | □ Lift and exclusion□ Bedding condition□ Pipe stability□ Release authority |
| Hold movement or fault | Only marked “OK” | □ Fault and location□ Ground and pipe support□ Energy safe state□ Correction and release |
| Backfill and transfer | Only marked “OK” | □ Backfill and compaction□ Water and pipe movement□ As-built depth and route□ Recipient and holds |
8. Site checklist and emergency response
| Site check | Actual result | Person / action |
|---|---|---|
| Review route and interfaces: Route and utilities; System isolation; Pipe and joint type; Test and entry exclusions | ||
| Accept excavation: Competent inspection; Protection and water; Edge loads; Access acceptance | ||
| Receive and restrain pipe: Pipe weight and condition; Chocks and supports; Rigging and lift points; Storage arrangement | ||
| Lower to bedding: Lift and exclusion; Bedding condition; Pipe stability; Release authority | ||
| Align and join: Alignment and grade; Force or resistance change; Seal and insertion; Joint procedure record | ||
| Inspect and prepare handoff: Joint inspection; Survey and elevation; Test-plan boundary; Entry controls | ||
| Hold movement or fault: Fault and location; Ground and pipe support; Energy safe state; Correction and release | ||
| Backfill and transfer: Backfill and compaction; Water and pipe movement; As-built depth and route; Recipient and holds |
Stop work
Stop for changed excavation conditions, unverified protection, water inflow, unstable pipe, damaged rigging, unexpected joining resistance or missing inspection before covering. Keep pressure testing, live tie-ins and entry on separate authorization.
Emergency response
Evacuate the affected excavation and keep others clear of unstable ground, suspended or rolling pipe and pressurized components. Activate site rescue; do not enter a collapsed trench or a pipe to attempt an improvised rescue.
9. Sources and review limits
Public-source access/review: 2026-10-13.
| Official source | Reviewed scope and limits |
|---|---|
| OSHA 1926.651 | Utilities, access, water, adjacent hazards and excavation inspection. |
| OSHA 1926.652 | Excavation protective systems within their stated scope. |
| OSHA 1926.251 | Material-handling rigging requirements. |
No actual equipment model, SDS, site measurements, design calculations or authorization record was supplied. Product-specific limits and methods must be verified before use. Federal OSHA is a baseline within its scope; determine the applicable State Plan and local requirements. Manufacturer guidance is not government approval; an incorporated standard differs from voluntary guidance. No nationwide-compliance or expert-approval claim is made.
10. PDF guidance and FAQ
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
PDFs are complementary six-stage extracts. Apply all eight body stages and the actual equipment/site procedure.
Should additional force overcome a resistant joint?
Hold and inspect the specified alignment, seal and joining conditions first; keep hands out of loaded gaps.
Does this JSA authorize pressure testing?
No. Use a separate approved test plan addressing pressure thrust, restraints, isolation and stored energy.
When may the pipe be covered?
After the required survey, bedding, joint and inspection records are accepted and the backfill sequence is released.
Has a professional verified or approved this document?
No. Public sources and editorial, layout and consistency checks were reviewed using AI. No site inspection or professional technical approval has been performed. Obtain appropriate professional review before use.
