0. JSA Risk Assessment Preview: Foundation Piling and Drilling Operations Using a Piling Rig
| No. | Job Step | Hazard Factors | Risk Control Measures | Probability | Severity | Risk Level |
|---|---|---|---|---|---|---|
| 1 | Piling Rig Mobilization, Assembly, and Ground Stabilization | • Equipment tip-over or rollover during assembly due to soft ground or inadequate outrigger support • Rigging hardware failure or dropped components during crane-assisted leader assembly | • Conduct soil bearing capacity tests; lay heavy steel crane mats/timber blocking under crawlers and outriggers • Inspect lifting slings/shackles, verify rated capacities, and establish a restricted swing radius zone | 2 | 3 | 6 |
| 2 | Underground Utility Locating (811) and Borehole Layout | • Striking buried utilities (gas lines, electric conduits) with auger drill bit due to unverified utility maps • Slips, trips, or collisions between layout surveyors and moving heavy equipment | • Call 811 (Call Before You Dig) prior to drilling; conduct GPR scanning and execute hand potholing • Erect work zone barricades, assign dedicated spotters, and mandate high-visibility Class 3 safety vests | 2 | 2 | 4 |
| 3 | Continuous Flight Auger (CFA) Drilling and Grout Injection | • Worker entanglement in rotating auger flights or winch drums during drilling • High-pressure grout hose whip or coupling failure causing severe impact injuries | • Install interlocked auger guards/safety cages; mandate fitted workwear and prohibit approach near rotating shafts • Inspect high-pressure hose whip-checks, safety pins, and heavy-duty clamps before pumping grout | 2 | 3 | 6 |
| 4 | Precast Concrete Pile Hoisting and Pitching | • Dropped pile hazard caused by rigging slip, shackle failure, or wire rope snapping during hoisting • Pinch-point and crush injuries between the piling leader and pile during positioning | • Use certified pile lifting clamps, dual taglines, and double-wrapped wire rope assemblies • Enforce taglines for pile guidance and prohibit personnel under suspended loads or inside the leader footprint | 2 | 3 | 6 |
| 5 | Pile Driving (Impact/Hydraulic Hammer) and Alignment Control | • Flying concrete fragments from pile head spalling or struck-by hazards from falling hammer components • Piling rig destabilization and leader collapse caused by severe hammer impact vibrations | • Install pile head cushion blocks; mandate safety glasses, face shields, and hard hats for all ground crews • Monitor leader verticality continuously using dual transit levels/inclinometers; monitor ground settlement | 2 | 3 | 6 |
| 6 | Pile Cut-Off, Spoil Removal, and Site Cleanup | • Struck-by hazards from flying soil during auger rotation/spoil discharge • Struck-by or crush injuries during mechanical pile head trimming and handling of concrete debris | • Clear personnel from auger discharge zone during spin-off; set up exclusion zone perimeter barricades • Use hydraulic pile croppers/cutters; secure pile cut-offs with rigging before completing the final cut | 1 | 2 | 2 |
1. On-Site Incident & Hazard Analysis
A. Near-Miss Case: Piling Rig Tip-Over and Pile Drop Due to Inadequate Ground Bearing Capacity

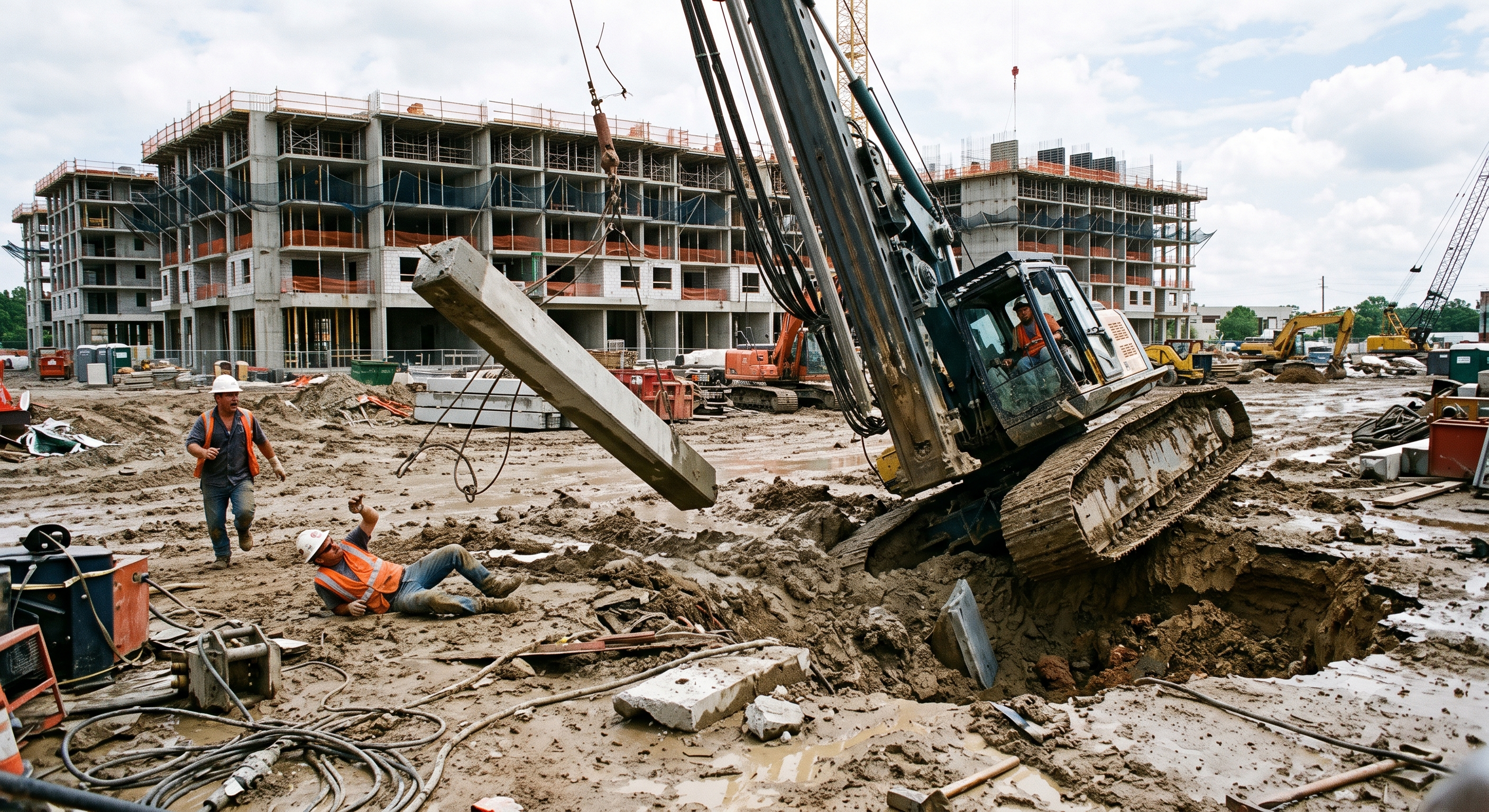

During a commercial foundation project in Texas, a contractor was preparing to drive precast concrete piles using a 60-tonne track-mounted piling rig. Following heavy seasonal rainfall, the soil conditions on site deteriorated significantly. However, the site crew proceeded with rig setup and pile hoisting without installing heavy steel crane mats or verifying the allowable ground bearing pressure ($q_a$).
As the piling rig hoisted a 50-foot precast concrete pile and aligned it against the vertical leader, the combined overturning moment ($M = F \cdot L$) exceeded the soil's ultimate bearing capacity beneath the right crawler track. The right track sank suddenly into the saturated ground, causing the rig to tilt at a critical angle. The hoisted concrete pile slipped out of its rigging assembly and crashed into the work zone. Fortunately, ground personnel were standing clear of the immediate drop radius, preventing fatal injuries, but the piling rig sustained structural damage to its leader and boom. The root cause was determined to be a failure to perform soil bearing assessments and the omission of timber blocking/steel mats under heavy crawler tracks.
B. Geotechnical, Mechanical, and Regulatory Hazard Mechanisms
Piling and deep foundation operations involve high energy, heavy structural loads, and complex geotechnical interactions. Piling rigs possess a high center of gravity ($CG$). When operating towering leaders exceeding 80 feet in height, minor ground settlements under the crawlers generate exponentially increasing overturning moments, leading to catastrophic equipment tip-over.
During impact pile driving or continuous flight auger (CFA) drilling, severe ground vibrations induce cyclic shear stresses, reducing the shear strength ($\tau$) of surrounding loose or saturated soils. High-pressure grout delivery systems operated during auger withdrawal pose fluid dynamic hazards; a sudden coupling failure releases stored hydraulic energy, causing violent hose whip incidents. Furthermore, hoisting multi-ton concrete or steel piles subjects wire ropes to severe dynamic shock loads. Compliance requires strict adherence to OSHA 29 CFR 1926 Subpart O, verification of ground bearing capacity, continuous monitoring of leader plumbness, and mandatory double-locking rigging systems.
🚨 US Federal Regulations & Safety Standards (OSHA & ANSI)
OSHA 29 CFR 1926.603 - Pile Driving Equipment: Mandates that overhead leads shall be provided with stop blocks to prevent the hammer from being raised against the head block. Ground personnel shall be kept clear of the area directly beneath the hammer and leader.
OSHA 29 CFR 1926.251 - Rigging Equipment for Material Handling: Requires all wire ropes, shackles, and pile lifting clamps to be inspected daily by a Qualified Person and rated with a safety factor suitable for dynamic hoisting.
OSHA 29 CFR 1926.1402 - Ground Conditions: Requires controlling entities to ensure that ground conditions are firm, drained, and sufficiently graded to support heavy equipment in accordance with manufacturer specifications.
ANSI/ASSP A10.19 - Safety Requirements for Pile Installation and Extraction Operations: Specifies national consensus standards for piling rig stability, leader erection, auger drilling safety, and pile handling controls.
2. Standard Data Entry Guide for Smart JSA Bridge
To ensure the Smart JSA Bridge platform generates precise safety control measures aligned with OSHA and ANSI standards, enter the following standardized job steps into the system:
[Step 1] Piling Rig Mobilization, Assembly, and Ground Stabilization
Detailed Description: Test soil bearing capacity; lay heavy steel mats or timber blocking under crawlers; control assembly zone with crane rigging inspections and barricades.
[Step 2] Underground Utility Locating (811) and Borehole Layout
Detailed Description: Submit 811 ticket 48-72 hours prior; verify utility marks via GPR and hand potholing; setup work zone perimeter signage and assign spotters.
[Step 3] Continuous Flight Auger (CFA) Drilling and Grout Injection
Detailed Description: Install auger rotating shaft guards; enforce fitted work clothing; inspect grout pump couplings, whip-checks, and safety pins prior to pressurization.
[Step 4] Precast Concrete Pile Hoisting and Pitching
Detailed Description: Utilize rated pile lifting clamps and dual taglines; enforce 100% exclusion beneath suspended loads and prohibit entry inside the leader footprint.
[Step 5] Pile Driving (Impact/Hydraulic Hammer) and Alignment Control
Detailed Description: Install pile cushion blocks; require impact-resistant face shields and hard hats; monitor leader plumbness continuously using transit levels.
[Step 6] Pile Cut-Off, Spoil Removal, and Site Cleanup
Detailed Description: Establish exclusion zones during auger spoil discharge; use hydraulic pile croppers for trimming; secure pile tops with rigging before making cut-offs.
3. Recommended Final JSA Document (Database Sample)
Below is the final JSA document generated based on automated system recommendations and adapted for US heavy civil foundation conditions:
| No. | Job Step | Hazard Factors | Risk Control Measures | Probability | Severity | Risk Level |
|---|---|---|---|---|---|---|
| 1 | Piling Rig Mobilization, Assembly, and Ground Stabilization | • Equipment tip-over or rollover during assembly due to soft ground or inadequate outrigger support • Rigging hardware failure or dropped components during crane-assisted leader assembly | • Conduct soil bearing capacity tests; lay heavy steel crane mats/timber blocking under crawlers and outriggers • Inspect lifting slings/shackles, verify rated capacities, and establish a restricted swing radius zone | 2 | 3 | 6 |
| 2 | Underground Utility Locating (811) and Borehole Layout | • Striking buried utilities (gas lines, electric conduits) with auger drill bit due to unverified utility maps • Slips, trips, or collisions between layout surveyors and moving heavy equipment | • Call 811 (Call Before You Dig) prior to drilling; conduct GPR scanning and execute hand potholing • Erect work zone barricades, assign dedicated spotters, and mandate high-visibility Class 3 safety vests | 2 | 2 | 4 |
| 3 | Continuous Flight Auger (CFA) Drilling and Grout Injection | • Worker entanglement in rotating auger flights or winch drums during drilling • High-pressure grout hose whip or coupling failure causing severe impact injuries | • Install interlocked auger guards/safety cages; mandate fitted workwear and prohibit approach near rotating shafts • Inspect high-pressure hose whip-checks, safety pins, and heavy-duty clamps before pumping grout | 2 | 3 | 6 |
| 4 | Precast Concrete Pile Hoisting and Pitching | • Dropped pile hazard caused by rigging slip, shackle failure, or wire rope snapping during hoisting • Pinch-point and crush injuries between the piling leader and pile during positioning | • Use certified pile lifting clamps, dual taglines, and double-wrapped wire rope assemblies • Enforce taglines for pile guidance and prohibit personnel under suspended loads or inside the leader footprint | 2 | 3 | 6 |
| 5 | Pile Driving (Impact/Hydraulic Hammer) and Alignment Control | • Flying concrete fragments from pile head spalling or struck-by hazards from falling hammer components • Piling rig destabilization and leader collapse caused by severe hammer impact vibrations | • Install pile head cushion blocks; mandate safety glasses, face shields, and hard hats for all ground crews • Monitor leader verticality continuously using dual transit levels/inclinometers; monitor ground settlement | 2 | 3 | 6 |
| 6 | Pile Cut-Off, Spoil Removal, and Site Cleanup | • Struck-by hazards from flying soil during auger rotation/spoil discharge • Struck-by or crush injuries during mechanical pile head trimming and handling of concrete debris | • Clear personnel from auger discharge zone during spin-off; set up exclusion zone perimeter barricades • Use hydraulic pile croppers/cutters; secure pile cut-offs with rigging before completing the final cut | 1 | 2 | 2 |
4. JSA Engineering Mechanism for Piling Operations: Tip-Over Prevention and Structural Rigging Safety
Deep foundation piling and drilling operations demand rigorous engineering controls and strict compliance with federal OSHA standards to eliminate tip-over disasters, dropped piles, and auger entanglement hazards. Vague statements such as "be careful during driving" fail to comply with OSHA enforcement guidelines or prevent high-consequence crane and piling rig failures.
Smart JSA Bridge utilizes an automated risk assessment algorithm calibrated against OSHA 29 CFR 1926 Subpart O, ANSI/ASSP A10.19, and US deep foundation engineering practices to generate real-time hazard controls.
By inputting 6 structured job steps, the algorithm calculates required engineering controls—including ground bearing pressure verification, steel mat configuration, auger rotating shaft guarding, pile hoisting clamp safety factors, and hydraulic hose whip-check requirements.
Safety Directors, Project Engineers, and Rigging Supervisors can customize these parameters with a single click to suit site-specific soil profiles and pile specifications.
Streamline your safety documentation workflow while maintaining full technical compliance for high-hazard foundation work. Generate your customized risk assessment today.
👉 Enter job steps on Smart JSA Bridge and generate your custom JSA (smartjsabridge.com)
