A firestop product name or color does not establish the rating of every penetration. Match the wall/floor construction, thickness, penetrants and insulation, opening geometry, spacing and material arrangement to the complete accepted system.
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site authorization are required before use.
Stop before starting
Hold missing or mismatched system details, unapproved substitutions, unknown dimensions, failed backing, wet/contaminated substrate, damaged fall protection or later penetrant changes. Do not cover unresolved work.
1. Legal and technical scope
| Basis | Scope and limits |
|---|---|
| UL Firestop and Joint Application Guide | Listed assembly selection, locally adopted code, inspection and maintenance context. |
| OSHA 1926.501 | Applicable opening and fall protection remains separate from firestopping. |
| OSHA 1926.59 | Construction hazard communication for actual installation materials. |
Confirm the locally adopted building/fire code, required ratings, project specifications and authority having jurisdiction. For the listed penetration systems in this scope, match the actual assembly to its tested/listed detail, typically based on ASTM E814 or UL 1479 as applicable. UL guidance is not itself a local permit or field approval. Apply construction fall protection under 1926.501 and chemical communication under 1926.59; check State Plan requirements. Do not import Korean approval numbers as US acceptance.
2. Scope and required inputs
Included work
Preparing and installing the specified backing, fill and sealant for new pipe/cable penetrations that match an accepted tested/listed firestop system, then protecting cure, identifying the opening and documenting inspection.
Separate assessment
Fire-resistance design/testing, improvised mixed penetrations outside the accepted system, live or hot service contact, removal of fall protection, unknown existing material removal and fire-damage repair are excluded.
| Required input | Evidence to obtain |
|---|---|
| Match opening and system | Opening and compartment ID; System listing and revision; Wall floor and penetrants; Opening spacing and ratings |
| Prepare access and materials | Access and opening guards; Product lot and expiry; SDS and ventilation; Service boundary |
| Prepare base and measure | Base damage and moisture; Opening and annular space; Depth and penetrant position; Preparation method |
| Install backing and fill | Material and arrangement; Packing and depth; Support and continuity; In-process inspection |
No actual equipment model, SDS, site measurements, design calculations or authorization record was supplied. Product-specific limits and methods must be verified before use. Federal OSHA is a baseline within its scope; determine the applicable State Plan and local requirements. Manufacturer guidance is not government approval; an incorporated standard differs from voluntary guidance. No nationwide-compliance or expert-approval claim is made.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Technical and procedural controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Match opening and system | 1. Unrated fire path2. Wrong opening treated3. Wrong penetrant system4. Hidden design mismatch | 1. Listing unavailable2. ID confused3. Insulation omitted4. Dimensions assumed | 1. Identify each penetration2. Obtain accepted detail3. Match complete assembly4. Refer mismatches for review | 1. Opening and compartment ID2. System listing and revision3. Wall floor and penetrants4. Opening spacing and ratings | ||||
| 2. Prepare access and materials | 1. Opening fall2. Dropped material3. Chemical irritation4. Adjacent-service contact | 1. Guard removed2. Loose items above3. SDS missing4. Live hot services exposed | 1. Maintain fall protection2. Control drop zone3. Match materials and PPE4. Review adjacent services | 1. Access and opening guards2. Product lot and expiry3. SDS and ventilation4. Service boundary | ||||
| 3. Prepare base and measure | 1. Dust exposure2. Tool cut3. Poor adhesion4. Unfilled void | 1. Unsafe scraping2. Blade path poor3. Water or dirt left4. Gap depth unmeasured | 1. Use accepted preparation2. Control cutting path3. Check clean dry substrate4. Measure actual geometry | 1. Base damage and moisture2. Opening and annular space3. Depth and penetrant position4. Preparation method | ||||
| 4. Install backing and fill | 1. Fiber irritation2. Backing fall3. Wrong firestop assembly4. Concealed void | 1. Protection unsuitable2. Support inadequate3. Materials mixed4. Packing detail ignored | 1. Apply product controls2. Secure specified backing3. Use listed combination4. Inspect before concealment | 1. Material and arrangement2. Packing and depth3. Support and continuity4. In-process inspection | ||||
| 5. Apply sealant finish | 1. Skin eye exposure2. Insufficient depth3. Discontinuous seal4. Wrong side treatment | 1. Hands contact material2. Surface skim only3. Application conditions wrong4. Both-side detail missed | 1. Use appropriate tools PPE2. Apply specified depth3. Maintain continuous seal4. Follow complete system detail | 1. Product and conditions2. Actual applied depth3. Voids and continuity4. Required sides and surfaces | ||||
| 6. Cure identify inspect | 1. Premature covering2. Fresh seal damage3. Untraceable work4. False completion | 1. Next trade enters early2. Cure ignored3. ID absent4. Inspection skipped | 1. Protect specified curing2. Restrict disturbance3. Label each opening4. Record actual acceptance | 1. Cure and protection2. Final inspection3. ID photos and listing4. Accepted and held status | ||||
| 7. Hold change or defect | 1. Compartment failure2. Incompatible patch3. Hidden void4. Old label misleads | 1. Cable added casually2. Extra sealant guessed3. Backing disturbed4. Change unrecorded | 1. Mark and hold changed area2. Review accepted restoration3. Inspect concealed work again4. Update opening status | 1. Changed penetrants2. Damage and hidden scope3. Approved repair detail4. Reinspection evidence | ||||
| 8. Clean and transfer register | 1. Chemical waste exposure2. Unapproved new penetration3. Guard gap4. Lost history | 1. Waste mixed2. Change process absent3. Protection removed4. Records not linked | 1. Follow material disposal2. Transfer change procedure3. Maintain opening safeguards4. Hand over register | 1. Waste and cleanup2. Opening protection3. Register and restrictions4. Change owner and recipient |
P = likelihood; S = severity; R = risk under the site method; A = site-defined acceptance/authorization. These actual assessment cells are blank. A low score never overrides a missing safeguard or a legal or manufacturer restriction.
4. Fictional scenario and failure mechanisms

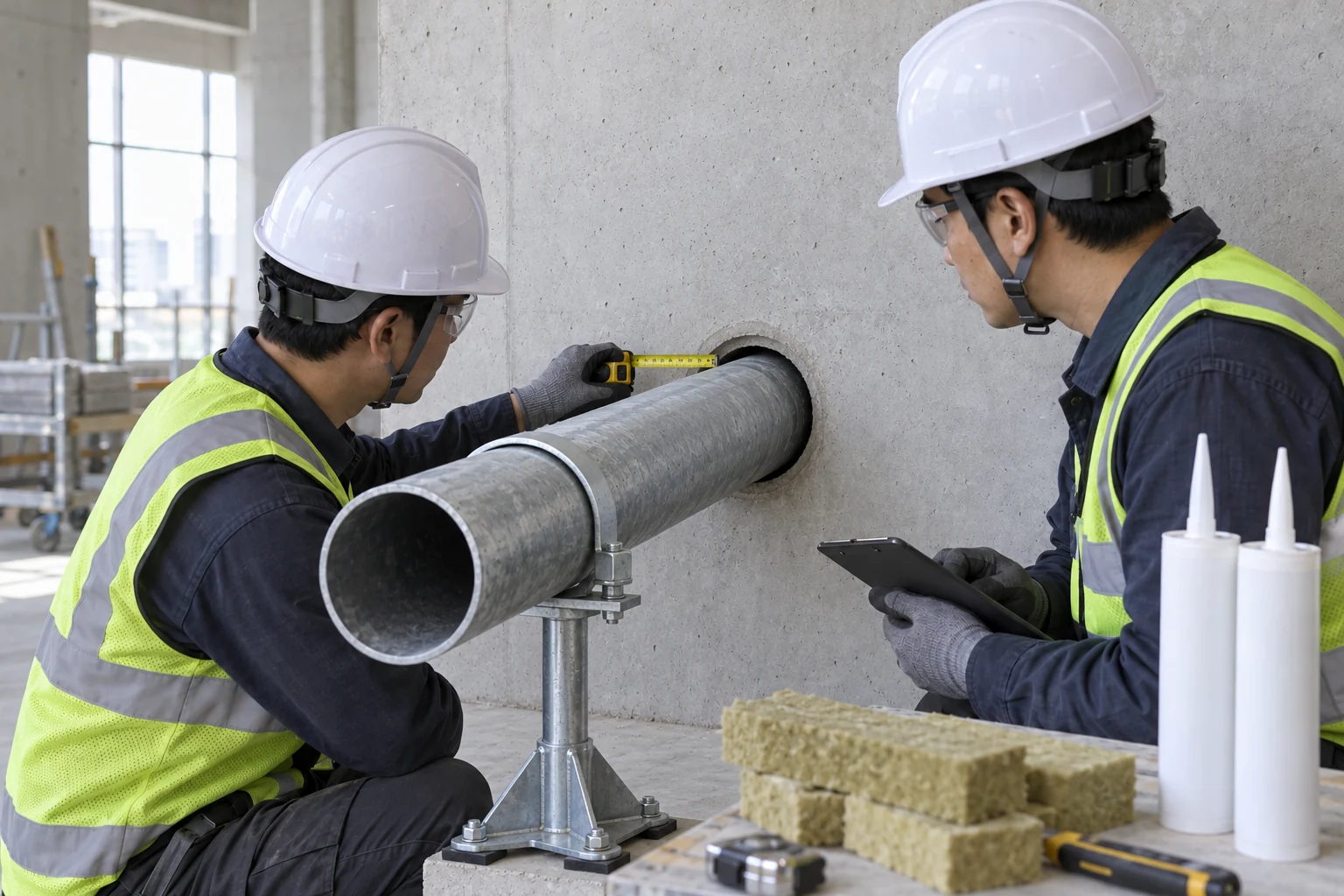

This illustration provides educational context. It is not an actual incident photograph or evidence of equipment suitability; any AI-generated depiction is illustrative only.
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Stage | Fictional situation |
|---|---|
| Initial situation | A fictional communication crew adds a cable the day after a penetration is firestopped. |
| Changed condition | The surface is patched but the new fill, spacing and concealed backing are not checked. |
| Failure path | The previous completion label remains in place. |
| Possible outcome | The actual assembly may no longer match its accepted firestop system. |
| Prevention barrier | Hold and identify the changed opening, obtain a design/quality disposition, then document the accepted restoration and inspection before reacceptance. |
Failure mechanisms
A firestop product name or color does not establish the rating of every penetration. Match the wall/floor construction, thickness, penetrants and insulation, opening geometry, spacing and material arrangement to the complete accepted system.
A finished surface photograph cannot show concealed backing, compression or sealant depth. Record the specified measurements, in-process evidence and material lots against the penetration ID before covering; photographs support, rather than replace, the required inspection.
Adding a cable changes the completed assembly. Mark the changed opening as unverified until the accepted repair detail, installation and reinspection are complete. Firestop fill is not a load-rated hole cover and must not replace separate fall protection.
Work sequence: Match opening and system → Prepare access and materials → Prepare base and measure → Install backing and fill → Apply sealant finish → Cure identify inspect → Hold change or defect → Clean and transfer register. This is a teaching flow, not a device drawing or a complete operating procedure.
5. Conditional decisions and common errors
| Situation | Required action | Evidence | Proceed when |
|---|---|---|---|
| System detail unavailable | Hold installation | Current accepted listing/detail | System matched |
| Backing will be concealed | Inspect before covering | Depth, material and arrangement | Hidden work accepted |
| Cable added | Mark changed opening | Revised actual configuration | Restoration inspected |
| Surface looks filled | Check full evidence | System match and inspection | Assembly accepted |
Similar observations, different decisions
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Observation | Insufficient conclusion | Required distinction |
|---|---|---|
| Red firestop product | Material identity | Assembly rating unproved |
| No visible gap | Surface appearance | Concealed depth unknown |
| Old completion label | Past record | Changed opening unverified |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Confirm opening and compartment id and the task scope, resources, interfaces and stop authority. |
| Qualified technical reviewer | Review access and opening guards, model limits, compatibility and unresolved technical conditions within assigned competence. |
| Work crew | Apply the listed controls, report changes and stop when evidence or safeguards are missing. |
| Inspector / assessor | Record actual product and conditions and other relevant checks; do not mark unverified conditions as accepted. |
| Handover authority | Reconcile waste and cleanup, restrictions and outstanding actions before the next task. Role labels do not establish a legal credential. |
Supervision and handover focus
| Stage | Management action | Evidence |
|---|---|---|
| Match opening and system | 1. Record opening and compartment id2. Record system listing and revision3. Record wall floor and penetrants | 1. Opening and compartment ID2. System listing and revision3. Wall floor and penetrants |
| Prepare access and materials | 1. Record access and opening guards2. Record product lot and expiry3. Record sds and ventilation | 1. Access and opening guards2. Product lot and expiry3. SDS and ventilation |
| Install backing and fill | 1. Record material and arrangement2. Record packing and depth3. Record support and continuity | 1. Material and arrangement2. Packing and depth3. Support and continuity |
| Apply sealant finish | 1. Record product and conditions2. Record actual applied depth3. Record voids and continuity | 1. Product and conditions2. Actual applied depth3. Voids and continuity |
| Hold change or defect | 1. Record changed penetrants2. Record damage and hidden scope3. Record approved repair detail | 1. Changed penetrants2. Damage and hidden scope3. Approved repair detail |
| Clean and transfer register | 1. Record waste and cleanup2. Record opening protection3. Record register and restrictions | 1. Waste and cleanup2. Opening protection3. Register and restrictions |
7. Hold points and record comparison
| Hold point | Evidence before release | Actual approval |
|---|---|---|
| HP-0 Scope | Preparing and installing the specified backing, fill and sealant for new pipe/cable penetrations that match an accepted tested/listed firestop system, then protecting cure, identifying the opening and documenting inspection. | |
| HP-1 Prepare access and materials | Access and opening guards; Product lot and expiry; SDS and ventilation; Service boundary | |
| HP-2 Install backing and fill | Material and arrangement; Packing and depth; Support and continuity; In-process inspection | |
| HP-3 Hold change or defect | Changed penetrants; Damage and hidden scope; Approved repair detail; Reinspection evidence | |
| HP-4 Clean and transfer register | Waste and cleanup; Opening protection; Register and restrictions; Change owner and recipient |
Hold points are internal project checks. They are not universal statutory permits and do not grant work permission. Reassess after defects, changed conditions and shift changes.
Record comparison
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
The boxes are static record prompts, not interactive or saved approvals. A tick does not establish suitability or permission to restart. Record the evidence, person, time and unresolved issues; retain the change history.
| Record | Insufficient record | Record checklist |
|---|---|---|
| Match opening and system | Only marked “OK” | □ Opening and compartment ID□ System listing and revision□ Wall floor and penetrants□ Opening spacing and ratings |
| Install backing and fill | Only marked “OK” | □ Material and arrangement□ Packing and depth□ Support and continuity□ In-process inspection |
| Hold change or defect | Only marked “OK” | □ Changed penetrants□ Damage and hidden scope□ Approved repair detail□ Reinspection evidence |
| Clean and transfer register | Only marked “OK” | □ Waste and cleanup□ Opening protection□ Register and restrictions□ Change owner and recipient |
8. Site checklist and emergency response
| Site check | Actual result | Person / action |
|---|---|---|
| Match opening and system: Opening and compartment ID; System listing and revision; Wall floor and penetrants; Opening spacing and ratings | ||
| Prepare access and materials: Access and opening guards; Product lot and expiry; SDS and ventilation; Service boundary | ||
| Prepare base and measure: Base damage and moisture; Opening and annular space; Depth and penetrant position; Preparation method | ||
| Install backing and fill: Material and arrangement; Packing and depth; Support and continuity; In-process inspection | ||
| Apply sealant finish: Product and conditions; Actual applied depth; Voids and continuity; Required sides and surfaces | ||
| Cure identify inspect: Cure and protection; Final inspection; ID photos and listing; Accepted and held status | ||
| Hold change or defect: Changed penetrants; Damage and hidden scope; Approved repair detail; Reinspection evidence | ||
| Clean and transfer register: Waste and cleanup; Opening protection; Register and restrictions; Change owner and recipient |
Stop work
Hold missing or mismatched system details, unapproved substitutions, unknown dimensions, failed backing, wet/contaminated substrate, damaged fall protection or later penetrant changes. Do not cover unresolved work.
Emergency response
Control access around open floors or falling material and follow site emergency response. For chemical exposure use the actual product SDS and first-aid arrangements. Do not step on firestop fill or remove separate opening protection for rescue.
9. Sources and review limits
Public-source access/review: 2026-10-14.
| Official source | Reviewed scope and limits |
|---|---|
| UL Firestop and Joint Application Guide | Listed assembly selection, locally adopted code, inspection and maintenance context. |
| OSHA 1926.501 | Applicable opening and fall protection remains separate from firestopping. |
| OSHA 1926.59 | Construction hazard communication for actual installation materials. |
No actual equipment model, SDS, site measurements, design calculations or authorization record was supplied. Product-specific limits and methods must be verified before use. Federal OSHA is a baseline within its scope; determine the applicable State Plan and local requirements. Manufacturer guidance is not government approval; an incorporated standard differs from voluntary guidance. No nationwide-compliance or expert-approval claim is made.
10. PDF guidance and FAQ
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
PDFs are complementary six-stage extracts. Apply all eight body stages and the actual equipment/site procedure.
Can ordinary foam replace the specified fill?
Only materials permitted by the accepted system and project approval may be used; do not substitute by appearance or product name.
Is there one required sealant depth?
No. Use the actual accepted system detail and record its dimensions and installation conditions.
Does a UL listing alone approve this field installation?
No. Match the actual complete assembly and satisfy the adopted code, authority and project inspection requirements.
Has a professional verified or approved this document?
No. Public sources and editorial, layout and consistency checks were reviewed using AI. No site inspection or professional technical approval has been performed. Obtain appropriate professional review before use.
11. Revision history and authorship
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site authorization are required before use.
| Date | Version | Change | Review status |
|---|---|---|---|
| 2026-10-14 | US 1.0 | New US edition from assigned Korean source; task decisions, records and PDFs localized. | AI editorial review; no professional technical approval |
Korean edition revision history: 2026-10-08 (v1.0): initial article, sources, fictional analysis and PDF editorial checks. These are editorial records, not professional technical approval. US v1.0 adapts the earlier edition to United States requirements and terminology.
Site reviewers must add their actual qualifications, scope, date and approval only after the review occurs.
