Oxyacetylene Cutting JSA

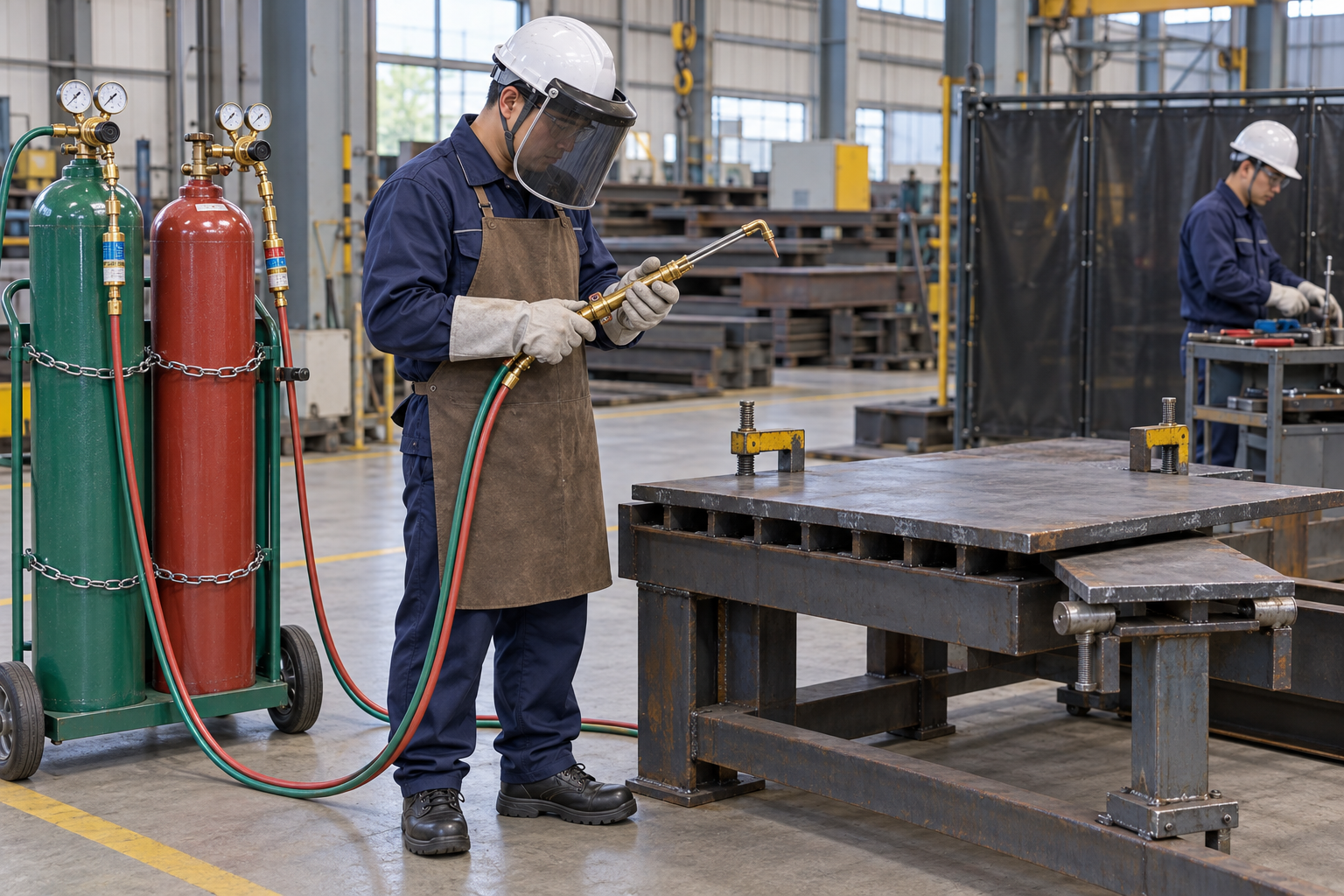

Planned cutting of identified material with a cylinder-supplied oxygen and acetylene torch, including gas-system inspection, supported cutting, controlled shutdown and fire-watch handover.

Stop for leaks, suspected oil or grease on oxygen equipment, damaged hoses, flashback indications, unsupported cut pieces or uncontrolled fire exposure. Evacuate for a heated or fire-exposed acetylene cylinder and notify emergency responders and the supplier.

Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.

1. Legal and technical scope

For general industry, OSHA 1910.253(a)(2) prohibits acetylene use above 15 psig (103 kPa gauge), with the provision-specific scope and exceptions stated in the rule; product settings may be lower. Sections 1910.253 and 1910.252 cover gas equipment and fire precautions. When 1910.252 requires a fire watch, it continues at least 30 minutes after cutting, with longer applicable site or jurisdictional requirements observed. Construction uses 1926.350 and 1926.352; do not apply a general-industry duration as the complete construction rule.

Determine Federal OSHA or the applicable OSHA-approved State Plan, including public/private employer coverage. State Plans must be at least as effective and can impose different or additional requirements. The actual activity determines construction versus general-industry scope. Manufacturer instructions, consensus standards, project design and site approvals have distinct roles; this page is not a finding of nationwide compliance.

2. Scope and required inputs

Included: Planned cutting of identified material with a cylinder-supplied oxygen and acetylene torch, including gas-system inspection, supported cutting, controlled shutdown and fire-watch handover.

Separate review: Acetylene generators, manifold installation or modification, unknown used containers or piping and confined-space cutting require separate procedures. Oxygen is not used for ventilation or cleaning.

Identify gases by cylinder markings and SDS, and match regulators, hoses, torch, tip and protective devices to the actual service. Use the model procedures for leak testing, purging, ignition, shutdown and abnormal events. Apply the governing acetylene pressure limit as well as lower product limits; a legal maximum is not a torch setting. Establish fire-watch requirements, fumes controls and post-cut piece support.

3. Eight-stage JSA

P = likelihood; S = severity; R = risk under the site method; A = acceptance or authorization as defined by the site. Leave these blank until actual assessment and control verification. A low score does not override a legal requirement, product limit or unreleased hold point.

4. Hypothetical scenario and failure mechanisms

The following scenario, comparisons and example records are hypothetical teaching material. They do not reproduce actual incidents, measurements, signatures or approvals.

Oxygen supports combustion. Cleanliness and leakage are separate acceptance questions, so a passed leak check cannot clear a contamination concern. Do not apply ordinary lubricant or improvise cleaning of oxygen-service components.

Reverse gas flow and flame propagation are different hazards. Verify the actual required check-valve and flashback-protection functions and installation conditions. Protective devices do not replace proper gas identification, tip condition, pressure selection and hose inspection.

Cutting changes the support condition as the kerf progresses. Plan the retained member and offcut separately and keep hands and people out of the falling-piece zone. Review openings and the opposite side for both sparks and conducted heat.

A short abnormal torch sound, sustained internal burning and a fire-heated cylinder require different responses. Follow the actual emergency instructions from a safe position; do not investigate or relight merely because the sound has stopped. Continue required fire surveillance after the flame is extinguished.

5. Conditional decisions and common errors

6. Roles and responsibilities

These are responsibility examples, not invented statutory credentials. Meet the actual training, competent-person, qualified-person and licensing requirements for the assigned work. Anyone may raise a hazard and request a stop; only the designated authority may release the affected stage after evidence is reviewed.

7. Hold points and record comparison

Hold points are internal evidence gates. They do not replace statutory permits or actual signatures. Recheck affected gates after a change, abnormal event or shift transfer. The blank record must identify the evidence, person, time, limits and release scope.

The □ boxes are static prompts, not saved or interactive approvals. Each checks one record element. A tick alone does not establish suitability or permission to restart. Link equipment IDs and supporting records; retain unresolved matters and the earlier record when conditions change.

8. Site checklist and emergency response

Stop work: Stop for leaks, suspected oil or grease on oxygen equipment, damaged hoses, flashback indications, unsupported cut pieces or uncontrolled fire exposure. Evacuate for a heated or fire-exposed acetylene cylinder and notify emergency responders and the supplier.

Emergency response: Withdraw, prevent access and call 911 for fire, serious injury or a heated acetylene cylinder. Supply shutdown is only for a designated person who can do so safely under the actual procedure. Do not approach, move or reuse a fire-exposed cylinder; give responders and the supplier its location and exposure history.

9. Sources and review limits

Official-source review date: October 14, 2026. The following review is limited to the public provisions or selected manufacturer material identified below. It does not establish that any authority approved this article or the actual installation.

• OSHA 1910.253: Selected acetylene pressure, cylinder identification, storage and oxygen-cleanliness provisions; maximum pressure is not an operating prescription.
• OSHA 1910.252: Fire-watch triggers, minimum post-work duration, authorization and used-container restrictions.
• OSHA 1926.350: Construction hose, torch, regulator and oxygen-cleanliness provisions.
• OSHA 1926.352: Construction fire prevention and post-work fire protection.
• OSHA State Plans: jurisdiction and coverage overview; identify the actual state program before use.

Paid consensus standards and site-specific calculations, manuals, inspection records and product certificates were not independently obtained or verified unless specifically identified. Korean legal citations remain in the preserved Korean source as source history; they are not represented as US legal duties.

10. PDF guidance and FAQ

PDF A covers basic task controls; B examines technical failures; C focuses on supervision, evidence and handover. Each has six rows and three items per main cell. They are complementary extracts: apply all eight body stages and the applicable site procedure. An omitted stage is not permission to omit its controls. PDF HP-0 through HP-4 are worksheet labels; match the event, evidence and authority rather than assuming they match another permit by number.

P/S/R/A, actual measurements, confirmations and signatures remain blank. The PDFs are uncompleted reference worksheets, not issued work permits.

Content group ID: jsa-oxyacetylene-cutting

Does a passed leak check clear oily oxygen parts?

No. Cleanliness and oxygen suitability need separate acceptance.

Are check valves and flashback arrestors identical?

No. Confirm the required reverse-flow and flame-arrest functions for the actual equipment.

Can an apparently empty drum be cut?

Not under this scope. Its history, cleaning, isolation and atmosphere require a separate approved procedure.

Is the acetylene legal maximum the cutting setting?

No. Select the actual tip and manufacturer conditions within all applicable limits; never use the maximum as a default setting.

Has a professional verified or approved this document?

No. This is AI-assisted reference material. Editorial and layout checks are not a physical inspection or professional technical approval. Obtain qualified professional review and required site approval before use.

11. Revision history and authorship

Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.

This system has not physically inspected the equipment, structures, ground, atmosphere or worksite. The document does not replace legal advice, manufacturer procedures, engineering design, inspection certificates, qualification evidence, the site risk assessment or an actual work permit.

Before use, a suitably qualified and authorized person must review the actual equipment, loads, methods, protection, inspection and emergency arrangements and resolve open issues. Record the real reviewer, organization, qualifications, delegated authority, reviewed documents, date, signature, exclusions and conditions of approval separately.
