A nonloadbearing partition can overturn under its own weight, air movement or impact before connections and mortar provide the designed restraint. Establish the construction-stage support and release criteria before the first course.
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
Stop before proceeding
Do not start without wall and connection details, staged stability and access-zone planning. Stop for lean, cracks, unstable bearing, brace damage, uncontrolled airflow, impact, loading or interference before curing and support release are verified.
1. Legal and technical scope
Construction masonry is subject to 1926.706: establish the limited access zone before work, on the unscaffolded side, along the wall length and extending wall height plus four feet. Restrict it to workers constructing the wall. Walls over eight feet need adequate bracing unless otherwise adequately supported; retain braces until permanent supports are in place. Shorter walls still need stability assessment. Apply construction silica requirements under 1926.1153 where exposure is possible; this scope excludes field cutting.
Confirm whether federal OSHA or an OSHA-approved State Plan covers this employer and worksite; state requirements and public-sector coverage can differ. Apply the task-specific provisions and limitations identified above.
| Basis | Application |
|---|---|
| OSHA 29 CFR 1926.706 | Masonry limited access zone and bracing requirements; nonloadbearing status does not create an exemption. |
| OSHA 29 CFR 1926.1153 | Construction respirable crystalline silica: assess actual mortar/material exposure and select compliant controls; no assumed exposure measurement. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-13. Individual state rules require a site-specific check. |
2. Scope and required inputs
Included scope
Build a new interior nonloadbearing concrete block partition to approved details using precut blocks, specified mortar, staged courses, connections, temporary support and controlled curing.
Separate assessment
Loadbearing wall or retaining-wall design, field block cutting, structural grout/rebar installation, demolition, scaffold erection and service core drilling require separate assessment.
| Input | Evidence needed |
|---|---|
| Review wall stages | Wall height and length; Support release plan; Material loading; Head and opening detail. |
| Prepare mortar | Product and SDS; Mix and batch time; Dust and ventilation; PPE and wash access. |
| Connect and brace | Tie and head connection; Brace anchorage; Access zone; Opening support. |
| Inspect and handoff | Wall inspection; Curing evidence; Brace removal authority; Receiver and limits. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Technical and procedural controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Review wall stages | 1. Wall overturns2. Connection fails3. Floor overload4. Head joint damage | 1. Support omitted2. Detail unclear3. Stock load ignored4. Movement gap filled | 1. Approve staged stability2. Confirm connections3. Check floor loading4. Follow head detail | 1. Wall height and length2. Support release plan3. Material loading4. Head and opening detail | ||||
| 2. Deliver and segregate | 1. Blocks fall2. Foot crush3. Wall struck4. Platform overload | 1. High stacks2. Awkward carry3. Traffic crosses zone4. Stock on platform | 1. Distribute stock safely2. Use handling aids3. Establish access zone4. Control platform loads | 1. Block weight and route2. Floor capacity3. Zone dimensions4. Other trade separation | ||||
| 3. Prepare mortar | 1. Dust exposure2. Cement burn3. Eye splash4. Weak mortar | 1. Dry dumping2. Skin contact3. No wash provision4. Wrong mix time | 1. Control dust at mixing2. Protect skin and eyes3. Provide washing4. Follow product batch | 1. Product and SDS2. Mix and batch time3. Dust and ventilation4. PPE and wash access | ||||
| 4. Lay staged courses | 1. Wall leans2. Block drops3. Hand strain4. Base failure | 1. Uneven first course2. Excess stage height3. Hand pinch4. Poor bearing | 1. Verify base and line2. Follow stage limit3. Use lifting assistance4. Check joints and plumb | 1. Base and first course2. Stage height3. Joint and bond4. Plumb and load | ||||
| 5. Connect and brace | 1. Wall separates2. Brace slips3. Trip into support4. Opening collapse | 1. Tie missing2. Fixing weak3. Route conflicts4. Opening unsupported | 1. Install approved ties2. Verify brace fixings3. Separate access4. Follow opening detail | 1. Tie and head connection2. Brace anchorage3. Access zone4. Opening support | ||||
| 6. Control curing | 1. Wall overturns2. Cracking3. Impact damage4. Early load | 1. Brace removed2. Environment ignored3. Material leaned4. Drilling early | 1. Retain support2. Follow cure conditions3. Exclude impact loads4. Coordinate follow-on work | 1. Time and conditions2. Support state3. Airflow and impact4. Next-work restrictions | ||||
| 7. Hold crack or lean | 1. Progressive collapse2. Worker crushed3. Unsafe correction4. Brace failure | 1. Wall hand-pushed2. People approach3. Ad hoc repair4. Support moved | 1. Clear fall influence2. Prevent access3. Get stability review4. Use recovery plan | 1. Crack and lean extent2. Brace influence3. Review and recovery4. Restart authorization | ||||
| 8. Inspect and handoff | 1. Early brace removal2. Defect hidden3. Wrong handoff4. Unsafe later drilling | 1. Appearance accepted2. Held area covered3. No retaining owner4. Strength unknown | 1. Inspect wall and ties2. Identify incomplete work3. Assign support custodian4. Transfer release criteria | 1. Wall inspection2. Curing evidence3. Brace removal authority4. Receiver and limits |
P = likelihood; S = severity; R = risk under the site method; A = the site-defined acceptance/authorization decision. Complete only after actual assessment. Blank cells and checklist prompts are not completed inspections.
4. Fictional scenario and failure mechanisms

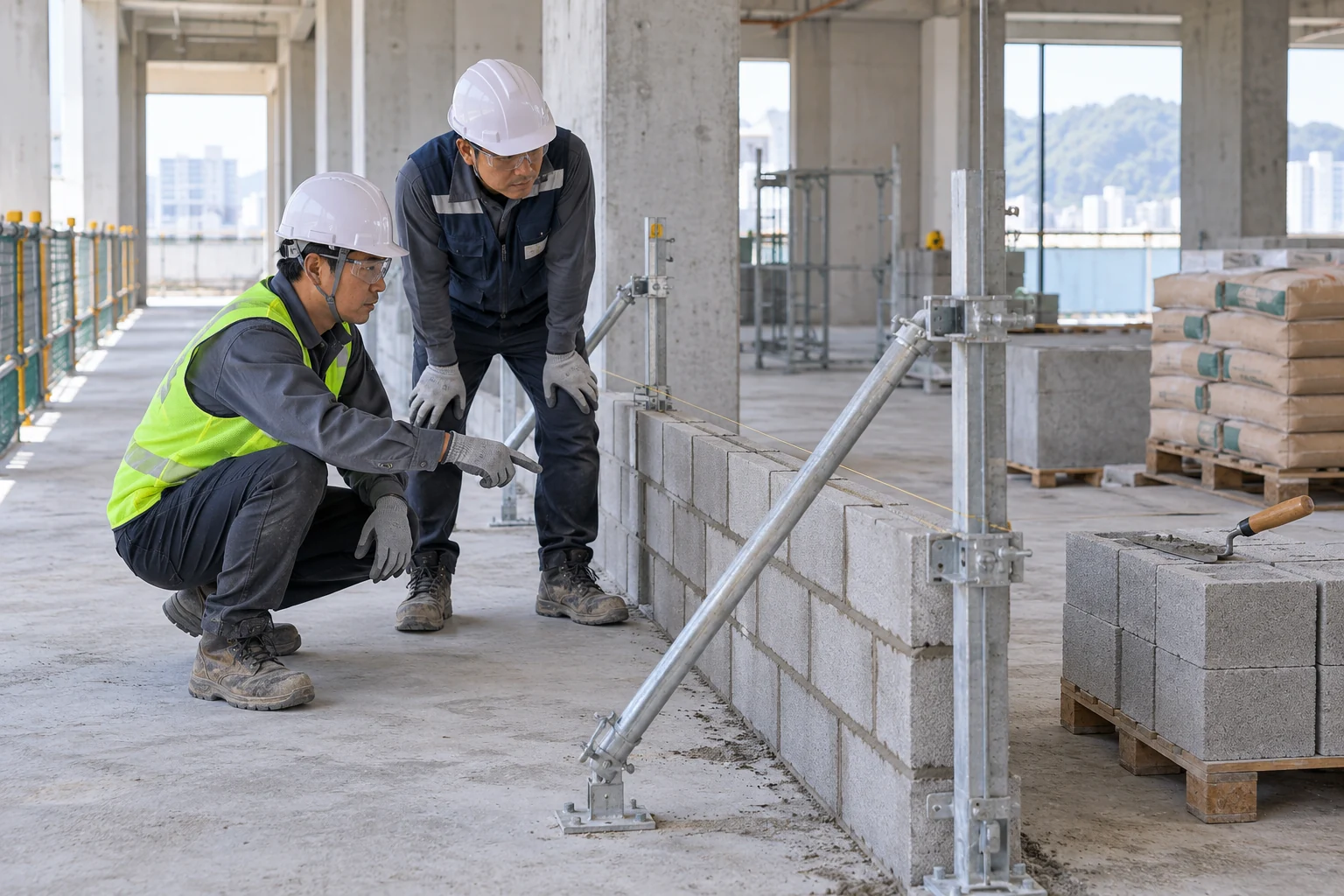

Retained AI-generated educational illustration from the source edition; not a real incident photograph, approved installation drawing or evidence of equipment suitability.
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Item | Fictional scenario |
|---|---|
| Initial | The partition courses have been completed. |
| Change | A piping crew wants to move a brace blocking its route. |
| Failure | Curing and support-release criteria have not been confirmed. |
| Outcome | Moving the brace may allow the wall to overturn onto adjacent workers. |
| Barrier | Keep the brace and exclusion in place, reroute access and obtain the specified inspection and authorized change plan. |
Why the controls matter
A nonloadbearing partition can overturn under its own weight, air movement or impact before connections and mortar provide the designed restraint. Establish the construction-stage support and release criteria before the first course.
Block storage, floor capacity and access platforms must be planned together. Keep stockpiles out of the fall zone and prevent carts or later trades from striking braces. Do not use stacked blocks as a platform.
Dry-looking mortar is not evidence of the strength needed for brace removal, drilling or impact. Transfer responsibility for curing, exclusion and brace retention after the masons leave. The head joint may need movement or fire details; do not fill it arbitrarily.
Decision sequence
| Step | Decision |
|---|---|
| Known | A piping crew wants to move a brace blocking its route. |
| Unknown | Actual condition, extent of damage and suitability of tie and head connection, brace anchorage remain to be established. |
| Hold | Curing and support-release criteria have not been confirmed. |
| Evidence | Link tie and head connection, brace anchorage, access zone, opening support, crack and lean extent, brace influence to the affected equipment or work area. |
| Next | Keep the brace and exclusion in place, reroute access and obtain the specified inspection and authorized change plan. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Support unknown | Hold first course | Staged support design | Plan accepted |
| Brace interference | Reroute other trade | Brace and access review | Support maintained |
| Crack or lean | Evacuate fall zone | Qualified stability review | Recovery authorized |
| Dry surface | Keep curing controls | Strength and release evidence | Release criteria met |
Similar appearance, different evidence
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Comparison | Supported decision | Insufficient basis |
|---|---|---|
| Condition | Staged support design | Support unknown has not been resolved. |
| Evidence | Qualified stability review | A photograph or a completed-looking task without the relevant inspection record. |
| Release | Release criteria met | Completion of one step does not release the excluded tasks in section 2. |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Assign the task boundary, stop authority, interfaces and emergency communication for interior nonloadbearing concrete block wall construction. |
| Technical lead | Confirm Wall height and length; Support release plan; Material loading; Head and opening detail. Resolve design and manufacturer limits before work. |
| Authorized crew | Apply Product and SDS; Mix and batch time; Dust and ventilation; PPE and wash access. Stop when the working arrangement changes. |
| Inspector / receiving lead | Review Tie and head connection; Brace anchorage; Access zone; Opening support. Transfer Wall inspection; Curing evidence; Brace removal authority; Receiver and limits. |
Role labels allocate responsibilities; they do not confer a legal qualification. Verify the competence, training and authority required for the actual task.
Record and handoff perspective
| Stage | Record controls | Verification |
|---|---|---|
| Review wall stages | 1. Record wall height and length2. Record support release plan3. Record material loading | 1. Support release plan2. Material loading3. Head and opening detail |
| Prepare mortar | 1. Record product and sds2. Record mix and batch time3. Record dust and ventilation | 1. Mix and batch time2. Dust and ventilation3. PPE and wash access |
| Lay staged courses | 1. Record base and first course2. Record stage height3. Record joint and bond | 1. Stage height2. Joint and bond3. Plumb and load |
| Connect and brace | 1. Record tie and head connection2. Record brace anchorage3. Record access zone | 1. Brace anchorage2. Access zone3. Opening support |
| Hold crack or lean | 1. Record crack and lean extent2. Record brace influence3. Record review and recovery | 1. Brace influence2. Review and recovery3. Restart authorization |
| Inspect and handoff | 1. Record wall inspection2. Record curing evidence3. Record brace removal authority | 1. Curing evidence2. Brace removal authority3. Receiver and limits |
7. Hold points and record comparison
| Hold point | Evidence before release | Actual record |
|---|---|---|
| HP-0 Start | Build a new interior nonloadbearing concrete block partition to approved details using precut blocks, specified mortar, staged courses, connections, temporary support and controlled curing. | |
| HP-1 Review wall stages | Wall height and length; Support release plan; Material loading; Head and opening detail | |
| HP-2 Connect and brace | Tie and head connection; Brace anchorage; Access zone; Opening support | |
| HP-3 Control curing | Time and conditions; Support state; Airflow and impact; Next-work restrictions | |
| HP-4 Inspect and handoff | Wall inspection; Curing evidence; Brace removal authority; Receiver and limits |
These are internal hold points, not issued permits. Recheck affected points after a change, fault or shift handoff; link the actual approval record.
Record comparison
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
The boxes are static record prompts, not interactive or saved approvals. A tick does not establish suitability or permission to restart. Record the evidence, person, time and unresolved issues; retain the change history.
| Record | Insufficient | Record checklist |
|---|---|---|
| Review wall stages | "Checked" without target, criteria or result | □ Wall height and length□ Support release plan□ Material loading□ Head and opening detail |
| Prepare mortar | "Checked" without target, criteria or result | □ Product and SDS□ Mix and batch time□ Dust and ventilation□ PPE and wash access |
| Connect and brace | "Checked" without target, criteria or result | □ Tie and head connection□ Brace anchorage□ Access zone□ Opening support |
| Inspect and handoff | "Checked" without target, criteria or result | □ Wall inspection□ Curing evidence□ Brace removal authority□ Receiver and limits |
8. Site checklist and emergency response
| Check | Result | Person / action |
|---|---|---|
| □ Review wall stages: Wall height and length | ||
| □ Deliver and segregate: Block weight and route | ||
| □ Prepare mortar: Product and SDS | ||
| □ Lay staged courses: Base and first course | ||
| □ Connect and brace: Tie and head connection | ||
| □ Control curing: Time and conditions | ||
| □ Hold crack or lean: Crack and lean extent | ||
| □ Inspect and handoff: Wall inspection | ||
| □ Emergency access and handoff restrictions |
Stop work
Do not start without wall and connection details, staged stability and access-zone planning. Stop for lean, cracks, unstable bearing, brace damage, uncontrolled airflow, impact, loading or interference before curing and support release are verified.
Emergency response
Clear and barricade the wall fall area. Do not approach an unstable wall for a hand correction or improvised rescue. Activate trained rescue and site response, call 911 for injury or imminent collapse and convey the remaining structural instability.
9. Sources and review limits
Public-source review: 2026-10-13. Official regulation pages and specific technical references are distinguished below; no agency or manufacturer has approved this content.
| Source | Reviewed scope and limitation |
|---|---|
| OSHA 29 CFR 1926.706 | Masonry limited access zone and bracing requirements; nonloadbearing status does not create an exemption. |
| OSHA 29 CFR 1926.1153 | Construction respirable crystalline silica: assess actual mortar/material exposure and select compliant controls; no assumed exposure measurement. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-13. Individual state rules require a site-specific check. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
10. PDF guidance and FAQ
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
Content group
jsa-nonloadbearing-concrete-block-wall
Does nonloadbearing mean no brace is needed?
No. Evaluate construction-stage stability and comply with applicable masonry requirements.
How high may a crew build per day?
Use the approved wall, mortar and staged construction plan; no universal daily height is supplied.
Can a trade move the brace?
Only through the authorized support-change procedure after stability has been established.
Does dry mortar permit drilling?
No. Verify the specified strength, support and inspection conditions before later work.
Has a professional approved this JSA?
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
11. Revision history and authorship
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
Korean source created 2026-10-08. This US edition adapts the Korean source; earlier editorial revisions do not constitute professional approval of this edition.
| Date | Edition | Change | Review status |
|---|---|---|---|
| 2026-10-08 | Korean source v1.0 | Source editorial publication or revision; retained as provenance of the Korean edition. | Editorial record only; no professional approval of this US edition. |
| 2026-10-13 | 1.0 | US localization: preserve task judgments; replace Korean legal applicability with scoped US references. | AI editorial and output checks; no professional technical approval. |
