Gypsum-Partition JSA: Panel Stability, Sharp Edges and Inspection Before Closure

A panel is broad, brittle and awkward as well as heavy. Plan its entire route and support, and keep concealed services available for inspection before closing the opposite face.

This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.

Stop conditions first

Hold for leaning unsecured panels, moving studs or temporary braces, unverified drilling locations, damaged blades, cracked panels or a missing inspection before closure.

1. US legal and technical basis

Construction installation of a non-loadbearing interior partition. OSHA 1926.250 governs applicable material storage; tool, access and fall protection requirements apply to the actual method. Fire/acoustic assembly performance comes from the specified tested design, not this JSA.

Determine whether Federal OSHA or an applicable State Plan governs the employer and work. Standards incorporated into a regulation must be read in their legally applicable edition. Other NFPA/ANSI guidance and manufacturer instructions have distinct roles; they are not automatically federal law.

2. Scope and required inputs

Included

Install the specified metal track/stud system, transport and knife-cut new gypsum panels, support them during positioning and screw fastening, and hand over for finishing.

Separate assessment

Ceilings, loadbearing/shaft-wall design, suspect asbestos demolition, powder-actuated fastening, large powered panel cutting, joint compound and sanding are excluded.

Selected public official provisions were checked on October 13, 2026. This is not a complete legal audit. No actual equipment manual, site measurements, engineering calculations, product certification or professional technical approval was supplied. Full paid NFPA/ANSI standards and state/local amendments were not reviewed. Check actual equipment, jurisdiction and project requirements before use.

Select task-appropriate eye, hand, foot, skin and hearing protection from the exposure assessment. Where respiratory protection is necessary, use the applicable respiratory-protection program; PPE does not replace isolation, guarding, support or ventilation.

3. Eight-stage JSA

Actual risk assessments, measurements, checks, approvals and signatures have not been performed. Keep unverified fields blank and link the actual site records. P/S/R/A mean likelihood, severity, site-method risk and site-defined acceptance/authorization; a score cannot waive a required control.

4. Failure mechanisms and hypothetical case

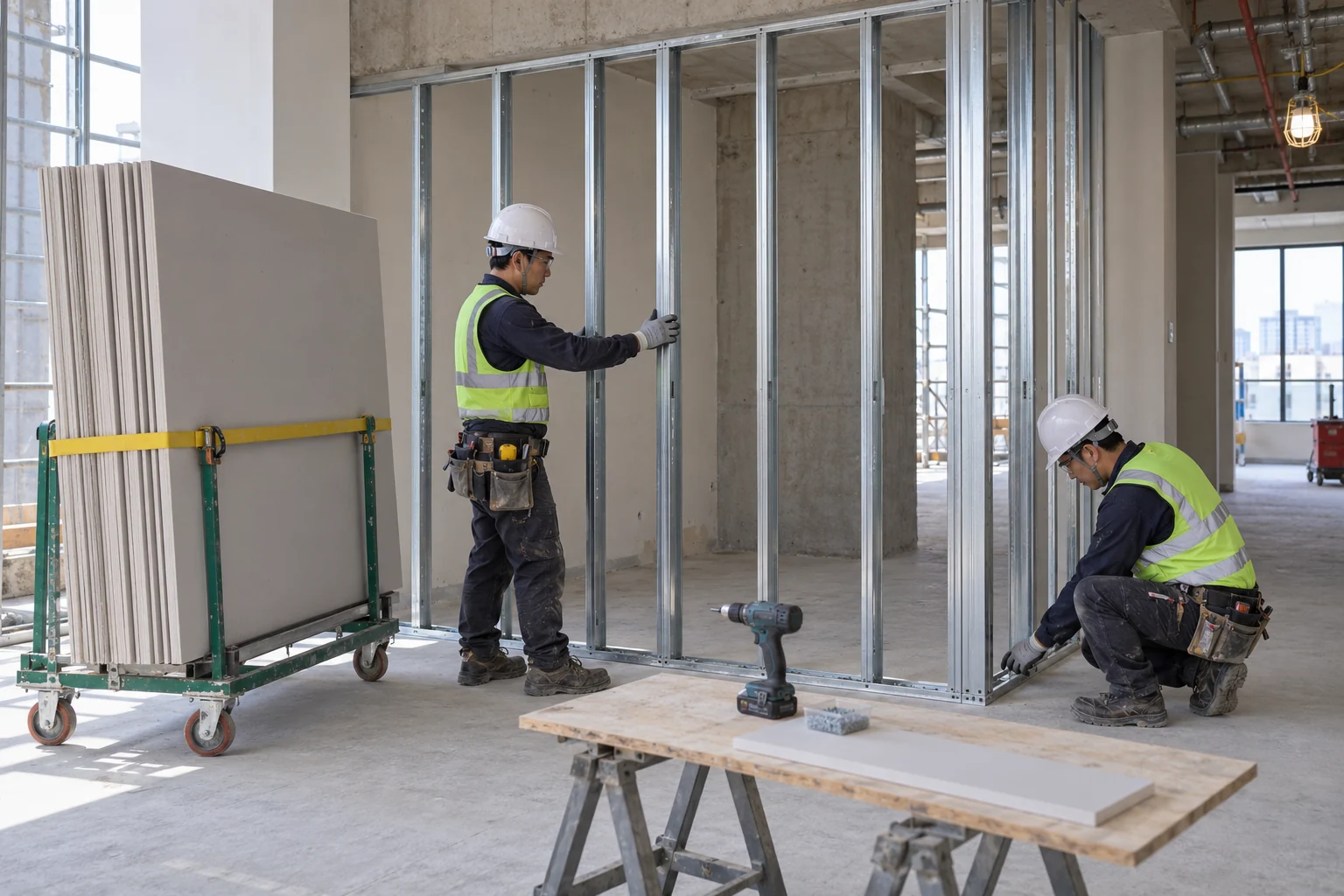

The retained illustration is an AI-generated educational image from the Korean source. It is not an actual incident photograph, approved drawing, equipment certification or proof that the depicted arrangement is safe.

Two workers are not a universal handling solution. First plan delivery, storage, doorway turns and suitable carts/lifters. Any team handling needs agreed roles, signals and a stable landing place.

The panel and receiving frame must be stable before the first screw is driven. Keep assisting hands out of the panel/frame pinch space and use suitable supports; standing upright alone is not secure support.

Visible screws cannot demonstrate hidden wiring, reinforcement or framing details. Complete the relevant trade inspections before covering them and keep panel installation separate from authorization to finish the joints.

Hypothetical decision example

Hypothetical example: the crew is ready to close the second face, but the wiring inspection is missing and one stud moves under hand pressure. Closure is held while framing and electrical personnel inspect their respective work and record corrections.

The example is fictional; no incident, measurement, inspection or approval is asserted.

Task flow: Review wall and services → Receive and store panels → Prepare track and studs → Knife-cut panels → Position and fasten → Inspect before closure → Hold movement or damage → Clean and transfer

5. Hold and proceed decisions

Similar observation, different conclusion

6. Roles and supervision

These are responsibility examples, not invented statutory credentials. Verify actual competence, training and authority for the assigned work.

Supervision and handover controls

7. Hold points and record quality

Hold points are internal evidence gates. They do not establish that a statutory permit exists or has been approved. Recheck affected gates after changes, faults and shift handover.

Record comparison - hypothetical templates

The 16 boxes below identify record elements, not completed checks or approvals. They are static symbols. Link equipment/location, date, actual findings and the separate record reference; preserve unresolved items.

8. Pre-work checks and emergency response

Stop work

Hold for leaning unsecured panels, moving studs or temporary braces, unverified drilling locations, damaged blades, cracked panels or a missing inspection before closure.

Emergency response

Stop and clear the fall area if a panel, stack or frame shifts; do not catch or body-brace it. Arrange stable support and recovery without putting hands between the panel and framing. For serious crush, cut or fall injury, call 911 and activate site first aid/rescue. If a fixing contacts an electrical service, keep people clear and have the supply safely controlled before approach.

9. Official sources and review limits

Official public-source check: October 13, 2026. The review concerns the selected passages described below, not endorsement of this article.

Selected public official provisions were checked on October 13, 2026. This is not a complete legal audit. No actual equipment manual, site measurements, engineering calculations, product certification or professional technical approval was supplied. Full paid NFPA/ANSI standards and state/local amendments were not reviewed. Check actual equipment, jurisdiction and project requirements before use.

This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.

10. PDF use and frequently asked questions

PDF A summarizes core controls; B emphasizes technical failures; C covers supervision, records and handover. Each uses six stages from or aligned with the eight-stage body. All actual risk, measurement, check and signature fields are blank. Use a separate linked record where more space is needed.

Can panels lean against an unfinished wall?

Use the product storage method and verified stable support; do not rely on an unstable wall or obstructed passage.

Are two people enough for every board?

No. Assess panel size, route, height and repetition and select suitable handling aids.

Can stud spacing be copied from another job?

Use the specified system, wall height, openings and performance details.

May the second side close immediately?

Only after framing, services and reinforcement receive the required inspections and handover.

Has a professional approved this JSA?

This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.

11. Authorship and revision history

This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
