Stopped rotation does not prevent an elevated bow descending. Verify the manufacturer-prescribed maintenance support as well as power isolation; do not assume a valve position or improvised prop protects every model.
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
Stop before proceeding
Stop if bow support unclear, blade matches length only, scraping in test. Keep the affected operation on hold until the listed evidence and proceed conditions are satisfied; a low risk score does not release missing safeguards.
1. Legal and technical scope
This general-industry servicing task uses applicable 1910.147 hazardous-energy controls and 1910.212 guarding. Assess electrical, automatic command, gravity and blade spring energy separately. The Grizzly G0561 instructions are a model example; their bow holding, dimensions and tension settings cannot be applied to other saws without verification.
Confirm whether federal OSHA or an OSHA-approved State Plan covers this employer and worksite; state requirements and public-sector coverage can differ. Apply the task-specific provisions and limitations identified above.
| Basis | Application |
|---|---|
| OSHA 29 CFR 1910.147 | Servicing isolation, stored energy and verification before work. |
| OSHA 29 CFR 1910.212 | Restore suitable guarding before operation. |
| Grizzly G0561 manual | Changing Blade and tension sections: disconnect power, safe sharp-blade handling, tooth direction and guide placement. Applicable machine edition must be confirmed; numerical settings not generalized. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-13. Individual state rules require a site-specific check. |
2. Scope and required inputs
Included scope
Replace a specified continuous blade on a horizontal metal bandsaw, restore model-specific tension, guides and guards, and complete a controlled acceptance test.
Separate assessment
Blade welding or sharpening, wheel repairs, automatic feed-line servicing, wood/food saws and powered tracking with covers open require separate procedures.
| Input | Evidence needed |
|---|---|
| Identify saw and blade | Saw ID and edition; Length width thickness teeth; Replacement identity; Energy and support plan. |
| Open and release tension | Tension release; Hand and eye protection; Cover support; Wheel and bow state. |
| Install new blade | Direction and seating; Guide arrangement; Tension basis; Blade compatibility. |
| Close and handoff | Scrap disposition; Guard and power state; Blade and settings; Receiver and defects. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Technical and procedural controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Identify saw and blade | 1. Wrong blade fails2. Sharp tooth cut3. Unplanned motion4. Wrong procedure | 1. Length only checked2. Coil uncontrolled3. Auto command active4. Model edition wrong | 1. Match full blade specification2. Plan coil handling3. Identify all energy sources4. Confirm actual manual | 1. Saw ID and edition2. Length width thickness teeth3. Replacement identity4. Energy and support plan | ||||
| 2. Stop isolate support | 1. Bow crush2. Unexpected rotation3. Stored pressure4. Remote restart | 1. Power retained2. Bow unsupported3. Pressure trapped4. Command not isolated | 1. Isolate and verify power2. Secure bow per manual3. Control other stored energy4. Prevent automatic restart | 1. Isolation record2. Bow restraint3. Stored energy4. Verification result | ||||
| 3. Open and release tension | 1. Blade springs2. Hand cut3. Guard falls4. Wheel moves | 1. Tension released suddenly2. Hands on teeth3. Cover unsupported4. Residual motion | 1. Follow release sequence2. Use handling protection3. Secure covers4. Verify full rest | 1. Tension release2. Hand and eye protection3. Cover support4. Wheel and bow state | ||||
| 4. Remove old blade | 1. Band whips2. Sharp scrap cut3. Finger pinch4. Floor trip | 1. Loop uncontrolled2. Blade discarded loose3. Hands at pinch4. Work area cluttered | 1. Control band loop2. Contain sharp scrap3. Keep pinch points clear4. Clear removal area | 1. Band control2. Safe scrap container3. Handling method4. Area clearance | ||||
| 5. Install new blade | 1. Wrong direction2. Blade derails3. Finger pinch4. Excess tension | 1. Blade inverted2. Guide seating wrong3. Hands trapped4. Setting guessed | 1. Confirm tooth direction2. Seat in wheels and guides3. Use safe handling4. Set specified tension | 1. Direction and seating2. Guide arrangement3. Tension basis4. Blade compatibility | ||||
| 6. Restore and test | 1. Blade contact2. Band ejection3. Unexpected feed4. False release | 1. Cover left open2. Tools retained3. People nearby4. Test criteria absent | 1. Restore all guards2. Account for tools3. Clear controlled test area4. Follow acceptance procedure | 1. Guard restoration2. Tools and personnel3. Stop function4. Test and cut result | ||||
| 7. Hold tracking fault | 1. Moving-blade cut2. Repeat failure3. Bow drop4. Defect concealed | 1. Hand adjustment2. Cause ignored3. Support disturbed4. Noise accepted | 1. Stop and re-isolate2. Inspect guide and blade3. Recheck bow support4. Repair before guarded test | 1. Scraping location2. Blade and guide damage3. Isolation and support4. Retest decision | ||||
| 8. Close and handoff | 1. Sharp scrap2. Unexpected use3. Wrong next cut4. Lost defect record | 1. Blade left loose2. Release unmarked3. Setup unknown4. Fault not transferred | 1. Contain removed blade2. Record machine status3. Transfer blade specification4. Hand over restrictions | 1. Scrap disposition2. Guard and power state3. Blade and settings4. Receiver and defects |
P = likelihood; S = severity; R = risk under the site method; A = the site-defined acceptance/authorization decision. Complete only after actual assessment. Blank cells and checklist prompts are not completed inspections.
4. Fictional scenario and failure mechanisms

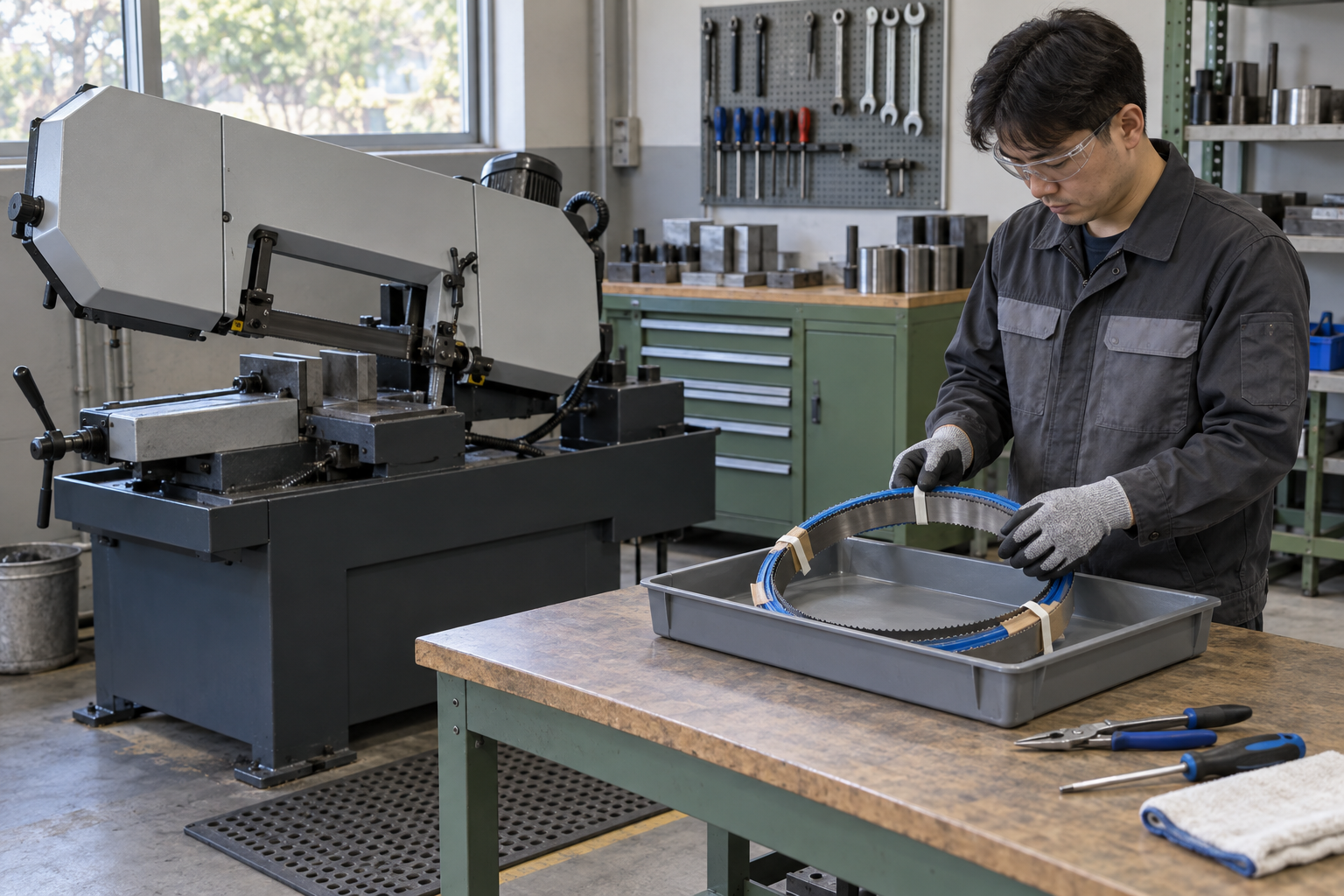

Retained AI-generated educational illustration from the source edition; not a real incident photograph, approved installation drawing or evidence of equipment suitability.
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Item | Fictional scenario |
|---|---|
| Initial | A replacement blade has been installed. |
| Change | A short guarded test produces scraping near a guide. |
| Failure | The operator proposes opening the cover while running to adjust tracking. |
| Outcome | Contact with the moving blade or a displaced band can cause serious injury. |
| Barrier | Stop, wait and isolate; inspect seating, direction, guides and damage, then restore guarding before a controlled retest. |
Why the controls matter
Stopped rotation does not prevent an elevated bow descending. Verify the manufacturer-prescribed maintenance support as well as power isolation; do not assume a valve position or improvised prop protects every model.
Correct blade length alone does not establish compatibility. Match width, thickness, tooth form and direction, then verify seating and guides before applying the specified tension.
A quiet unloaded run does not prove cutting acceptance. Restore guards and test by the permitted procedure. Scraping or tracking change requires a stop, full rest and renewed isolation before adjustment; never correct a moving blade by hand.
Decision sequence
| Step | Decision |
|---|---|
| Known | A short guarded test produces scraping near a guide. |
| Unknown | Actual condition, extent of damage and suitability of direction and seating, guide arrangement remain to be established. |
| Hold | The operator proposes opening the cover while running to adjust tracking. |
| Evidence | Link direction and seating, guide arrangement, tension basis, blade compatibility, scraping location, blade and guide damage to the affected equipment or work area. |
| Next | Stop, wait and isolate; inspect seating, direction, guides and damage, then restore guarding before a controlled retest. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Bow support unclear | Hold access | Model support procedure | Bow secured |
| Blade matches length only | Hold installation | Complete blade specification | Compatibility verified |
| Scraping in test | Stop and re-isolate | Guide seating and damage | Cause corrected |
| Test complete | Assess defined results | Guard stop and cut checks | Release recorded |
Similar appearance, different evidence
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Comparison | Supported decision | Insufficient basis |
|---|---|---|
| Condition | Model support procedure | Bow support unclear has not been resolved. |
| Evidence | Guide seating and damage | A photograph or a completed-looking task without the relevant inspection record. |
| Release | Release recorded | Completion of one step does not release the excluded tasks in section 2. |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Assign the task boundary, stop authority, interfaces and emergency communication for horizontal metal bandsaw blade replacement. |
| Technical lead | Confirm Saw ID and edition; Length width thickness teeth; Replacement identity; Energy and support plan. Resolve design and manufacturer limits before work. |
| Authorized crew | Apply Tension release; Hand and eye protection; Cover support; Wheel and bow state. Stop when the working arrangement changes. |
| Inspector / receiving lead | Review Direction and seating; Guide arrangement; Tension basis; Blade compatibility. Transfer Scrap disposition; Guard and power state; Blade and settings; Receiver and defects. |
Role labels allocate responsibilities; they do not confer a legal qualification. Verify the competence, training and authority required for the actual task.
Record and handoff perspective
| Stage | Record controls | Verification |
|---|---|---|
| Identify saw and blade | 1. Record saw id and edition2. Record length width thickness teeth3. Record replacement identity | 1. Length width thickness teeth2. Replacement identity3. Energy and support plan |
| Open and release tension | 1. Record tension release2. Record hand and eye protection3. Record cover support | 1. Hand and eye protection2. Cover support3. Wheel and bow state |
| Remove old blade | 1. Record band control2. Record safe scrap container3. Record handling method | 1. Safe scrap container2. Handling method3. Area clearance |
| Install new blade | 1. Record direction and seating2. Record guide arrangement3. Record tension basis | 1. Guide arrangement2. Tension basis3. Blade compatibility |
| Hold tracking fault | 1. Record scraping location2. Record blade and guide damage3. Record isolation and support | 1. Blade and guide damage2. Isolation and support3. Retest decision |
| Close and handoff | 1. Record scrap disposition2. Record guard and power state3. Record blade and settings | 1. Guard and power state2. Blade and settings3. Receiver and defects |
7. Hold points and record comparison
| Hold point | Evidence before release | Actual record |
|---|---|---|
| HP-0 Start | Replace a specified continuous blade on a horizontal metal bandsaw, restore model-specific tension, guides and guards, and complete a controlled acceptance test. | |
| HP-1 Stop isolate support | Isolation record; Bow restraint; Stored energy; Verification result | |
| HP-2 Install new blade | Direction and seating; Guide arrangement; Tension basis; Blade compatibility | |
| HP-3 Restore and test | Guard restoration; Tools and personnel; Stop function; Test and cut result | |
| HP-4 Close and handoff | Scrap disposition; Guard and power state; Blade and settings; Receiver and defects |
These are internal hold points, not issued permits. Recheck affected points after a change, fault or shift handoff; link the actual approval record.
Record comparison
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
The boxes are static record prompts, not interactive or saved approvals. A tick does not establish suitability or permission to restart. Record the evidence, person, time and unresolved issues; retain the change history.
| Record | Insufficient | Record checklist |
|---|---|---|
| Identify saw and blade | "Checked" without target, criteria or result | □ Saw ID and edition□ Length width thickness teeth□ Replacement identity□ Energy and support plan |
| Open and release tension | "Checked" without target, criteria or result | □ Tension release□ Hand and eye protection□ Cover support□ Wheel and bow state |
| Install new blade | "Checked" without target, criteria or result | □ Direction and seating□ Guide arrangement□ Tension basis□ Blade compatibility |
| Close and handoff | "Checked" without target, criteria or result | □ Scrap disposition□ Guard and power state□ Blade and settings□ Receiver and defects |
8. Site checklist and emergency response
| Check | Result | Person / action |
|---|---|---|
| □ Identify saw and blade: Saw ID and edition | ||
| □ Stop isolate support: Isolation record | ||
| □ Open and release tension: Tension release | ||
| □ Remove old blade: Band control | ||
| □ Install new blade: Direction and seating | ||
| □ Restore and test: Guard restoration | ||
| □ Hold tracking fault: Scraping location | ||
| □ Close and handoff: Scrap disposition | ||
| □ Emergency access and handoff restrictions |
Stop work
Stop if bow support unclear, blade matches length only, scraping in test. Keep the affected operation on hold until the listed evidence and proceed conditions are satisfied; a low risk score does not release missing safeguards.
Emergency response
Stop from a safe location, exclude people from the affected danger zone and activate the site emergency plan. Call 911 for injury or immediate danger. Do not enter an unstable, energized or confined danger area for an improvised rescue; trained responders must control the specific energy and access hazards.
9. Sources and review limits
Public-source review: 2026-10-14. Official regulation pages and specific technical references are distinguished below; no agency or manufacturer has approved this content.
| Source | Reviewed scope and limitation |
|---|---|
| OSHA 29 CFR 1910.147 | Servicing isolation, stored energy and verification before work. |
| OSHA 29 CFR 1910.212 | Restore suitable guarding before operation. |
| Grizzly G0561 manual | Changing Blade and tension sections: disconnect power, safe sharp-blade handling, tooth direction and guide placement. Applicable machine edition must be confirmed; numerical settings not generalized. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-13. Individual state rules require a site-specific check. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
10. PDF guidance and FAQ
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
Content group
jsa-metal-bandsaw-blade-change
Does electrical isolation secure the bow?
No. Control gravity by the prescribed maintenance support method.
Are gloves appropriate?
Use suitable cut protection for stationary isolated blade handling; keep hands and loose items away from running machinery.
Can tracking be corrected during rotation?
Not under this procedure. Stop and isolate; separate specialist procedures are required for any excluded activity.
Does quiet idle running prove the finished cut?
No. Verify the specified guarded test and product checks.
Has a professional approved this JSA?
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
