The ability to lift a pallet does not establish that a person can safely start, steer and stop it. Assess load stability, wheels, floor and handling effort together.
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
Stop conditions first
Hold for unknown load or pallet suitability, hydraulic leakage, unintended lowering, stuck wheels, blocked visibility or excessive start/stop effort. Do not use body momentum or a foot against a wheel to overcome the problem.
1. US legal and technical basis
General-industry indoor material handling under applicable OSHA 1910.176 requirements. A wholly manual hydraulic pallet truck is not treated as a powered industrial truck merely because it lifts a pallet; powered equipment needs its separate 1910.178 assessment.
| Reference | Use and limit |
|---|---|
| OSHA 29 CFR 1910.176 | Selected aisle clearance, stable storage and housekeeping provisions; does not establish a universal manual push/pull force limit. |
| OSHA Grocery Warehousing: Transport Techniques | Guidance on wheel/floor maintenance, handling forces and powered assistance. Recommendations are not equipment ratings or a universal legal lifting limit. |
| OSHA State Plans | Federal baseline and State Plan coverage reviewed. Confirm the applicable state program and employer coverage; this edition does not establish nationwide compliance. |
Determine whether Federal OSHA or an applicable State Plan governs the employer and work. Standards incorporated into a regulation must be read in their legally applicable edition. Other NFPA/ANSI guidance and manufacturer instructions have distinct roles; they are not automatically federal law.
2. Scope and required inputs
Included
Move one suitable pallet with a low-lift manual hydraulic pallet truck on a firm, level indoor route and lower it at a prepared destination.
Separate assessment
Ramps, docks, truck beds, elevators, stairs, riding, powered trucks and high-lift equipment are excluded.
| Input | Evidence needed |
|---|---|
| Identify load and truck | Load ID/weight basis; Truck/model limits; Effort and route plan; Pallet condition |
| Inspect route | Floor/joints; Crossing controls; Surface condition; Destination/turn space |
| Insert forks | Pallet underside; Insertion and balance; Foot/hand position; Load security |
| Park and transfer faults | Parked fork position; Wheel/hydraulic fault; Spill and route status; Follow-up owner |
Selected public official provisions were checked on October 13, 2026. This is not a complete legal audit. No actual equipment manual, site measurements, engineering calculations, product certification or professional technical approval was supplied. Full paid NFPA/ANSI standards and state/local amendments were not reviewed. Check actual equipment, jurisdiction and project requirements before use.
Select task-appropriate eye, hand, foot, skin and hearing protection from the exposure assessment. Where respiratory protection is necessary, use the applicable respiratory-protection program; PPE does not replace isolation, guarding, support or ventilation.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Identify load and truck | 1. Overload2. Load overturns3. Excessive exertion4. Pallet breaks | 1. Weight unknown2. Center off-balance3. Rating used as effort limit4. Pallet structure weak | 1. Verify load and rating2. Check center/stability3. Assess actual handling effort4. Match pallet and forks | 1. Load ID/weight basis2. Truck/model limits3. Effort and route plan4. Pallet condition | ||||
| 2. Inspect route | 1. Wheel catches2. Pedestrian collision3. Lost control4. Body trapped | 1. Floor joint damaged2. Blind crossing3. Surface contaminated4. Turn too narrow | 1. Select level sound route2. Separate pedestrians3. Remove floor hazards4. Allow steering/escape room | 1. Floor/joints2. Crossing controls3. Surface condition4. Destination/turn space | ||||
| 3. Check unloaded truck | 1. Unintended lowering2. Poor steering3. Hand/foot pinch4. Load instability | 1. Hydraulic leak2. Wheel debris/damage3. Handle fault4. Fork damage | 1. Check model functions2. Inspect wheels and handle3. Remove defective truck4. Verify controlled lowering | 1. Lift/neutral/lower response2. Wheels/forks3. Leaks and handle4. Defect disposition | ||||
| 4. Insert forks | 1. Pallet splits2. Foot crushed3. Load tilts4. Finger trapped | 1. Fork fit wrong2. Feet by wheels3. Uneven insertion4. Pallet shifted by hand | 1. Match fork engagement2. Keep feet clear3. Center balanced support4. Reposition with safe tools | 1. Pallet underside2. Insertion and balance3. Foot/hand position4. Load security | ||||
| 5. Start and travel | 1. Back/shoulder strain2. Load shifts3. Person struck4. Wheel stops abruptly | 1. Truck jerked2. Poor visibility3. Excess pace4. Floor defect ignored | 1. Follow model handling method2. Maintain sightline3. Move at controlled pace4. Stop excessive effort/catching | 1. Start/stop control2. Load stability3. Travel visibility4. Wheel/floor response | ||||
| 6. Turn and stop | 1. Handle-wall crush2. Load swings3. Foot runover4. Destination collision | 1. Escape room absent2. Sharp turn3. Body too near wheels4. Stopping distance short | 1. Maintain safe body space2. Turn smoothly3. Keep feet outside path4. Stop with adequate clearance | 1. Handle sweep/escape2. Load response3. Foot clearance4. Pedestrians/stop location | ||||
| 7. Lower and withdraw | 1. Foot under pallet2. Unstable landing3. Pallet dragged4. Fork strikes person | 1. Landing uneven2. People not cleared3. Forks withdrawn loaded4. Retreat path occupied | 1. Prepare stable landing2. Clear lowering area3. Confirm full support4. Withdraw forks carefully | 1. Floor/support state2. Hands/feet clear3. Pallet self-support4. Fork exit route | ||||
| 8. Park and transfer faults | 1. Defective truck reused2. Trip over forks3. Oil slip4. Unresolved load hold | 1. Fault unmarked2. Forks left raised3. Leak not contained4. Receiver uninformed | 1. Lower in designated place2. Mark defects for service3. Control spill safely4. Transfer load restrictions | 1. Parked fork position2. Wheel/hydraulic fault3. Spill and route status4. Follow-up owner |
Actual risk assessments, measurements, checks, approvals and signatures have not been performed. Keep unverified fields blank and link the actual site records. P/S/R/A mean likelihood, severity, site-method risk and site-defined acceptance/authorization; a score cannot waive a required control.
4. Failure mechanisms and hypothetical case

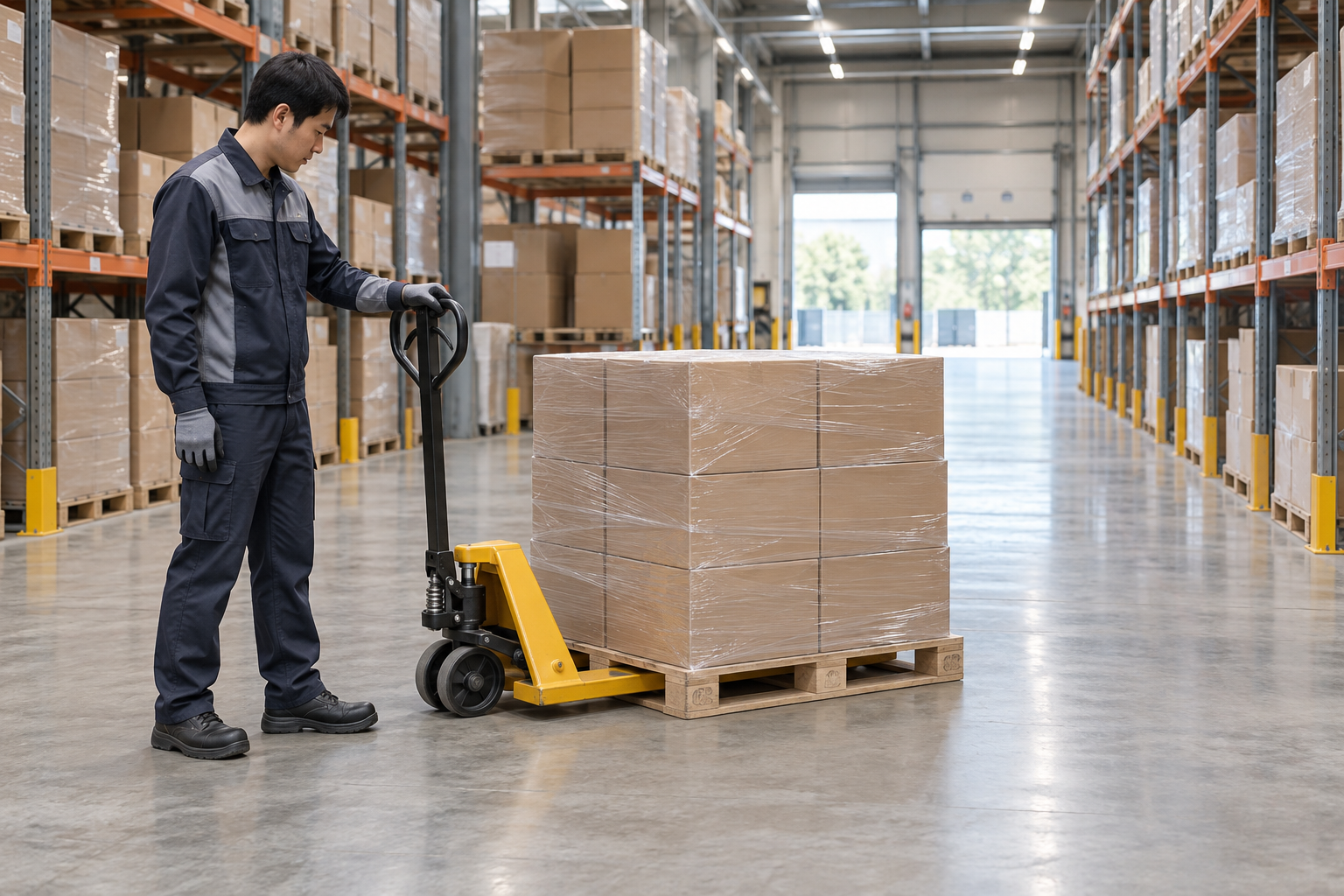

The retained illustration is an AI-generated educational image from the Korean source. It is not an actual incident photograph, approved drawing, equipment certification or proof that the depicted arrangement is safe.
Rated capacity concerns the equipment limits. Actual starting and stopping effort also depends on wheel condition, floor joints, distance, repetition and load distribution. Change the route, divide the load or select suitable powered assistance when the task cannot be controlled.
Do not copy a universal push-or-pull rule from another cart. Follow the actual truck instructions while preserving sightlines, foot clearance, steering room and an escape route.
A raised pallet may still be damaged, unevenly engaged or unstable. Inspect its lower structure and confirm fork fit and balanced support before moving.
Hypothetical decision example
Hypothetical example: a pallet is within truck capacity, but a wheel catches at a floor joint. Repeated jerking makes the upper load sway. Movement stops and access is controlled while the route, wheels and load are assessed in a stable condition.
The example is fictional; no incident, measurement, inspection or approval is asserted.
Task flow: Identify load and truck → Inspect route → Check unloaded truck → Insert forks → Start and travel → Turn and stop → Lower and withdraw → Park and transfer faults
5. Hold and proceed decisions
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Wheel catches | Stop; do not jerk | Floor, wheel and load assessment | Route/equipment corrected |
| Excess effort | Change handling method | Start/stop demands and alternatives | Task controllable |
| Pallet damaged | Hold lifting | Pallet structure and load support | Suitable pallet used |
| Load lowered | Check stable support | Floor contact and fork clearance | Forks clear safely |
Similar observation, different conclusion
| Observation | Supported conclusion | What remains unresolved |
|---|---|---|
| Forks rise | Lifting function responded | Whole-route handling remains unproved |
| Load below rating | One equipment limit met | Effort, center and pallet still matter |
6. Roles and supervision
| Role | Responsibility |
|---|---|
| Work supervisor | Coordinate identify load and truck, affected operations, stop signals and stage transitions. |
| Technical/equipment reviewer | Verify Load ID/weight basis, Truck/model limits, actual instructions and unresolved technical limits. |
| Task crew | Apply the stated controls, report changes and keep actual checks and signatures factual. |
| Inspector/test lead | Connect Handle sweep/escape, Load response to the required acceptance criteria. |
| Receiving authority | Accept the recorded restrictions, Spill and route status, Follow-up owner, and follow-up ownership. |
These are responsibility examples, not invented statutory credentials. Verify actual competence, training and authority for the assigned work.
Supervision and handover controls
| Stage | Management controls | Evidence |
|---|---|---|
| Plan review | 1. Assign technical owner2. Close task-specific questions3. Verify load and rating | 1. Load ID/weight basis2. Truck/model limits3. Pallet condition |
| Competence | 1. Verify required competence2. Assign stop authority3. Select level sound route | 1. Floor/joints2. Training and task briefing3. Destination/turn space |
| Prestart evidence | 1. Inspect actual equipment2. Link evidence to this stage3. Match fork engagement | 1. Pallet underside2. Insertion and balance3. Load security |
| Change control | 1. Stop and secure the area2. Review affected controls3. Prepare stable landing | 1. Floor/support state2. Hands/feet clear3. Fork exit route |
| Shift handover | 1. Identify remaining restrictions2. Confirm receiving responsibility3. Lower in designated place | 1. Parked fork position2. Wheel/hydraulic fault3. Follow-up owner |
| Closeout | 1. Record defect disposition2. Archive factual evidence3. Lower in designated place | 1. Parked fork position2. Wheel/hydraulic fault3. Follow-up owner |
7. Hold points and record quality
| Hold point | Evidence before release | Actual record |
|---|---|---|
| HP-0 Start | Move one suitable pallet with a low-lift manual hydraulic pallet truck on a firm, level indoor route and lower it at a prepared destination. | |
| HP-1 Inspect route | Floor/joints; Crossing controls; Surface condition; Destination/turn space | |
| HP-2 Insert forks | Pallet underside; Insertion and balance; Foot/hand position; Load security | |
| HP-3 Lower and withdraw | Floor/support state; Hands/feet clear; Pallet self-support; Fork exit route | |
| HP-4 Park and transfer faults | Parked fork position; Wheel/hydraulic fault; Spill and route status; Follow-up owner |
Hold points are internal evidence gates. They do not establish that a statutory permit exists or has been approved. Recheck affected gates after changes, faults and shift handover.
Record comparison - hypothetical templates
The 16 boxes below identify record elements, not completed checks or approvals. They are static symbols. Link equipment/location, date, actual findings and the separate record reference; preserve unresolved items.
| Record | Insufficient entry | Required record elements |
|---|---|---|
| Identify load and truck | "Checked" without supporting facts | □ Load ID/weight basis□ Truck/model limits□ Effort and route plan□ Pallet condition |
| Check unloaded truck | "Checked" without supporting facts | □ Lift/neutral/lower response□ Wheels/forks□ Leaks and handle□ Defect disposition |
| Start and travel | "Checked" without supporting facts | □ Start/stop control□ Load stability□ Travel visibility□ Wheel/floor response |
| Lower and withdraw | "Checked" without supporting facts | □ Floor/support state□ Hands/feet clear□ Pallet self-support□ Fork exit route |
8. Pre-work checks and emergency response
| Check required | Result | Checker/action |
|---|---|---|
| Identify load and truck: Load ID/weight basis | ||
| Inspect route: Floor/joints | ||
| Check unloaded truck: Lift/neutral/lower response | ||
| Insert forks: Pallet underside | ||
| Start and travel: Start/stop control | ||
| Turn and stop: Handle sweep/escape | ||
| Lower and withdraw: Floor/support state | ||
| Park and transfer faults: Parked fork position |
Stop work
Hold for unknown load or pallet suitability, hydraulic leakage, unintended lowering, stuck wheels, blocked visibility or excessive start/stop effort. Do not use body momentum or a foot against a wheel to overcome the problem.
Emergency response
Keep people clear of a rolling, tilting or falling pallet. Do not catch the load, body-brace the handle against a wall or stop a wheel with a foot. If safely possible, use the normal controls to stop and lower the load onto a stable surface. Call 911 for serious crushing injury and arrange a controlled recovery with suitable equipment; do not pull a trapped person from under an unsupported pallet.
9. Official sources and review limits
Official public-source check: October 13, 2026. The review concerns the selected passages described below, not endorsement of this article.
| Official source | Checked scope and limit |
|---|---|
| OSHA 29 CFR 1910.176 | Selected aisle clearance, stable storage and housekeeping provisions; does not establish a universal manual push/pull force limit. |
| OSHA Grocery Warehousing: Transport Techniques | Guidance on wheel/floor maintenance, handling forces and powered assistance. Recommendations are not equipment ratings or a universal legal lifting limit. |
| OSHA State Plans | Federal baseline and State Plan coverage reviewed. Confirm the applicable state program and employer coverage; this edition does not establish nationwide compliance. |
Selected public official provisions were checked on October 13, 2026. This is not a complete legal audit. No actual equipment manual, site measurements, engineering calculations, product certification or professional technical approval was supplied. Full paid NFPA/ANSI standards and state/local amendments were not reviewed. Check actual equipment, jurisdiction and project requirements before use.
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
10. PDF use and frequently asked questions
PDF A summarizes core controls; B emphasizes technical failures; C covers supervision, records and handover. Each uses six stages from or aligned with the eight-stage body. All actual risk, measurement, check and signature fields are blank. Use a separate linked record where more space is needed.
Does the rated load establish a one-person limit?
No. Assess actual starting, turning and stopping demands and use an appropriate alternative when needed.
Can a threshold be crossed by jerking harder?
Stop and correct the route or equipment choice; do not repeatedly shock the load.
Must every pallet truck be pushed?
Use the model-specific instructions and safe sightline, steering and body position for the route.
Can this JSA authorize a ramp?
No. This scope is level indoor transport; slopes require a separate equipment and control plan.
Has a professional approved this JSA?
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
11. Authorship and revision history
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
| Date/version | Editorial history | Technical approval |
|---|---|---|
| September 25, 2026 / Korean v1.0 | Korean source: initial article, evidence, hypothetical decisions and body/PDF editorial checks. | Professional technical approval not performed |
| October 13, 2026 / US v1.0 | US localization: Preserves manual low-lift level-floor scope and floor-joint case. Separates equipment capacity from human handling effort and US powered-truck requirements; expands route, handling and lowering evidence. | Not performed |
