Low-Voltage Electrical Condition Inspection JSA

Planned condition inspection of identified low-voltage equipment by appropriately qualified personnel, prioritizing deenergization and using an authorized closed-cover observation, compatible infrared window or separately justified testing method.

Stop for uncertain circuit identity or energy state, missing energized-work justification where required, unsuitable instruments or protection, damaged equipment, arcing, smoke, unexpected heat or any proposed change from observation to repair.

Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.

1. Legal and technical scope

For general-industry electrical work, OSHA 1910.333 addresses deenergization and permitted energized work, 1910.334 addresses electrical equipment use and qualified testing, and 1910.335 addresses protective safeguards. Construction work requires its applicable Part 1926 framework. These are selected provisions, not a complete electrical-safety program or an arc-flash assessment.

Determine Federal OSHA or the applicable OSHA-approved State Plan, including public/private employer coverage. State Plans must be at least as effective and can impose different or additional requirements. The actual activity determines construction versus general-industry scope. Manufacturer instructions, consensus standards, project design and site approvals have distinct roles; this page is not a finding of nationwide compliance.

2. Scope and required inputs

Included: Planned condition inspection of identified low-voltage equipment by appropriately qualified personnel, prioritizing deenergization and using an authorized closed-cover observation, compatible infrared window or separately justified testing method.

Separate review: Unreviewed cover removal, live tightening, live repairs, energized cleaning, improvised probing, defeated interlocks and operation beyond the assessed inspection scope are excluded.

Identify all sources, normal operating conditions, inspection purpose, deenergization feasibility and the exact permitted access method. Qualified personnel must determine shock and arc hazards, approach controls, protective equipment and instrument suitability. Record load and thermal measurement conditions; instrument CAT markings alone do not establish arc-flash protection or permission to expose live parts.

3. Eight-stage JSA

P = likelihood; S = severity; R = risk under the site method; A = acceptance or authorization as defined by the site. Leave these blank until actual assessment and control verification. A low score does not override a legal requirement, product limit or unreleased hold point.

4. Hypothetical scenario and failure mechanisms

The following scenario, comparisons and example records are hypothetical teaching material. They do not reproduce actual incidents, measurements, signatures or approvals.

Deenergize exposed live parts before work unless the employer demonstrates an applicable increased-hazard or infeasibility exception under the governing rules. Production convenience or a signed form alone does not establish that exception. An inspection plan must identify its lawful and technical basis.

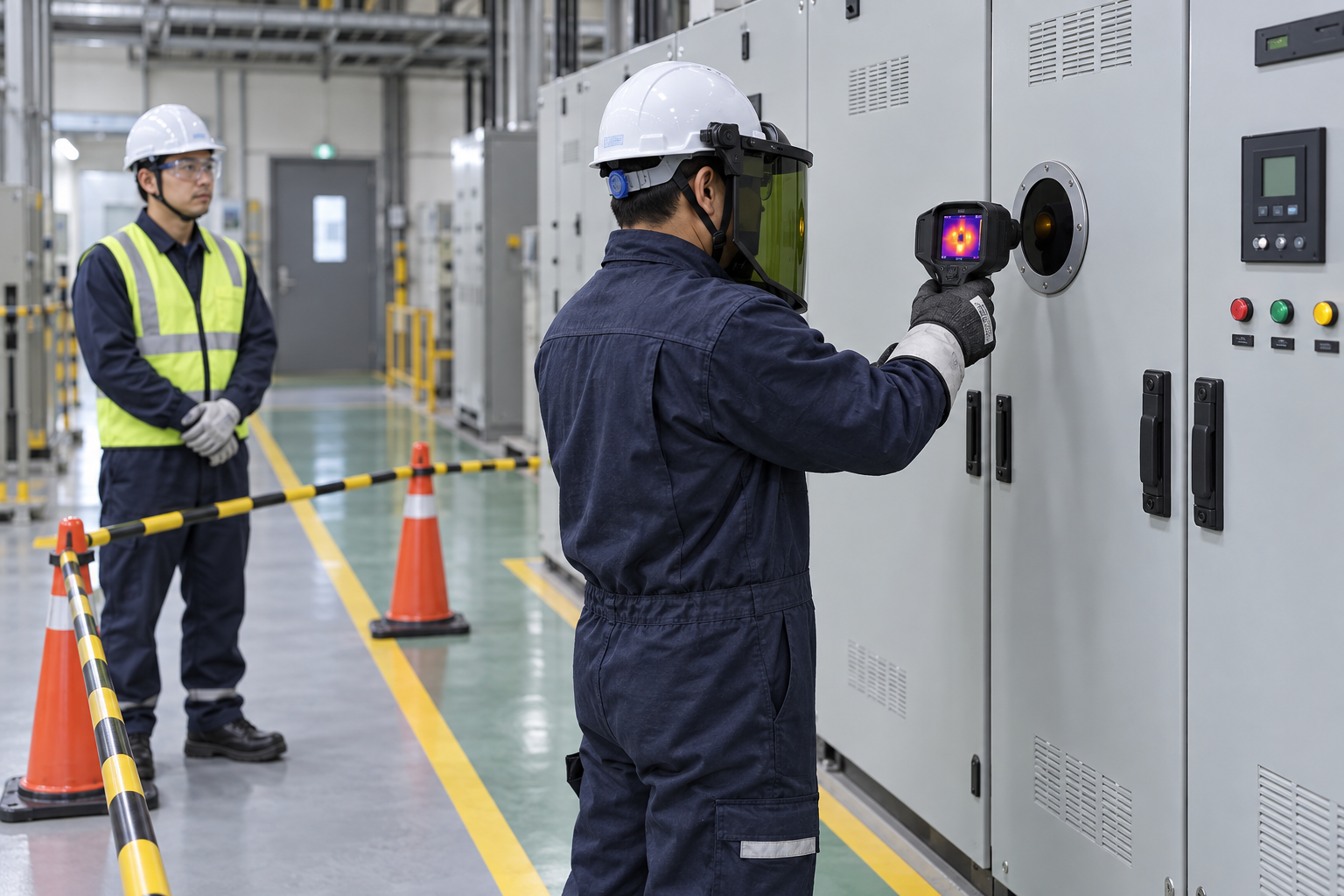

A thermal image records the viewed surface under the measurement conditions. Ordinary metal enclosures and ordinary glass do not provide a reliable view of internal temperatures. A suitable infrared window has its own transmission, condition and field-of-view limits; unseen areas remain uninspected.

Load, ambient and reflected conditions, emissivity, distance and window transmission affect interpretation. Record comparable conditions and instrument settings. A bright region indicates a finding for evaluation, not proof of a loose connection or authority to tighten it live.

Testing and observation require different exposure controls. Qualified personnel must verify the complete instrument, leads and accessories are suitable and undamaged. Close the inspection with findings and operating restrictions, then transfer repair to its separately controlled energy state.

5. Conditional decisions and common errors

6. Roles and responsibilities

These are responsibility examples, not invented statutory credentials. Meet the actual training, competent-person, qualified-person and licensing requirements for the assigned work. Anyone may raise a hazard and request a stop; only the designated authority may release the affected stage after evidence is reviewed.

7. Hold points and record comparison

Hold points are internal evidence gates. They do not replace statutory permits or actual signatures. Recheck affected gates after a change, abnormal event or shift transfer. The blank record must identify the evidence, person, time, limits and release scope.

The □ boxes are static prompts, not saved or interactive approvals. Each checks one record element. A tick alone does not establish suitability or permission to restart. Link equipment IDs and supporting records; retain unresolved matters and the earlier record when conditions change.

8. Site checklist and emergency response

Stop work: Stop for uncertain circuit identity or energy state, missing energized-work justification where required, unsuitable instruments or protection, damaged equipment, arcing, smoke, unexpected heat or any proposed change from observation to repair.

Emergency response: For arcing, smoke or electrical injury, withdraw from the hazard and activate the site electrical emergency response. Do not touch an energized casualty or enter the exposure area for an unprotected rescue. Have authorized personnel isolate when safe, call 911 and use trained first-aid or CPR response once the scene is safe.

9. Sources and review limits

Official-source review date: October 13, 2026. The following review is limited to the public provisions or selected manufacturer material identified below. It does not establish that any authority approved this article or the actual installation.

• OSHA 1910.333: Deenergization decision and electrical safe-work practices.
• OSHA 1910.334: Qualified testing, instrument inspection and circuit/environment ratings.
• OSHA 1910.335: Task-appropriate electrical protection, guarding and alerting.
• FLIR infrared-window transmission guidance: Transmission depends on the window, camera and conditions; a single assumed material value is not universal.
• OSHA State Plans: jurisdiction and coverage overview; identify the actual state program before use.

Paid consensus standards and site-specific calculations, manuals, inspection records and product certificates were not independently obtained or verified unless specifically identified. Korean legal citations remain in the preserved Korean source as source history; they are not represented as US legal duties.

10. PDF guidance and FAQ

PDF A covers basic task controls; B examines technical failures; C focuses on supervision, evidence and handover. Each has six rows and three items per main cell. They are complementary extracts: apply all eight body stages and the applicable site procedure. An omitted stage is not permission to omit its controls. PDF HP-0 through HP-4 are worksheet labels; match the event, evidence and authority rather than assuming they match another permit by number.

P/S/R/A, actual measurements, confirmations and signatures remain blank. The PDFs are uncompleted reference worksheets, not issued work permits.

Content group ID: jsa-lowvoltage-livecheck

Does low voltage mean low risk?

No. Shock and arc hazards depend on the equipment, available energy, exposure and work method.

Does a permit justify any energized task?

No. Establish the applicable basis and safeguards for the specific task; a scope change requires reassessment.

Can a thermal camera see through a metal door?

Do not infer internal condition through a metal enclosure. Use an authorized suitable viewing method and identify uninspected areas.

May a hot connection be tightened immediately?

No live repair is included here. Transfer the finding for separately assessed deenergized investigation and repair.

Has a professional verified or approved this document?

No. This is AI-assisted reference material. Editorial and layout checks are not a physical inspection or professional technical approval. Obtain qualified professional review and required site approval before use.

11. Revision history and authorship

Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.

This system has not physically inspected the equipment, structures, ground, atmosphere or worksite. The document does not replace legal advice, manufacturer procedures, engineering design, inspection certificates, qualification evidence, the site risk assessment or an actual work permit.

Before use, a suitably qualified and authorized person must review the actual equipment, loads, methods, protection, inspection and emergency arrangements and resolve open issues. Record the real reviewer, organization, qualifications, delegated authority, reviewed documents, date, signature, exclusions and conditions of approval separately.
