1. Legal and technical scope
For construction personal fall arrest, 1926.502(d)(8) requires horizontal lifelines to be designed, installed and used under qualified-person supervision as part of a complete system with a safety factor of at least two. Paragraph (d)(15) sets anchorage criteria including an independent anchorage and the 5,000-pound-per-person capacity route or the specified qualified-person complete-system design alternative. These are not universal field proof-test loads. General-industry work requires the applicable 1910.140 criteria and work-specific fall protection provisions.
Confirm whether federal OSHA or an OSHA-approved State Plan covers this employer and worksite; state requirements and public-sector coverage can differ. Apply the task-specific provisions and limitations identified above.
| Basis | Application |
|---|---|
| OSHA 29 CFR 1926.502 | Personal fall arrest system criteria, anchorage alternatives, horizontal lifelines, inspection and prompt rescue. |
| OSHA 29 CFR 1910.140 | General-industry personal fall protection system criteria and use; apply the correct system category. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-12. Individual state rules require a site-specific check. |
2. Scope and required inputs
Included scope
Prepare, install, inspect and hand over designed horizontal or vertical lifelines and personal fall protection anchorages, with independently verified protection for the installation crew.
Separate assessment
Rope access, complete scaffold/temporary-structure design, material lifting and product certification testing are separate scopes. A connected rope is not an approved personal fall arrest system.
| Input | Evidence needed |
|---|---|
| Select system | Use and work path; Users span and load; Clearance and swing; Permitted combination. |
| Inspect components | Product and lot; Wear and corrosion; History and restrictions; Tool condition. |
| Install lifeline | Span supports and tension; Rope grab direction; Continuous protected path; Connector and edge fit. |
| Recheck changes | Pre-use inspection; Impact and repair history; Before-after design; Competent review record. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Technical and procedural controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Select system | 1. Unarrested fall2. Lower-level impact3. Anchor overload4. Connector release | 1. Restraint confused2. Clearance omitted3. Users uncounted4. Mixed components | 1. Review collective protection2. Define restraint or arrest3. Design complete system4. Verify component compatibility | 1. Use and work path2. Users span and load3. Clearance and swing4. Permitted combination | ||||
| 2. Protect installers | 1. Substrate failure2. Utility drilling3. Installer fall4. Dropped tool | 1. Cladding treated as structure2. No service scan3. Unfinished line used4. No lower exclusion | 1. Verify structure and load path2. Locate concealed services3. Provide independent protection4. Prepare rescue and exclusion | 1. Substrate condition2. Anchor location and edges3. Installer protection4. Rescue access | ||||
| 3. Inspect components | 1. Rope rupture2. Lock failure3. Untraceable damage4. Poor fastening | 1. History unknown2. Damaged connector3. Missing ID4. Wrong tools | 1. Inspect and identify parts2. Check locking action3. Quarantine doubtful items4. Use specified tools | 1. Product and lot2. Wear and corrosion3. History and restrictions4. Tool condition | ||||
| 4. Install anchorages | 1. Anchor pullout2. Concrete failure3. Dust exposure4. Uncured anchor loaded | 1. Wrong substrate2. Edge condition missed3. Uncontrolled drilling4. Cure not complete | 1. Follow approved detail2. Match substrate limits3. Control drilling hazards4. Observe cure and inspection | 1. Hole and cleaning2. Edge and embedment3. Temperature and cure4. Fastening inspection | ||||
| 5. Install lifeline | 1. Stored tension release2. End slips3. Unprotected transfer4. Edge damage | 1. Excess tension2. Wrong termination3. Route discontinuity4. Incompatible device | 1. Set designed line condition2. Use specified end fittings3. Plan protected transitions4. Check orientation and edges | 1. Span supports and tension2. Rope grab direction3. Continuous protected path4. Connector and edge fit | ||||
| 6. Inspect completed system | 1. Unverified use2. Test damage3. Lower obstruction hit4. Wrong section released | 1. Appearance-only acceptance2. Improvised drop test3. Dynamic clearance ignored4. Boundary unclear | 1. Follow inspection plan2. Use only approved tests3. Verify full clearance4. Identify accepted sections | 1. Installer and inspector2. Test need and criteria3. Clearance basis4. Section release record | ||||
| 7. Train and handoff | 1. Too many users2. Wrong connection3. Rescue delayed4. Unapproved span used | 1. Label missing2. User uninformed3. Rescue not ready4. Handoff incomplete | 1. Label user and span limits2. Train intended connections3. Verify prompt rescue4. Restrict unapproved sections | 1. System ID and users2. Transfer procedure3. Rescue means and contact4. Authorized use scope | ||||
| 8. Recheck changes | 1. Impact-damaged reuse2. Changed system overload3. Corrosion failure4. Unauthorized relocation | 1. Fall history hidden2. Span changed3. Pre-use check missed4. Anchor moved | 1. Inspect before each use2. Remove impact-loaded system3. Review every change4. Follow reuse criteria | 1. Pre-use inspection2. Impact and repair history3. Before-after design4. Competent review record |
P = likelihood; S = severity; R = risk under the site method; A = the site-defined acceptance/authorization decision. Complete only after actual assessment. Blank cells and checklist prompts are not completed inspections.
4. Fictional scenario and failure mechanisms

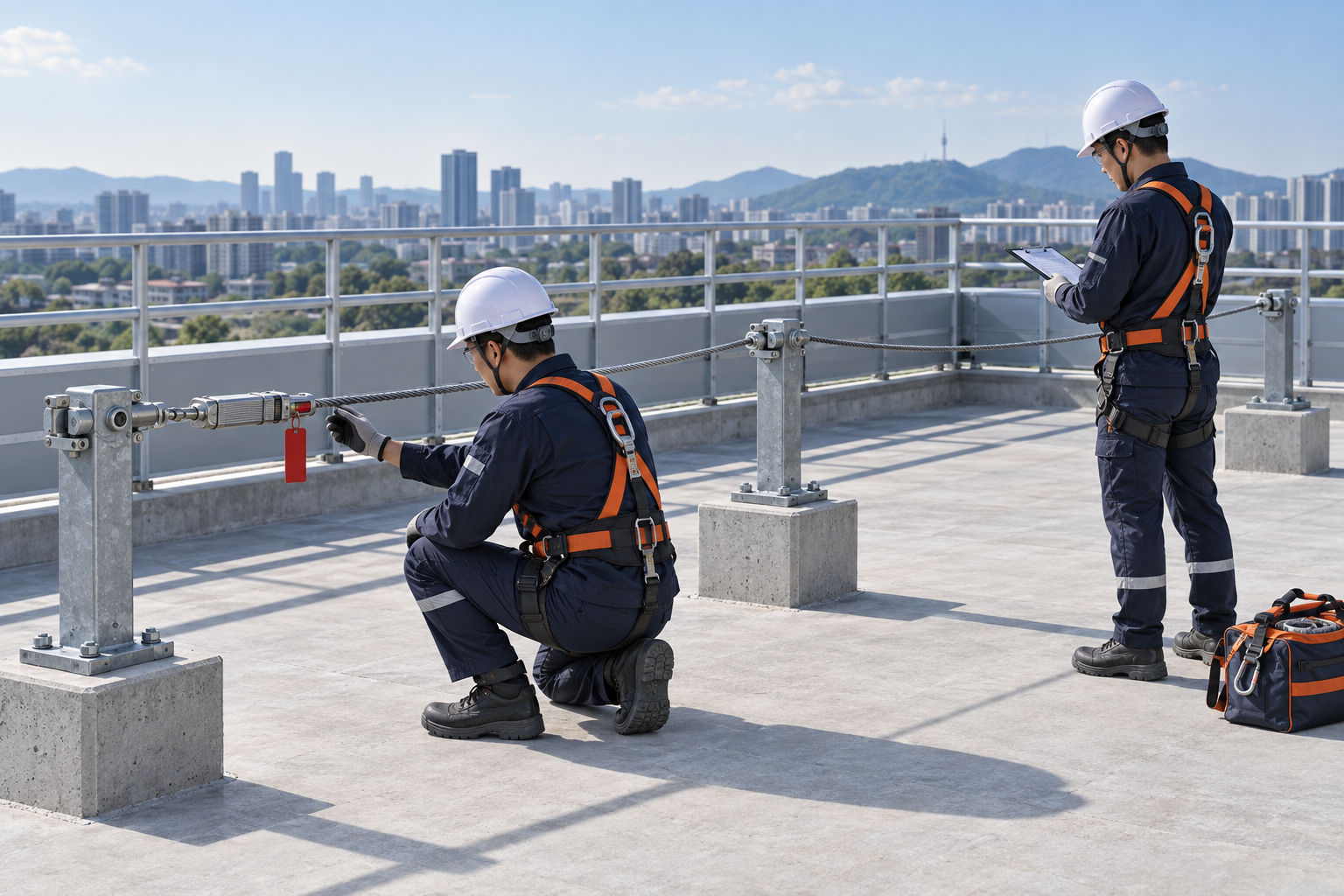

Retained AI-generated educational illustration from the source edition; not a real incident photograph, approved installation drawing or evidence of equipment suitability.
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Item | Fictional scenario |
|---|---|
| Initial | A worker is installing a new lifeline. |
| Change | The worker clips to the new rope before its anchors and ends are inspected. |
| Failure | The item being installed is mistaken for the existing installer protection. |
| Outcome | A fall could load unfinished connections or an unverified substrate. |
| Barrier | Provide independently verified protection, finish the approved installation and release only inspected system sections. |
Why the controls matter
Choose collective protection where feasible and distinguish fall restraint from fall arrest. Installer protection must already be effective before relying on the new system; unfinished anchors and terminations cannot be its only protection.
Horizontal-line sag, span and user loading affect anchor reactions and fall clearance. Tighter is not automatically safer. Verify the complete structural load path, not just an anchor product rating.
Use the manufacturer reference points when checking deployment, system deflection, harness movement, user conditions, swing fall and lower obstructions. Do not mix distances from unrelated manuals or improvise drop tests. Vertical rope-grab orientation and permitted rope/connector combinations are system-specific.
Decision sequence
| Step | Decision |
|---|---|
| Known | The worker clips to the new rope before its anchors and ends are inspected. |
| Unknown | Actual condition, extent of damage and suitability of span supports and tension, rope grab direction remain to be established. |
| Hold | The item being installed is mistaken for the existing installer protection. |
| Evidence | Link span supports and tension, rope grab direction, continuous protected path, connector and edge fit, system id and users, transfer procedure to the affected equipment or work area. |
| Next | Provide independently verified protection, finish the approved installation and release only inspected system sections. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Substrate unknown | Hold drilling and use | Structure and load-path review | Substrate accepted |
| Cure incomplete | Keep system unloaded | Product temperature/time data | Cure criteria met |
| Mixed parts | Verify complete combination | Manufacturer and design evidence | Combination permitted |
| Impact history | Remove from service | Competent review and instructions | Reuse or replacement resolved |
Similar appearance, different evidence
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Comparison | Supported decision | Insufficient basis |
|---|---|---|
| Condition | Structure and load-path review | Substrate unknown has not been resolved. |
| Evidence | Manufacturer and design evidence | A photograph or a completed-looking task without the relevant inspection record. |
| Release | Reuse or replacement resolved | Completion of one step does not release the excluded tasks in section 2. |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Assign the task boundary, stop authority, interfaces and emergency communication for lifeline and fall protection anchorage installation. |
| Technical lead | Confirm Use and work path; Users span and load; Clearance and swing; Permitted combination. Resolve design and manufacturer limits before work. |
| Authorized crew | Apply Product and lot; Wear and corrosion; History and restrictions; Tool condition. Stop when the working arrangement changes. |
| Inspector / receiving lead | Review Span supports and tension; Rope grab direction; Continuous protected path; Connector and edge fit. Transfer Pre-use inspection; Impact and repair history; Before-after design; Competent review record. |
Role labels allocate responsibilities; they do not confer a legal qualification. Verify the competence, training and authority required for the actual task.
Record and handoff perspective
| Stage | Record controls | Verification |
|---|---|---|
| Select system | 1. Record use and work path2. Record users span and load3. Record clearance and swing | 1. Users span and load2. Clearance and swing3. Permitted combination |
| Inspect components | 1. Record product and lot2. Record wear and corrosion3. Record history and restrictions | 1. Wear and corrosion2. History and restrictions3. Tool condition |
| Install anchorages | 1. Record hole and cleaning2. Record edge and embedment3. Record temperature and cure | 1. Edge and embedment2. Temperature and cure3. Fastening inspection |
| Install lifeline | 1. Record span supports and tension2. Record rope grab direction3. Record continuous protected path | 1. Rope grab direction2. Continuous protected path3. Connector and edge fit |
| Train and handoff | 1. Record system id and users2. Record transfer procedure3. Record rescue means and contact | 1. Transfer procedure2. Rescue means and contact3. Authorized use scope |
| Recheck changes | 1. Record pre-use inspection2. Record impact and repair history3. Record before-after design | 1. Impact and repair history2. Before-after design3. Competent review record |
7. Hold points and record comparison
| Hold point | Evidence before release | Actual record |
|---|---|---|
| HP-0 Start | Prepare, install, inspect and hand over designed horizontal or vertical lifelines and personal fall protection anchorages, with independently verified protection for the installation crew. | |
| HP-1 Protect installers | Substrate condition; Anchor location and edges; Installer protection; Rescue access | |
| HP-2 Install anchorages | Hole and cleaning; Edge and embedment; Temperature and cure; Fastening inspection | |
| HP-3 Inspect completed system | Installer and inspector; Test need and criteria; Clearance basis; Section release record | |
| HP-4 Train and handoff | System ID and users; Transfer procedure; Rescue means and contact; Authorized use scope |
These are internal hold points, not issued permits. Recheck affected points after a change, fault or shift handoff; link the actual approval record.
Record comparison
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
The boxes are static record prompts, not interactive or saved approvals. A tick does not establish suitability or permission to restart. Record the evidence, person, time and unresolved issues; retain the change history.
| Record | Insufficient | Record checklist |
|---|---|---|
| Select system | "Checked" without target, criteria or result | □ Use and work path□ Users span and load□ Clearance and swing□ Permitted combination |
| Inspect components | "Checked" without target, criteria or result | □ Product and lot□ Wear and corrosion□ History and restrictions□ Tool condition |
| Install lifeline | "Checked" without target, criteria or result | □ Span supports and tension□ Rope grab direction□ Continuous protected path□ Connector and edge fit |
| Recheck changes | "Checked" without target, criteria or result | □ Pre-use inspection□ Impact and repair history□ Before-after design□ Competent review record |
8. Site checklist and emergency response
| Check | Result | Person / action |
|---|---|---|
| □ Select system: Use and work path | ||
| □ Protect installers: Substrate condition | ||
| □ Inspect components: Product and lot | ||
| □ Install anchorages: Hole and cleaning | ||
| □ Install lifeline: Span supports and tension | ||
| □ Inspect completed system: Installer and inspector | ||
| □ Train and handoff: System ID and users | ||
| □ Recheck changes: Pre-use inspection | ||
| □ Emergency access and handoff restrictions |
Stop work
Hold installation or use if the substrate, components, history, installer protection, clearance or rescue plan is unverified. Isolate any damaged, changed or impact-loaded system pending the required assessment.
Emergency response
Activate the preplanned prompt-rescue procedure immediately after a fall and call 911/site responders. Do not connect additional rescuers to an unverified or impact-loaded system. Control access while the designated trained team applies the planned rescue method.
9. Sources and review limits
Public-source review: 2026-10-12. Official regulation pages and specific technical references are distinguished below; no agency or manufacturer has approved this content.
| Source | Reviewed scope and limitation |
|---|---|
| OSHA 29 CFR 1926.502 | Personal fall arrest system criteria, anchorage alternatives, horizontal lifelines, inspection and prompt rescue. |
| OSHA 29 CFR 1910.140 | General-industry personal fall protection system criteria and use; apply the correct system category. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-12. Individual state rules require a site-specific check. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
10. PDF guidance and FAQ
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
Content group
jsa-lfl-ins
May installers clip to an unfinished line?
No. Establish verified protection independent of the uncompleted system.
Is tighter cable always safer?
No. Follow the designed tension, sag, span and user conditions.
Is one proof-test load valid for every anchor?
No. Required testing, loads, methods and acceptance must come from the applicable approved plan and product instructions.
Can an impact-loaded system be reused if it looks good?
Remove it from service pending the required competent-person assessment and manufacturer inspection/replacement criteria.
Has a professional approved this JSA?
