Receiving, unloading and moving an identified pump, driver and baseplate package onto its accepted foundation, providing specified temporary restraint and transferring it for alignment, grouting, piping and electrical installation.
Hold for uncertain package mass or center of gravity, component-only lifting eyes proposed for the package, unverified rigging or foundation, unstable landing, nozzle loading, handling damage or route change.
Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.
1. Legal and technical scope
Construction handling requires applicable OSHA 1926.251 rigging controls and the applicable lifting-equipment requirements for the selected appliance. General-industry handling uses its corresponding framework. The actual package manual and engineered foundation govern equipment-specific details; neither a generic pump manual nor this form approves a lift.
Determine Federal OSHA or the applicable OSHA-approved State Plan, including public/private employer coverage. State Plans must be at least as effective and can impose different or additional requirements. The actual activity determines construction versus general-industry scope. Manufacturer instructions, consensus standards, project design and site approvals have distinct roles; this page is not a finding of nationwide compliance.
| Basis | Application and limits |
|---|---|
| OSHA 1926.251 | Rigging capacity, identification and inspection. |
| Goulds 3610 installation, operation and maintenance manual | Official indexed transport excerpt reviewed for package/baseplate lifting guidance; the complete PDF was not retrievable. Obtain and review the actual supplied package instructions before field use; no model lifting dimensions are adopted. |
2. Scope and required inputs
Included: Receiving, unloading and moving an identified pump, driver and baseplate package onto its accepted foundation, providing specified temporary restraint and transferring it for alignment, grouting, piping and electrical installation.
Separate review: Unapproved component lifting, live piping disconnection, final alignment, grouting acceptance, electrical connection, rotation testing and commissioning require separate procedures and release.
| Input | Required evidence |
|---|---|
| Confirm package and route | Package ID and components; Mass and balance basis; Route and support evidence; Foundation revision |
| Inspect rigging and base | Points and rigging IDs; Capacity and condition; Sling clearance; Pad and support readiness |
| Land and align position | Base location and level; Shim and bearing condition; Hands outside crush zone; Foundation condition |
| Transfer installation | As-landed condition; Remaining installation steps; Defects and retained holds; Receiving owner acceptance |
Obtain the actual assembly drawing, installed components, package lifting points and method, mass, balance, sling configuration and support reactions. Verify crane or transport capacity for the configuration, foundation and temporary restraint design. Define safe jack and mechanical-support use; do not rely on a hydraulic jack alone to protect access beneath or within a crush zone.
3. Eight-stage JSA
P = likelihood; S = severity; R = risk under the site method; A = acceptance or authorization as defined by the site. Leave these blank until actual assessment and control verification. A low score does not override a legal requirement, product limit or unreleased hold point.
| Job stage | Hazards and effects | Failure factors | Required controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Confirm package and route | 1. Package drop2. Unbalanced rotation3. Route collapse4. Wrong foundation position | 1. Component mass used2. Accessories changed3. Support loads unknown4. Drawing revision wrong | 1. Confirm complete assembly2. Review actual center of gravity3. Accept route and reactions4. Match foundation drawing | 1. Package ID and components2. Mass and balance basis3. Route and support evidence4. Foundation revision | ||||
| 2. Prepare unloading area | 1. Crane instability2. Vehicle movement3. Pedestrian strike4. Overhead collision | 1. Outrigger support unknown2. Vehicle not secured3. Exclusion incomplete4. Clearance overlooked | 1. Review setup configuration2. Secure unloading vehicle3. Separate lift and people4. Check overhead envelope | 1. Crane and ground basis2. Vehicle and load access3. Exclusion and signals4. Clearances and weather | ||||
| 3. Inspect rigging and base | 1. Lifting-point failure2. Sling overload3. Nozzle damage4. Unstable landing | 1. Driver eye used for package2. Angle capacity unchecked3. Sling touches accessories4. Support locations unready | 1. Use package lifting points2. Verify rigging geometry3. Protect vulnerable parts4. Prepare specified supports | 1. Points and rigging IDs2. Capacity and condition3. Sling clearance4. Pad and support readiness | ||||
| 4. Trial lift and transport | 1. Load rotation2. Suspended-load strike3. Package collision4. Loss of load control | 1. Balance not checked2. People enter travel path3. Changed clearance ignored4. Signals conflict | 1. Check balance at trial lift2. Maintain exclusion zone3. Stop for route changes4. Use designated signaler | 1. Trial lift response2. Load path and clearance3. Controlled guiding position4. Stop signal understood | ||||
| 5. Land and align position | 1. Hand crush2. Baseplate distortion3. Package shift4. Foundation damage | 1. Hands under base2. Support uneven3. Load released too early4. Improvised adjustment | 1. Use suitable alignment tools2. Check bearing locations3. Retain support as required4. Follow positioning method | 1. Base location and level2. Shim and bearing condition3. Hands outside crush zone4. Foundation condition | ||||
| 6. Restrain and release | 1. Package overturn2. Anchor damage3. Jack collapse exposure4. Premature sling removal | 1. Partial fastening accepted2. Anchor design unclear3. Hydraulics sole support4. Release owner absent | 1. Complete required restraint2. Verify fastening method3. Use accepted mechanical support4. Authorize lifting release | 1. Required restraint completed2. Anchor and support record3. Stable released condition4. Named release authority | ||||
| 7. Hold and reposition | 1. Repeated equipment damage2. Uncontrolled movement3. Nozzle overload4. Unsupported disassembly | 1. Impact ignored2. Support changed informally3. Piping used to pull pump4. Rework lift not reviewed | 1. Hold and inspect damage2. Reestablish safe support3. Reject forced pipe alignment4. Review revised lift plan | 1. Damage and cause record2. Current package configuration3. Support and lifting basis4. Rework acceptance | ||||
| 8. Transfer installation | 1. Premature startup2. Residual misalignment3. Pipe-strain damage4. Missing guard exposure | 1. Placement equals completion2. Grout and alignment omitted3. Flange load unreviewed4. Later work unassigned | 1. Define next installation stage2. Transfer alignment and grout holds3. Record piping restrictions4. Assign guarding and test checks | 1. As-landed condition2. Remaining installation steps3. Defects and retained holds4. Receiving owner acceptance |
4. Hypothetical scenario and failure mechanisms

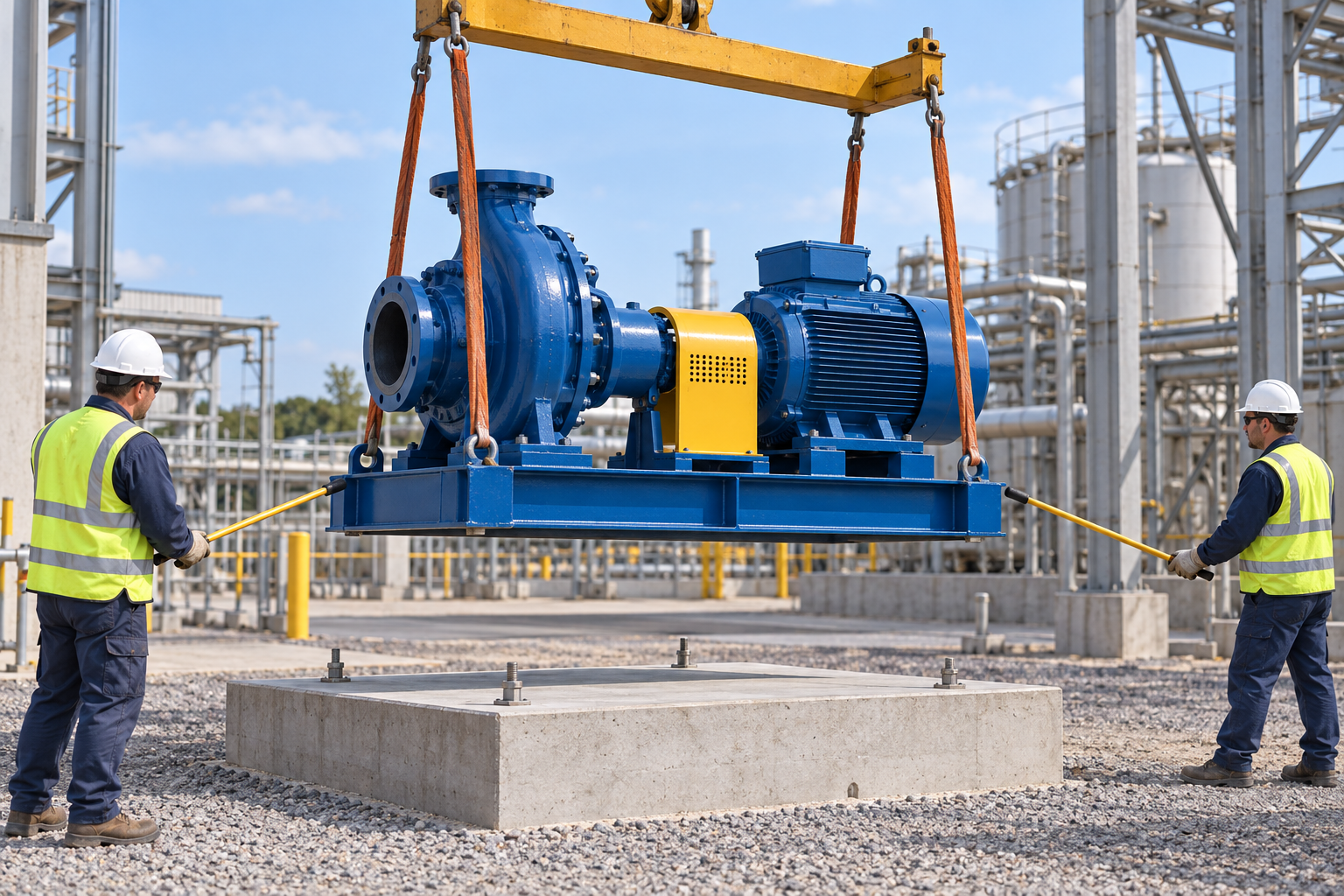

Retained source illustration: an AI-generated educational concept, not a real incident photograph or evidence of equipment suitability.The following scenario, comparisons and example records are hypothetical teaching material. They do not reproduce actual incidents, measurements, signatures or approvals.
| Item | Hypothetical situation |
|---|---|
| Initial state | A pump package is prepared for movement to its foundation. |
| Change | The supplied assembly includes a different driver and added accessories. |
| Failure path | The crew proposes using the driver eye and the old package weight. |
| Possible harm | The component eye or unbalanced arrangement can fail or rotate the entire assembly. |
| Barrier | Hold lifting, establish the actual package configuration and approved lifting points, then verify rigging and balance before movement. |
A driver eye may be intended only for that component. It does not establish capacity to lift a pump, baseplate and accessories together. Trace the actual lifted mass through the designated package points and rigging into the lifting appliance.
Rated crane capacity is only one part of the lift. Sling geometry changes tension, while contact with coupling guards, instruments or nozzles can damage them even if the assembly stays suspended. Protect equipment without converting unapproved parts into lifting points.
Touchdown is not stable release. Verify where the base actually bears, the condition of shims or temporary supports and the required restraint before removing the lifting support. Partial anchor engagement cannot be assumed to resist an unintended shift.
Positioning does not complete installation. Record the as-landed condition and remaining alignment, grout curing, pipe-strain, electrical and guarding checks. Do not pull misaligned piping into place using the pump flange bolts or treat the resulting position as accepted alignment.
| Decision | Reason and evidence |
|---|---|
| Known facts | The supplied assembly includes a different driver and added accessories. |
| Unresolved | The crew proposes using the driver eye and the old package weight. |
| Hold reason | Hold for uncertain package mass or center of gravity, component-only lifting eyes proposed for the package, unverified rigging or foundation, unstable landing, nozzle loading, handling damage or route change. |
| Evidence needed | Required restraint completed; Anchor and support record; Stable released condition; Named release authority. |
| Next decision | Hold lifting, establish the actual package configuration and approved lifting points, then verify rigging and balance before movement. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Package changed | Hold lift and recalculate the arrangement. | Actual mass, balance and points. | Lift basis accepted. |
| Support incomplete | Retain lifting support. | Bearing and temporary restraint. | Stable release confirmed. |
| Handling impact | Hold and inspect affected components. | Damage disposition and rework plan. | Equipment accepted. |
| Piping misaligned | Stop force fitting. | Independent pipe and pump alignment. | Interface accepted. |
| Comparison | Situation A | Situation B |
|---|---|---|
| Crane capacity adequate | Every package point, sling and support is verified. | A component eye is assumed to carry the whole package. |
| Anchor nuts fitted | Required support and temporary restraint are accepted. | Partial engagement is treated as stable landing. |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Confirm scope, task sequence, exclusion and stop authority. Coordinate confirm package and route with affected operations. |
| Technical reviewer | Resolve the actual design and equipment limits: Package ID and components; Mass and balance basis; Route and support evidence; Foundation revision. |
| Work crew | Perform inspect rigging and base using the approved procedure; report any mismatch before proceeding. |
| Inspector / assessor | Verify Required restraint completed; Anchor and support record; Stable released condition; Named release authority. Record what was actually checked and what remains unresolved. |
| Release / receiving authority | Confirm As-landed condition; Remaining installation steps; Defects and retained holds; Receiving owner acceptance. Transfer restrictions and the next permitted stage. |
These are responsibility examples, not invented statutory credentials. Meet the actual training, competent-person, qualified-person and licensing requirements for the assigned work. Anyone may raise a hazard and request a stop; only the designated authority may release the affected stage after evidence is reviewed.
7. Hold points and record comparison
| Hold point | Evidence before release | Confirmation / approval |
|---|---|---|
| HP-0 Start | Scope, jurisdiction, equipment identity, responsible people and emergency arrangements. | |
| HP-1 Confirm package and route | Package ID and components; Mass and balance basis; Route and support evidence; Foundation revision | |
| HP-2 Inspect rigging and base | Points and rigging IDs; Capacity and condition; Sling clearance; Pad and support readiness | |
| HP-3 Restrain and release | Required restraint completed; Anchor and support record; Stable released condition; Named release authority | |
| HP-4 Transfer installation | As-landed condition; Remaining installation steps; Defects and retained holds; Receiving owner acceptance |
Hold points are internal evidence gates. They do not replace statutory permits or actual signatures. Recheck affected gates after a change, abnormal event or shift transfer. The blank record must identify the evidence, person, time, limits and release scope.
| Record | Insufficient record | Record checklist |
|---|---|---|
| Package | Motor weight used | □ Package ID and components□ Mass and balance basis□ Route and support evidence□ Foundation revision |
| Rigging | Crane is rated | □ Points and rigging IDs□ Capacity and condition□ Sling clearance□ Pad and support readiness |
| Release | Nuts are fitted | □ Required restraint completed□ Anchor and support record□ Stable released condition□ Named release authority |
| Transfer | Pump installed | □ As-landed condition□ Remaining installation steps□ Defects and retained holds□ Receiving owner acceptance |
The □ boxes are static prompts, not saved or interactive approvals. Each checks one record element. A tick alone does not establish suitability or permission to restart. Link equipment IDs and supporting records; retain unresolved matters and the earlier record when conditions change.
8. Site checklist and emergency response
| Check item | Result | Person / action |
|---|---|---|
| Package ID and components | ||
| Crane and ground basis | ||
| Points and rigging IDs | ||
| Trial lift response | ||
| Base location and level | ||
| Required restraint completed | ||
| Damage and cause record | ||
| As-landed condition | ||
| Emergency arrangements and unresolved restrictions communicated |
Stop work: Hold for uncertain package mass or center of gravity, component-only lifting eyes proposed for the package, unverified rigging or foundation, unstable landing, nozzle loading, handling damage or route change.
Emergency response: For load movement, sling distress or support failure, stop movement and clear the fall and crush zones. Do not try to catch or steady the package by hand. Activate the site lifting emergency plan and call 911 for serious injury; recovery requires a reviewed stable-support and lifting plan.
9. Sources and review limits
Official-source review date: October 13, 2026. The following review is limited to the public provisions or selected manufacturer material identified below. It does not establish that any authority approved this article or the actual installation.
- OSHA 1926.251: Rigging capacity, identification and inspection.
- Goulds 3610 installation, operation and maintenance manual: Official indexed transport excerpt reviewed for package/baseplate lifting guidance; the complete PDF was not retrievable. Obtain and review the actual supplied package instructions before field use; no model lifting dimensions are adopted.
- OSHA State Plans: jurisdiction and coverage overview; identify the actual state program before use.
Paid consensus standards and site-specific calculations, manuals, inspection records and product certificates were not independently obtained or verified unless specifically identified. Korean legal citations remain in the preserved Korean source as source history; they are not represented as US legal duties.
10. PDF guidance and FAQ
PDF A covers basic task controls; B examines technical failures; C focuses on supervision, evidence and handover. Each has six rows and three items per main cell. They are complementary extracts: apply all eight body stages and the applicable site procedure. An omitted stage is not permission to omit its controls. PDF HP-0 through HP-4 are worksheet labels; match the event, evidence and authority rather than assuming they match another permit by number.
P/S/R/A, actual measurements, confirmations and signatures remain blank. The PDFs are uncompleted reference worksheets, not issued work permits.
Content group ID: jsa-largepump-positioning
Can the motor lifting eye raise the complete package?
Only if the actual manufacturer specifically permits that complete configuration. A component eye is not evidence of package capacity.
Does crane capacity validate the whole lift?
No. Verify lifting points, rigging geometry, load balance and supporting structure as well.
Can a jack be the only support during adjustment?
Do not rely on hydraulic pressure alone to protect a crush zone. Use the reviewed mechanical support and access method.
Does placement release the pump for startup?
No. Alignment, grout, piping loads, electrical work, guarding and commissioning remain separate acceptance stages.
Has a professional verified or approved this document?
No. This is AI-assisted reference material. Editorial and layout checks are not a physical inspection or professional technical approval. Obtain qualified professional review and required site approval before use.
