Manual cutting, preparation and solvent-weld assembly of identified new nonpressure PVC indoor drain pipe, followed by support, curing and handover for the specified separate leak test in a suitably ventilated area.
Hold for unknown pipe or cement compatibility, inadequate ventilation, ignition exposure, contaminated or poorly fitting parts, expired or gelled cement, joint pushout or uncertain cure conditions.
Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.
1. Legal and technical scope
For construction, OSHA 1926.59 applies the hazard-communication requirements of 1910.1200. Assess solvent exposure under the applicable construction air-contaminant provisions and control ignition, storage and waste for the actual flammable products. Plumbing-code adoption and test acceptance are jurisdiction-specific; product instructions do not establish a nationwide plumbing approval.
Determine Federal OSHA or the applicable OSHA-approved State Plan, including public/private employer coverage. State Plans must be at least as effective and can impose different or additional requirements. The actual activity determines construction versus general-industry scope. Manufacturer instructions, consensus standards, project design and site approvals have distinct roles; this page is not a finding of nationwide compliance.
| Basis | Application and limits |
|---|---|
| OSHA 1926.59 | Construction hazard communication cross-reference. |
| OSHA 1926.55 | Applicable solvent exposure assessment and controls. |
| Oatey solvent-welding instructions | Selected preparation, assembly, product-condition and curing guidance; compressed-air/gas restriction. Actual product instructions and SDS must be obtained; no generic cure time is adopted. |
2. Scope and required inputs
Included: Manual cutting, preparation and solvent-weld assembly of identified new nonpressure PVC indoor drain pipe, followed by support, curing and handover for the specified separate leak test in a suitably ventilated area.
Separate review: CPVC or ABS substitution, pressure or fuel-gas systems, live sewer tie-ins, confined spaces, power cutting and compressed-air or gas testing are outside this workflow.
| Input | Required evidence |
|---|---|
| Identify system and product | Pipe fitting and size; Product label and SDS; Material compatibility; Scope and test method |
| Cut and prepare | Cut and end condition; Socket and pipe surfaces; Required engagement; Cutting tool condition |
| Assemble and hold | Assembly time and operator; Engagement and orientation; Required holding completed; Visible joint condition |
| Transfer test readiness | Joint map and cure basis; Defect and repair status; Product and waste closure; Named test owner |
Obtain pipe and fitting identity, size and fit, compatible primer and cement instructions, current SDS, product condition and environmental limits. Record assembly time, temperature and other required curing factors. Select chemical-resistant gloves and eye protection from the actual exposure assessment. Handling readiness and test readiness must each meet the product requirements.
3. Eight-stage JSA
P = likelihood; S = severity; R = risk under the site method; A = acceptance or authorization as defined by the site. Leave these blank until actual assessment and control verification. A low score does not override a legal requirement, product limit or unreleased hold point.
| Job stage | Hazards and effects | Failure factors | Required controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Identify system and product | 1. Joint separation2. Vapor exposure3. Chemical burns4. Wrong-system installation | 1. PVC identity uncertain2. SDS unavailable3. Protection guessed4. Pressure scope overlooked | 1. Confirm nonpressure PVC2. Match primer and cement3. Review product hazards4. Define test boundary | 1. Pipe fitting and size2. Product label and SDS3. Material compatibility4. Scope and test method | ||||
| 2. Prepare area and support | 1. Vapor accumulation2. Solvent ignition3. Pipe movement4. Trip injury | 1. Ventilation inadequate2. Ignition sources nearby3. Temporary support absent4. Materials block access | 1. Establish suitable ventilation2. Control ignition sources3. Support pipe independently4. Keep work route clear | 1. Ventilation and work area2. Ignition source review3. Support and alignment4. Clear access | ||||
| 3. Cut and prepare | 1. Hand cuts2. Poor socket engagement3. Contaminated joint4. Eye injury | 1. Pipe rolls during cutting2. Cut angled or burred3. Dirty or wet surfaces4. Chips uncontained | 1. Secure pipe for manual cut2. Deburr and prepare ends3. Clean as product requires4. Control chips and protection | 1. Cut and end condition2. Socket and pipe surfaces3. Required engagement4. Cutting tool condition | ||||
| 4. Check fit and readiness | 1. Weak bond2. Wrong joint orientation3. Cement skin formation4. Excess solvent pooling | 1. Fit not checked2. Marks absent3. Tools not ready4. Applicator unsuitable | 1. Check specified dry fit2. Mark alignment and depth3. Stage jointing materials4. Use correct applicator | 1. Fit and engagement basis2. Orientation marks3. Product working conditions4. Cement condition | ||||
| 5. Assemble and hold | 1. Joint pushout2. Skin and eye contact3. Misaligned branch4. Incomplete bond | 1. Holding released early2. Wet cement splashes3. Joint moved after set4. Dried cement reused | 1. Follow product assembly2. Maintain required holding3. Keep alignment stable4. Reject defective assembly | 1. Assembly time and operator2. Engagement and orientation3. Required holding completed4. Visible joint condition | ||||
| 6. Support and cure | 1. Joint distortion2. Premature leakage3. Vapor exposure4. Accidental disturbance | 1. Pipe left unsupported2. Handling equals test release3. Containers left open4. Cure area unmarked | 1. Maintain independent support2. Use correct cure criteria3. Close and control products4. Mark joint status | 1. Product size and conditions2. Handling and test readiness3. Support and protection4. Joint time record | ||||
| 7. Hold defective joint | 1. Hidden joint weakness2. Repeated separation3. Chemical exposure4. Unsafe test attempt | 1. Outside patch accepted2. Cause not corrected3. Wet work uncontrolled4. Air test proposed | 1. Hold affected section2. Use approved rework method3. Restore exposure controls4. Reject compressed-gas test | 1. Defect and affected joints2. Rework method and record3. New cure starting time4. Accepted test medium | ||||
| 8. Transfer test readiness | 1. Premature test release2. Untracked joint defect3. Solvent waste ignition4. Unsupported pipe loading | 1. Time record missing2. Held joint unmarked3. Waste left open4. Supports incomplete | 1. Transfer cure evidence2. Identify held sections3. Contain solvent waste4. Verify support completion | 1. Joint map and cure basis2. Defect and repair status3. Product and waste closure4. Named test owner |
4. Hypothetical scenario and failure mechanisms

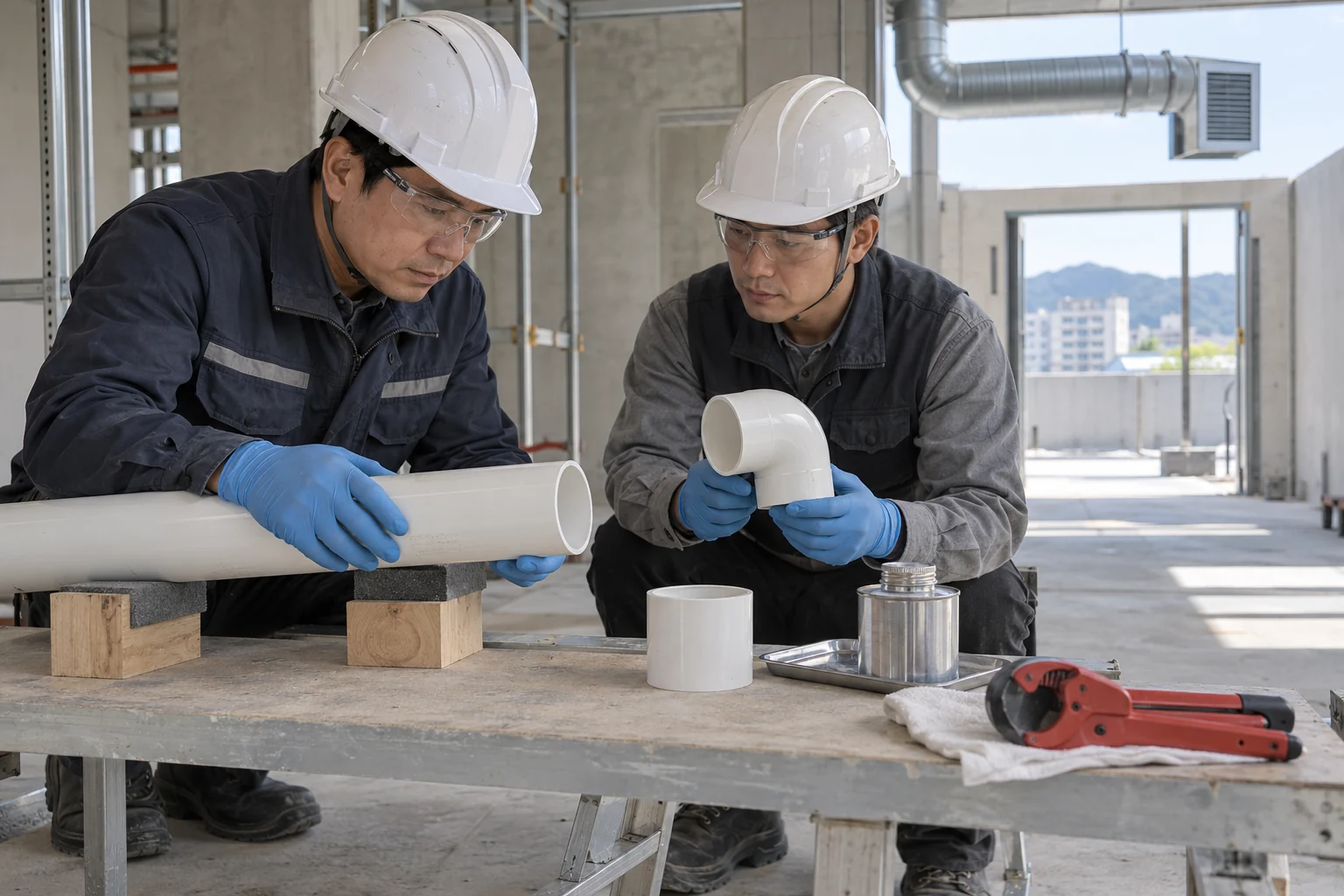

Retained source illustration: an AI-generated educational concept, not a real incident photograph or evidence of equipment suitability.The following scenario, comparisons and example records are hypothetical teaching material. They do not reproduce actual incidents, measurements, signatures or approvals.
| Item | Hypothetical situation |
|---|---|
| Initial state | A newly assembled PVC drain joint is moved before its handling conditions are met. |
| Change | The pipe pushes partly out of the socket. |
| Failure path | A worker proposes brushing cement around the outside and testing immediately. |
| Possible harm | A surface coating can conceal an incomplete internal joint while movement disrupts the bond. |
| Barrier | Hold and identify the joint, follow the approved replacement or reassembly method, restore support and restart the applicable cure record before test release. |
Solvent welding depends on compatible surfaces, preparation and assembly while the cement remains workable. Matching colors or a dry-looking surface do not establish material compatibility or a sound internal bond.
Cut quality and fit affect engagement. Support the pipe during manual cutting, deburr and prepare it according to the product instructions, and establish alignment before cement application. Avoid using the wet joint to pull an unsupported pipe into position.
Holding, handling and test curing are different stages. Record the actual product, pipe size, joint time and environmental conditions so the correct limits can be applied. Do not turn an example cure time into a universal waiting period.
Solvent exposure and ignition risk continue while material evaporates. Control sources, ventilate the work area and close containers between uses. A particulate dust mask does not control solvent vapor, and absence of odor is not an exposure measurement.
| Decision | Reason and evidence |
|---|---|
| Known facts | The pipe pushes partly out of the socket. |
| Unresolved | A worker proposes brushing cement around the outside and testing immediately. |
| Hold reason | Hold for unknown pipe or cement compatibility, inadequate ventilation, ignition exposure, contaminated or poorly fitting parts, expired or gelled cement, joint pushout or uncertain cure conditions. |
| Evidence needed | Product size and conditions; Handling and test readiness; Support and protection; Joint time record. |
| Next decision | Hold and identify the joint, follow the approved replacement or reassembly method, restore support and restart the applicable cure record before test release. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Product uncertain | Hold assembly and confirm compatibility. | Pipe, fitting and cement labels. | System matched. |
| Poor ventilation | Stop solvent use and resolve controls. | Exposure and ignition review. | Area accepted. |
| Joint moved | Hold and apply accepted rework. | Defect and replacement record. | New cure tracked. |
| Test requested | Check stage-specific cure evidence. | Joint time, size and conditions. | Test criteria met. |
| Comparison | Situation A | Situation B |
|---|---|---|
| Joint looks dry | Product-specific handling and test conditions are recorded. | Surface appearance is used as the cure timer. |
| Pipe remains aligned | Independent support protects the new joint. | The joint is loaded to pull the pipe into position. |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Confirm scope, task sequence, exclusion and stop authority. Coordinate identify system and product with affected operations. |
| Technical reviewer | Resolve the actual design and equipment limits: Pipe fitting and size; Product label and SDS; Material compatibility; Scope and test method. |
| Work crew | Perform cut and prepare using the approved procedure; report any mismatch before proceeding. |
| Inspector / assessor | Verify Product size and conditions; Handling and test readiness; Support and protection; Joint time record. Record what was actually checked and what remains unresolved. |
| Release / receiving authority | Confirm Joint map and cure basis; Defect and repair status; Product and waste closure; Named test owner. Transfer restrictions and the next permitted stage. |
These are responsibility examples, not invented statutory credentials. Meet the actual training, competent-person, qualified-person and licensing requirements for the assigned work. Anyone may raise a hazard and request a stop; only the designated authority may release the affected stage after evidence is reviewed.
7. Hold points and record comparison
| Hold point | Evidence before release | Confirmation / approval |
|---|---|---|
| HP-0 Start | Scope, jurisdiction, equipment identity, responsible people and emergency arrangements. | |
| HP-1 Identify system and product | Pipe fitting and size; Product label and SDS; Material compatibility; Scope and test method | |
| HP-2 Prepare area and support | Ventilation and work area; Ignition source review; Support and alignment; Clear access | |
| HP-3 Support and cure | Product size and conditions; Handling and test readiness; Support and protection; Joint time record | |
| HP-4 Transfer test readiness | Joint map and cure basis; Defect and repair status; Product and waste closure; Named test owner |
Hold points are internal evidence gates. They do not replace statutory permits or actual signatures. Recheck affected gates after a change, abnormal event or shift transfer. The blank record must identify the evidence, person, time, limits and release scope.
| Record | Insufficient record | Record checklist |
|---|---|---|
| Materials | Same color | □ Pipe fitting and size□ Product label and SDS□ Material compatibility□ Scope and test method |
| Preparation | Pipe fits | □ Fit and engagement basis□ Orientation marks□ Product working conditions□ Cement condition |
| Cure | Looks dry | □ Product size and conditions□ Handling and test readiness□ Support and protection□ Joint time record |
| Rework | Outside coated | □ Defect and affected joints□ Rework method and record□ New cure starting time□ Accepted test medium |
The □ boxes are static prompts, not saved or interactive approvals. Each checks one record element. A tick alone does not establish suitability or permission to restart. Link equipment IDs and supporting records; retain unresolved matters and the earlier record when conditions change.
8. Site checklist and emergency response
| Check item | Result | Person / action |
|---|---|---|
| Pipe fitting and size | ||
| Ventilation and work area | ||
| Cut and end condition | ||
| Fit and engagement basis | ||
| Assembly time and operator | ||
| Product size and conditions | ||
| Defect and affected joints | ||
| Joint map and cure basis | ||
| Emergency arrangements and unresolved restrictions communicated |
Stop work: Hold for unknown pipe or cement compatibility, inadequate ventilation, ignition exposure, contaminated or poorly fitting parts, expired or gelled cement, joint pushout or uncertain cure conditions.
Emergency response: Stop solvent use for significant exposure, eye splash or fire conditions. Move to a safe area, follow the actual product SDS and site emergency procedure, and call 911 for severe symptoms or fire. Prevent ignition and unauthorized entry; do not improvise chemical neutralization.
9. Sources and review limits
Official-source review date: October 13, 2026. The following review is limited to the public provisions or selected manufacturer material identified below. It does not establish that any authority approved this article or the actual installation.
- OSHA 1926.59: Construction hazard communication cross-reference.
- OSHA 1926.55: Applicable solvent exposure assessment and controls.
- Oatey solvent-welding instructions: Selected preparation, assembly, product-condition and curing guidance; compressed-air/gas restriction. Actual product instructions and SDS must be obtained; no generic cure time is adopted.
- OSHA State Plans: jurisdiction and coverage overview; identify the actual state program before use.
Paid consensus standards and site-specific calculations, manuals, inspection records and product certificates were not independently obtained or verified unless specifically identified. Korean legal citations remain in the preserved Korean source as source history; they are not represented as US legal duties.
10. PDF guidance and FAQ
PDF A covers basic task controls; B examines technical failures; C focuses on supervision, evidence and handover. Each has six rows and three items per main cell. They are complementary extracts: apply all eight body stages and the applicable site procedure. An omitted stage is not permission to omit its controls. PDF HP-0 through HP-4 are worksheet labels; match the event, evidence and authority rather than assuming they match another permit by number.
P/S/R/A, actual measurements, confirmations and signatures remain blank. The PDFs are uncompleted reference worksheets, not issued work permits.
Content group ID: jsa-indoor-pvc-drain-solvent-joint
Can cement color prove compatibility?
No. Match the pipe, fitting, primer and cement labels and their service limitations.
Can an outside cement patch repair a pushed-out joint?
Do not assume so. Hold the joint and use the manufacturer-approved rework or replacement method.
Is handling time the same as test cure time?
No. Apply the correct stage-specific criteria for the actual joint and conditions.
Can compressed air check the drain joints?
This workflow excludes compressed-air and gas testing. Use the accepted system test method and manufacturer restrictions.
Has a professional verified or approved this document?
No. This is AI-assisted reference material. Editorial and layout checks are not a physical inspection or professional technical approval. Obtain qualified professional review and required site approval before use.
11. Revision history and authorship
Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.
This system has not physically inspected the equipment, structures, ground, atmosphere or worksite. The document does not replace legal advice, manufacturer procedures, engineering design, inspection certificates, qualification evidence, the site risk assessment or an actual work permit.
Before use, a suitably qualified and authorized person must review the actual equipment, loads, methods, protection, inspection and emergency arrangements and resolve open issues. Record the real reviewer, organization, qualifications, delegated authority, reviewed documents, date, signature, exclusions and conditions of approval separately.
| Date | Version | Change | Review status |
|---|---|---|---|
| 2026-10-08 | 1.0 | Korean source revision retained in the source snapshot. | Historical editorial status; not US professional approval. |
| 2026-10-13 | US 1.0 | US localization of the assigned Korean source; task reasoning, educational image and history retained; US scope and sources reviewed. | AI-assisted editorial work; professional approval not performed. |
