Medium-Voltage Switchgear Positioning JSA

Receiving, lifting and moving identified deenergized switchgear shipping groups, landing and securing them on the accepted foundation, mechanically joining the lineup and transferring installation status to the electrical team.

Hold for uncertain shipping mass or lifting provisions, route changes, unverified pit-cover capacity, unstable support, cabinet distortion, electrical-boundary uncertainty or missing connection criteria.

Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.

1. Legal and technical scope

Construction rigging is subject to applicable OSHA 1926.251 requirements. Electrical isolation and adjacent electrical hazards require the applicable construction electrical provisions, including 1926.417 where relevant. Product instructions establish equipment-specific handling details but do not substitute for route structural review or jurisdictional electrical acceptance.

Determine Federal OSHA or the applicable OSHA-approved State Plan, including public/private employer coverage. State Plans must be at least as effective and can impose different or additional requirements. The actual activity determines construction versus general-industry scope. Manufacturer instructions, consensus standards, project design and site approvals have distinct roles; this page is not a finding of nationwide compliance.

2. Scope and required inputs

Included: Receiving, lifting and moving identified deenergized switchgear shipping groups, landing and securing them on the accepted foundation, mechanically joining the lineup and transferring installation status to the electrical team.

Separate review: Moving energized equipment, undocumented shipping-group separation, field modification of lifting points, bus installation, dielectric testing, protection testing and energization require separate authorized procedures.

Confirm the actual shipping-group drawing, mass, center of gravity, lifting geometry, permitted handling method, route reactions, foundation level and anchor details. Review wheel point loads and pit-cover bearing if rolling transport is permitted. Obtain the model-specific sequence for shipping braces and lifting-bracket removal; do not transfer example dimensions or angles between products.

3. Eight-stage JSA

P = likelihood; S = severity; R = risk under the site method; A = acceptance or authorization as defined by the site. Leave these blank until actual assessment and control verification. A low score does not override a legal requirement, product limit or unreleased hold point.

4. Hypothetical scenario and failure mechanisms

The following scenario, comparisons and example records are hypothetical teaching material. They do not reproduce actual incidents, measurements, signatures or approvals.

The load is the actual shipping group, including retained internal equipment and packing that travels with it. Moving or opening parts can change its balance. Use its specified lifting arrangement and keep people outside the possible overturn and suspended-load zones.

Route acceptance must address the load where it actually contacts the structure. A total floor-load figure or a history of pedestrian traffic does not establish capacity for transport wheels at a pit edge. An improvised plate needs its own structural and stability review.

Landing, disconnecting slings and removing product lifting brackets are separate decisions. Confirm stable support before releasing the lifting appliance. Follow the particular model sequence for brackets and shipping restraints; different switchgear families may require different removal timing.

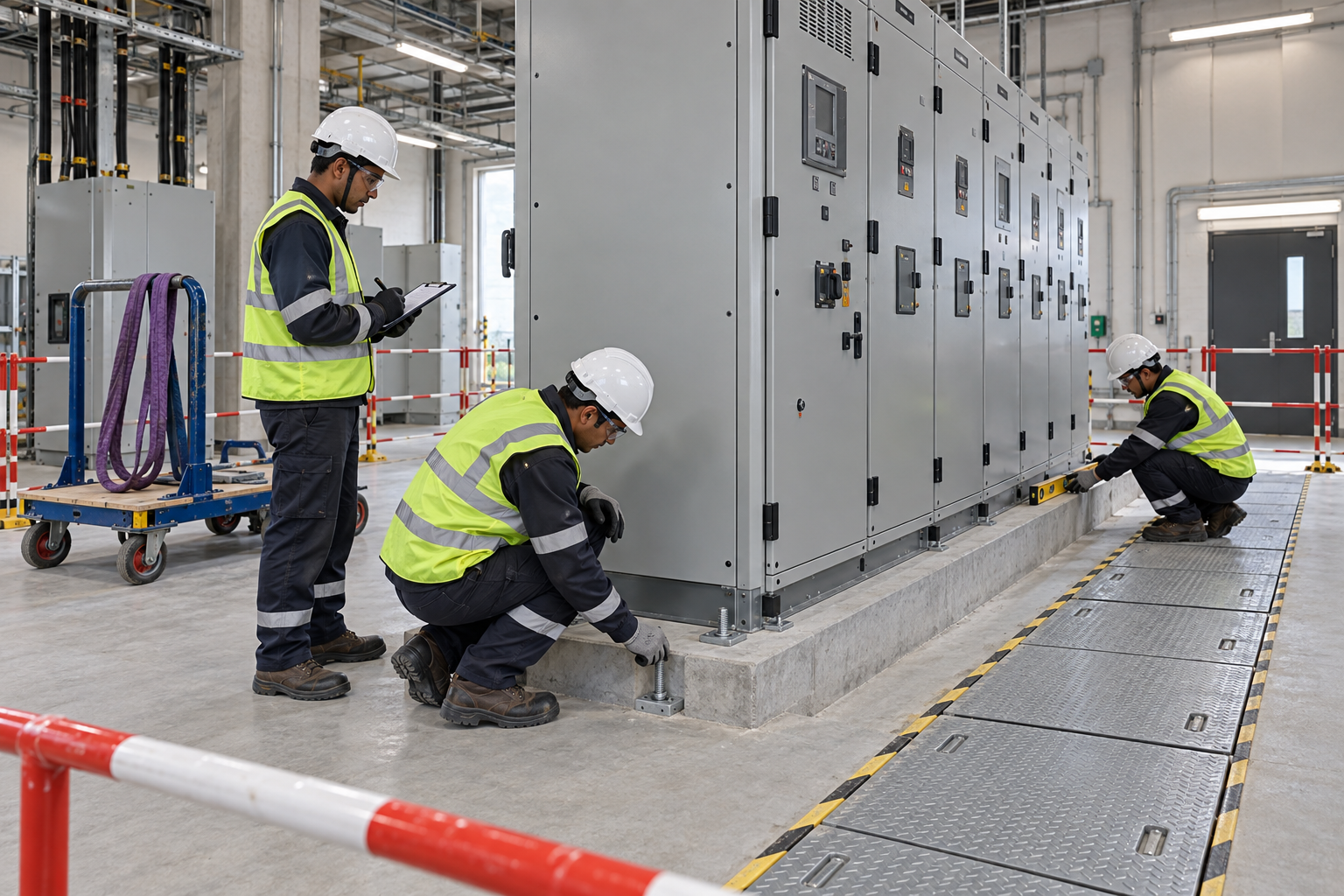

Correct foundation geometry supports lineup fit. Do not use tie bolts to force a distorted cabinet into alignment. Inspect any handling shock or deformation and transfer grounding, buswork, protection and commissioning status explicitly; door closure alone cannot demonstrate electrical readiness.

5. Conditional decisions and common errors

6. Roles and responsibilities

These are responsibility examples, not invented statutory credentials. Meet the actual training, competent-person, qualified-person and licensing requirements for the assigned work. Anyone may raise a hazard and request a stop; only the designated authority may release the affected stage after evidence is reviewed.

7. Hold points and record comparison

Hold points are internal evidence gates. They do not replace statutory permits or actual signatures. Recheck affected gates after a change, abnormal event or shift transfer. The blank record must identify the evidence, person, time, limits and release scope.

The □ boxes are static prompts, not saved or interactive approvals. Each checks one record element. A tick alone does not establish suitability or permission to restart. Link equipment IDs and supporting records; retain unresolved matters and the earlier record when conditions change.

8. Site checklist and emergency response

Stop work: Hold for uncertain shipping mass or lifting provisions, route changes, unverified pit-cover capacity, unstable support, cabinet distortion, electrical-boundary uncertainty or missing connection criteria.

Emergency response: For sudden tilt, cover movement or lost load control, stop movement and clear the fall and crush zone. Do not attempt to hold a cabinet by hand. Activate the site lifting or electrical emergency plan and call 911 for serious injury; stabilize equipment only through an authorized recovery plan.

9. Sources and review limits

Official-source review date: October 13, 2026. The following review is limited to the public provisions or selected manufacturer material identified below. It does not establish that any authority approved this article or the actual installation.

• OSHA 1926.251: Construction rigging inspection, identification and capacity.
• OSHA 1926.417: Applicable deenergized-circuit controls.
• Eaton IB022014EN, October 2025: Selected sections 4, 6 and 7: shipping-group handling, lineup installation and final inspection. Model-specific example; numerical limits and removal sequences are not universal.
• OSHA State Plans: jurisdiction and coverage overview; identify the actual state program before use.

Paid consensus standards and site-specific calculations, manuals, inspection records and product certificates were not independently obtained or verified unless specifically identified. Korean legal citations remain in the preserved Korean source as source history; they are not represented as US legal duties.

10. PDF guidance and FAQ

PDF A covers basic task controls; B examines technical failures; C focuses on supervision, evidence and handover. Each has six rows and three items per main cell. They are complementary extracts: apply all eight body stages and the applicable site procedure. An omitted stage is not permission to omit its controls. PDF HP-0 through HP-4 are worksheet labels; match the event, evidence and authority rather than assuming they match another permit by number.

P/S/R/A, actual measurements, confirmations and signatures remain blank. The PDFs are uncompleted reference worksheets, not issued work permits.

Content group ID: jsa-hvswitchgear-positioning

Does a pedestrian cover rating prove the route is safe?

No. Check transport-wheel reactions, cover bearing and the underlying structure.

Can tie bolts pull a cabinet straight?

Correct the support and alignment using the accepted installation method; do not force distorted equipment into place.

Are lifting brackets removed when slings are released?

Not automatically. Sling release requires stability; product bracket removal follows the specific model sequence.

Does mechanical completion permit energization?

No. Electrical installation, inspection, testing and operating authorization remain separate.

Has a professional verified or approved this document?

No. This is AI-assisted reference material. Editorial and layout checks are not a physical inspection or professional technical approval. Obtain qualified professional review and required site approval before use.

11. Revision history and authorship

Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.

This system has not physically inspected the equipment, structures, ground, atmosphere or worksite. The document does not replace legal advice, manufacturer procedures, engineering design, inspection certificates, qualification evidence, the site risk assessment or an actual work permit.

Before use, a suitably qualified and authorized person must review the actual equipment, loads, methods, protection, inspection and emergency arrangements and resolve open issues. Record the real reviewer, organization, qualifications, delegated authority, reviewed documents, date, signature, exclusions and conditions of approval separately.
