A powered dust collector may still have a blocked inlet or poor capture. Plan the material, collector, hose and disposal route together. Do not mix this wood-dust stream with metal-grinding residues or ignition sources.
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
Stop before proceeding
Stop for belt damage or drift, loose wood, loss of capture, burning odor, smoke, overheating or electrical faults. Disconnect and verify stopped motion and heat state before inspection, belt replacement or dust collection.
1. Legal and technical scope
General-industry handheld belt sanders are addressed by 1910.243, including controls and nip/unused-belt guarding. For construction, assess applicable 1926.302 electric-tool requirements and other relevant tool safeguards. Apply exposure and respiratory requirements to the actual assessment; a dust mask or running collector alone does not establish effective control. OSHA woodworking eTool material is guidance.
Confirm whether federal OSHA or an OSHA-approved State Plan covers this employer and worksite; state requirements and public-sector coverage can differ. Apply the task-specific provisions and limitations identified above.
| Basis | Application |
|---|---|
| OSHA 29 CFR 1910.243 | Handheld belt-sander switch/control provisions and guarding at nip points and unused belt run. |
| OSHA 29 CFR 1926.302 | Construction electric-tool insulation/grounding and handling requirements. |
| OSHA Woodworking: Wood Dust | Wood-dust health hazards and source capture guidance; evaluate actual exposure rather than assume collection equals compliance. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-12. Individual state rules require a site-specific check. |
2. Scope and required inputs
Included scope
Dry-sand verified bare wood secured to a workbench using a handheld electric belt sander and suitable dust extraction; stop, disconnect, collect dust and hand off equipment condition.
Separate assessment
Metal grinding, paint or hazardous coating removal, masonry/asbestos materials, wet sanding and inverting the handheld tool for fixed use are outside this scope.
| Input | Evidence needed |
|---|---|
| Select bare wood | Material and surface; Nails and inclusions; Cracks and support; Dust hazard review. |
| Clamp and extract | Clamps and stability; Collector and hose; End support; Cable clearance. |
| Sand surface | Load and movement; Heat and odor; Dust capture; Clamp and cable. |
| Store and handoff | Heat and cleanliness; Belt and material ID; Defect restrictions; Receiver and disposal. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Technical and procedural controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Select bare wood | 1. Harmful dust2. Ejected metal3. Wood breakage4. Unexpected coating | 1. Material unknown2. Nail remains3. Split stock4. Surface not checked | 1. Verify bare wood2. Remove foreign objects3. Reject unstable stock4. Check contamination | 1. Material and surface2. Nails and inclusions3. Cracks and support4. Dust hazard review | ||||
| 2. Inspect belt and tool | 1. Belt rupture2. Unexpected start3. Nip injury4. Electric shock | 1. Torn belt2. Power connected3. Guard missing4. Damaged cord | 1. Disconnect before checks2. Match belt specification3. Keep guards intact4. Inspect cord and switch | 1. Belt size and direction2. Power and switch state3. Nip and unused-run guard4. Electrical condition | ||||
| 3. Clamp and extract | 1. Workpiece ejected2. Dust accumulation3. Edge tipping4. Cable contact | 1. Weak clamp2. Capture not prepared3. Overhang unsupported4. Cable in belt path | 1. Secure wood and supports2. Connect suitable capture3. Support overhang4. Route cable and hose | 1. Clamps and stability2. Collector and hose3. End support4. Cable clearance | ||||
| 4. Check belt travel | 1. Sideways belt drift2. Hand entanglement3. Tool pulls away4. Dust escapes | 1. Wrong tracking2. Hand near roller3. Poor grip4. Hose blocked | 1. Use controlled no-contact test2. Keep hands on grips3. Maintain stable stance4. Check actual capture | 1. Belt center and edge2. Guard and hand position3. Tool control4. Airflow at inlet | ||||
| 5. Sand surface | 1. Abrasion and pinch2. Overheating3. Dust inhalation4. Material movement | 1. Excess pressure2. Clogged inlet3. Capture fails4. Clamp loosens | 1. Move with both grips2. Avoid excessive force3. Maintain source capture4. Watch workholding | 1. Load and movement2. Heat and odor3. Dust capture4. Clamp and cable | ||||
| 6. Stop and collect | 1. Coasting belt contact2. Dust cloud3. Hot debris4. Accidental restart | 1. Tool set down running2. Bin opened connected3. Heat ignored4. Supply remains | 1. Wait for complete stop2. Disconnect before collection3. Check residual heat4. Control power access | 1. Belt stopped2. Disconnected state3. Dust container4. Heat and cleanup | ||||
| 7. Hold drift or heat | 1. Belt rupture2. Hand burn3. Dust ignition4. Repeated defect | 1. Belt pushed by hand2. Hot tool reused3. Accumulation ignored4. Cause not found | 1. Stop and disconnect2. Check heat safely3. Inspect belt and extraction4. Test after correction | 1. Fault location2. Belt and roller damage3. Capture restoration4. Controlled test record | ||||
| 8. Store and handoff | 1. Residual fire2. Wrong material mixed3. Defective tool reused4. Dust released | 1. Hot dust stored2. Metal residue mixed3. Fault not tagged4. Poor container closure | 1. Use designated disposal2. Keep dust streams separate3. Tag unresolved defects4. Secure storage container | 1. Heat and cleanliness2. Belt and material ID3. Defect restrictions4. Receiver and disposal |
P = likelihood; S = severity; R = risk under the site method; A = the site-defined acceptance/authorization decision. Complete only after actual assessment. Blank cells and checklist prompts are not completed inspections.
4. Fictional scenario and failure mechanisms

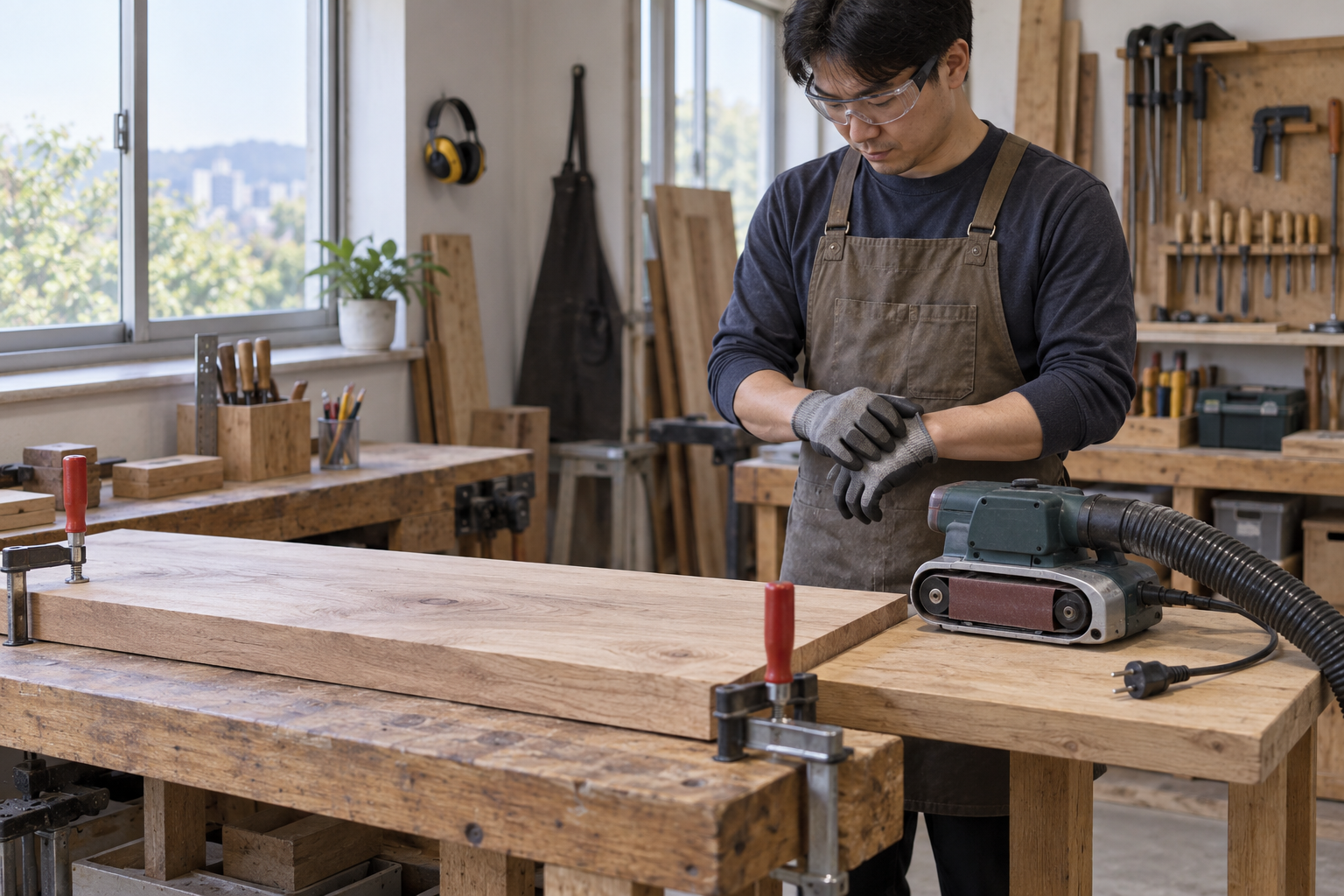

Retained AI-generated educational illustration from the source edition; not a real incident photograph, approved installation drawing or evidence of equipment suitability.
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Item | Fictional scenario |
|---|---|
| Initial | Bare wood is being sanded on a bench. |
| Change | The belt drifts sideways and dust accumulates at the suction inlet. |
| Failure | The operator plans to push the belt back by hand and finish the piece. |
| Outcome | A damaged belt or nip point can injure the hand while accumulated dust overheats. |
| Barrier | Stop, disconnect, assess heat and belt damage, restore capture and verify the controlled test before reuse. |
Why the controls matter
A powered dust collector may still have a blocked inlet or poor capture. Plan the material, collector, hose and disposal route together. Do not mix this wood-dust stream with metal-grinding residues or ignition sources.
An uneven finish can result from wood movement, feeding technique or belt condition. Increasing hand pressure may worsen heat and control while leaving the actual fault unresolved. Record product defects separately from equipment defects.
Stop and disconnect before belt replacement, collection-bin emptying or fault inspection. Never push a moving belt sideways by hand. Any model-specific powered tracking check needs its own controlled no-contact procedure with guards intact; this draft does not authorize improvised live adjustment.
Decision sequence
| Step | Decision |
|---|---|
| Known | The belt drifts sideways and dust accumulates at the suction inlet. |
| Unknown | Actual condition, extent of damage and suitability of load and movement, heat and odor remain to be established. |
| Hold | The operator plans to push the belt back by hand and finish the piece. |
| Evidence | Link load and movement, heat and odor, dust capture, clamp and cable, fault location, belt and roller damage to the affected equipment or work area. |
| Next | Stop, disconnect, assess heat and belt damage, restore capture and verify the controlled test before reuse. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Belt drift | Stop and disconnect | Belt, roller and guard condition | Tracking verified |
| Capture weak | Hold sanding | Hose, bin and actual suction | Capture restored |
| Burning odor | Stop and assess heat | Location and dust condition | Cause and heat controlled |
| Finish defect | Check wood and equipment | Clamps, feed and belt record | Cause identified |
Similar appearance, different evidence
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Comparison | Supported decision | Insufficient basis |
|---|---|---|
| Condition | Belt, roller and guard condition | Belt drift has not been resolved. |
| Evidence | Location and dust condition | A photograph or a completed-looking task without the relevant inspection record. |
| Release | Cause identified | Completion of one step does not release the excluded tasks in section 2. |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Assign the task boundary, stop authority, interfaces and emergency communication for handheld belt sanding of bare wood. |
| Technical lead | Confirm Material and surface; Nails and inclusions; Cracks and support; Dust hazard review. Resolve design and manufacturer limits before work. |
| Authorized crew | Apply Clamps and stability; Collector and hose; End support; Cable clearance. Stop when the working arrangement changes. |
| Inspector / receiving lead | Review Load and movement; Heat and odor; Dust capture; Clamp and cable. Transfer Heat and cleanliness; Belt and material ID; Defect restrictions; Receiver and disposal. |
Role labels allocate responsibilities; they do not confer a legal qualification. Verify the competence, training and authority required for the actual task.
Record and handoff perspective
| Stage | Record controls | Verification |
|---|---|---|
| Select bare wood | 1. Record material and surface2. Record nails and inclusions3. Record cracks and support | 1. Nails and inclusions2. Cracks and support3. Dust hazard review |
| Clamp and extract | 1. Record clamps and stability2. Record collector and hose3. Record end support | 1. Collector and hose2. End support3. Cable clearance |
| Check belt travel | 1. Record belt center and edge2. Record guard and hand position3. Record tool control | 1. Guard and hand position2. Tool control3. Airflow at inlet |
| Sand surface | 1. Record load and movement2. Record heat and odor3. Record dust capture | 1. Heat and odor2. Dust capture3. Clamp and cable |
| Hold drift or heat | 1. Record fault location2. Record belt and roller damage3. Record capture restoration | 1. Belt and roller damage2. Capture restoration3. Controlled test record |
| Store and handoff | 1. Record heat and cleanliness2. Record belt and material id3. Record defect restrictions | 1. Belt and material ID2. Defect restrictions3. Receiver and disposal |
7. Hold points and record comparison
| Hold point | Evidence before release | Actual record |
|---|---|---|
| HP-0 Start | Dry-sand verified bare wood secured to a workbench using a handheld electric belt sander and suitable dust extraction; stop, disconnect, collect dust and hand off equipment condition. | |
| HP-1 Inspect belt and tool | Belt size and direction; Power and switch state; Nip and unused-run guard; Electrical condition | |
| HP-2 Clamp and extract | Clamps and stability; Collector and hose; End support; Cable clearance | |
| HP-3 Check belt travel | Belt center and edge; Guard and hand position; Tool control; Airflow at inlet | |
| HP-4 Store and handoff | Heat and cleanliness; Belt and material ID; Defect restrictions; Receiver and disposal |
These are internal hold points, not issued permits. Recheck affected points after a change, fault or shift handoff; link the actual approval record.
Record comparison
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
The boxes are static record prompts, not interactive or saved approvals. A tick does not establish suitability or permission to restart. Record the evidence, person, time and unresolved issues; retain the change history.
| Record | Insufficient | Record checklist |
|---|---|---|
| Select bare wood | "Checked" without target, criteria or result | □ Material and surface□ Nails and inclusions□ Cracks and support□ Dust hazard review |
| Clamp and extract | "Checked" without target, criteria or result | □ Clamps and stability□ Collector and hose□ End support□ Cable clearance |
| Sand surface | "Checked" without target, criteria or result | □ Load and movement□ Heat and odor□ Dust capture□ Clamp and cable |
| Store and handoff | "Checked" without target, criteria or result | □ Heat and cleanliness□ Belt and material ID□ Defect restrictions□ Receiver and disposal |
8. Site checklist and emergency response
| Check | Result | Person / action |
|---|---|---|
| □ Select bare wood: Material and surface | ||
| □ Inspect belt and tool: Belt size and direction | ||
| □ Clamp and extract: Clamps and stability | ||
| □ Check belt travel: Belt center and edge | ||
| □ Sand surface: Load and movement | ||
| □ Stop and collect: Belt stopped | ||
| □ Hold drift or heat: Fault location | ||
| □ Store and handoff: Heat and cleanliness | ||
| □ Emergency access and handoff restrictions |
Stop work
Stop for belt damage or drift, loose wood, loss of capture, burning odor, smoke, overheating or electrical faults. Disconnect and verify stopped motion and heat state before inspection, belt replacement or dust collection.
Emergency response
Stop and disconnect from a safe position if smoke or electrical failure occurs. Restrict access and activate site fire response/911 as needed. Do not open smoking equipment or disperse dust into the air.
9. Sources and review limits
Public-source review: 2026-10-12. Official regulation pages and specific technical references are distinguished below; no agency or manufacturer has approved this content.
| Source | Reviewed scope and limitation |
|---|---|
| OSHA 29 CFR 1910.243 | Handheld belt-sander switch/control provisions and guarding at nip points and unused belt run. |
| OSHA 29 CFR 1926.302 | Construction electric-tool insulation/grounding and handling requirements. |
| OSHA Woodworking: Wood Dust | Wood-dust health hazards and source capture guidance; evaluate actual exposure rather than assume collection equals compliance. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-12. Individual state rules require a site-specific check. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
10. PDF guidance and FAQ
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
Content group
jsa-hand-belt-sander-wood
Can coated wood use this assessment?
No. Identify the coating and its hazards under a separate removal assessment.
Can the running belt be pushed back into place?
No. Stop and disconnect, then use the specified inspection and controlled adjustment procedure.
Does collector power prove dust capture?
No. Verify actual suction, hose condition and collection performance at the tool.
Can wood dust share a metal-grinding collection bin?
This plan excludes mixed collection; evaluate ignition and material incompatibility before any different arrangement.
Has a professional approved this JSA?
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
11. Revision history and authorship
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
Korean source created 2026-09-26. This US edition adapts the Korean source; earlier editorial revisions do not constitute professional approval of this edition.
| Date | Edition | Change | Review status |
|---|---|---|---|
| 2026-10-12 | 1.0 | US localization: preserve task judgments; replace Korean legal applicability with scoped US references. | AI editorial and output checks; no professional technical approval. |
