A detector LED may indicate power, communication or alarm according to its manual. It does not prove that the correct panel zone and required notification outputs respond. Record observations along the approved detection-to-panel-to-notification path.
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
Stop before proceeding
Do not start with an undefined impairment area, backup arrangement, restoration owner or circuit identity. Do not declare normal service before the required signal-path tests and bypass removal are verified.
1. Legal and technical scope
For covered general-industry systems, assess 1910.164 fire detection and 1910.165 employee alarms, including their distinct application clauses; 1910.165 maintenance/testing/inspection provisions also address local fire alarms used to alert employees. Installation electrical work may instead be construction under 1926.416/.417. Confirm adopted fire/building codes, AHJ requirements, the applicable NFPA 72 edition and listed system compatibility; no NFPA text or local adoption was fully verified for a specific site.
Confirm whether federal OSHA or an OSHA-approved State Plan covers this employer and worksite; state requirements and public-sector coverage can differ. Apply the task-specific provisions and limitations identified above.
| Basis | Application |
|---|---|
| OSHA 29 CFR 1910.164 | Scope, restoration, trained servicing and installation basis for covered fire detection systems. |
| OSHA 29 CFR 1910.165 | Scope, backup alarm means, testing and prompt restoration of employee alarm systems. |
| OSHA 29 CFR 1926.416 | Construction electrical protection during installation. |
| OSHA 29 CFR 1926.417 | Construction deenergized circuit tagging and controls. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-12. Individual state rules require a site-specific check. |
2. Scope and required inputs
Included scope
Identify the detector or visual device purpose, manage system impairment, prepare elevated access and electrical boundaries, install compatible equipment, verify wiring/addressing, test the approved signal path and restore service.
Separate assessment
This does not approve detector layout, accessibility performance, suppression release changes, smoke-control interfaces or unapproved alarm impairment. Ordinary machine-status beacons and required fire notification appliances are different applications.
| Input | Evidence needed |
|---|---|
| Define device purpose | Application and design; Device and zone IDs; Interface list; Test and restore plan. |
| Control impairment | Area and duration; Panel and operator log; Backup alarm or watch; Release interface limits. |
| Wire and address | Source verification; Polarity and supervision; Address and location; Panel-device combination. |
| Close and handoff | Normal panel indication; Cover and fixing; Restoration notice; Receiver time and defects. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Technical and procedural controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Define device purpose | 1. Wrong alarm function2. Wrong zone work3. Unwanted release4. Restoration omitted | 1. Beacon confused2. Drawing outdated3. Interface missed4. No restoration owner | 1. Confirm device use2. Match area drawing3. Map all interfaces4. Assign restoration lead | 1. Application and design2. Device and zone IDs3. Interface list4. Test and restore plan | ||||
| 2. Prepare access | 1. Worker falls2. Dropped tools3. Electrical shock4. Area left unprotected | 1. Poor platform2. People below3. Battery source missed4. No backup plan | 1. Use suitable platform2. Control area below3. Map all power sources4. Prepare backup measures | 1. Platform and access2. Tool retention3. Mains and standby supply4. Area and notifications | ||||
| 3. Control impairment | 1. Detection unavailable2. Unwanted evacuation3. Suppression discharge4. Operator confusion | 1. Disable scope unclear2. No notice3. Output not controlled4. Restore lead absent | 1. Authorize impairment2. Notify affected parties3. Provide backup measures4. Control test interfaces | 1. Area and duration2. Panel and operator log3. Backup alarm or watch4. Release interface limits | ||||
| 4. Mount devices | 1. Fall from access2. Falling tool3. Ceiling support fails4. Hidden cable damage | 1. Overreach2. Uncontrolled underside3. Weak substrate4. Blind drilling | 1. Maintain safe access2. Keep people clear3. Verify independent support4. Check concealed services | 1. Platform and position2. Lower exclusion area3. Anchor and substrate4. Drilling clearance | ||||
| 5. Wire and address | 1. Shock and short2. Broken circuit3. Wrong location shown4. Alarm unavailable | 1. Supply remains2. Polarity error3. Duplicate address4. Unlisted combination | 1. Isolate and verify2. Follow circuit diagram3. Match address to zone4. Verify listed compatibility | 1. Source verification2. Polarity and supervision3. Address and location4. Panel-device combination | ||||
| 6. Test and restore | 1. Unwanted shutdown2. Unproven detection3. Bypass remains4. Backup ends early | 1. Interface test uncontrolled2. LED-only acceptance3. Disable list unchecked4. No restore notice | 1. Control test effects2. Verify complete signal path3. Restore normal circuits4. Notify after verification | 1. Device stimulus and result2. Panel location and output3. Bypass removal4. Impairment closure | ||||
| 7. Resolve faults | 1. Alarm not delivered2. Wrong zone alarm3. Unplanned release4. Prolonged impairment | 1. Observation incomplete2. Address mismatch3. Test scope exceeded4. Delay unreported | 1. Hold normal handoff2. Compare observation points3. Keep approved test scope4. Review backup measures | 1. Signal path results2. Address-location match3. Interface restrictions4. Delay and recovery plan | ||||
| 8. Close and handoff | 1. Residual bypass2. Blocked detector3. Premature watch removal4. Unknown restrictions | 1. List not reconciled2. Cover left fitted3. Installation-only release4. No receiver | 1. Reconcile impairment list2. Check final device state3. Verify service restoration4. Transfer remaining limits | 1. Normal panel indication2. Cover and fixing3. Restoration notice4. Receiver time and defects |
P = likelihood; S = severity; R = risk under the site method; A = the site-defined acceptance/authorization decision. Complete only after actual assessment. Blank cells and checklist prompts are not completed inspections.
4. Fictional scenario and failure mechanisms

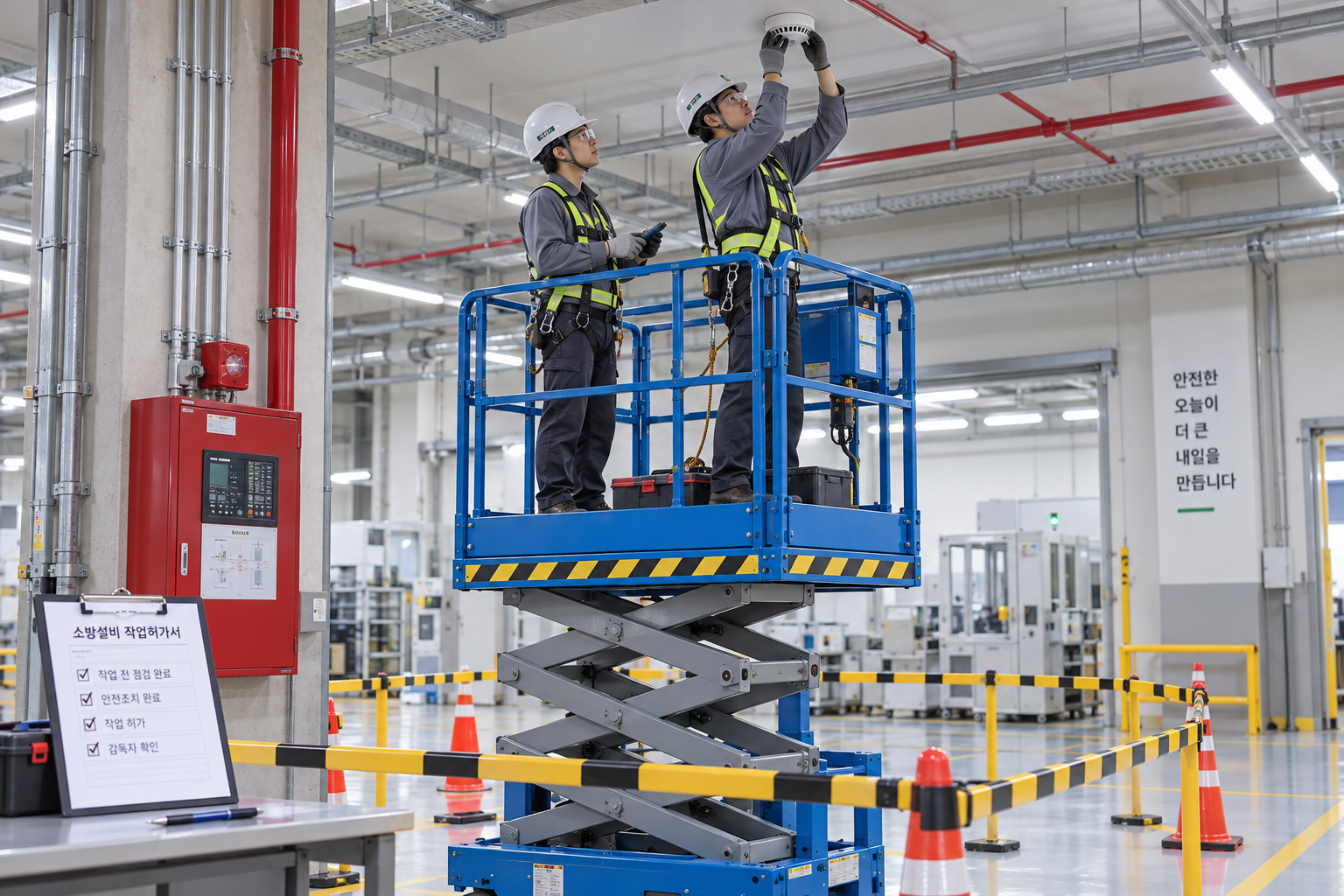

Retained AI-generated educational illustration from the source edition; not a real incident photograph, approved installation drawing or evidence of equipment suitability.
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Item | Fictional scenario |
|---|---|
| Initial | A detector is replaced in an authorized impaired zone. |
| Change | Its LED operates, but the panel still shows the zone disabled. |
| Failure | Local indication is accepted without verifying system outputs or clearing bypasses. |
| Outcome | Required fire warning may remain unavailable after the installer leaves. |
| Barrier | Keep the impairment controls active and compare the test results, bypass list and restoration notifications before handoff. |
Why the controls matter
A detector LED may indicate power, communication or alarm according to its manual. It does not prove that the correct panel zone and required notification outputs respond. Record observations along the approved detection-to-panel-to-notification path.
Impairment controls both inadvertent activation and loss of protection. Identify area, duration, notifications, backup alarm or watch arrangements, restoration owner and escalation if delayed. End temporary measures only after actual restoration and required notification.
Addressable and conventional circuits do not share one universal end-of-line component or wiring arrangement. Verify the listed combination and approved drawing. Suppression discharge and equipment shutdown interfaces require an explicitly controlled test scope.
Decision sequence
| Step | Decision |
|---|---|
| Known | Its LED operates, but the panel still shows the zone disabled. |
| Unknown | Actual condition, extent of damage and suitability of source verification, polarity and supervision remain to be established. |
| Hold | Local indication is accepted without verifying system outputs or clearing bypasses. |
| Evidence | Link source verification, polarity and supervision, address and location, panel-device combination, signal path results, address-location match to the affected equipment or work area. |
| Next | Keep the impairment controls active and compare the test results, bypass list and restoration notifications before handoff. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Impairment unclear | Hold circuit work | Area, duration and backup plan | Impairment authorized |
| Wrong device or zone | Reconcile drawing and listing | Device, base and panel IDs | Combination verified |
| LED only | Test approved signal path | Device, panel and output results | Required functions verified |
| Bypass remains | Continue temporary measures | Restoration and notifications | Normal service confirmed |
Similar appearance, different evidence
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Comparison | Supported decision | Insufficient basis |
|---|---|---|
| Condition | Area, duration and backup plan | Impairment unclear has not been resolved. |
| Evidence | Device, panel and output results | A photograph or a completed-looking task without the relevant inspection record. |
| Release | Normal service confirmed | Completion of one step does not release the excluded tasks in section 2. |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Assign the task boundary, stop authority, interfaces and emergency communication for fire detector and visual alarm device installation. |
| Technical lead | Confirm Application and design; Device and zone IDs; Interface list; Test and restore plan. Resolve design and manufacturer limits before work. |
| Authorized crew | Apply Area and duration; Panel and operator log; Backup alarm or watch; Release interface limits. Stop when the working arrangement changes. |
| Inspector / receiving lead | Review Source verification; Polarity and supervision; Address and location; Panel-device combination. Transfer Normal panel indication; Cover and fixing; Restoration notice; Receiver time and defects. |
Role labels allocate responsibilities; they do not confer a legal qualification. Verify the competence, training and authority required for the actual task.
Record and handoff perspective
| Stage | Record controls | Verification |
|---|---|---|
| Define device purpose | 1. Record application and design2. Record device and zone ids3. Record interface list | 1. Device and zone IDs2. Interface list3. Test and restore plan |
| Control impairment | 1. Record area and duration2. Record panel and operator log3. Record backup alarm or watch | 1. Panel and operator log2. Backup alarm or watch3. Release interface limits |
| Mount devices | 1. Record platform and position2. Record lower exclusion area3. Record anchor and substrate | 1. Lower exclusion area2. Anchor and substrate3. Drilling clearance |
| Wire and address | 1. Record source verification2. Record polarity and supervision3. Record address and location | 1. Polarity and supervision2. Address and location3. Panel-device combination |
| Resolve faults | 1. Record signal path results2. Record address-location match3. Record interface restrictions | 1. Address-location match2. Interface restrictions3. Delay and recovery plan |
| Close and handoff | 1. Record normal panel indication2. Record cover and fixing3. Record restoration notice | 1. Cover and fixing2. Restoration notice3. Receiver time and defects |
7. Hold points and record comparison
| Hold point | Evidence before release | Actual record |
|---|---|---|
| HP-0 Start | Identify the detector or visual device purpose, manage system impairment, prepare elevated access and electrical boundaries, install compatible equipment, verify wiring/addressing, test the approved signal path and restore service. | |
| HP-1 Control impairment | Area and duration; Panel and operator log; Backup alarm or watch; Release interface limits | |
| HP-2 Wire and address | Source verification; Polarity and supervision; Address and location; Panel-device combination | |
| HP-3 Test and restore | Device stimulus and result; Panel location and output; Bypass removal; Impairment closure | |
| HP-4 Close and handoff | Normal panel indication; Cover and fixing; Restoration notice; Receiver time and defects |
These are internal hold points, not issued permits. Recheck affected points after a change, fault or shift handoff; link the actual approval record.
Record comparison
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
The boxes are static record prompts, not interactive or saved approvals. A tick does not establish suitability or permission to restart. Record the evidence, person, time and unresolved issues; retain the change history.
| Record | Insufficient | Record checklist |
|---|---|---|
| Define device purpose | "Checked" without target, criteria or result | □ Application and design□ Device and zone IDs□ Interface list□ Test and restore plan |
| Control impairment | "Checked" without target, criteria or result | □ Area and duration□ Panel and operator log□ Backup alarm or watch□ Release interface limits |
| Wire and address | "Checked" without target, criteria or result | □ Source verification□ Polarity and supervision□ Address and location□ Panel-device combination |
| Close and handoff | "Checked" without target, criteria or result | □ Normal panel indication□ Cover and fixing□ Restoration notice□ Receiver time and defects |
8. Site checklist and emergency response
| Check | Result | Person / action |
|---|---|---|
| □ Define device purpose: Application and design | ||
| □ Prepare access: Platform and access | ||
| □ Control impairment: Area and duration | ||
| □ Mount devices: Platform and position | ||
| □ Wire and address: Source verification | ||
| □ Test and restore: Device stimulus and result | ||
| □ Resolve faults: Signal path results | ||
| □ Close and handoff: Normal panel indication | ||
| □ Emergency access and handoff restrictions |
Stop work
Do not start with an undefined impairment area, backup arrangement, restoration owner or circuit identity. Do not declare normal service before the required signal-path tests and bypass removal are verified.
Emergency response
Treat an actual fire or unexplained alarm as an emergency, not automatically a test signal. Stop testing, notify operations of the real impairment state, and follow evacuation and 911 procedures.
9. Sources and review limits
Public-source review: 2026-10-12. Official regulation pages and specific technical references are distinguished below; no agency or manufacturer has approved this content.
| Source | Reviewed scope and limitation |
|---|---|
| OSHA 29 CFR 1910.164 | Scope, restoration, trained servicing and installation basis for covered fire detection systems. |
| OSHA 29 CFR 1910.165 | Scope, backup alarm means, testing and prompt restoration of employee alarm systems. |
| OSHA 29 CFR 1926.416 | Construction electrical protection during installation. |
| OSHA 29 CFR 1926.417 | Construction deenergized circuit tagging and controls. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-12. Individual state rules require a site-specific check. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
10. PDF guidance and FAQ
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
Content group
jsa-firealarm-devices
Does an illuminated LED complete the test?
No. Confirm its meaning and verify the required panel indication, outputs and restoration.
Can a machine beacon replace a fire notification appliance?
Only the correct approved/listed application can satisfy the project requirements; appearance or light output alone is insufficient.
Is one end-of-line resistor suitable for every circuit?
No. Use the actual circuit type, approved drawing and compatible equipment instructions.
When can backup measures end?
After the designated authority verifies required function, clears the impairment/bypasses and completes restoration notifications.
Has a professional approved this JSA?
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
