A matching thread and a high IP rating do not establish hazardous-location suitability. Match the actual substance, classification, equipment protection method, temperature and ambient limitations to the approval record. Keep water/dust ingress protection separate from ignition protection.
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site authorization are required before use.
Stop before starting
Hold installation and energization for any unmatched classification, approval, cable dimension, entry thread or seal condition; stop for critical-surface damage, unauthorized modification, uncertain isolation or unsafe atmosphere.
1. Legal and technical scope
| Basis | Scope and limits |
|---|---|
| OSHA 1910.307 | General-industry hazardous-location suitability, classification and markings. |
| OSHA 1926.407 | Construction hazardous-location equipment and wiring requirements. |
| OSHA 1910.303 | Electrical approval and installation/use according to listing or labeling instructions. |
Determine general-industry versus construction scope: 1910.307 and 1926.407 are distinct hazardous-location provisions. Apply the relevant electrical safe-work rules. Under 1910.303, listed/labeled equipment must follow its included instructions. IECEx or ATEX markings alone do not establish US approval; verify the applicable US approval route, location classification and local electrical requirements. State Plans can add duties. Do not treat every IEC Zone/EPL marking as interchangeable with a US Class/Division or Class I Zone designation.
2. Scope and required inputs
Included work
Identification, de-energization, approved cable-entry assembly, closure inspection and pre-energization handover for electrical equipment in a classified location. Cable armor means the metallic cable layer.
Separate assessment
Area-classification design, live work, flamepath machining or repair, altered certification conditions and barrier-compound work without the exact product instructions require separate specialist control.
| Required input | Evidence to obtain |
|---|---|
| Identify location | Area classification; Tag and drawing; Approval conditions; Inspection authority |
| Prepare work area | Work environment; Supply boundaries; Gland and seal IDs; Storage condition |
| Match approval | Approval and listing; Substance and group; Temperature and ambient; Special-use conditions |
| Isolate and support | All feeds and testing; Atmosphere status; Support and fasteners; Surface inspection |
No actual equipment model, SDS, site measurements, design calculations or authorization record was supplied. Product-specific limits and methods must be verified before use. Federal OSHA is a baseline within its scope; determine the applicable State Plan and local requirements. Manufacturer guidance is not government approval; an incorporated standard differs from voluntary guidance. No nationwide-compliance or expert-approval claim is made.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Technical and procedural controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Identify location | 1. Ignition exposure2. Wrong equipment3. Overtemperature4. Early energization | 1. Class misunderstood2. Tag mismatch3. Ambient ignored4. Inspection unplanned | 1. Match area and marking2. Verify equipment tag3. Check thermal limits4. Assign release authority | 1. Area classification2. Tag and drawing3. Approval conditions4. Inspection authority | ||||
| 2. Prepare work area | 1. Gas or dust exposure2. Electric shock3. Mixed components4. Surface damage | 1. Atmosphere unreviewed2. External feed missed3. Sizes mixed4. Poor storage | 1. Review atmosphere controls2. Identify all feeds3. Keep parts identified4. Protect critical surfaces | 1. Work environment2. Supply boundaries3. Gland and seal IDs4. Storage condition | ||||
| 3. Match approval | 1. Ignition source2. Wrong gas group3. Hot surface4. Unapproved substitute | 1. Foreign mark assumed2. Substance mismatch3. Temperature unchecked4. Conditions unread | 1. Check US approval route2. Match actual substance3. Review temperature rating4. Resolve special conditions | 1. Approval and listing2. Substance and group3. Temperature and ambient4. Special-use conditions | ||||
| 4. Isolate and support | 1. Shock or arc2. Atmosphere ignition3. Equipment drop4. Flamepath damage | 1. Residual feed2. Unsafe atmosphere3. Poor support4. Surface machined | 1. Verify electrical isolation2. Maintain area controls3. Use specified support4. Preserve critical faces | 1. All feeds and testing2. Atmosphere status3. Support and fasteners4. Surface inspection | ||||
| 5. Fit cable entry | 1. Seal failure2. Cable pullout3. Protection lost4. Bonding break | 1. Diameter outside range2. Wrong thread or seal3. Armor mishandled4. Open spare entry | 1. Match measured cable2. Use approved components3. Verify armor and grip4. Fit approved blanks | 1. Cable dimensions2. Entry and seal match3. Cable restraint4. Blanking and bonding | ||||
| 6. Inspect and close | 1. Ignition during use2. Loose closure3. Water ingress4. Defect concealed | 1. Bolts missing2. Wrong assembly force3. Inspection skipped4. Repair history lost | 1. Inspect before closure2. Follow specified fastening3. Check complete entry4. Record limitations | 1. Gasket and wiring2. Bolts and closure3. Entry inspection4. Defect and release | ||||
| 7. Hold mismatch | 1. Unapproved sealing2. Damaged protection3. Premature power4. Repeated mismatch | 1. Seal trimmed2. Flamepath altered3. Replacement uninspected4. Combination unrecorded | 1. Hold assembly and power2. Identify damaged parts3. Review permitted combination4. Verify specified inspection | 1. Mismatch location2. Surface and seal damage3. Replacement combination4. Restart evidence | ||||
| 8. Handover system | 1. Open entry2. Cable displacement3. Held item energized4. Lost traceability | 1. Blank not checked2. Support unchecked3. Restriction missing4. Part size omitted | 1. Check every entry2. Verify support and bond3. Mark unresolved items4. Transfer combination record | 1. Final closure2. Support and bonding3. Energization restriction4. Parts and recipient |
P = likelihood; S = severity; R = risk under the site method; A = site-defined acceptance/authorization. These actual assessment cells are blank. A low score never overrides a missing safeguard or a legal or manufacturer restriction.
4. Fictional scenario and failure mechanisms

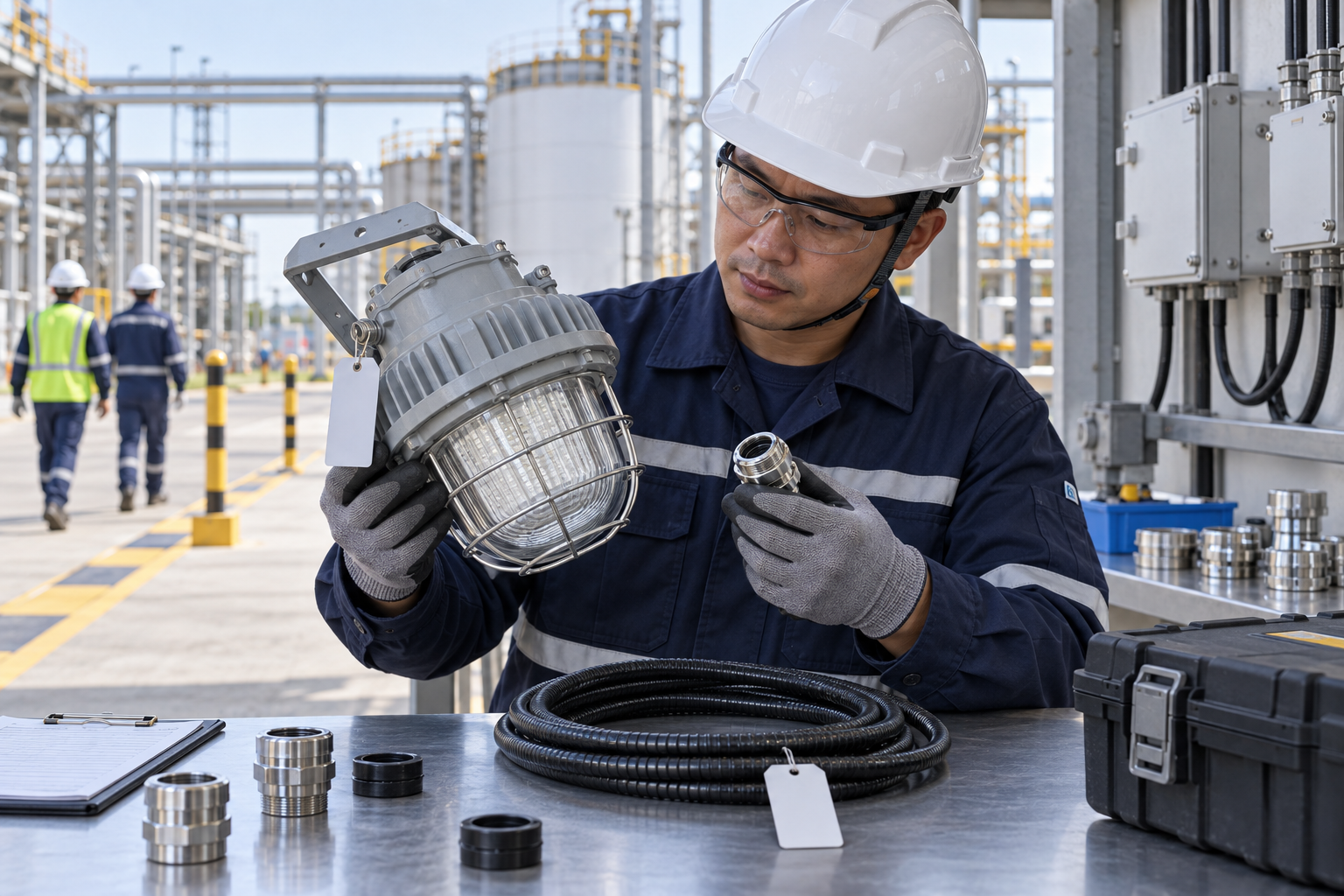

This illustration provides educational context. It is not an actual incident photograph or evidence of equipment suitability; any AI-generated depiction is illustrative only.
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Stage | Fictional situation |
|---|---|
| Initial situation | A fictional installer selects a gland for a classified-area enclosure. |
| Changed condition | Its thread and IP rating match, but the cable diameter is outside the listed size range. |
| Failure path | The installer treats a tight nut as proof of both sealing and ignition protection. |
| Possible outcome | Cable movement, loss of ingress protection or impaired hazardous-location protection could result. |
| Prevention barrier | Hold assembly and energization, match the actual cable and entry to the approved combination, then inspect closure and bonding. |
Failure mechanisms
A matching thread and a high IP rating do not establish hazardous-location suitability. Match the actual substance, classification, equipment protection method, temperature and ambient limitations to the approval record. Keep water/dust ingress protection separate from ignition protection.
The entry is a system: actual cable dimensions and armor, gland size, enclosure entry, seals, adapters and blanking plugs must form a permitted combination. Do not trim seals, build up cable diameter with tape or machine threads to compensate for a mismatch. A barrier seal is selected from the actual approval and instructions, not imposed universally.
Special conditions on an approval document must be resolved in the installation record. A component certificate is not approval of the complete equipment assembly. Protect flamepaths and other critical surfaces; refer damage to the authorized repair route rather than sanding it smooth.
Work sequence: Identify location → Prepare work area → Match approval → Isolate and support → Fit cable entry → Inspect and close → Hold mismatch → Handover system. This is a teaching flow, not a device drawing or a complete operating procedure.
5. Conditional decisions and common errors
| Situation | Required action | Evidence | Proceed when |
|---|---|---|---|
| Classification uncertain | Hold installation | Area drawing and substance record | Classification confirmed |
| Cable outside range | Do not modify seal | Measured cable and gland approval | Combination accepted |
| Critical surface damaged | Segregate equipment | Damage and authorized repair review | Repair disposition closed |
| Ready to energize | Complete entry inspection | Closure, bonding and restrictions | Release authorized |
Similar observations, different decisions
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Observation | Insufficient conclusion | Required distinction |
|---|---|---|
| Thread fits | Mechanical engagement | Approval and sealing remain separate |
| High IP rating | Ingress classification | Does not prove ignition protection |
| Foreign certificate | Evidence for its scheme | US acceptance still needs checking |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Confirm area classification and the task scope, resources, interfaces and stop authority. |
| Qualified technical reviewer | Review work environment, model limits, compatibility and unresolved technical conditions within assigned competence. |
| Work crew | Apply the listed controls, report changes and stop when evidence or safeguards are missing. |
| Inspector / assessor | Record actual cable dimensions and other relevant checks; do not mark unverified conditions as accepted. |
| Handover authority | Reconcile final closure, restrictions and outstanding actions before the next task. Role labels do not establish a legal credential. |
Supervision and handover focus
| Stage | Management action | Evidence |
|---|---|---|
| Identify location | 1. Record area classification2. Record tag and drawing3. Record approval conditions | 1. Area classification2. Tag and drawing3. Approval conditions |
| Prepare work area | 1. Record work environment2. Record supply boundaries3. Record gland and seal ids | 1. Work environment2. Supply boundaries3. Gland and seal IDs |
| Isolate and support | 1. Record all feeds and testing2. Record atmosphere status3. Record support and fasteners | 1. All feeds and testing2. Atmosphere status3. Support and fasteners |
| Fit cable entry | 1. Record cable dimensions2. Record entry and seal match3. Record cable restraint | 1. Cable dimensions2. Entry and seal match3. Cable restraint |
| Hold mismatch | 1. Record mismatch location2. Record surface and seal damage3. Record replacement combination | 1. Mismatch location2. Surface and seal damage3. Replacement combination |
| Handover system | 1. Record final closure2. Record support and bonding3. Record energization restriction | 1. Final closure2. Support and bonding3. Energization restriction |
7. Hold points and record comparison
| Hold point | Evidence before release | Actual approval |
|---|---|---|
| HP-0 Scope | Identification, de-energization, approved cable-entry assembly, closure inspection and pre-energization handover for electrical equipment in a classified location. Cable armor means the metallic cable layer. | |
| HP-1 Prepare work area | Work environment; Supply boundaries; Gland and seal IDs; Storage condition | |
| HP-2 Isolate and support | All feeds and testing; Atmosphere status; Support and fasteners; Surface inspection | |
| HP-3 Hold mismatch | Mismatch location; Surface and seal damage; Replacement combination; Restart evidence | |
| HP-4 Handover system | Final closure; Support and bonding; Energization restriction; Parts and recipient |
Hold points are internal project checks. They are not universal statutory permits and do not grant work permission. Reassess after defects, changed conditions and shift changes.
Record comparison
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
The boxes are static record prompts, not interactive or saved approvals. A tick does not establish suitability or permission to restart. Record the evidence, person, time and unresolved issues; retain the change history.
| Record | Insufficient record | Record checklist |
|---|---|---|
| Identify location | Only marked “OK” | □ Area classification□ Tag and drawing□ Approval conditions□ Inspection authority |
| Isolate and support | Only marked “OK” | □ All feeds and testing□ Atmosphere status□ Support and fasteners□ Surface inspection |
| Hold mismatch | Only marked “OK” | □ Mismatch location□ Surface and seal damage□ Replacement combination□ Restart evidence |
| Handover system | Only marked “OK” | □ Final closure□ Support and bonding□ Energization restriction□ Parts and recipient |
8. Site checklist and emergency response
| Site check | Actual result | Person / action |
|---|---|---|
| Identify location: Area classification; Tag and drawing; Approval conditions; Inspection authority | ||
| Prepare work area: Work environment; Supply boundaries; Gland and seal IDs; Storage condition | ||
| Match approval: Approval and listing; Substance and group; Temperature and ambient; Special-use conditions | ||
| Isolate and support: All feeds and testing; Atmosphere status; Support and fasteners; Surface inspection | ||
| Fit cable entry: Cable dimensions; Entry and seal match; Cable restraint; Blanking and bonding | ||
| Inspect and close: Gasket and wiring; Bolts and closure; Entry inspection; Defect and release | ||
| Hold mismatch: Mismatch location; Surface and seal damage; Replacement combination; Restart evidence | ||
| Handover system: Final closure; Support and bonding; Energization restriction; Parts and recipient |
Stop work
Hold installation and energization for any unmatched classification, approval, cable dimension, entry thread or seal condition; stop for critical-surface damage, unauthorized modification, uncertain isolation or unsafe atmosphere.
Emergency response
Withdraw and activate the site alarm for suspected flammable release or ignition risk. Do not operate unapproved devices in the affected atmosphere. Qualified emergency personnel control the electrical and process hazards before access or recovery.
9. Sources and review limits
Public-source access/review: 2026-10-13.
| Official source | Reviewed scope and limits |
|---|---|
| OSHA 1910.307 | General-industry hazardous-location suitability, classification and markings. |
| OSHA 1926.407 | Construction hazardous-location equipment and wiring requirements. |
| OSHA 1910.303 | Electrical approval and installation/use according to listing or labeling instructions. |
No actual equipment model, SDS, site measurements, design calculations or authorization record was supplied. Product-specific limits and methods must be verified before use. Federal OSHA is a baseline within its scope; determine the applicable State Plan and local requirements. Manufacturer guidance is not government approval; an incorporated standard differs from voluntary guidance. No nationwide-compliance or expert-approval claim is made.
10. PDF guidance and FAQ
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
PDFs are complementary six-stage extracts. Apply all eight body stages and the actual equipment/site procedure.
Can tape correct an undersized cable?
Do not improvise a dimensional correction. Select the cable-entry combination permitted by its approval and instructions.
Does every gland need a barrier compound?
The equipment protection method, cable and approval conditions determine the need; follow the exact approved assembly.
May a scratched flamepath be polished?
Hold the item for authorized technical assessment; polishing may alter a critical certified surface.
Has a professional verified or approved this document?
No. Public sources and editorial, layout and consistency checks were reviewed using AI. No site inspection or professional technical approval has been performed. Obtain appropriate professional review before use.
11. Revision history and authorship
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site authorization are required before use.
| Date | Version | Change | Review status |
|---|---|---|---|
| 2026-10-13 | US 1.0 | New US edition from assigned Korean source; task decisions, records and PDFs localized. | AI editorial review; no professional technical approval |
Korean edition revision history: 2026-09-20 (v1.0): initial article, sources, fictional analysis and PDF editorial checks; 2026-09-23 (v1.1): task decisions, record checklist, JSA and three PDF variants revised. These are editorial records, not professional technical approval. US v1.0 adapts the earlier edition to United States requirements and terminology.
Site reviewers must add their actual qualifications, scope, date and approval only after the review occurs.
