Duct Insulation JSA: Dry Substrates, Fiber Dust and Vapor-Retarder Continuity

Do not conceal a wet duct or insulation defect with new tape. Finish the support and joint inspections before covering the work.

This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.

Stop conditions first

Hold for wet material, unaccepted duct joints/supports, unsafe access, unidentified materials, ineffective dust/ventilation controls or incompatible damaged facing closures.

1. US legal and technical basis

Construction HVAC installation: apply relevant OSHA access, fall, hand-tool, chemical communication and exposure controls. Product data and adopted project specifications govern the insulation assembly.

Determine whether Federal OSHA or an applicable State Plan governs the employer and work. Standards incorporated into a regulation must be read in their legally applicable edition. Other NFPA/ANSI guidance and manufacturer instructions have distinct roles; they are not automatically federal law.

2. Scope and required inputs

Included

Install specified new fibrous wrap and compatible facing closures on inspected, supported, inactive sheet-metal ducts using previously installed and accepted fixings and protected access.

Separate assessment

Unknown old insulation or suspected asbestos, hot piping, smoke-control fireproofing, internal lining, field pin welding and spray adhesives require separate assessment.

Selected public official provisions were checked on October 14, 2026. This is not a complete legal audit. No actual equipment manual, site measurements, engineering calculations, product certification or professional technical approval was supplied. Full paid NFPA/ANSI standards and state/local amendments were not reviewed. Check actual equipment, jurisdiction and project requirements before use.

Select task-appropriate eye, hand, foot, skin and hearing protection from the exposure assessment. Where respiratory protection is necessary, use the applicable respiratory-protection program; PPE does not replace isolation, guarding, support or ventilation.

3. Eight-stage JSA

Actual risk assessments, measurements, checks, approvals and signatures have not been performed. Keep unverified fields blank and link the actual site records. P/S/R/A mean likelihood, severity, site-method risk and site-defined acceptance/authorization; a score cannot waive a required control.

4. Failure mechanisms and hypothetical case

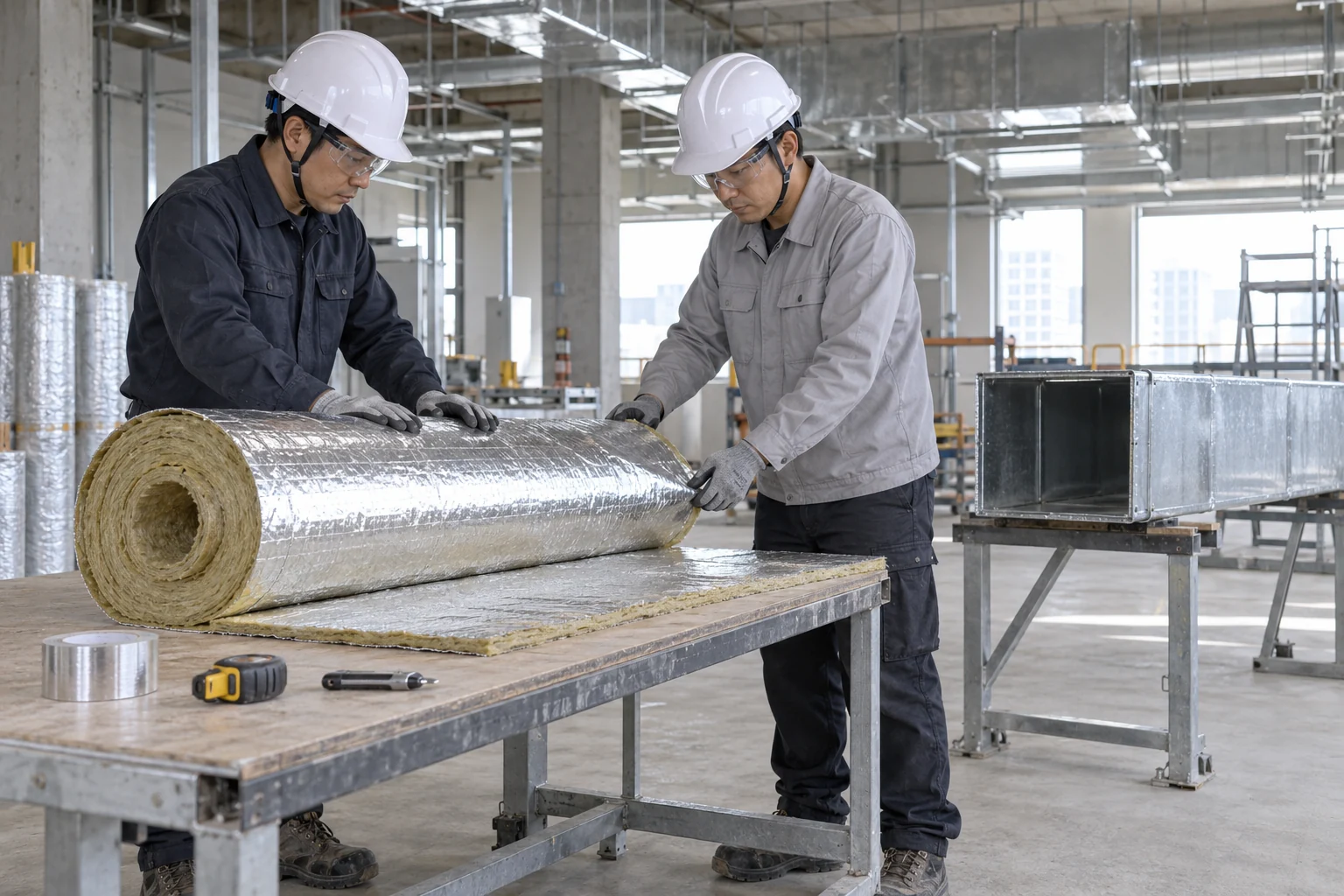

The retained illustration is an AI-generated educational image from the retained source edition. It is not an actual incident photograph, approved drawing, equipment certification or proof that the depicted arrangement is safe.

Insulation conceals duct seams and fixings. Confirm the identified segment is supported, sealed and dry before wrapping. Wet insulation requires cause assessment and an approved material disposition; covering it cannot establish dryness.

Vapor-retarder continuity depends on seams, corners, pins and access-opening edges. Silver appearance does not establish compatible tape or an intact seal. Follow the selected assembly details without obstructing required access.

Fiber dust from cutting and vapor/skin exposure from adhesive are different hazards. Use low-dust cutting and cleanup, identify any adhesive by SDS and provide the required ventilation and protection. A dust mask does not automatically protect against vapor.

Compression and gaps change insulation performance. Check installed thickness and continuity against the actual product/design; the Knauf example is not a universal thickness, compression or closure specification.

Hypothetical decision example

Hypothetical example: wet insulation is found under a duct and the installer proposes covering it with fresh facing tape. Hold concealment, identify the moisture source and material damage, then inspect the accepted replacement/drying and closure repair before handover.

The example is fictional; no incident, measurement, inspection or approval is asserted.

Task flow: Match duct and materials → Prepare access and bench → Cut with dust controls → Fit insulation → Seal vapor retarder → Inspect completed wrap → Hold wet or torn work → Clean and hand over

5. Hold and proceed decisions

Similar observation, different conclusion

6. Roles and supervision

These are responsibility examples, not invented statutory credentials. Verify actual competence, training and authority for the assigned work.

Supervision and handover controls

7. Hold points and record quality

Hold points are internal evidence gates. They do not establish that a statutory permit exists or has been approved. Recheck affected gates after changes, faults and shift handover.

Record comparison - hypothetical templates

The 16 boxes below identify record elements, not completed checks or approvals. They are static symbols. Link equipment/location, date, actual findings and the separate record reference; preserve unresolved items.

8. Pre-work checks and emergency response

Stop work

Hold for wet material, unaccepted duct joints/supports, unsafe access, unidentified materials, ineffective dust/ventilation controls or incompatible damaged facing closures.

Emergency response

Stop work and clear the area after a fall hazard, sharp injury or chemical exposure. Use the product SDS and site eyewash/first-aid arrangements; call 911 for serious injury or breathing difficulty. Do not re-enter an affected enclosed area or improvise a height rescue. Trained responders use the planned access and rescue method.

9. Official sources and review limits

Official public-source check: October 14, 2026. The review concerns the selected passages described below, not endorsement of this article.

Selected public official provisions were checked on October 14, 2026. This is not a complete legal audit. No actual equipment manual, site measurements, engineering calculations, product certification or professional technical approval was supplied. Full paid NFPA/ANSI standards and state/local amendments were not reviewed. Check actual equipment, jurisdiction and project requirements before use.

This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.

10. PDF use and frequently asked questions

PDF A summarizes core controls; B emphasizes technical failures; C covers supervision, records and handover. Each uses six stages from or aligned with the eight-stage body. All actual risk, measurement, check and signature fields are blank. Use a separate linked record where more space is needed.

Can tape cover wet insulation?

Resolve the moisture source and material suitability before closing the assembly.

Is every foil tape compatible?

Use the tape or mastic specified for the facing and actual application conditions.

Does fiber protection also cover adhesive vapor?

Assess each exposure and select ventilation and protection for the product.

Can an access panel be wrapped shut?

Preserve the required inspection/service opening and seal its edges by the accepted detail.

Has a professional approved this JSA?

This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
