Continuous current rating and fault interruption capability are different. A breaker that physically fits may still be incompatible with the panel, available fault current, trip settings or coordinated protection.
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
Stop before proceeding
Hold work for unknown supplies or isolation boundaries, missing absence-of-voltage verification, unverified breaker/panel/terminal combinations, damaged conductors or insulation, undefined test scope or unresolved protection defects.
1. Legal and technical scope
Construction installation: 1926.403/.416/.417 address equipment suitability, exposure and circuit controls. General-industry electrical servicing instead requires the applicable 1910.303/.333 work practices. Qualified personnel verify all sources and the work point. NFPA 70 installation rules and NFPA 70E work practices require the applicable edition and scope; their paid full texts were not reviewed and they are not interchangeable with OSHA rules.
Confirm whether federal OSHA or an OSHA-approved State Plan covers this employer and worksite; state requirements and public-sector coverage can differ. Apply the task-specific provisions and limitations identified above.
| Basis | Application |
|---|---|
| OSHA 29 CFR 1926.403 | Listed/labeled use, interrupting ratings and equipment installation. |
| OSHA 29 CFR 1926.416 | Construction electrical-contact protection. |
| OSHA 29 CFR 1926.417 | Construction circuit controls and tags. |
| OSHA 29 CFR 1910.303 | General-industry equipment suitability and installation requirements. |
| OSHA 29 CFR 1910.333 | Qualified-person absence-of-voltage checks, backfeed and reenergization controls. The explicit before/after tester check in b(2)(iv)(B) is for over 600 V; this JSA uses a before/after instrument check as a conservative site practice, not a universal quotation of that threshold. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-12. Individual state rules require a site-specific check. |
2. Scope and required inputs
Included scope
Assemble approved breakers and internal conductors in an isolated low-voltage panelboard, verify the deenergized condition, inspect wiring and transfer to a separately controlled testing and energization process.
Separate assessment
Energized work, unapproved breaker substitution, bus modification, improvised neutral-ground connections and live commissioning are excluded.
| Input | Evidence needed |
|---|---|
| Plan components | Panel and breaker IDs; Fault duty and settings; UPS generator and PV; Approved circuit drawing. |
| Inspect interior | Isolation boundary; Parts and insulation; Clean interior; Safe working access. |
| Terminate wires | Wire size and material; Lug and torque record; Phase and circuit ID; Ground continuity. |
| Restore and release | Personnel clearance; Covers and barriers; Release procedure; Final circuit schedule. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Technical and procedural controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Plan components | 1. Fault not interrupted2. Conductor overheating3. Backfeed shock4. Grounding error | 1. Amp rating only2. Wire limit missed3. Alternate source missed4. Wrong bonding scheme | 1. Verify breaker listing2. Match wire protection3. Map every supply4. Check grounding design | 1. Panel and breaker IDs2. Fault duty and settings3. UPS generator and PV4. Approved circuit drawing | ||||
| 2. Isolate and test | 1. Electric shock2. Arc burn3. Stored charge4. False dead indication | 1. Handle position trusted2. Backfeed remains3. Time delay assumed4. Tester not checked | 1. Isolate all supplies2. Apply locks and tags3. Verify work-point voltage4. Prove tester operation | 1. Source isolation2. Qualified tester3. Absence-of-voltage record4. Stored-energy control | ||||
| 3. Inspect interior | 1. Adjacent live contact2. Insulation failure3. Metal short circuit4. Sharp-edge cut | 1. Boundary not guarded2. Damaged component3. Metal chips remain4. Poor hand protection | 1. Guard adjacent circuits2. Inspect insulation3. Remove conductive debris4. Protect panel edges | 1. Isolation boundary2. Parts and insulation3. Clean interior4. Safe working access | ||||
| 4. Mount breakers | 1. Dropped component2. Bus distortion3. Loose mounting4. Wrong protection | 1. No part support2. Improvised bus hole3. Missing fasteners4. Unapproved substitute | 1. Support components2. Use approved detail3. Check mounting method4. Use verified combinations | 1. Assembly support2. Bus contact surface3. Fastening specification4. Panel compatibility | ||||
| 5. Terminate wires | 1. Hot connection2. Loose terminal3. Circuit miswiring4. Lost fault path | 1. Cut strands2. Wrong crimp or torque3. Wrong circuit label4. Ground wire omitted | 1. Prepare specified conductors2. Use specified terminals3. Match circuit drawing4. Verify grounding path | 1. Wire size and material2. Lug and torque record3. Phase and circuit ID4. Ground continuity | ||||
| 6. Inspect dead work | 1. Short or ground fault2. Low insulation clearance3. Tool left inside4. Test damage | 1. Checks omitted2. Excess bare conductor3. No tool count4. Sensitive device connected | 1. Inspect wiring paths2. Verify insulation spacing3. Remove tools and metal4. Define test connections | 1. Wiring and bonding2. Barriers and clearance3. Tool inventory4. Isolated test devices | ||||
| 7. Test and rework | 1. Test-voltage shock2. Residual charge3. Unexpected energization4. Repeated defect | 1. Test area open2. Discharge unchecked3. Isolation not repeated4. Cause unresolved | 1. Control separate test2. Verify discharge3. Retest before re-entry4. Document repairs | 1. Test lead and boundary2. Discharge verification3. Source and lock state4. Reinspection result | ||||
| 8. Restore and release | 1. Person exposed2. Open enclosure3. Defect energized4. Wrong circuit operation | 1. Clearance not checked2. Missing cover screws3. Assembly equals approval4. Schedule not updated | 1. Clear people and tools2. Restore covers and doors3. Separate energization release4. Transfer circuit records | 1. Personnel clearance2. Covers and barriers3. Release procedure4. Final circuit schedule |
P = likelihood; S = severity; R = risk under the site method; A = the site-defined acceptance/authorization decision. Complete only after actual assessment. Blank cells and checklist prompts are not completed inspections.
4. Fictional scenario and failure mechanisms

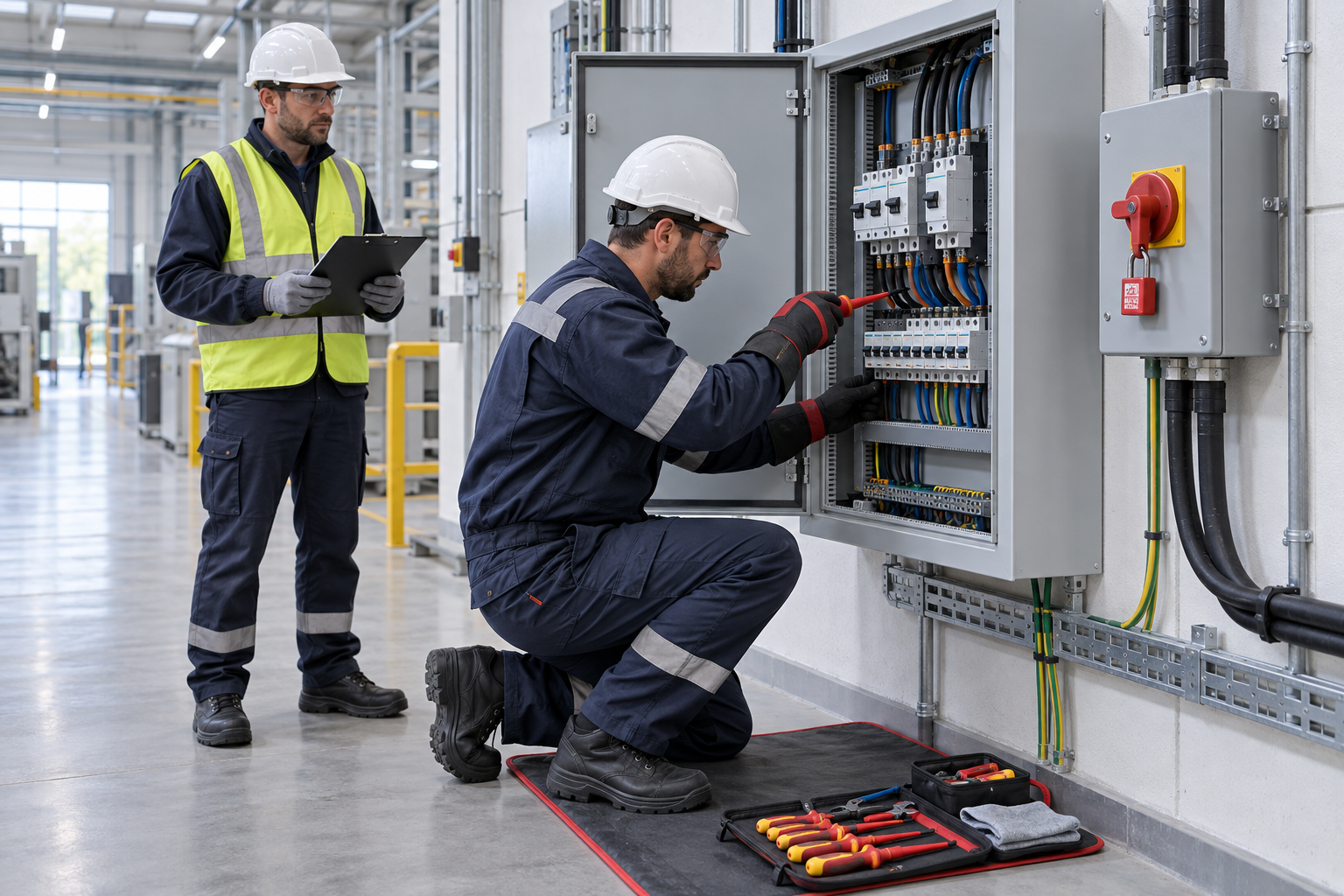

Retained AI-generated educational illustration from the source edition; not a real incident photograph, approved installation drawing or evidence of equipment suitability.
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Item | Fictional scenario |
|---|---|
| Initial | The specified breaker is unavailable during a planned deenergized installation. |
| Change | A similar-looking breaker with the same ampere rating is offered. |
| Failure | Physical fit and current rating are treated as full electrical and mechanical compatibility. |
| Outcome | A poor connection may overheat, while inadequate interrupting duty or coordination can fail under a fault. |
| Barrier | Hold substitution; verify listing, panel compatibility, fault rating, terminals and design approval, then complete installation checks and a separate energization release. |
Why the controls matter
Continuous current rating and fault interruption capability are different. A breaker that physically fits may still be incompatible with the panel, available fault current, trip settings or coordinated protection.
The permitted conductor material, size, count, lug preparation and tightening method are part of the approved connection. Do not turn a new-installation torque check into indiscriminate retightening of all existing joints.
Opening the main breaker may leave incoming terminals or generator, UPS, PV and control backfeeds energized. Qualified personnel identify all supplies and verify the actual work point with suitable tested equipment. A noncontact indication alone does not prove absence of voltage.
Neutral and equipment-grounding connections follow the approved system design. Tests need a defined scope, protected sensitive devices, discharge and restoration checks; a test record alone does not authorize energization.
Decision sequence
| Step | Decision |
|---|---|
| Known | A similar-looking breaker with the same ampere rating is offered. |
| Unknown | Actual condition, extent of damage and suitability of wire size and material, lug and torque record remain to be established. |
| Hold | Physical fit and current rating are treated as full electrical and mechanical compatibility. |
| Evidence | Link wire size and material, lug and torque record, phase and circuit id, ground continuity, test lead and boundary, discharge verification to the affected equipment or work area. |
| Next | Hold substitution; verify listing, panel compatibility, fault rating, terminals and design approval, then complete installation checks and a separate energization release. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Alternate breaker | Hold substitution | Panel listing and protection study | Compatibility verified |
| Sources unclear | Keep work on hold | Source map and voltage test | Isolation verified |
| Test planned | Define test and protected devices | Test plan and restoration list | Test boundary secured |
| Ready to energize | Close defects and restore barriers | Tools, covers and circuit schedule | Release authorized |
Similar appearance, different evidence
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Comparison | Supported decision | Insufficient basis |
|---|---|---|
| Condition | Panel listing and protection study | Alternate breaker has not been resolved. |
| Evidence | Test plan and restoration list | A photograph or a completed-looking task without the relevant inspection record. |
| Release | Release authorized | Completion of one step does not release the excluded tasks in section 2. |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Assign the task boundary, stop authority, interfaces and emergency communication for panelboard breaker assembly and wiring. |
| Technical lead | Confirm Panel and breaker IDs; Fault duty and settings; UPS generator and PV; Approved circuit drawing. Resolve design and manufacturer limits before work. |
| Authorized crew | Apply Isolation boundary; Parts and insulation; Clean interior; Safe working access. Stop when the working arrangement changes. |
| Inspector / receiving lead | Review Wire size and material; Lug and torque record; Phase and circuit ID; Ground continuity. Transfer Personnel clearance; Covers and barriers; Release procedure; Final circuit schedule. |
Role labels allocate responsibilities; they do not confer a legal qualification. Verify the competence, training and authority required for the actual task.
Record and handoff perspective
| Stage | Record controls | Verification |
|---|---|---|
| Plan components | 1. Record panel and breaker ids2. Record fault duty and settings3. Record ups generator and pv | 1. Fault duty and settings2. UPS generator and PV3. Approved circuit drawing |
| Inspect interior | 1. Record isolation boundary2. Record parts and insulation3. Record clean interior | 1. Parts and insulation2. Clean interior3. Safe working access |
| Mount breakers | 1. Record assembly support2. Record bus contact surface3. Record fastening specification | 1. Bus contact surface2. Fastening specification3. Panel compatibility |
| Terminate wires | 1. Record wire size and material2. Record lug and torque record3. Record phase and circuit id | 1. Lug and torque record2. Phase and circuit ID3. Ground continuity |
| Test and rework | 1. Record test lead and boundary2. Record discharge verification3. Record source and lock state | 1. Discharge verification2. Source and lock state3. Reinspection result |
| Restore and release | 1. Record personnel clearance2. Record covers and barriers3. Record release procedure | 1. Covers and barriers2. Release procedure3. Final circuit schedule |
7. Hold points and record comparison
| Hold point | Evidence before release | Actual record |
|---|---|---|
| HP-0 Start | Assemble approved breakers and internal conductors in an isolated low-voltage panelboard, verify the deenergized condition, inspect wiring and transfer to a separately controlled testing and energization process. | |
| HP-1 Isolate and test | Source isolation; Qualified tester; Absence-of-voltage record; Stored-energy control | |
| HP-2 Terminate wires | Wire size and material; Lug and torque record; Phase and circuit ID; Ground continuity | |
| HP-3 Inspect dead work | Wiring and bonding; Barriers and clearance; Tool inventory; Isolated test devices | |
| HP-4 Restore and release | Personnel clearance; Covers and barriers; Release procedure; Final circuit schedule |
These are internal hold points, not issued permits. Recheck affected points after a change, fault or shift handoff; link the actual approval record.
Record comparison
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
The boxes are static record prompts, not interactive or saved approvals. A tick does not establish suitability or permission to restart. Record the evidence, person, time and unresolved issues; retain the change history.
| Record | Insufficient | Record checklist |
|---|---|---|
| Plan components | "Checked" without target, criteria or result | □ Panel and breaker IDs□ Fault duty and settings□ UPS generator and PV□ Approved circuit drawing |
| Inspect interior | "Checked" without target, criteria or result | □ Isolation boundary□ Parts and insulation□ Clean interior□ Safe working access |
| Terminate wires | "Checked" without target, criteria or result | □ Wire size and material□ Lug and torque record□ Phase and circuit ID□ Ground continuity |
| Restore and release | "Checked" without target, criteria or result | □ Personnel clearance□ Covers and barriers□ Release procedure□ Final circuit schedule |
8. Site checklist and emergency response
| Check | Result | Person / action |
|---|---|---|
| □ Plan components: Panel and breaker IDs | ||
| □ Isolate and test: Source isolation | ||
| □ Inspect interior: Isolation boundary | ||
| □ Mount breakers: Assembly support | ||
| □ Terminate wires: Wire size and material | ||
| □ Inspect dead work: Wiring and bonding | ||
| □ Test and rework: Test lead and boundary | ||
| □ Restore and release: Personnel clearance | ||
| □ Emergency access and handoff restrictions |
Stop work
Hold work for unknown supplies or isolation boundaries, missing absence-of-voltage verification, unverified breaker/panel/terminal combinations, damaged conductors or insulation, undefined test scope or unresolved protection defects.
Emergency response
Stop from a safe location, exclude people from the affected danger zone and activate the site emergency plan. Call 911 for injury or immediate danger. Do not enter an unstable, energized or confined danger area for an improvised rescue; trained responders must control the specific energy and access hazards.
9. Sources and review limits
Public-source review: 2026-10-12. Official regulation pages and specific technical references are distinguished below; no agency or manufacturer has approved this content.
| Source | Reviewed scope and limitation |
|---|---|
| OSHA 29 CFR 1926.403 | Listed/labeled use, interrupting ratings and equipment installation. |
| OSHA 29 CFR 1926.416 | Construction electrical-contact protection. |
| OSHA 29 CFR 1926.417 | Construction circuit controls and tags. |
| OSHA 29 CFR 1910.303 | General-industry equipment suitability and installation requirements. |
| OSHA 29 CFR 1910.333 | Qualified-person absence-of-voltage checks, backfeed and reenergization controls. The explicit before/after tester check in b(2)(iv)(B) is for over 600 V; this JSA uses a before/after instrument check as a conservative site practice, not a universal quotation of that threshold. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-12. Individual state rules require a site-specific check. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
10. PDF guidance and FAQ
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
Content group
jsa-distributionboard-wiring
Are equal ampere ratings enough for substitution?
No. Verify voltage, interrupting duty, trip characteristics, panel compatibility and terminal conditions.
Does an open main breaker make the whole panel safe?
No. Incoming terminals and other supplies may remain energized; qualified personnel must verify the defined work point.
Can neutral and ground be bonded to improve protection?
Do not improvise a bond. Follow the actual approved grounding and bonding design.
Does a passed dead test authorize energization?
No. Verify restoration, personnel clearance, covers, updated circuit records and separate release authority.
Has a professional approved this JSA?
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
