The stud, ferrule, deck layers/coating, base steel and fit together define the welding combination. A trial on yesterday's combination does not validate today's overlap or changed supply condition.
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
Stop before proceeding
Stop if deck wet or loose, combination changed, fuel added below. Keep the affected operation on hold until the listed evidence and proceed conditions are satisfied; a low risk score does not release missing safeguards.
1. Legal and technical scope
Construction steel erection requires applicable Subpart R provisions. Under 1926.754(c), shear connectors are installed after metal decking using it as a working platform and are not installed on beams before erection. Apply 1926.352 fire prevention and the applicable welding/electrical/fall controls. The product guide for 3/4-inch studs and its older AWS references do not establish universal settings, test frequency or acceptance criteria.
Confirm whether federal OSHA or an OSHA-approved State Plan covers this employer and worksite; state requirements and public-sector coverage can differ. Apply the task-specific provisions and limitations identified above.
| Basis | Application |
|---|---|
| OSHA 29 CFR 1926.754 | Structural steel assembly and shear connector installation under paragraph (c). |
| OSHA 29 CFR 1926.352 | Construction fire prevention, adjacent hazards and fire watch. |
| Stud Welding Products through-deck guide | Product-specific fit, dry surfaces, return circuit and trial/production checks reviewed 2026-10-13; numerical settings and older code references not generalized. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-13. Individual state rules require a site-specific check. |
2. Scope and required inputs
Included scope
Perform approved through-deck or exposed-base structural stud welding, with representative trial welds, production inspection, repairs and release before concrete placement.
Separate assessment
Unapproved multilayer deck combinations, bolt tightening, different coatings or materials and structural retrofits require separate review.
| Input | Evidence needed |
|---|---|
| Confirm combination | Stud and ferrule; Deck and base steel; Platform condition; Procedure and inspection. |
| Check power and gun | Supply and grounding; Return connection; Gun and ferrule; Cable condition. |
| Weld production | Watch and lower area; Fume controls; Current and weld trend; Stud location record. |
| Release for concrete | Inspection closure; Fire-watch completion; Deck housekeeping; Pour-release record. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Technical and procedural controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Confirm combination | 1. Weak stud weld2. Deck failure3. Trip on connector4. Wrong production scope | 1. Layers unapproved2. Deck incomplete3. Studs erected on beam4. Trial not representative | 1. Match approved combination2. Verify secured work platform3. Apply erection sequence4. Define trial coverage | 1. Stud and ferrule2. Deck and base steel3. Platform condition4. Procedure and inspection | ||||
| 2. Prepare fire area | 1. Fire below2. Arc exposure3. Edge fall4. Fume exposure | 1. Lower fuel hidden2. Screen absent3. Opening unprotected4. Ventilation changed | 1. Inspect all spark paths2. Screen neighboring trades3. Protect edges and holes4. Assess fume controls | 1. Lower-level survey2. Fire watch and equipment3. Access protection4. Airflow and PPE | ||||
| 3. Check power and gun | 1. Electric shock2. Weak weld3. Unexpected discharge4. Cable trip | 1. Insulation damaged2. Return poor3. Gun setup wrong4. Cables crossed | 1. Inspect power protection2. Verify welding return3. Set gun per procedure4. Protect cable route | 1. Supply and grounding2. Return connection3. Gun and ferrule4. Cable condition | ||||
| 4. Prepare and test | 1. Defective fusion2. Metal ejection3. Burn4. False trial release | 1. Gap under deck2. Wet surface3. Wrong settings4. Test range unrecorded | 1. Check tight dry fit2. Clean joint zone3. Make specified trial4. Record actual combination | 1. Surface and fit2. Settings and supply3. Trial result4. Applicable production area | ||||
| 5. Weld production | 1. Fire2. Fume exposure3. Weld inconsistency4. Hand burn | 1. Conditions change2. Coating unassessed3. Cable heating4. Hot stud touched | 1. Maintain fire controls2. Use planned extraction3. Monitor welding condition4. Protect hot zone | 1. Watch and lower area2. Fume controls3. Current and weld trend4. Stud location record | ||||
| 6. Inspect and repair | 1. Defect concealed2. Hot fragment3. Repeat poor weld4. Wrong repair location | 1. Appearance alone2. Ferrule broken unsafely3. Cause not resolved4. Map missing | 1. Use specified inspection2. Control cooled fragments3. Apply approved repair4. Mark affected studs | 1. Inspection method2. Defect map3. Repair procedure4. Retest result | ||||
| 7. Hold changed conditions | 1. Hidden fire2. Unqualified combination3. Premature restart4. Escape blocked | 1. Packing moved2. Layers changed3. Old approval reused4. Screen moved | 1. Stop affected welding2. Review fire and quality3. Recheck trial scope4. Restore safe routes | 1. Changed area2. Material and settings3. New evidence4. Restart decision | ||||
| 8. Release for concrete | 1. Defect covered2. Smoldering fire3. Sharp debris4. Lost weld record | 1. Pour starts early2. Post-work check missed3. Ferrules scattered4. IDs disconnected | 1. Close weld defects2. Complete fire checks3. Clear sharp debris4. Transfer location records | 1. Inspection closure2. Fire-watch completion3. Deck housekeeping4. Pour-release record |
P = likelihood; S = severity; R = risk under the site method; A = the site-defined acceptance/authorization decision. Complete only after actual assessment. Blank cells and checklist prompts are not completed inspections.
4. Fictional scenario and failure mechanisms

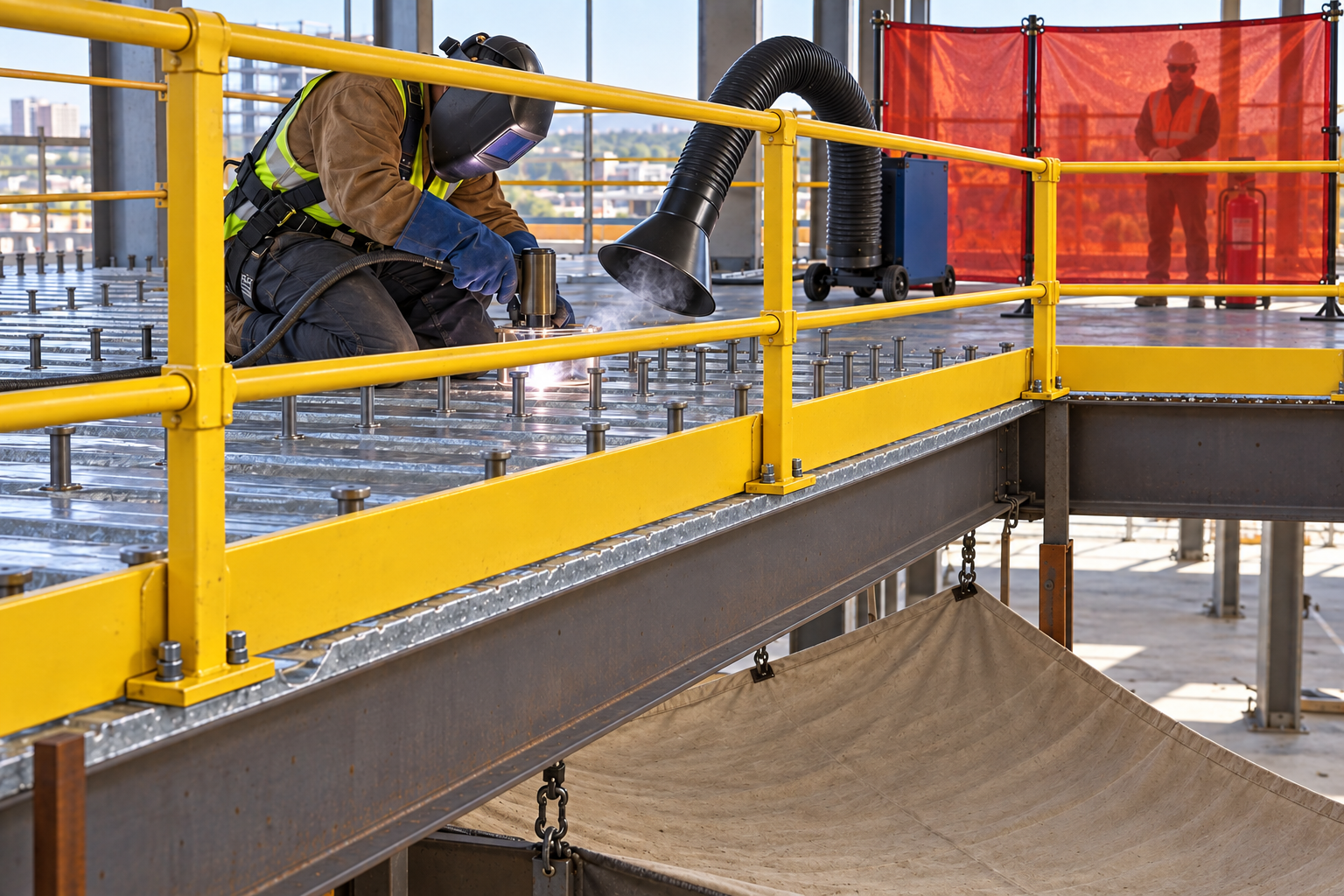

Retained AI-generated educational illustration from the source edition; not a real incident photograph, approved installation drawing or evidence of equipment suitability.
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Item | Fictional scenario |
|---|---|
| Initial | Stud welding starts above a cleared lower level. |
| Change | Another trade brings packaging below and moves a screen. |
| Failure | The initial fire check is assumed to remain valid. |
| Outcome | Sparks through deck gaps can start a hidden fire despite acceptable studs. |
| Barrier | Hold welding, inspect the changed lower area and restore fire controls; review trial-weld coverage separately if the combination changed. |
Why the controls matter
The stud, ferrule, deck layers/coating, base steel and fit together define the welding combination. A trial on yesterday's combination does not validate today's overlap or changed supply condition.
The welding return circuit and protective grounding serve different functions. Verify both against the actual equipment; a good weld-return connection alone does not prove shock protection.
Weld appearance and fire safety are separate decisions. Sparks can pass through deck joints to lower floors; changes to packaging, screens or airflow require a new fire review even after acceptable weld inspection.
Decision sequence
| Step | Decision |
|---|---|
| Known | Another trade brings packaging below and moves a screen. |
| Unknown | Actual condition, extent of damage and suitability of watch and lower area, fume controls remain to be established. |
| Hold | The initial fire check is assumed to remain valid. |
| Evidence | Link watch and lower area, fume controls, current and weld trend, stud location record, changed area, material and settings to the affected equipment or work area. |
| Next | Hold welding, inspect the changed lower area and restore fire controls; review trial-weld coverage separately if the combination changed. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Deck wet or loose | Hold welding | Dry fit and surface check | Preparation accepted |
| Combination changed | Review trial coverage | Material and setup records | Combination qualified |
| Fuel added below | Recheck spark paths | Lower-level fire survey | Fire controls restored |
| Defect to be covered | Hold concrete placement | Repair and retest map | Open defects closed |
Similar appearance, different evidence
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Comparison | Supported decision | Insufficient basis |
|---|---|---|
| Condition | Dry fit and surface check | Deck wet or loose has not been resolved. |
| Evidence | Lower-level fire survey | A photograph or a completed-looking task without the relevant inspection record. |
| Release | Open defects closed | Completion of one step does not release the excluded tasks in section 2. |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Assign the task boundary, stop authority, interfaces and emergency communication for steel deck shear stud welding. |
| Technical lead | Confirm Stud and ferrule; Deck and base steel; Platform condition; Procedure and inspection. Resolve design and manufacturer limits before work. |
| Authorized crew | Apply Supply and grounding; Return connection; Gun and ferrule; Cable condition. Stop when the working arrangement changes. |
| Inspector / receiving lead | Review Watch and lower area; Fume controls; Current and weld trend; Stud location record. Transfer Inspection closure; Fire-watch completion; Deck housekeeping; Pour-release record. |
Role labels allocate responsibilities; they do not confer a legal qualification. Verify the competence, training and authority required for the actual task.
Record and handoff perspective
| Stage | Record controls | Verification |
|---|---|---|
| Confirm combination | 1. Record stud and ferrule2. Record deck and base steel3. Record platform condition | 1. Deck and base steel2. Platform condition3. Procedure and inspection |
| Check power and gun | 1. Record supply and grounding2. Record return connection3. Record gun and ferrule | 1. Return connection2. Gun and ferrule3. Cable condition |
| Prepare and test | 1. Record surface and fit2. Record settings and supply3. Record trial result | 1. Settings and supply2. Trial result3. Applicable production area |
| Weld production | 1. Record watch and lower area2. Record fume controls3. Record current and weld trend | 1. Fume controls2. Current and weld trend3. Stud location record |
| Hold changed conditions | 1. Record changed area2. Record material and settings3. Record new evidence | 1. Material and settings2. New evidence3. Restart decision |
| Release for concrete | 1. Record inspection closure2. Record fire-watch completion3. Record deck housekeeping | 1. Fire-watch completion2. Deck housekeeping3. Pour-release record |
7. Hold points and record comparison
| Hold point | Evidence before release | Actual record |
|---|---|---|
| HP-0 Start | Perform approved through-deck or exposed-base structural stud welding, with representative trial welds, production inspection, repairs and release before concrete placement. | |
| HP-1 Confirm combination | Stud and ferrule; Deck and base steel; Platform condition; Procedure and inspection | |
| HP-2 Prepare fire area | Lower-level survey; Fire watch and equipment; Access protection; Airflow and PPE | |
| HP-3 Prepare and test | Surface and fit; Settings and supply; Trial result; Applicable production area | |
| HP-4 Release for concrete | Inspection closure; Fire-watch completion; Deck housekeeping; Pour-release record |
These are internal hold points, not issued permits. Recheck affected points after a change, fault or shift handoff; link the actual approval record.
Record comparison
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
The boxes are static record prompts, not interactive or saved approvals. A tick does not establish suitability or permission to restart. Record the evidence, person, time and unresolved issues; retain the change history.
| Record | Insufficient | Record checklist |
|---|---|---|
| Confirm combination | "Checked" without target, criteria or result | □ Stud and ferrule□ Deck and base steel□ Platform condition□ Procedure and inspection |
| Check power and gun | "Checked" without target, criteria or result | □ Supply and grounding□ Return connection□ Gun and ferrule□ Cable condition |
| Weld production | "Checked" without target, criteria or result | □ Watch and lower area□ Fume controls□ Current and weld trend□ Stud location record |
| Release for concrete | "Checked" without target, criteria or result | □ Inspection closure□ Fire-watch completion□ Deck housekeeping□ Pour-release record |
8. Site checklist and emergency response
| Check | Result | Person / action |
|---|---|---|
| □ Confirm combination: Stud and ferrule | ||
| □ Prepare fire area: Lower-level survey | ||
| □ Check power and gun: Supply and grounding | ||
| □ Prepare and test: Surface and fit | ||
| □ Weld production: Watch and lower area | ||
| □ Inspect and repair: Inspection method | ||
| □ Hold changed conditions: Changed area | ||
| □ Release for concrete: Inspection closure | ||
| □ Emergency access and handoff restrictions |
Stop work
Stop if deck wet or loose, combination changed, fuel added below. Keep the affected operation on hold until the listed evidence and proceed conditions are satisfied; a low risk score does not release missing safeguards.
Emergency response
Stop from a safe location, exclude people from the affected danger zone and activate the site emergency plan. Call 911 for injury or immediate danger. Do not enter an unstable, energized or confined danger area for an improvised rescue; trained responders must control the specific energy and access hazards.
9. Sources and review limits
Public-source review: 2026-10-14. Official regulation pages and specific technical references are distinguished below; no agency or manufacturer has approved this content.
| Source | Reviewed scope and limitation |
|---|---|
| OSHA 29 CFR 1926.754 | Structural steel assembly and shear connector installation under paragraph (c). |
| OSHA 29 CFR 1926.352 | Construction fire prevention, adjacent hazards and fire watch. |
| Stud Welding Products through-deck guide | Product-specific fit, dry surfaces, return circuit and trial/production checks reviewed 2026-10-13; numerical settings and older code references not generalized. |
| OSHA State Plans | Official overview of federal and State Plan jurisdiction and differing public-sector coverage, checked 2026-10-13. Individual state rules require a site-specific check. |
No site measurements, equipment manuals for the actual installation, inspection records or signed technical approvals were supplied. Confirm the applicable requirements and actual product instructions before use; record each criterion with its units, source and equipment or work-area ID.
10. PDF guidance and FAQ
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
Content group
jsa-deckstud-welding
Does a good bead prove joint capacity?
No. Use required trial, production inspection and acceptance criteria.
Can the same settings cover any deck overlap?
No. Verify the actual approved material and layer combination.
Is welding return the same as protective grounding?
No. Check their different functions separately.
Does upper-deck inspection release fire watch?
No. Follow the applicable fire and post-work inspection requirements.
Has a professional approved this JSA?
This reference material was written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site approval are necessary before field use.
