Steel Deck Bundle Lifting and Placement JSA

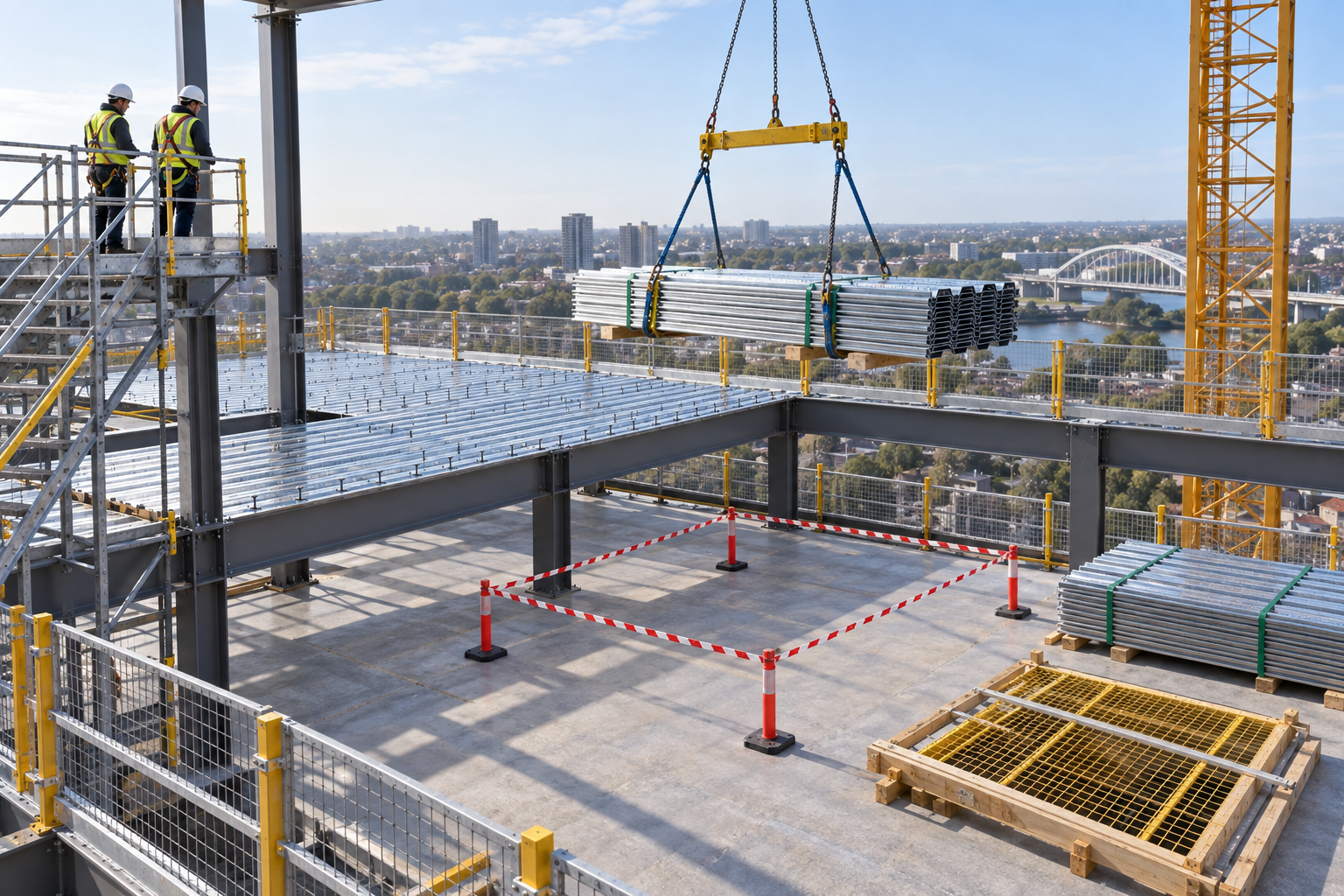

Receiving and lifting steel deck bundles onto framing, spreading sheets, securing them, protecting openings and handing the installed deck to the next trade. Review the temporary load path at every stage.

Stop for unverified bundle location or support capacity, sheet uplift, missing attachment, lost bearing, damaged decking or removed opening protection. Control the affected access and area below.

Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.

1. Legal and technical scope

For steel erection within Subpart R, OSHA 1926.754(e) addresses metal decking and openings, and 1926.760 governs fall protection. This plan uses protected access and immediate securing; it does not establish or authorize a controlled decking zone. Any proposed exception requires its own applicable conditions and training review. Other construction methods may require different Part 1926 provisions. Design and product requirements supply the actual bearing, fastening, shoring and loading details.

Determine Federal OSHA or the applicable OSHA-approved State Plan, including public/private employer coverage. State Plans must be at least as effective and can impose different or additional requirements. The actual activity determines construction versus general-industry scope. Manufacturer instructions, consensus standards, project design and site approvals have distinct roles; this page is not a finding of nationwide compliance.

2. Scope and required inputs

Included: Receiving and lifting steel deck bundles onto framing, spreading sheets, securing them, protecting openings and handing the installed deck to the next trade. Review the temporary load path at every stage.

Separate review: Shear-stud welding, concrete placement, unplanned cutting or openings, changed bundle locations and changes to shoring need separate review. Completed composite-slab capacity is not the capacity of uncompleted decking.

Confirm deck type, bearing, support spacing, bundle locations, attachments, shoring and weather limits from the erection design. Provide appropriate fall protection, rescue arrangements and sharp-edge handling protection. Record the construction-stage values and drawing revisions; do not use finished-slab capacity.

3. Eight-stage JSA

P = likelihood; S = severity; R = risk under the site method; A = acceptance or authorization as defined by the site. Leave these blank until actual assessment and control verification. A low score does not override a legal requirement, product limit or unreleased hold point.

4. Hypothetical scenario and failure mechanisms

The following scenario, comparisons and example records are hypothetical teaching material. They do not reproduce actual incidents, measurements, signatures or approvals.

Bundle loads act through narrow bearing areas. Dividing their weight by the whole floor area hides local deck and beam effects. Check actual bundle mass, framing support, simultaneous loads and the installation stage.

A sheet that spans two members can still move or lift before securing. Bearing, orientation, overlap and attachment state determine what access is acceptable. Plan continuous fall protection and safe installation access rather than using loose sheets as a shortcut.

Welds, screws and other fasteners have different inspection criteria. A visible connection is not proof of the specified location, quantity or quality. Secure cut pieces and protect openings as they are created under the approved sequence.

Construction-stage deck, shoring and wet-concrete loads differ from the finished composite slab. Transfer damage, incomplete fasteners, shoring restrictions, loading areas and pour-sequence limits before the next operation.

5. Conditional decisions and common errors

6. Roles and responsibilities

These are responsibility examples, not invented statutory credentials. Meet the actual training, competent-person, qualified-person and licensing requirements for the assigned work. Anyone may raise a hazard and request a stop; only the designated authority may release the affected stage after evidence is reviewed.

7. Hold points and record comparison

Hold points are internal evidence gates. They do not replace statutory permits or actual signatures. Recheck affected gates after a change, abnormal event or shift transfer. The blank record must identify the evidence, person, time, limits and release scope.

The □ boxes are static prompts, not saved or interactive approvals. Each checks one record element. A tick alone does not establish suitability or permission to restart. Link equipment IDs and supporting records; retain unresolved matters and the earlier record when conditions change.

8. Site checklist and emergency response

Stop work: Stop for unverified bundle location or support capacity, sheet uplift, missing attachment, lost bearing, damaged decking or removed opening protection. Control the affected access and area below.

Emergency response: Withdraw from lifting, sliding or unstable sheets; do not catch a windblown panel by hand. Clear suspended-load and collapse areas. Do not use unverified deck as a rescue route. Activate the planned fall-rescue or emergency response and call 911 for injury or collapse.

9. Sources and review limits

Official-source review date: October 12, 2026. The following review is limited to the public provisions or selected manufacturer material identified below. It does not establish that any authority approved this article or the actual installation.

• OSHA 1926.754: Metal-deck bundles, securing, support and opening protection in steel erection; not a site load calculation.
• OSHA 1926.760: Steel-erection fall protection and limited controlled-decking-zone provisions; no CDZ authorization supplied.
• OSHA 1926.251: Construction rigging selection and inspection requirements.
• OSHA State Plans: jurisdiction and coverage overview; identify the actual state program before use.

Paid consensus standards and site-specific calculations, manuals, inspection records and product certificates were not independently obtained or verified unless specifically identified. Korean legal citations remain in the preserved Korean source as source history; they are not represented as US legal duties.

10. PDF guidance and FAQ

PDF A covers basic task controls; B examines technical failures; C focuses on supervision, evidence and handover. Each has six rows and three items per main cell. They are complementary extracts: apply all eight body stages and the applicable site procedure. An omitted stage is not permission to omit its controls. PDF HP-0 through HP-4 are worksheet labels; match the event, evidence and authority rather than assuming they match another permit by number.

P/S/R/A, actual measurements, confirmations and signatures remain blank. The PDFs are uncompleted reference worksheets, not issued work permits.

Content group ID: jsa-deckplate-placement

Can packaging straps be used to hoist the bundle?

Only if specifically designed for that purpose; ordinary packaging is not lifting gear.

May workers walk on deck as soon as it is spread?

Confirm full support, securing, the released route and applicable fall protection. Coverage alone is not a release.

Can the finished slab load chart approve a bundle before the pour?

No. Assess the actual construction-stage deck, framing, supports and concentrated loading.

Has a professional verified or approved this document?

No. This is AI-assisted reference material. Editorial and layout checks are not a physical inspection or professional technical approval. Obtain qualified professional review and required site approval before use.

11. Revision history and authorship

Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.

This system has not physically inspected the equipment, structures, ground, atmosphere or worksite. The document does not replace legal advice, manufacturer procedures, engineering design, inspection certificates, qualification evidence, the site risk assessment or an actual work permit.

Before use, a suitably qualified and authorized person must review the actual equipment, loads, methods, protection, inspection and emergency arrangements and resolve open issues. Record the real reviewer, organization, qualifications, delegated authority, reviewed documents, date, signature, exclusions and conditions of approval separately.
