Installation of identified overhead-crane runway rails, pads and clips with temporary support, alignment, final fastening, joint and end-device inspection and a separate operational handover.
Hold for unclear adjacent-crane or electrical boundaries, inadequate elevated access, lost signals, moved survey datums, unstable rails, defective temporary supports or clips and unexplained movement during tightening.
Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.
1. Legal and technical scope
Determine whether the actual activity is construction installation or general-industry maintenance. Apply the corresponding access, fall and electrical provisions. For covered overhead-crane maintenance, OSHA 1910.179(l)(2) includes lockable isolation and suitable prevention of interference by other cranes on the same runway. Construction installation uses the applicable Part 1926 provisions; the maintenance citation is not a blanket substitution for them.
Determine Federal OSHA or the applicable OSHA-approved State Plan, including public/private employer coverage. State Plans must be at least as effective and can impose different or additional requirements. The actual activity determines construction versus general-industry scope. Manufacturer instructions, consensus standards, project design and site approvals have distinct roles; this page is not a finding of nationwide compliance.
| Basis | Application and limits |
|---|---|
| OSHA 1910.179 | Selected overhead-crane maintenance precautions, shared-runway interference prevention and restoration before operation. |
| OSHA 1926.501 | Applicable construction walking-surface integrity and fall protection; access equipment has its own requirements. |
| OSHA 1926.251 | Construction rigging controls where applicable. |
| Gantrail technical resources | Resource index separates clip-specific datasheets, tightening and temperature guidance. No particular clip installation PDF, torque or project tolerance is represented as verified here. |
2. Scope and required inputs
Included: Installation of identified overhead-crane runway rails, pads and clips with temporary support, alignment, final fastening, joint and end-device inspection and a separate operational handover.
Separate review: Work without controlled adjacent-crane boundaries, unapproved rail or beam cutting and welding, crane load testing and operating authorization require separate procedures.
| Input | Required evidence |
|---|---|
| Review runway and operations | Runway and design evidence; Affected crane IDs and travel; Rail section and gauge basis; Power and conductor boundaries |
| Inspect rails and parts | Material identity and condition; Clip pad and drawing match; Mass center and lift points; Datum and instrument records |
| Align and fasten | Measurements and tolerances; Pad shim and support contact; Tool and fastening method; Joint and movement provisions |
| Survey and hand over | Final gauge line and level; Tools and material count; Guards and access condition; Inspection test and operating status |
Obtain runway design and current drawings, all cranes sharing the runway, conductor and common supply boundaries, rail section and pad/clip combination, joint and expansion details, lifting and support method, survey datums and actual tolerances and fastening instructions. Do not invent gauge, joint gap, torque or clip interchangeability.
3. Eight-stage JSA
P = likelihood; S = severity; R = risk under the site method; A = acceptance or authorization as defined by the site. Leave these blank until actual assessment and control verification. A low score does not override a legal requirement, product limit or unreleased hold point.
| Job stage | Hazards and effects | Failure factors | Required controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Review runway and operations | 1. Support failure2. Adjacent-crane collision3. Wheel loading defect4. Electric shock | 1. Runway design absent2. Operations not coordinated3. Wrong rail section4. Supply boundary unknown | 1. Review support and design2. Coordinate all affected cranes3. Match current rail drawings4. Plan electrical boundaries | 1. Runway and design evidence2. Affected crane IDs and travel3. Rail section and gauge basis4. Power and conductor boundaries | ||||
| 2. Isolate and protect access | 1. Unexpected crane approach2. Elevated fall3. Falling-tool strike4. Electrical contact | 1. Signs used as sole barrier2. Access platform incomplete3. People remain below4. Electrical state unverified | 1. Prevent affected crane movements2. Provide suitable protected access3. Exclude lower fall zone4. Verify required electrical isolation | 1. Movement and power controls2. Access fall protection and rescue3. Clear area below4. Electrical verification and limits | ||||
| 3. Inspect rails and parts | 1. Rail defect failure2. Clip release3. Dropped long member4. Survey error | 1. Damage not inspected2. Pads or clips mixed3. Rigging unsuitable4. Datum unstable | 1. Inspect rails and joints2. Match clip and pad combination3. Review long-member lift4. Establish protected survey datums | 1. Material identity and condition2. Clip pad and drawing match3. Mass center and lift points4. Datum and instrument records | ||||
| 4. Lift and temporarily place | 1. Rail rotation2. Rolling rail3. Worker struck below4. Pinched hands | 1. Balance unverified2. Roll restraint absent3. Zone reopened early4. Hands align unsupported rail | 1. Check balance within lift plan2. Provide accepted temporary restraint3. Maintain lower exclusion4. Use appropriate alignment tools | 1. Lift posture and support2. Temporary restraints and sequence3. Signals and clear zone4. People outside pinch path | ||||
| 5. Align and fasten | 1. Incorrect gauge2. Support gap3. Reaction-tool crush4. Unwanted rail stress | 1. Rail forced into position2. Wrong shims or pads3. Reaction point unsuitable4. Expansion detail altered | 1. Survey line level and gauge2. Verify specified contact and pads3. Control tool reaction zone4. Preserve designed joint conditions | 1. Measurements and tolerances2. Pad shim and support contact3. Tool and fastening method4. Joint and movement provisions | ||||
| 6. Inspect joints and ends | 1. End overrun2. Loose rail fastening3. Conductor interference4. Unapproved repair hazard | 1. End device missing2. Tightening evidence absent3. Travel clearance unreviewed4. Field welding improvised | 1. Inspect specified end devices2. Record clips and joints3. Check required clearances4. Hold unapproved modifications | 1. End-device design and checks2. Clip and joint records3. Conductor and structure clearance4. Separate repair disposition | ||||
| 7. Correct defects safely | 1. Sudden rail shift2. Fall during rework3. Adjacent crane intrusion4. Partial support collapse | 1. All clips released together2. Access changed without review3. Isolation lost at shift change4. Release sequence absent | 1. Plan support and release order2. Maintain protected access3. Reverify movement isolation4. Accept revised correction method | 1. Residual stress and support2. Access and fall protection3. Crane and power boundary4. Correction and restart authority | ||||
| 8. Survey and hand over | 1. Derailment2. Dropped leftover tools3. Electrical exposure4. Unauthorized operation | 1. Temporary survey used as final2. Loose items remain3. Protection not restored4. Test acceptance omitted | 1. Record final tightened survey2. Account for tools and materials3. Restore protective configuration4. Separate test and operating release | 1. Final gauge line and level2. Tools and material count3. Guards and access condition4. Inspection test and operating status |
4. Hypothetical scenario and failure mechanisms

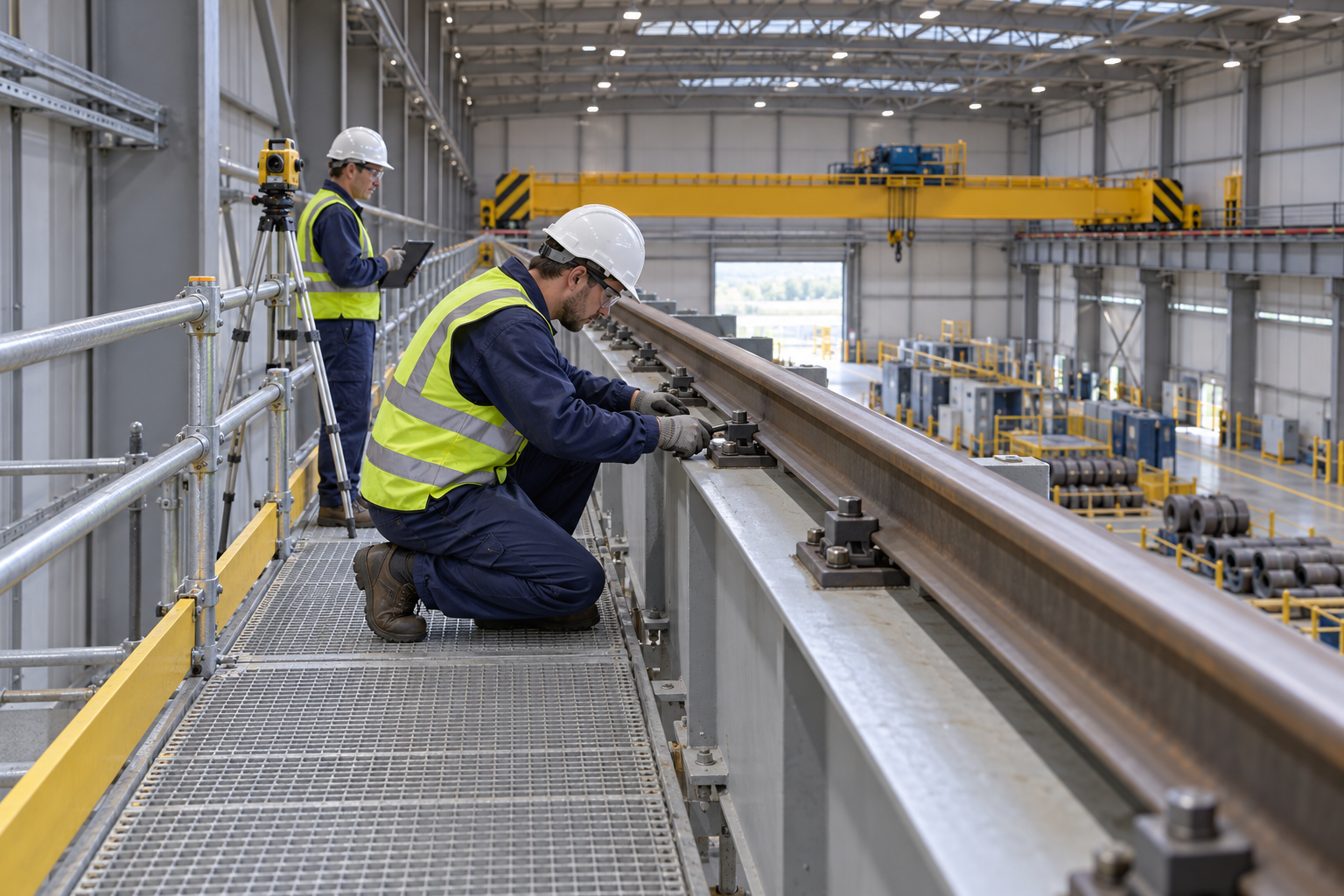

Retained source illustration: an AI-generated educational concept, not a real incident photograph or evidence of equipment suitability.The following scenario, comparisons and example records are hypothetical teaching material. They do not reproduce actual incidents, measurements, signatures or approvals.
| Item | Hypothetical situation |
|---|---|
| Initial state | A crane is stopped while its runway rail is being aligned. |
| Change | Another crane on the shared runway can still approach the work area. |
| Failure path | The isolation boundary covered only the first crane and not the shared approach or conductor system. |
| Possible harm | The approaching crane can strike workers or temporary rail, causing crushing or a fall. |
| Barrier | Suspend access, establish verified movement and electrical boundaries for all affected equipment and restore the protected work zone before resuming. |
Stopping one crane does not prevent another crane using the same runway from entering the work area. Map every affected movement and supply, coordinate operations and verify the actual barriers and isolation before elevated access.
A long rail placed on a few supports can roll, tilt or shift when clips are loosened. Review temporary stability and the order in which load transfers between lifting gear, supports and final fixings. Keep hands out of the alignment and release path.
Gauge, line and level measurements are comparable only when datum, location, instrument and installation state are recorded. Fastening can change alignment; repeat the required survey in the final tightened state rather than using temporary-placement values as final results.
Rail, pad, clip, support and joint details form a designed system. Do not mix similar-looking components or weld a gap intended to accommodate movement. Completed geometry checks do not replace end-device, clearance, protective-function and operational acceptance.
| Decision | Reason and evidence |
|---|---|
| Known facts | Another crane on the shared runway can still approach the work area. |
| Unresolved | The isolation boundary covered only the first crane and not the shared approach or conductor system. |
| Hold reason | Hold for unclear adjacent-crane or electrical boundaries, inadequate elevated access, lost signals, moved survey datums, unstable rails, defective temporary supports or clips and unexplained movement during tightening. |
| Evidence needed | Measurements and tolerances; Pad shim and support contact; Tool and fastening method; Joint and movement provisions. |
| Next decision | Suspend access, establish verified movement and electrical boundaries for all affected equipment and restore the protected work zone before resuming. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Adjacent travel remains | Hold access until boundaries are effective. | Crane movement and isolation map. | Intrusion prevented. |
| Rail temporarily placed | Retain accepted restraint and support. | Support and connection sequence. | Temporary stability accepted. |
| Tightening changes position | Recheck datum and survey. | Final gauge line and level. | Final geometry accepted. |
| Survey complete | Inspect remaining operational interfaces. | End devices, guards and test status. | Separate release obtained. |
| Comparison | Situation A | Situation B |
|---|---|---|
| Same recorded gauge | Datum, location and final tightened condition are identified. | Only an unlocated temporary-assembly value is recorded. |
| Work crane stopped | Adjacent travel and conductor hazards are controlled. | The shared runway remains accessible to another crane. |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Confirm scope, task sequence, exclusion and stop authority. Coordinate review runway and operations with affected operations. |
| Technical reviewer | Resolve the actual design and equipment limits: Runway and design evidence; Affected crane IDs and travel; Rail section and gauge basis; Power and conductor boundaries. |
| Work crew | Perform inspect rails and parts using the approved procedure; report any mismatch before proceeding. |
| Inspector / assessor | Verify End-device design and checks; Clip and joint records; Conductor and structure clearance; Separate repair disposition. Record what was actually checked and what remains unresolved. |
| Release / receiving authority | Confirm Final gauge line and level; Tools and material count; Guards and access condition; Inspection test and operating status. Transfer restrictions and the next permitted stage. |
These are responsibility examples, not invented statutory credentials. Meet the actual training, competent-person, qualified-person and licensing requirements for the assigned work. Anyone may raise a hazard and request a stop; only the designated authority may release the affected stage after evidence is reviewed.
7. Hold points and record comparison
| Hold point | Evidence before release | Confirmation / approval |
|---|---|---|
| HP-0 Start | Scope, jurisdiction, equipment identity, responsible people and emergency arrangements. | |
| HP-1 Isolate and protect access | Movement and power controls; Access fall protection and rescue; Clear area below; Electrical verification and limits | |
| HP-2 Lift and temporarily place | Lift posture and support; Temporary restraints and sequence; Signals and clear zone; People outside pinch path | |
| HP-3 Inspect joints and ends | End-device design and checks; Clip and joint records; Conductor and structure clearance; Separate repair disposition | |
| HP-4 Survey and hand over | Final gauge line and level; Tools and material count; Guards and access condition; Inspection test and operating status |
Hold points are internal evidence gates. They do not replace statutory permits or actual signatures. Recheck affected gates after a change, abnormal event or shift transfer. The blank record must identify the evidence, person, time, limits and release scope.
| Record | Insufficient record | Record checklist |
|---|---|---|
| Boundary | Crane stopped | □ Movement and power controls□ Access fall protection and rescue□ Clear area below□ Electrical verification and limits |
| Parts | Rail installed | □ Material identity and condition□ Clip pad and drawing match□ Mass center and lift points□ Datum and instrument records |
| Survey | Gauge normal | □ Measurements and tolerances□ Pad shim and support contact□ Tool and fastening method□ Joint and movement provisions |
| Release | Ready to run | □ Final gauge line and level□ Tools and material count□ Guards and access condition□ Inspection test and operating status |
The □ boxes are static prompts, not saved or interactive approvals. Each checks one record element. A tick alone does not establish suitability or permission to restart. Link equipment IDs and supporting records; retain unresolved matters and the earlier record when conditions change.
8. Site checklist and emergency response
| Check item | Result | Person / action |
|---|---|---|
| Runway and design evidence | ||
| Movement and power controls | ||
| Material identity and condition | ||
| Lift posture and support | ||
| Measurements and tolerances | ||
| End-device design and checks | ||
| Residual stress and support | ||
| Final gauge line and level | ||
| Emergency arrangements and unresolved restrictions communicated |
Stop work: Hold for unclear adjacent-crane or electrical boundaries, inadequate elevated access, lost signals, moved survey datums, unstable rails, defective temporary supports or clips and unexplained movement during tightening.
Emergency response: Stop affected crane movements by the agreed emergency signal and withdraw through protected access. Do not catch a moving rail or climb onto an unstable beam. Call 911 for serious fall or crush injury and control electricity and further travel before the planned rescue.
9. Sources and review limits
Official-source review date: October 14, 2026. The following review is limited to the public provisions or selected manufacturer material identified below. It does not establish that any authority approved this article or the actual installation.
- OSHA 1910.179: Selected overhead-crane maintenance precautions, shared-runway interference prevention and restoration before operation.
- OSHA 1926.501: Applicable construction walking-surface integrity and fall protection; access equipment has its own requirements.
- OSHA 1926.251: Construction rigging controls where applicable.
- Gantrail technical resources: Resource index separates clip-specific datasheets, tightening and temperature guidance. No particular clip installation PDF, torque or project tolerance is represented as verified here.
- OSHA State Plans: jurisdiction and coverage overview; identify the actual state program before use.
Paid consensus standards and site-specific calculations, manuals, inspection records and product certificates were not independently obtained or verified unless specifically identified. Korean legal citations remain in the preserved Korean source as source history; they are not represented as US legal duties.
10. PDF guidance and FAQ
PDF A covers basic task controls; B examines technical failures; C focuses on supervision, evidence and handover. Each has six rows and three items per main cell. They are complementary extracts: apply all eight body stages and the applicable site procedure. An omitted stage is not permission to omit its controls. PDF HP-0 through HP-4 are worksheet labels; match the event, evidence and authority rather than assuming they match another permit by number.
P/S/R/A, actual measurements, confirmations and signatures remain blank. The PDFs are uncompleted reference worksheets, not issued work permits.
Content group ID: jsa-cranerail-installation
Is stopping the work crane sufficient?
No. Control all affected cranes on the shared runway and the electrical conductor boundary.
Must alignment be checked after tightening?
Confirm the required final-state survey because fastening can change geometry.
Can similar clips be substituted?
Only with accepted compatibility for the actual rail, pad, support and loading design.
Does completed surveying authorize crane operation?
No. End devices, clearances, protection, required tests and operational handover remain separate gates.
Has a professional verified or approved this document?
No. This is AI-assisted reference material. Editorial and layout checks are not a physical inspection or professional technical approval. Obtain qualified professional review and required site approval before use.
11. Revision history and authorship
Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.
This system has not physically inspected the equipment, structures, ground, atmosphere or worksite. The document does not replace legal advice, manufacturer procedures, engineering design, inspection certificates, qualification evidence, the site risk assessment or an actual work permit.
Before use, a suitably qualified and authorized person must review the actual equipment, loads, methods, protection, inspection and emergency arrangements and resolve open issues. Record the real reviewer, organization, qualifications, delegated authority, reviewed documents, date, signature, exclusions and conditions of approval separately.
