Fastening and removing specified screws in secured ordinary workpieces at a dry indoor ground-level bench using a removable-battery rotary drill-driver. Match the assembly instruction, screw, bit and inspection method.
Stop for uncertain screw or bit compatibility, poor workholding, battery damage, switch faults, slipping or binding bits, uncontrolled torque reaction, stripped threads, moving workpieces or abnormal heat, odor or smoke.
Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.
1. Legal and technical scope
For general-industry bench work, OSHA 1910.242 addresses safe tool condition and 1910.243 includes relevant powered-tool provisions. Construction fastening instead requires the applicable Part 1926 tool rules. Manufacturer settings are not a regulatory torque specification, and an impact tool is not interchangeable with this rotary drill-driver scope.
Determine Federal OSHA or the applicable OSHA-approved State Plan, including public/private employer coverage. State Plans must be at least as effective and can impose different or additional requirements. The actual activity determines construction versus general-industry scope. Manufacturer instructions, consensus standards, project design and site approvals have distinct roles; this page is not a finding of nationwide compliance.
| Basis | Application and limits |
|---|---|
| OSHA 1910.242 | Safe tool condition requirements; not a fastening-quality standard. |
| OSHA 1910.243 | Portable powered-tool provisions; apply the relevant tool category. |
| Bosch GSR/GSB 18V-150 C manual | Model-specific technical reference for operation and adjustment. No site tool, torque output or assembly acceptance certified. |
2. Scope and required inputs
Included: Fastening and removing specified screws in secured ordinary workpieces at a dry indoor ground-level bench using a removable-battery rotary drill-driver. Match the assembly instruction, screw, bit and inspection method.
Separate review: Drilling, hammer drilling, impact drivers or wrenches, elevated work, uncertain concealed electrical services, structural high-strength bolt final tightening and internal battery or tool repair require separate assessment.
| Input | Required evidence |
|---|---|
| Check assembly | Workpiece and screw IDs; Drawing and revision; Backside clearance; Acceptance criteria |
| Fit bit and clamp | Bit fit and wear; Chuck engagement; Fixture security; Hand and backside clearance |
| Drive or remove | Hand and bit separation; Fixture remains secure; Component support; Screw and joint condition |
| Store and transfer | Tool and battery storage; Accepted and held part IDs; Setup and inspection basis; Receiving person record |
Confirm screw and bit specifications, workholding, fastening mode, trial settings and the required joint-inspection method. Select eye protection and control loose material near rotating parts. Use a model-required auxiliary handle and a stable grip. Clutch settings are not universal torque values.
3. Eight-stage JSA
P = likelihood; S = severity; R = risk under the site method; A = acceptance or authorization as defined by the site. Leave these blank until actual assessment and control verification. A low score does not override a legal requirement, product limit or unreleased hold point.
| Job stage | Hazards and effects | Failure factors | Required controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Check assembly | 1. Joint separation2. Hidden-service damage3. Wrong screw penetration4. Defective product release | 1. Screw and material mismatch2. Backside not checked3. Length not specified4. Acceptance method unclear | 1. Match assembly instruction2. Check both sides of work3. Confirm screw specification4. Define inspection method | 1. Workpiece and screw IDs2. Drawing and revision3. Backside clearance4. Acceptance criteria | ||||
| 2. Inspect tool | 1. Unexpected start2. Battery thermal event3. Electrical contact4. Loss of speed control | 1. Battery installed for inspection2. Damaged housing ignored3. Contaminated terminals4. Switch defective | 1. Remove battery to inspect2. Reject damaged equipment3. Match battery to tool4. Check controls before use | 1. Tool and battery model2. Housing and terminal condition3. Switch operation4. Defect status | ||||
| 3. Fit bit and clamp | 1. Flying bit2. Rotating workpiece3. Finger puncture4. Chuck contact | 1. Wrong or worn bit2. Small part hand-held3. Chuck not secured4. Hand behind screw | 1. Fit specified bit2. Secure chuck per manual3. Clamp workpiece firmly4. Keep hands outside path | 1. Bit fit and wear2. Chuck engagement3. Fixture security4. Hand and backside clearance | ||||
| 4. Set and trial | 1. Wrist reaction injury2. Stripped thread3. Overtightened joint4. Unexpected direction | 1. Drill mode selected2. Clutch number assumed torque3. Trial omitted4. Direction not checked | 1. Select fastening mode2. Use approved setup3. Trial on suitable sample4. Verify direction and grip | 1. Mode and setting2. Trial assembly result3. Reaction-control position4. Inspection method used | ||||
| 5. Drive or remove | 1. Slipping-bit puncture2. Uncontrolled reaction3. Falling released part4. Entanglement | 1. Bit axis misaligned2. Workholding loosens3. Last screw unsupported4. Loose clothing near chuck | 1. Maintain stable axial grip2. Keep workpiece clamped3. Support parts before removal4. Keep clear of rotation | 1. Hand and bit separation2. Fixture remains secure3. Component support4. Screw and joint condition | ||||
| 6. Stop and inspect | 1. Contact with coasting bit2. Faulty assembly passed3. Tool falls from bench4. Sharp screw exposure | 1. Tool set down while rotating2. Clutch click accepted alone3. Unstable resting position4. Rejected parts mixed in | 1. Wait for complete stop2. Inspect by specified method3. Set tool down securely4. Separate rejected assemblies | 1. Rotation stopped2. Joint acceptance record3. Safe tool position4. Rejected part identification | ||||
| 7. Hold on jam | 1. Repeated wrist reaction2. Bit fracture3. Battery fire4. Worsening joint damage | 1. Trigger repeatedly pulsed2. Setting raised without cause3. Hot battery reused4. Damaged thread ignored | 1. Stop and remove battery2. Find jam and fit cause3. Quarantine unsafe battery4. Revalidate corrected setup | 1. Jam and affected parts2. Bit and fixture condition3. Battery defect assessment4. Trial and inspection evidence | ||||
| 8. Store and transfer | 1. Terminal short circuit2. Defective product use3. Wrong setup reused4. Unreported tool defect | 1. Battery stored with screws2. Rejected parts unmarked3. Setting basis not recorded4. Fault not transferred | 1. Protect battery terminals2. Label held assemblies3. Record accepted setup4. Transfer tool restrictions | 1. Tool and battery storage2. Accepted and held part IDs3. Setup and inspection basis4. Receiving person record |
4. Hypothetical scenario and failure mechanisms

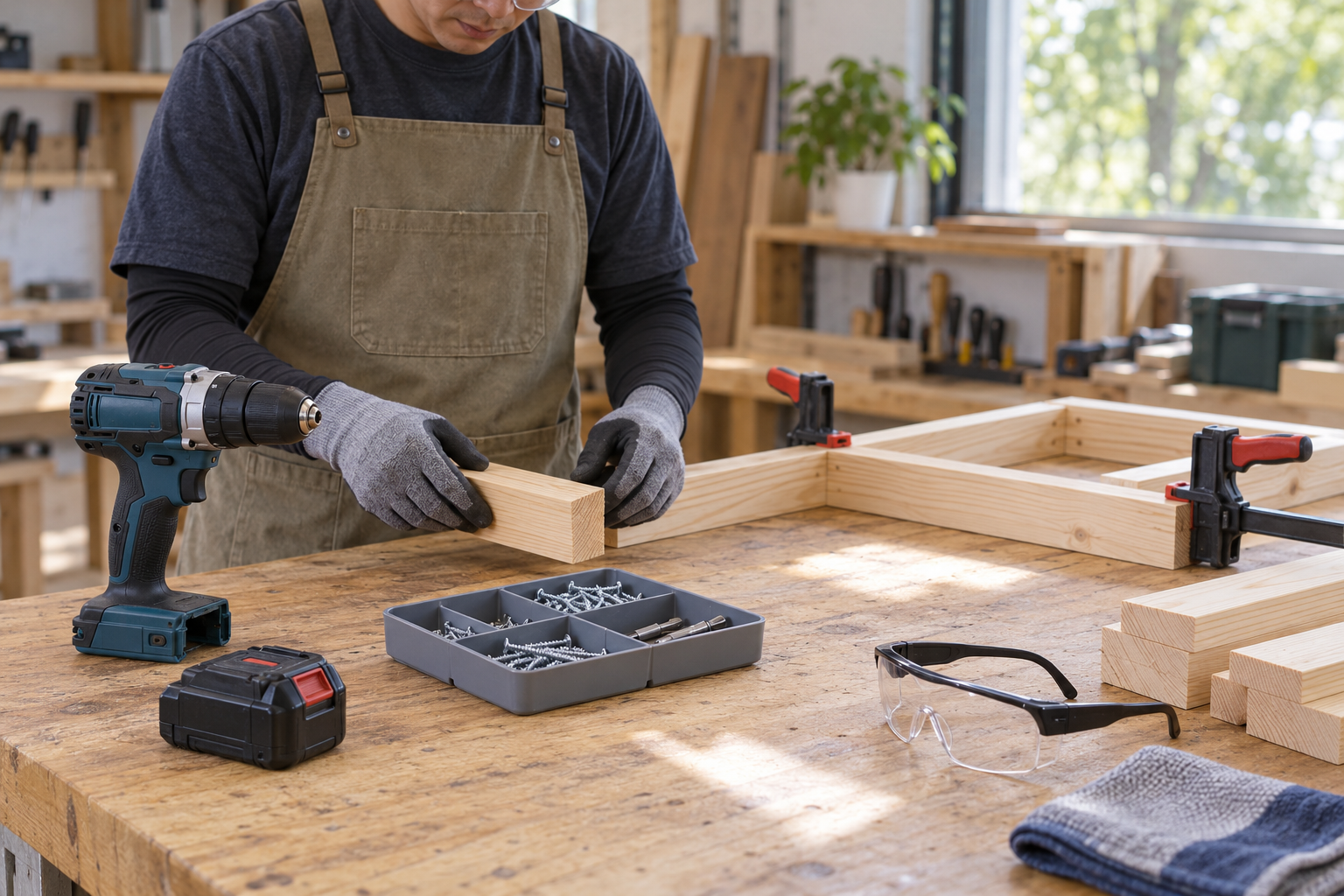

Retained source illustration: an AI-generated educational concept, not a real incident photograph or evidence of equipment suitability.The following scenario, comparisons and example records are hypothetical teaching material. They do not reproduce actual incidents, measurements, signatures or approvals.
| Item | Hypothetical situation |
|---|---|
| Initial state | A crew assembles parts using the same drill clutch setting. |
| Change | Some joints retain a gap, so the operator proposes increasing the clutch setting and retightening every screw. |
| Failure path | Wrong screw length, misalignment or stripped threads may remain hidden while added torque damages the assembly. |
| Possible harm | A bit can slip or the workpiece can move; defective joints may reach the next operation. |
| Barrier | Hold affected parts, isolate the tool for adjustment and investigate the screw, material and alignment. Verify the approved setup on a suitable trial and inspect the affected assemblies. |
Clutch numbers describe tool settings; they are not a universal scale in newton-meters or inch-pounds. Material, screw geometry and joint condition change the result. Where torque acceptance is specified, use the required verification method.
The final screw may be supporting a cover or component. Secure the component before removal rather than balancing it by hand beside a rotating bit. Workholding must resist the expected reaction without putting hands in the slip path.
A released trigger or direction-lock position does not replace battery removal for bit changes and fault clearing. Stop completely, remove the battery and follow the specific tool instructions.
Do not solve a jam by repeatedly triggering or disabling torque limitation. Check bit fit, screw engagement, workholding and the intended fastening mode. Keep loose clothing, hair and any glove material away from rotating parts; select protection for the actual exposure and manual.
| Decision | Reason and evidence |
|---|---|
| Known facts | Some joints retain a gap, so the operator proposes increasing the clutch setting and retightening every screw. |
| Unresolved | Wrong screw length, misalignment or stripped threads may remain hidden while added torque damages the assembly. |
| Hold reason | Stop for uncertain screw or bit compatibility, poor workholding, battery damage, switch faults, slipping or binding bits, uncontrolled torque reaction, stripped threads, moving workpieces or abnormal heat, odor or smoke. |
| Evidence needed | Rotation stopped; Joint acceptance record; Safe tool position; Rejected part identification. |
| Next decision | Hold affected parts, isolate the tool for adjustment and investigate the screw, material and alignment. Verify the approved setup on a suitable trial and inspect the affected assemblies. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Joint gap remains | Hold affected parts and investigate fit. | Screw, alignment and thread assessment. | Specified joint condition verified. |
| Bit change | Stop completely and remove the battery. | Tool motion and isolation state. | Battery removed; bit secured. |
| Uncontrolled reaction | Stop and improve the approved setup. | Fixture, grip and fastening-mode review. | Reaction safely controlled. |
| Battery abnormal | Keep clear and quarantine under the response plan. | Battery condition and specialist disposition. | Safe replacement accepted. |
| Comparison | Situation A | Situation B |
|---|---|---|
| Clutch operated | Joint inspected by the specified acceptance method. | Clutch noise alone was accepted as proof of required torque. |
| Trigger released | Rotation stopped and battery removed before bit change. | Tool remains able to start during adjustment. |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Confirm scope, task sequence, exclusion and stop authority. Coordinate check assembly with affected operations. |
| Technical reviewer | Resolve the actual design and equipment limits: Workpiece and screw IDs; Drawing and revision; Backside clearance; Acceptance criteria. |
| Work crew | Perform fit bit and clamp using the approved procedure; report any mismatch before proceeding. |
| Inspector / assessor | Verify Rotation stopped; Joint acceptance record; Safe tool position; Rejected part identification. Record what was actually checked and what remains unresolved. |
| Release / receiving authority | Confirm Tool and battery storage; Accepted and held part IDs; Setup and inspection basis; Receiving person record. Transfer restrictions and the next permitted stage. |
These are responsibility examples, not invented statutory credentials. Meet the actual training, competent-person, qualified-person and licensing requirements for the assigned work. Anyone may raise a hazard and request a stop; only the designated authority may release the affected stage after evidence is reviewed.
7. Hold points and record comparison
| Hold point | Evidence before release | Confirmation / approval |
|---|---|---|
| HP-0 Start | Scope, jurisdiction, equipment identity, responsible people and emergency arrangements. | |
| HP-1 Inspect tool | Tool and battery model; Housing and terminal condition; Switch operation; Defect status | |
| HP-2 Set and trial | Mode and setting; Trial assembly result; Reaction-control position; Inspection method used | |
| HP-3 Stop and inspect | Rotation stopped; Joint acceptance record; Safe tool position; Rejected part identification | |
| HP-4 Store and transfer | Tool and battery storage; Accepted and held part IDs; Setup and inspection basis; Receiving person record |
Hold points are internal evidence gates. They do not replace statutory permits or actual signatures. Recheck affected gates after a change, abnormal event or shift transfer. The blank record must identify the evidence, person, time, limits and release scope.
| Record | Insufficient record | Record checklist |
|---|---|---|
| Assembly | Screw fits | □ Workpiece and screw IDs□ Drawing and revision□ Backside clearance□ Acceptance criteria |
| Workholding | Held by hand | □ Bit fit and wear□ Chuck engagement□ Fixture security□ Hand and backside clearance |
| Result | Clutch clicked | □ Rotation stopped□ Joint acceptance record□ Safe tool position□ Rejected part identification |
| Fault | Higher setting worked | □ Jam and affected parts□ Bit and fixture condition□ Battery defect assessment□ Trial and inspection evidence |
The □ boxes are static prompts, not saved or interactive approvals. Each checks one record element. A tick alone does not establish suitability or permission to restart. Link equipment IDs and supporting records; retain unresolved matters and the earlier record when conditions change.
8. Site checklist and emergency response
| Check item | Result | Person / action |
|---|---|---|
| Workpiece and screw IDs | ||
| Tool and battery model | ||
| Bit fit and wear | ||
| Mode and setting | ||
| Hand and bit separation | ||
| Rotation stopped | ||
| Jam and affected parts | ||
| Tool and battery storage | ||
| Emergency arrangements and unresolved restrictions communicated |
Stop work: Stop for uncertain screw or bit compatibility, poor workholding, battery damage, switch faults, slipping or binding bits, uncontrolled torque reaction, stripped threads, moving workpieces or abnormal heat, odor or smoke.
Emergency response: Release the switch and wait for complete stop; remove the battery when safe. Never stop the rotating chuck by hand. For battery smoke, swelling or rapid heating, keep people away, do not handle or disassemble the battery, and activate the site fire response and 911 when needed.
9. Sources and review limits
Official-source review date: October 12, 2026. The following review is limited to the public provisions or selected manufacturer material identified below. It does not establish that any authority approved this article or the actual installation.
- OSHA 1910.242: Safe tool condition requirements; not a fastening-quality standard.
- OSHA 1910.243: Portable powered-tool provisions; apply the relevant tool category.
- Bosch GSR/GSB 18V-150 C manual: Model-specific technical reference for operation and adjustment. No site tool, torque output or assembly acceptance certified.
- OSHA State Plans: jurisdiction and coverage overview; identify the actual state program before use.
Paid consensus standards and site-specific calculations, manuals, inspection records and product certificates were not independently obtained or verified unless specifically identified. Korean legal citations remain in the preserved Korean source as source history; they are not represented as US legal duties.
10. PDF guidance and FAQ
PDF A covers basic task controls; B examines technical failures; C focuses on supervision, evidence and handover. Each has six rows and three items per main cell. They are complementary extracts: apply all eight body stages and the applicable site procedure. An omitted stage is not permission to omit its controls. PDF HP-0 through HP-4 are worksheet labels; match the event, evidence and authority rather than assuming they match another permit by number.
P/S/R/A, actual measurements, confirmations and signatures remain blank. The PDFs are uncompleted reference worksheets, not issued work permits.
Content group ID: jsa-cordless-drilldriver-fastening
Does clutch setting 10 mean 10 N·m?
No. Read the exact model setting instructions and use the specified joint-verification method when torque is required.
Can I use drilling mode when a screw will not advance?
Do not remove the torque limitation to force an unexplained fault. Inspect screw, alignment, material and approved mode first.
Can a small part be held in one hand?
Use suitable workholding so it cannot rotate or put the supporting hand in the bit path.
Has a professional verified or approved this document?
No. This is AI-assisted reference material. Editorial and layout checks are not a physical inspection or professional technical approval. Obtain qualified professional review and required site approval before use.
11. Revision history and authorship
Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.
This system has not physically inspected the equipment, structures, ground, atmosphere or worksite. The document does not replace legal advice, manufacturer procedures, engineering design, inspection certificates, qualification evidence, the site risk assessment or an actual work permit.
Before use, a suitably qualified and authorized person must review the actual equipment, loads, methods, protection, inspection and emergency arrangements and resolve open issues. Record the real reviewer, organization, qualifications, delegated authority, reviewed documents, date, signature, exclusions and conditions of approval separately.
