Physical link, fresh valid data, correct tag mapping, actual process function and redundancy are separate checks. A lit link LED or a displayed value cannot establish all of them. Define the required observations and expected results in the approved test plan.
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site authorization are required before use.
Stop before starting
Do not disconnect without confirmed process impact, safe state, approved scope and recovery. Hold handover for port/address mismatch, stale or wrong-quality data, unresolved redundancy loss or unknown forces and bypasses.
1. Legal and technical scope
| Basis | Scope and limits |
|---|---|
| OSHA 1910.333 | Actual electrical exposure, isolation and qualified safe-state verification. |
| OSHA 1910.119 | Management of change only for covered processes and changes within scope. |
| Schneider Electric FA330781 | PowerLogic/ION RS-485 shield and common distinction; not a universal PLC wiring instruction. |
For general-industry electrical exposure, apply 1910.333 and relevant machine energy controls. If a process is covered by 1910.119, assess the change under its management-of-change requirements, including the actual replacement-in-kind distinction; that rule does not apply to every PLC. Construction work requires the applicable Part 1926 provisions. Manufacturer communication examples are model-specific. Check State Plan and actual process requirements.
2. Scope and required inputs
Included work
Identifying the control panel, ports and process impact, establishing electrical and signal boundaries, making a specified communication-cable connection and carrying out authorized diagnostics, functional verification and restoration.
Separate assessment
Safety PLC/SIS logic changes or safety validation, unauthorized live-process failover trials and network restructuring without verified recovery arrangements are excluded.
| Required input | Evidence to obtain |
|---|---|
| Plan impact and change | Loss response and tags; Operator and work window; Backup and rollback; Control and SIS boundary |
| Identify panel and ports | Main UPS external sources; Panel port cable IDs; Tool and part count; Adjacent-work safeguards |
| Establish safe operation | Affected circuits; Isolation verification; Approved work window; Recovery version |
| Make specified connection | Connector and pin map; Port mapping; Shield common earth basis; Bend strain and routing |
No actual equipment model, SDS, site measurements, design calculations or authorization record was supplied. Product-specific limits and methods must be verified before use. Federal OSHA is a baseline within its scope; determine the applicable State Plan and local requirements. Manufacturer guidance is not government approval; an incorporated standard differs from voluntary guidance. No nationwide-compliance or expert-approval claim is made.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Technical and procedural controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Plan impact and change | 1. Process trip2. Remote motion3. Recovery failure4. Safety-function impact | 1. Loss action unknown2. Tags omitted3. Backup mismatched4. SIS boundary confused | 1. Review affected functions2. Agree safe process state3. Verify backup version4. Approve change boundary | 1. Loss response and tags2. Operator and work window3. Backup and rollback4. Control and SIS boundary | ||||
| 2. Identify panel and ports | 1. Electric shock2. Wrong-line removal3. Short circuit4. Conflicting work | 1. UPS missed2. Port labels wrong3. Metal scraps left4. Boundary uncoordinated | 1. Trace external supplies2. Label target ports3. Control tools and offcuts4. Coordinate open-panel zone | 1. Main UPS external sources2. Panel port cable IDs3. Tool and part count4. Adjacent-work safeguards | ||||
| 3. Establish safe operation | 1. Process upset2. Machine start3. External-feed shock4. Unsafe restoration | 1. Process not secured2. Source omitted3. Recovery untested4. Change window absent | 1. Secure approved process state2. Apply electrical controls3. Confirm recovery resources4. Obtain operations release | 1. Affected circuits2. Isolation verification3. Approved work window4. Recovery version | ||||
| 4. Make specified connection | 1. Port damage2. Intermittent link3. Wrong mapping4. Electrical interference | 1. Debris remains2. Shield scheme wrong3. Pin map skipped4. Power route mixed | 1. Open only target section2. Match terminals and ports3. Follow device shield scheme4. Maintain cable separation | 1. Connector and pin map2. Port mapping3. Shield common earth basis4. Bend strain and routing | ||||
| 5. Test communication safely | 1. Wrong output2. Control delay3. Network loop4. Protection bypass | 1. Live path pulled casually2. Duplicate address3. Topology altered4. Force untracked | 1. Authorize test scope2. Verify nodes and topology3. Control output effects4. Record forces and bypasses | 1. Addresses and topology2. Errors and diagnostics3. Operator presence4. Test and force inventory | ||||
| 6. Restore and verify | 1. Normal control failure2. Lost redundancy3. Residual override4. Untraceable version | 1. Link alone accepted2. Path unchecked3. Force forgotten4. Drawing outdated | 1. Verify required loop functions2. Check redundant paths3. Restore in approved order4. Save final configuration | 1. Data quality and alarms2. Path diagnostics3. Force and bypass status4. Final backup and drawings | ||||
| 7. Hold fault and roll back | 1. Degraded control2. Continued path loss3. Wrong output4. Lost change history | 1. LED trusted2. Errors ignored3. Force switched blindly4. Time not logged | 1. Hold operations handover2. Review affected diagnostics3. Use approved rollback4. Record before and after | 1. Data errors and time2. Path and ring state3. Rollback and forces4. Ports version and owner | ||||
| 8. Hand over operation | 1. Override remains2. Wrong tag mapping3. Future recovery failure4. Unknown restriction | 1. Inventory skipped2. Few values checked3. Backup not updated4. Operator uninformed | 1. Reconcile temporary states2. Confirm tested functions3. Link verified recovery copy4. Transfer limitations | 1. Normal mode and restoration2. Freshness quality function3. Version and port drawing4. Operator holds and time |
P = likelihood; S = severity; R = risk under the site method; A = site-defined acceptance/authorization. These actual assessment cells are blank. A low score never overrides a missing safeguard or a legal or manufacturer restriction.
4. Fictional scenario and failure mechanisms

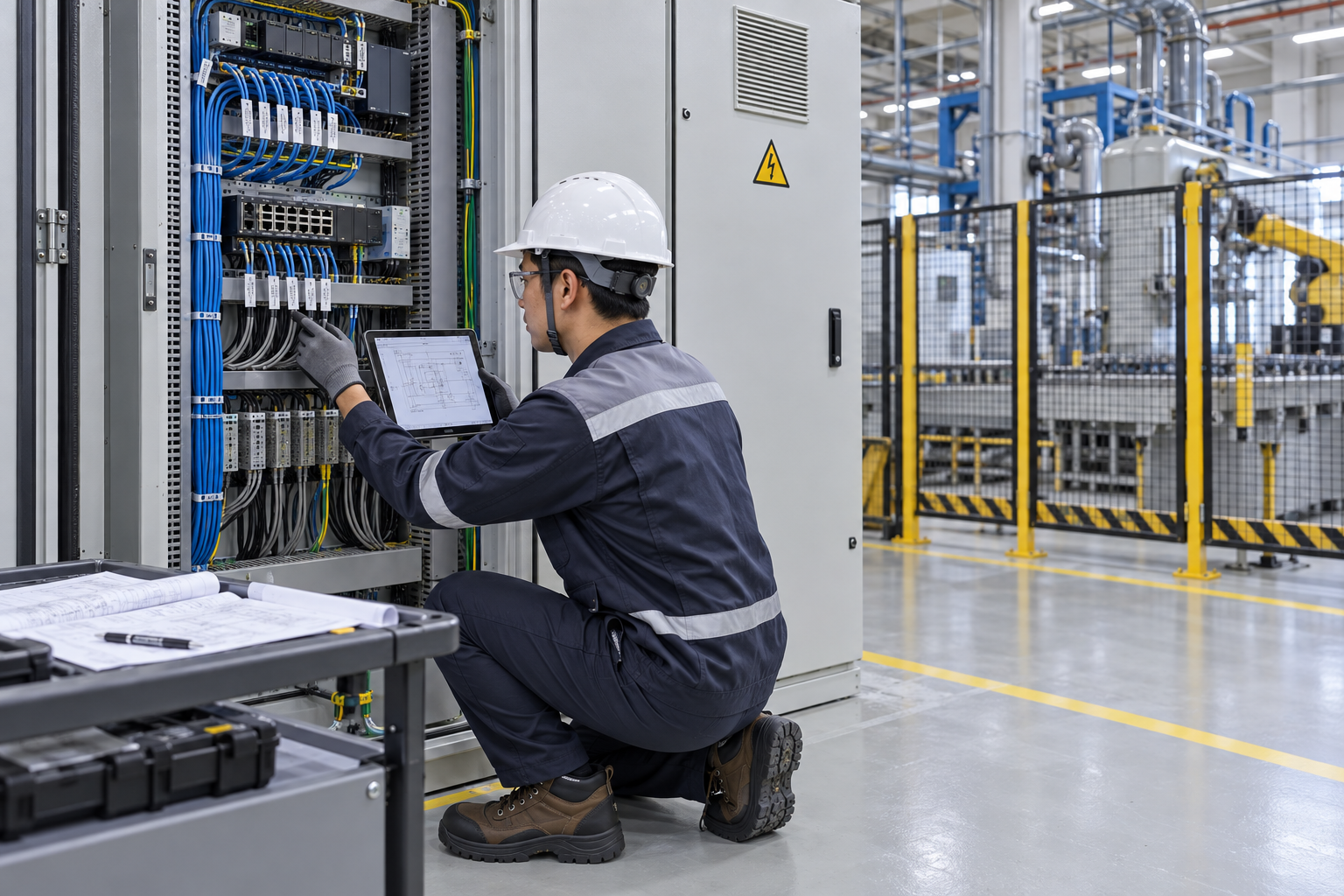

This illustration provides educational context. It is not an actual incident photograph or evidence of equipment suitability; any AI-generated depiction is illustrative only.
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Stage | Fictional situation |
|---|---|
| Initial situation | A fictional crew is asked to replace a communication cable in an operating control panel. |
| Changed condition | The cable is treated as harmless because it is called a signal line. |
| Failure path | Its process loss response and recovery version have not been confirmed. |
| Possible outcome | Disconnection could degrade control or alarms, stop a process or cause an unintended response. |
| Prevention barrier | Hold disconnection, reconcile affected functions and sources with operations, establish the safe work window and rollback plan, then verify function and redundancy after the authorized change. |
Failure mechanisms
Physical link, fresh valid data, correct tag mapping, actual process function and redundancy are separate checks. A lit link LED or a displayed value cannot establish all of them. Define the required observations and expected results in the approved test plan.
Communication loss may hold the last value, substitute another value, stop equipment or reduce redundancy depending on the actual configuration. Do not disconnect a cable until operations confirms the affected tags, configured loss response and controlled process state.
Shield, signal common and protective earth serve different purposes. Follow the actual protocol, pin map and device design. An RS-485 termination or grounding example does not transfer to Ethernet or every panel.
One redundant path may keep data visible while another remains failed. Use authorized diagnostics or tests; do not unplug a live path as an improvised trial. Restore forced values and bypasses through an approved process-aware sequence and retain a verified final backup.
Work sequence: Plan impact and change → Identify panel and ports → Establish safe operation → Make specified connection → Test communication safely → Restore and verify → Hold fault and roll back → Hand over operation. This is a teaching flow, not a device drawing or a complete operating procedure.
5. Conditional decisions and common errors
| Situation | Required action | Evidence | Proceed when |
|---|---|---|---|
| Process response unknown | Do not disconnect | Affected tags and loss settings | Safe state agreed |
| Port or node differs | Hold connection | Mapping and approved topology | Identity matched |
| Link up but data stale | Hold operation handover | Quality, timestamps and diagnostics | Function verified |
| One path degraded | Use approved recovery | Redundancy and force inventory | Restoration accepted |
Similar observations, different decisions
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Observation | Insufficient conclusion | Required distinction |
|---|---|---|
| Link LED on | Physical connection | Data quality unproved |
| Values visible | Some data available | Redundancy may be degraded |
| Shield connected | One conductor landed | Common and earth separate |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Confirm loss response and tags and the task scope, resources, interfaces and stop authority. |
| Qualified technical reviewer | Review main ups external sources, model limits, compatibility and unresolved technical conditions within assigned competence. |
| Work crew | Apply the listed controls, report changes and stop when evidence or safeguards are missing. |
| Inspector / assessor | Record actual addresses and topology and other relevant checks; do not mark unverified conditions as accepted. |
| Handover authority | Reconcile normal mode and restoration, restrictions and outstanding actions before the next task. Role labels do not establish a legal credential. |
Supervision and handover focus
| Stage | Management action | Evidence |
|---|---|---|
| Plan impact and change | 1. Record loss response and tags2. Record operator and work window3. Record backup and rollback | 1. Loss response and tags2. Operator and work window3. Backup and rollback |
| Establish safe operation | 1. Record affected circuits2. Record isolation verification3. Record approved work window | 1. Affected circuits2. Isolation verification3. Approved work window |
| Make specified connection | 1. Record connector and pin map2. Record port mapping3. Record shield common earth basis | 1. Connector and pin map2. Port mapping3. Shield common earth basis |
| Test communication safely | 1. Record addresses and topology2. Record errors and diagnostics3. Record operator presence | 1. Addresses and topology2. Errors and diagnostics3. Operator presence |
| Hold fault and roll back | 1. Record data errors and time2. Record path and ring state3. Record rollback and forces | 1. Data errors and time2. Path and ring state3. Rollback and forces |
| Hand over operation | 1. Record normal mode and restoration2. Record freshness quality function3. Record version and port drawing | 1. Normal mode and restoration2. Freshness quality function3. Version and port drawing |
7. Hold points and record comparison
| Hold point | Evidence before release | Actual approval |
|---|---|---|
| HP-0 Scope | Identifying the control panel, ports and process impact, establishing electrical and signal boundaries, making a specified communication-cable connection and carrying out authorized diagnostics, functional verification and restoration. | |
| HP-1 Establish safe operation | Affected circuits; Isolation verification; Approved work window; Recovery version | |
| HP-2 Make specified connection | Connector and pin map; Port mapping; Shield common earth basis; Bend strain and routing | |
| HP-3 Hold fault and roll back | Data errors and time; Path and ring state; Rollback and forces; Ports version and owner | |
| HP-4 Hand over operation | Normal mode and restoration; Freshness quality function; Version and port drawing; Operator holds and time |
Hold points are internal project checks. They are not universal statutory permits and do not grant work permission. Reassess after defects, changed conditions and shift changes.
Record comparison
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
The boxes are static record prompts, not interactive or saved approvals. A tick does not establish suitability or permission to restart. Record the evidence, person, time and unresolved issues; retain the change history.
| Record | Insufficient record | Record checklist |
|---|---|---|
| Plan impact and change | Only marked “OK” | □ Loss response and tags□ Operator and work window□ Backup and rollback□ Control and SIS boundary |
| Make specified connection | Only marked “OK” | □ Connector and pin map□ Port mapping□ Shield common earth basis□ Bend strain and routing |
| Hold fault and roll back | Only marked “OK” | □ Data errors and time□ Path and ring state□ Rollback and forces□ Ports version and owner |
| Hand over operation | Only marked “OK” | □ Normal mode and restoration□ Freshness quality function□ Version and port drawing□ Operator holds and time |
8. Site checklist and emergency response
| Site check | Actual result | Person / action |
|---|---|---|
| Plan impact and change: Loss response and tags; Operator and work window; Backup and rollback; Control and SIS boundary | ||
| Identify panel and ports: Main UPS external sources; Panel port cable IDs; Tool and part count; Adjacent-work safeguards | ||
| Establish safe operation: Affected circuits; Isolation verification; Approved work window; Recovery version | ||
| Make specified connection: Connector and pin map; Port mapping; Shield common earth basis; Bend strain and routing | ||
| Test communication safely: Addresses and topology; Errors and diagnostics; Operator presence; Test and force inventory | ||
| Restore and verify: Data quality and alarms; Path diagnostics; Force and bypass status; Final backup and drawings | ||
| Hold fault and roll back: Data errors and time; Path and ring state; Rollback and forces; Ports version and owner | ||
| Hand over operation: Normal mode and restoration; Freshness quality function; Version and port drawing; Operator holds and time |
Stop work
Do not disconnect without confirmed process impact, safe state, approved scope and recovery. Hold handover for port/address mismatch, stale or wrong-quality data, unresolved redundancy loss or unknown forces and bypasses.
Emergency response
Notify the responsible operator and use the approved process emergency response. Do not make blind cable, logic or override changes to clear alarms. Qualified personnel establish electrical safety and operations controls before fault recovery.
9. Sources and review limits
Public-source access/review: 2026-10-14.
| Official source | Reviewed scope and limits |
|---|---|
| OSHA 1910.333 | Actual electrical exposure, isolation and qualified safe-state verification. |
| OSHA 1910.119 | Management of change only for covered processes and changes within scope. |
| Schneider Electric FA330781 | PowerLogic/ION RS-485 shield and common distinction; not a universal PLC wiring instruction. |
No actual equipment model, SDS, site measurements, design calculations or authorization record was supplied. Product-specific limits and methods must be verified before use. Federal OSHA is a baseline within its scope; determine the applicable State Plan and local requirements. Manufacturer guidance is not government approval; an incorporated standard differs from voluntary guidance. No nationwide-compliance or expert-approval claim is made.
10. PDF guidance and FAQ
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
PDFs are complementary six-stage extracts. Apply all eight body stages and the actual equipment/site procedure.
Can a low-voltage communication line be disconnected at any time?
No. Review the actual electrical boundary, process effect, work window and recovery method first.
Does a link LED complete testing?
No. Check the specified data freshness, mapping, quality, functions, alarms and redundancy.
Should every force be removed immediately?
Reconcile the list and current process state, then use the approved restoration sequence and verify normal operation.
Has a professional verified or approved this document?
No. Public sources and editorial, layout and consistency checks were reviewed using AI. No site inspection or professional technical approval has been performed. Obtain appropriate professional review before use.
