Smart JSA Bridge
JSA Risk Assessment Preview: Concrete Pouring Operations Using Concrete Pump Trucks
7/26/2026
0. JSA Risk Assessment Preview: Concrete Pouring Operations Using Concrete Pump Trucks
| No. | Job Step | Hazard Factors | Risk Control Measures | Probability | Severity | Risk Level |
|---|---|---|---|---|---|---|
| 1 | Concrete Pump Truck Site Entry, Ground Inspection, and Outrigger Setup | • Soft ground settlement causing the pump truck to overturn and crush nearby workers • Insufficient ground bearing capacity or missing outrigger pads causing the vehicle to tilt | • Level and verify ground bearing capacity; strictly mandate dedicated outrigger pads (cribbing) under all outriggers • Fully extend outriggers according to manufacturer specifications; mandate dual checks by spotters and foremen | 2 | 3 | 6 |
| 2 | Boom Deployment, Pipe Connection, and Overhead Power Line Clearance | • Electrocution or arc flash severe injuries from the boom contacting overhead power lines during unfolding • Struck-by injuries from boom movement or falling materials onto unauthorized workers in the radius | • Maintain minimum 10 ft (3m) clearance from power lines and install line covers; assign a dedicated spotter • Establish an exclusion zone under the boom radius; verify hard hat and safety harness compliance | 2 | 3 | 6 |
| 3 | Ready-Mix Truck Hopper Standby, Concrete Loading, and Hydraulic Pumping | • Crushing or caught-between injuries involving spotters or workers during ready-mix truck reversing • Entanglement and amputation hazards from rotating agitator screws when clearing hopper blockages | • Assign dedicated reversing spotters for ready-mix trucks; verify functional backup alarms and cameras • Prohibit opening of hopper safety grates; halt pumping and apply Lockout/Tagout (LOTO) before clearing blockages | 2 | 3 | 6 |
| 4 | Boom Operation, Delivery Pipe (End Hose) Whipping, and Concrete Placement | • High-velocity hose whipping (whip effect) striking workers when high pressure is released after a pipe blockage • Formwork blowout and structural collapse due to excessive lateral pressure from rapid or uneven pouring | • Pump slurry primer to prevent blockages; assign at least two workers to the end hose using safety guide ropes • Adhere strictly to designed formwork pouring rates; prohibit uneven dumping; assign a formwork watchman | 2 | 3 | 6 |
| 5 | Worker Movement at Slab Edges and Elevated Pouring Areas | • Fall hazards from unprotected slab perimeters and floor openings while maneuvering during the pour • Electrocution hazards from damaged power cords of concrete vibrators submerged in wet concrete | • Pre-install perimeter guardrails and safety nets; mandate 100% tie-off using personal fall arrest systems • Verify GFCI connections for all vibrators; perform pre-use inspections on power cords for insulation damage | 2 | 3 | 6 |
| 6 | Post-Pour Boom Folding, Pipe Cleaning (Sponge Ball), and Housekeeping | • Struck-by hazards from flying debris when opening pipe clamps without relieving residual line pressure • High-velocity sponge ball and concrete clump ejection during compressed air cleaning of the delivery line | • Verify complete relief of residual high pressure before uncoupling clamps; workers must stand to the side • Install a dedicated catch basket at the discharge end during sponge ball blow-out; establish an exclusion zone | 1 | 2 | 2 |
1. On-Site Incident & Hazard Analysis

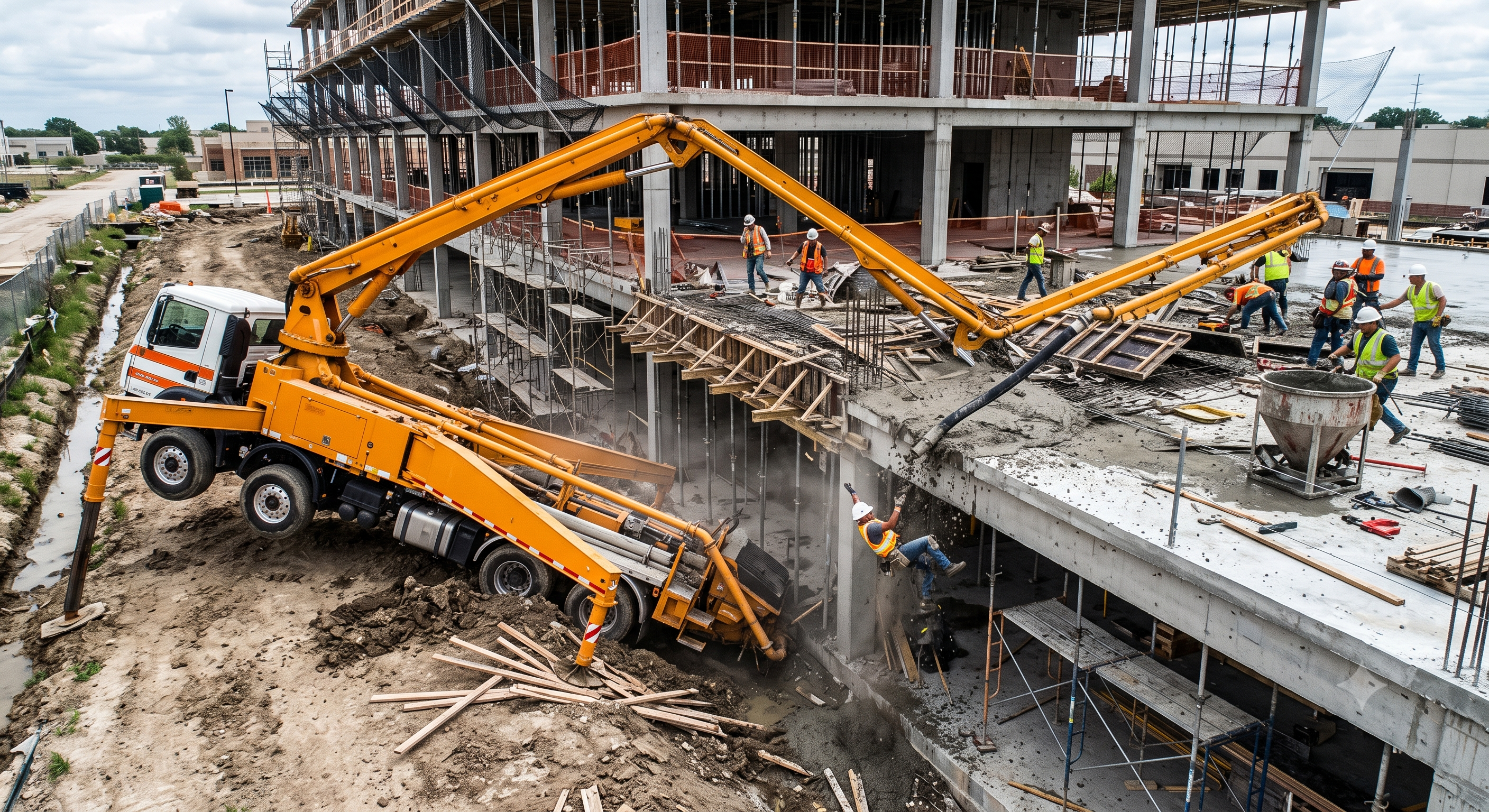

A. [Hypothetical Sample Case] Pump Truck Overturning and End Hose Whipping Due to Blockage
Note: The following is an illustrative, hypothetical incident designed solely for risk assessment training.
During a simulated concrete pour for a multi-story commercial building project, a heavy-duty concrete pump truck with a 5-section articulating boom was deployed to pour an upper slab. To maximize reach, the operator positioned the truck close to an uncompacted drainage trench on the perimeter. The outriggers were deployed without verifying the soil's bearing capacity, and the crew used thin scrap lumber instead of engineered outrigger pads.
As the pour progressed and the boom was fully extended, the truck's center of gravity shifted dramatically. The soft soil near the trench gave way, causing the outrigger to sink and the pump truck to tilt violently. The extended boom collapsed onto the active pouring deck, narrowly missing the concrete crew. Simultaneously, because the concrete mix had begun to prematurely set in the delivery line (blockage), the operator attempted to force the blockage out with high hydraulic pressure. When the blockage suddenly cleared, the release of pent-up energy caused the end hose to whip violently (Hose Whip). The whipping hose struck a carpenter, knocking him toward the unprotected edge of the slab. This hypothetical scenario underscores the catastrophic consequences of neglecting ground bearing checks, failing to use proper outrigger cribbing, and applying excessive pressure to clear pipe blockages.
B. Structural, Mechanical, and Safety Engineering Hazard Mechanisms
Concrete pump trucks are high-risk heavy machinery where the vehicle's dead weight, the moment of a multi-section boom spanning dozens of meters, and the dynamic load of flowing concrete interact constantly. When the boom is fully extended, the overturning moment (load multiplied by distance) must be perfectly balanced by the reaction forces transmitted through the outriggers into the ground. If the ground bearing capacity is insufficient or proper engineered pads are omitted, the equilibrium is destroyed, leading to a sudden fulcrum effect and vehicle rollover.
From a hydraulic pumping perspective, blockages in the delivery pipeline—often caused by low slump, poor mix design, or inadequate priming—cause a rapid spike in internal hydrostatic pressure. If the operator forces the pump to clear the plug, immense pneumatic or hydraulic energy accumulates. When the plug finally releases, this energy is transferred to the flexible end hose, causing it to thrash unpredictably with lethal force. The kinetic energy of a whipping hose is easily sufficient to cause blunt force trauma or throw a worker off an elevated deck. Therefore, strict adherence to ground assessment, dual-pad outrigger support, proper line priming, and the use of catch baskets during cleaning are absolute engineering prerequisites.
🚨 US Federal Regulations & Safety Standards (OSHA 29 CFR & ACI)
OSHA 29 CFR 1926.702(e) - Concrete Pumping Systems: Requires that concrete pumping systems using discharge pipes be provided with pipe supports designed for 100 percent overload. Compressed air hoses must have positive fail-safe joint connectors.
OSHA 29 CFR 1926.1402 - Ground Conditions (Cranes and Derricks equivalent applied to heavy equipment): The equipment must not be assembled or used unless ground conditions are firm, drained, and graded to a sufficient extent so that, in conjunction with the use of supporting materials (pads/cribbing), the equipment manufacturer's specifications for adequate support and degree of level are met.
OSHA 29 CFR 1926.1408 - Power Line Safety: Requires employers to identify work zones and maintain a minimum clearance of 10 feet (3 meters) from overhead power lines up to 50 kV.
ACI 304.2R - Placing Concrete by Pumping Methods: Establishes engineering guidelines for pump setup, mix design for pumpability, blockage prevention, and safe line cleaning procedures to prevent hose whipping.
2. Standard Data Entry Guide for Smart JSA Bridge
To ensure the Smart JSA Bridge platform generates safety control measures fully aligned with OSHA and ACI standards, enter the following standardized job steps into the system:
[Step 1] Concrete Pump Truck Site Entry, Ground Inspection, and Outrigger Setup
Detailed Description: Level and verify ground bearing capacity; install engineered cribbing/pads under all outriggers; fully extend outriggers and perform dual checks by spotters.
[Step 2] Boom Deployment, Pipe Connection, and Overhead Power Line Clearance
Detailed Description: Maintain 10 ft (3m) minimum clearance from power lines; install insulated covers; assign a dedicated spotter; establish exclusion zones under the boom radius.
[Step 3] Ready-Mix Truck Hopper Standby, Concrete Loading, and Hydraulic Pumping
Detailed Description: Assign dedicated reversing spotters for ready-mix trucks; prohibit opening hopper grates; apply LOTO before clearing blockages; verify backup alarms.
[Step 4] Boom Operation, Delivery Pipe (End Hose) Whipping, and Concrete Placement
Detailed Description: Pump slurry primer; assign minimum 2 workers to the end hose with guide ropes; strictly adhere to formwork pouring rates; deploy a formwork watchman.
[Step 5] Worker Movement at Slab Edges and Elevated Pouring Areas
Detailed Description: Install perimeter guardrails and safety nets; mandate 100% tie-off; verify GFCI connections for vibrators; inspect power cords for damage.
[Step 6] Post-Pour Boom Folding, Pipe Cleaning (Sponge Ball), and Housekeeping
Detailed Description: Relieve all residual line pressure before opening clamps; install a catch basket at the discharge end during sponge ball cleaning; establish an exclusion zone.
3. Recommended Final JSA Document (Database Sample)
Below is the final JSA document generated based on automated system recommendations and adapted for US construction site conditions:
| No. | Job Step | Hazard Factors | Risk Control Measures | Probability | Severity | Risk Level |
|---|---|---|---|---|---|---|
| 1 | Concrete Pump Truck Site Entry, Ground Inspection, and Outrigger Setup | • Soft ground settlement causing the pump truck to overturn and crush nearby workers • Insufficient ground bearing capacity or missing outrigger pads causing the vehicle to tilt | • Level and verify ground bearing capacity; strictly mandate dedicated outrigger pads (cribbing) under all outriggers • Fully extend outriggers according to manufacturer specifications; mandate dual checks by spotters and foremen | 2 | 3 | 6 |
| 2 | Boom Deployment, Pipe Connection, and Overhead Power Line Clearance | • Electrocution or arc flash severe injuries from the boom contacting overhead power lines during unfolding • Struck-by injuries from boom movement or falling materials onto unauthorized workers in the radius | • Maintain minimum 10 ft (3m) clearance from power lines and install line covers; assign a dedicated spotter • Establish an exclusion zone under the boom radius; verify hard hat and safety harness compliance | 2 | 3 | 6 |
| 3 | Ready-Mix Truck Hopper Standby, Concrete Loading, and Hydraulic Pumping | • Crushing or caught-between injuries involving spotters or workers during ready-mix truck reversing • Entanglement and amputation hazards from rotating agitator screws when clearing hopper blockages | • Assign dedicated reversing spotters for ready-mix trucks; verify functional backup alarms and cameras • Prohibit opening of hopper safety grates; halt pumping and apply Lockout/Tagout (LOTO) before clearing blockages | 2 | 3 | 6 |
| 4 | Boom Operation, Delivery Pipe (End Hose) Whipping, and Concrete Placement | • High-velocity hose whipping (whip effect) striking workers when high pressure is released after a pipe blockage • Formwork blowout and structural collapse due to excessive lateral pressure from rapid or uneven pouring | • Pump slurry primer to prevent blockages; assign at least two workers to the end hose using safety guide ropes • Adhere strictly to designed formwork pouring rates; prohibit uneven dumping; assign a formwork watchman | 2 | 3 | 6 |
| 5 | Worker Movement at Slab Edges and Elevated Pouring Areas | • Fall hazards from unprotected slab perimeters and floor openings while maneuvering during the pour • Electrocution hazards from damaged power cords of concrete vibrators submerged in wet concrete | • Pre-install perimeter guardrails and safety nets; mandate 100% tie-off using personal fall arrest systems • Verify GFCI connections for all vibrators; perform pre-use inspections on power cords for insulation damage | 2 | 3 | 6 |
| 6 | Post-Pour Boom Folding, Pipe Cleaning (Sponge Ball), and Housekeeping | • Struck-by hazards from flying debris when opening pipe clamps without relieving residual line pressure • High-velocity sponge ball and concrete clump ejection during compressed air cleaning of the delivery line | • Verify complete relief of residual high pressure before uncoupling clamps; workers must stand to the side • Install a dedicated catch basket at the discharge end during sponge ball blow-out; establish an exclusion zone | 1 | 2 | 2 |
4. JSA Engineering Mechanism for Concrete Pumping: Rollover Prevention and Pressure Control
Concrete pouring operations using pump trucks demand strict engineering controls and compliance with OSHA standards to prevent catastrophic vehicle rollovers, lethal hose whipping, electrocutions from overhead lines, and falls from elevated decks. Vague instructions like "drive carefully" or "watch the hose" are insufficient for OSHA compliance audits and fail to prevent jobsite disasters.
Smart JSA Bridge utilizes an automated risk analysis algorithm calibrated against OSHA 29 CFR 1926 Subpart Q, Subpart CC, and ACI 304.2R standards to deliver actionable, site-specific risk control measures.
By inputting 6 structured job steps, the algorithm calculates technical parameters—including mandatory outrigger pad installation, 10-foot power line clearance protocols, LOTO procedures for hopper cleaning, and catch-basket requirements for pneumatic pipe blow-outs.
Project Engineers, Safety Managers, and Concrete Superintendents can customize these parameters with a single click to match specific pump truck models and site layout plans.
Streamline your safety documentation workflow while maintaining full technical compliance for high-hazard concrete pumping operations. Generate your customized risk assessment today.
👉 Enter job steps on Smart JSA Bridge and generate your custom JSA (smartjsabridge.com)
