Manual Chain Hoist Positioning JSA

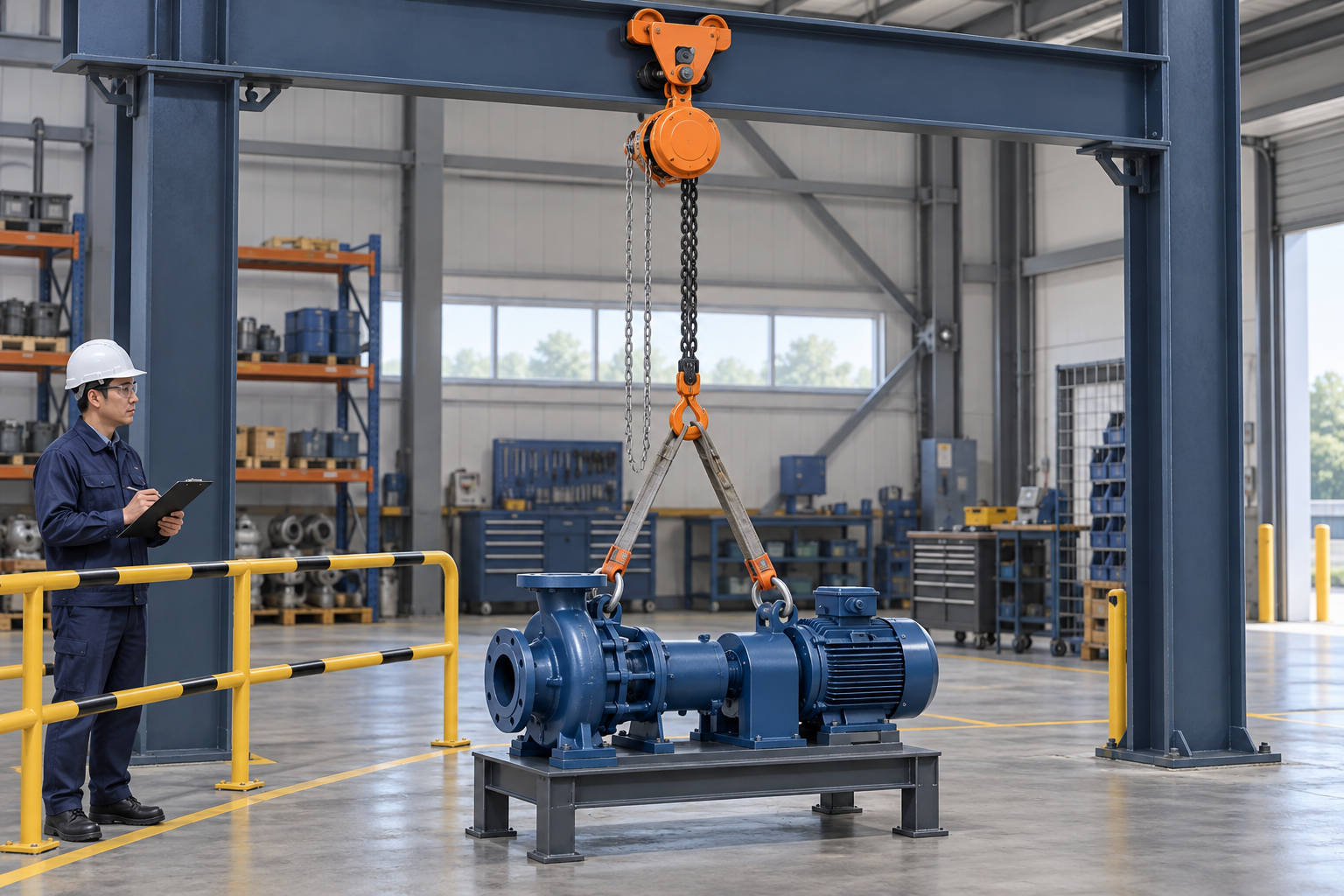

Vertical lifting, small controlled positioning adjustments, landing and removal of a manual chain hoist. Verify the entire load path from the overhead support and clamp through the hoist, hooks, sling and load to the final supports.

Stop for chain twist or binding, brake slip, hook distortion, support movement, loss of a vertical load line or abnormal hand-chain resistance.

Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.

1. Legal and technical scope

For construction, OSHA 1926.251 applies to covered rigging; for general-industry slings, review the applicable provisions of 1910.184. Neither reference by itself designs an overhead beam or makes every stand-alone hand hoist an overhead crane under 1910.179. Use the actual hoist, clamp and support instructions. ASME/ANSI consensus documents are separate technical references unless a specific law or contract incorporates them.

Determine Federal OSHA or the applicable OSHA-approved State Plan, including public/private employer coverage. State Plans must be at least as effective and can impose different or additional requirements. The actual activity determines construction versus general-industry scope. Manufacturer instructions, consensus standards, project design and site approvals have distinct roles; this page is not a finding of nationwide compliance.

2. Scope and required inputs

Included: Vertical lifting, small controlled positioning adjustments, landing and removal of a manual chain hoist. Verify the entire load path from the overhead support and clamp through the hoist, hooks, sling and load to the final supports.

Separate review: Side pulling, forced bolt-hole alignment, coordinated multiple-hoist lifts, overhead support design and recovery of a suspended load after equipment failure require separate specialist review. A vertical chain-hoist example does not authorize lever-hoist pulling.

Confirm hoist and attachment ratings, overhead support capacity, permitted loading direction, chain inspection criteria and final support requirements. Select suitable handling protection and safe access. No universal beam capacity or discard dimension is supplied here; use the actual model and design evidence.

3. Eight-stage JSA

P = likelihood; S = severity; R = risk under the site method; A = acceptance or authorization as defined by the site. Leave these blank until actual assessment and control verification. A low score does not override a legal requirement, product limit or unreleased hold point.

4. Hypothetical scenario and failure mechanisms

The following scenario, comparisons and example records are hypothetical teaching material. They do not reproduce actual incidents, measurements, signatures or approvals.

The hoist nameplate covers one component of a larger system. The beam, clamp, connections, lifting attachment and actual load direction each need an adequate basis. A pipe or guardrail is not a lifting point merely because a hook fits around it.

A vertical hoist must maintain the permitted load line. Pulling an offset load toward a bolt hole can load the hook and support in an unapproved direction. Use an appropriately reviewed positioning method rather than force.

Increasing hand-chain resistance can signal an overload, twist, obstruction or defect. Extra people, impact or powered assistance can bypass the warning while increasing load. Stop and determine the cause; do not work on loaded chain or brake parts.

Touching the floor does not prove stable landing. Check support capacity and contact, load distribution, restraint and remaining chain tension. Transfer the load in a controlled way before disconnecting either end of the hoist.

5. Conditional decisions and common errors

6. Roles and responsibilities

These are responsibility examples, not invented statutory credentials. Meet the actual training, competent-person, qualified-person and licensing requirements for the assigned work. Anyone may raise a hazard and request a stop; only the designated authority may release the affected stage after evidence is reviewed.

7. Hold points and record comparison

Hold points are internal evidence gates. They do not replace statutory permits or actual signatures. Recheck affected gates after a change, abnormal event or shift transfer. The blank record must identify the evidence, person, time, limits and release scope.

The □ boxes are static prompts, not saved or interactive approvals. Each checks one record element. A tick alone does not establish suitability or permission to restart. Link equipment IDs and supporting records; retain unresolved matters and the earlier record when conditions change.

8. Site checklist and emergency response

Stop work: Stop for chain twist or binding, brake slip, hook distortion, support movement, loss of a vertical load line or abnormal hand-chain resistance.

Emergency response: Keep people out of the suspended-load and possible movement area. Do not disconnect or repair loaded chain, hooks or brakes. Use a separately reviewed recovery and independent-support method suited to the remaining load. Activate the site emergency plan and call 911 for injury or an uncontrolled collapse hazard.

9. Sources and review limits

Official-source review date: October 12, 2026. The following review is limited to the public provisions or selected manufacturer material identified below. It does not establish that any authority approved this article or the actual installation.

• OSHA 1926.251: Construction sling and rigging inspection, markings and capacity; no claim to certify the complete support.
• Harrington CF4 owner manual: Selected attachment, preoperation and operation instructions, edition effective October 24, 2024. CF4 model example; no site hoist or support inspected.
• OSHA State Plans: jurisdiction and coverage overview; identify the actual state program before use.

Paid consensus standards and site-specific calculations, manuals, inspection records and product certificates were not independently obtained or verified unless specifically identified. Korean legal citations remain in the preserved Korean source as source history; they are not represented as US legal duties.

10. PDF guidance and FAQ

PDF A covers basic task controls; B examines technical failures; C focuses on supervision, evidence and handover. Each has six rows and three items per main cell. They are complementary extracts: apply all eight body stages and the applicable site procedure. An omitted stage is not permission to omit its controls. PDF HP-0 through HP-4 are worksheet labels; match the event, evidence and authority rather than assuming they match another permit by number.

P/S/R/A, actual measurements, confirmations and signatures remain blank. The PDFs are uncompleted reference worksheets, not issued work permits.

Content group ID: jsa-chainblock-positioning

Is the hoist rating enough to approve the lift?

No. Verify the beam, clamp, hooks, rigging, lifting points and actual load direction as a complete path.

Should two people pull a stiff hand chain?

Do not add force. Stop and check load, twist, interference and defects using the model procedure.

May I pull sideways to align a bolt hole?

Do not turn a vertical lift into an unapproved side pull. Obtain a suitable positioning method.

May the hook be removed once the load touches the floor?

Only after the intended supports carry the load, restraint is complete and residual hoist load has been safely removed.

Has a professional verified or approved this document?

No. This is AI-assisted reference material. Editorial and layout checks are not a physical inspection or professional technical approval. Obtain qualified professional review and required site approval before use.

11. Revision history and authorship

Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.

This system has not physically inspected the equipment, structures, ground, atmosphere or worksite. The document does not replace legal advice, manufacturer procedures, engineering design, inspection certificates, qualification evidence, the site risk assessment or an actual work permit.

Before use, a suitably qualified and authorized person must review the actual equipment, loads, methods, protection, inspection and emergency arrangements and resolve open issues. Record the real reviewer, organization, qualifications, delegated authority, reviewed documents, date, signature, exclusions and conditions of approval separately.
