Releasing a tiedown removes a restraint that may be carrying shifted cargo. The driver and receiving crew must establish the arrival condition, support and safe working position before any ratchet or sideboard is opened.
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
Stop conditions first
Do not release a leaning load or one possibly resting on a strap or sideboard. Hold for jammed ratchets, unusual tension, displaced dunnage, uncertain support or lost driver communication. Do not cut tensioned straps as a shortcut.
1. US legal and technical basis
General-industry receiving/unloading: evaluate 1910.176 material-handling stability and the applicable vehicle/loading controls. Construction handling has a separate 1926 analysis. FMCSA cargo-securement rules address covered road transport; compliance in transit does not establish a safe unloading release sequence.
| Reference | Use and limit |
|---|---|
| OSHA 29 CFR 1910.176 | Material-handling access and secure storage/stability principles; does not specify ratchet-specific release instructions. |
| FMCSA Cargo Securement Rules | Covered commercial road-transport securement requirements reviewed as transport context, not unloading clearance or a device release sequence. |
| OSHA State Plans | Federal baseline and State Plan coverage reviewed. Confirm the applicable state program and employer coverage; this edition does not establish nationwide compliance. |
Determine whether Federal OSHA or an applicable State Plan governs the employer and work. Standards incorporated into a regulation must be read in their legally applicable edition. Other NFPA/ANSI guidance and manufacturer instructions have distinct roles; they are not automatically federal law.
2. Scope and required inputs
Included
Release textile ratchet tiedowns on a parked truck in a level unloading area, using the device instructions after establishing cargo stability and an unloading plan.
Separate assessment
Steel packing-band cutting, chain binders, leaking or expanding cargo, collapsed-load recovery, elevated access and the actual hoisting/unloading operation require separate plans.
| Input | Evidence needed |
|---|---|
| Inspect arrival | Load and vehicle ID; Arrival photographs; Lean and sideboard pressure; Dunnage condition |
| Control vehicle | Parking/restraint method; Driver contact; Exclusion boundary; Single signal plan |
| Position and inspect | Ratchet and hook type; Strap damage; Access and retreat; People clear |
| Transfer unloading | Released/remaining map; Support restrictions; Receiving person/time; Departure authorization |
Selected public official provisions were checked on October 12, 2026. This is not a complete legal audit. No actual equipment manual, site measurements, engineering calculations, product certification or professional technical approval was supplied. Full paid NFPA/ANSI standards and state/local amendments were not reviewed. Check actual equipment, jurisdiction and project requirements before use.
Select task-appropriate eye, hand, foot, skin and hearing protection from the exposure assessment. Where respiratory protection is necessary, use the applicable respiratory-protection program; PPE does not replace isolation, guarding, support or ventilation.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Inspect arrival | 1. Cargo collapse2. Wrong load released3. Falling sideboard load4. Damaged dunnage | 1. Transit photo trusted2. Load ID confused3. Side pressure missed4. Arrival damage ignored | 1. Match vehicle and cargo2. Inspect from safe position3. Check lean and side pressure4. Compare support condition | 1. Load and vehicle ID2. Arrival photographs3. Lean and sideboard pressure4. Dunnage condition | ||||
| 2. Control vehicle | 1. Early departure2. Pedestrian strike3. Vehicle movement4. Conflicting signals | 1. Driver uninformed2. Boundary unclear3. Parking controls absent4. Multiple release signals | 1. Prevent vehicle movement2. Agree driver communication3. Separate waiting areas4. Assign release authority | 1. Parking/restraint method2. Driver contact3. Exclusion boundary4. Single signal plan | ||||
| 3. Plan stability | 1. Load falls on release2. Temporary support failure3. Adjacent bundle shifts4. Sideboard collapse | 1. Strap acting as support2. Dunnage displaced3. Unload order unclear4. Support not installed | 1. Review released load path2. Arrange suitable support3. Agree unloading sequence4. Hold restraints until ready | 1. Stability assessment2. Support design/method3. Release sequence4. Support acceptance | ||||
| 4. Position and inspect | 1. Strap recoil2. Hook strike3. Fall from truck4. Hand pinch | 1. In line of recoil2. Drop side occupied3. Unsafe foothold4. Ratchet forced | 1. Stay outside recoil/drop path2. Use safe access3. Check device condition4. Follow device release method | 1. Ratchet and hook type2. Strap damage3. Access and retreat4. People clear | ||||
| 5. Release tension | 1. Cargo movement2. Strap whip3. Finger crush4. Cascading restraint loss | 1. All straps released2. Tensioned strap cut3. Hands at pinch point4. Movement ignored | 1. Release in planned order2. Control device movement3. Keep hands clear4. Stop for shifting load | 1. Each device status2. Cargo movement3. Dunnage movement4. Abnormal tension | ||||
| 6. Recover straps | 1. Hook falls2. Strap catches person3. Remaining load unstable4. Trip hazard | 1. Far side not checked2. Strap dragged blindly3. Remaining role ignored4. Loose webbing left | 1. Check both sides2. Control hook recovery3. Reassess remaining restraints4. Store recovered gear | 1. Recovery path2. Hook positions3. Remaining load support4. Gear accounted for | ||||
| 7. Hold abnormality | 1. Repeat collapse2. Tension release injury3. Unsafe recovery4. Vehicle intrusion | 1. Jam forced2. Strap cut under load3. Support changed blindly4. Driver loses contact | 1. Stop and exclude area2. Keep loaded restraints3. Review stabilized recovery4. Restore communication | 1. Fault and lean location2. Tension/support state3. Revised recovery plan4. Restart decision | ||||
| 8. Transfer unloading | 1. Hoist against tiedown2. Early vehicle departure3. Support removed early4. Missed shifted load | 1. Residual strap omitted2. All-clear misunderstood3. Unloading team uninformed4. Defect unrecorded | 1. Map remaining restraints2. Transfer support limits3. Confirm receiving crew4. Control departure release | 1. Released/remaining map2. Support restrictions3. Receiving person/time4. Departure authorization |
Actual risk assessments, measurements, checks, approvals and signatures have not been performed. Keep unverified fields blank and link the actual site records. P/S/R/A mean likelihood, severity, site-method risk and site-defined acceptance/authorization; a score cannot waive a required control.
4. Failure mechanisms and hypothetical case

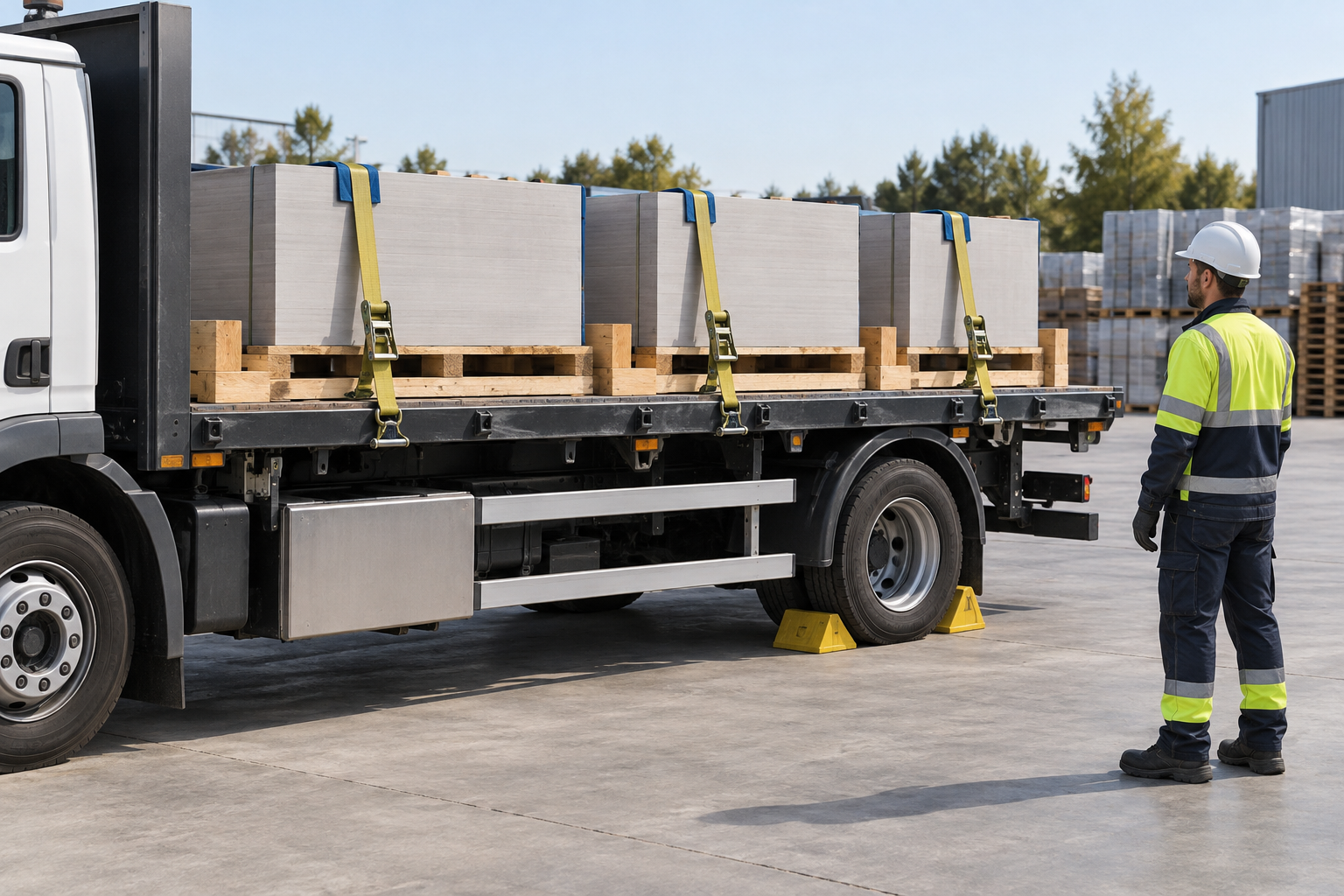

The retained illustration is an AI-generated educational image from the Korean source. It is not an actual incident photograph, approved drawing, equipment certification or proof that the depicted arrangement is safe.
A slack strap does not prove that cargo is stable. Another strap or sideboard may carry the load. Inspect from a protected outside position and do not release a restraint merely to discover what it is holding.
There is no universal front-to-back release order. Sequence follows cargo geometry, dunnage, temporary support and the unloading plan. A person holding the load is not suitable temporary support.
A road-securement rating or an intact strap confirms neither arrival stability nor freedom from stored tension. Reassess the remaining load after each planned release and before opening a sideboard.
Hypothetical decision example
Hypothetical example: a bundle leans toward the sideboard and one dunnage block has shifted. The driver proposes releasing one tight strap to see what happens; both strap and sideboard stay closed pending stabilization.
The example is fictional; no incident, measurement, inspection or approval is asserted.
Task flow: Inspect arrival → Control vehicle → Plan stability → Position and inspect → Release tension → Recover straps → Hold abnormality → Transfer unloading
5. Hold and proceed decisions
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Cargo leans | Keep restraints closed; exclude people | Arrival survey and load-path assessment | Cargo stabilized |
| Ratchet jammed | Do not force or cut | Device instructions and support review | Controlled method ready |
| Support shifts | Stop further release | Dunnage and revised unloading plan | Support stable |
| Handover | Identify remaining restraints and limits | Release map and receiving-person record | Unloading team informed |
Similar observation, different conclusion
| Observation | Supported conclusion | What remains unresolved |
|---|---|---|
| Strap survived transit | Arrival load path and dunnage checked | Intact strap alone cannot release cargo |
| First strap released | Remaining cargo reassessed | No movement does not prove next release safe |
6. Roles and supervision
| Role | Responsibility |
|---|---|
| Work supervisor | Coordinate inspect arrival, affected operations, stop signals and stage transitions. |
| Technical/equipment reviewer | Verify Load and vehicle ID, Arrival photographs, actual instructions and unresolved technical limits. |
| Task crew | Apply the stated controls, report changes and keep actual checks and signatures factual. |
| Inspector/test lead | Connect Recovery path, Hook positions to the required acceptance criteria. |
| Receiving authority | Accept the recorded restrictions, Receiving person/time, Departure authorization, and follow-up ownership. |
These are responsibility examples, not invented statutory credentials. Verify actual competence, training and authority for the assigned work.
Supervision and handover controls
| Stage | Management controls | Evidence |
|---|---|---|
| Plan review | 1. Assign technical owner2. Close task-specific questions3. Match vehicle and cargo | 1. Load and vehicle ID2. Arrival photographs3. Dunnage condition |
| Competence | 1. Verify required competence2. Assign stop authority3. Prevent vehicle movement | 1. Parking/restraint method2. Training and task briefing3. Single signal plan |
| Prestart evidence | 1. Inspect actual equipment2. Link evidence to this stage3. Stay outside recoil/drop path | 1. Ratchet and hook type2. Strap damage3. People clear |
| Change control | 1. Stop and secure the area2. Review affected controls3. Stop and exclude area | 1. Fault and lean location2. Tension/support state3. Restart decision |
| Shift handover | 1. Identify remaining restrictions2. Confirm receiving responsibility3. Map remaining restraints | 1. Released/remaining map2. Support restrictions3. Departure authorization |
| Closeout | 1. Record defect disposition2. Archive factual evidence3. Map remaining restraints | 1. Released/remaining map2. Support restrictions3. Departure authorization |
7. Hold points and record quality
| Hold point | Evidence before release | Actual record |
|---|---|---|
| HP-0 Start | Release textile ratchet tiedowns on a parked truck in a level unloading area, using the device instructions after establishing cargo stability and an unloading plan. | |
| HP-1 Control vehicle | Parking/restraint method; Driver contact; Exclusion boundary; Single signal plan | |
| HP-2 Position and inspect | Ratchet and hook type; Strap damage; Access and retreat; People clear | |
| HP-3 Hold abnormality | Fault and lean location; Tension/support state; Revised recovery plan; Restart decision | |
| HP-4 Transfer unloading | Released/remaining map; Support restrictions; Receiving person/time; Departure authorization |
Hold points are internal evidence gates. They do not establish that a statutory permit exists or has been approved. Recheck affected gates after changes, faults and shift handover.
Record comparison - hypothetical templates
The 16 boxes below identify record elements, not completed checks or approvals. They are static symbols. Link equipment/location, date, actual findings and the separate record reference; preserve unresolved items.
| Record | Insufficient entry | Required record elements |
|---|---|---|
| Inspect arrival | "Checked" without supporting facts | □ Load and vehicle ID□ Arrival photographs□ Lean and sideboard pressure□ Dunnage condition |
| Plan stability | "Checked" without supporting facts | □ Stability assessment□ Support design/method□ Release sequence□ Support acceptance |
| Release tension | "Checked" without supporting facts | □ Each device status□ Cargo movement□ Dunnage movement□ Abnormal tension |
| Hold abnormality | "Checked" without supporting facts | □ Fault and lean location□ Tension/support state□ Revised recovery plan□ Restart decision |
8. Pre-work checks and emergency response
| Check required | Result | Checker/action |
|---|---|---|
| Inspect arrival: Load and vehicle ID | ||
| Control vehicle: Parking/restraint method | ||
| Plan stability: Stability assessment | ||
| Position and inspect: Ratchet and hook type | ||
| Release tension: Each device status | ||
| Recover straps: Recovery path | ||
| Hold abnormality: Fault and lean location | ||
| Transfer unloading: Released/remaining map |
Stop work
Do not release a leaning load or one possibly resting on a strap or sideboard. Hold for jammed ratchets, unusual tension, displaced dunnage, uncertain support or lost driver communication. Do not cut tensioned straps as a shortcut.
Emergency response
Stop restraint release, keep the vehicle secured and exclude people from the leaning-load, sideboard and strap-recoil paths. Do not cut a loaded strap, open a loaded sideboard or use a person to support cargo during rescue. Activate the stabilized-load recovery plan and call 911 for injury or collapse; provide cargo, restraint and support information to responders.
9. Official sources and review limits
Official public-source check: October 12, 2026. The review concerns the selected passages described below, not endorsement of this article.
| Official source | Checked scope and limit |
|---|---|
| OSHA 29 CFR 1910.176 | Material-handling access and secure storage/stability principles; does not specify ratchet-specific release instructions. |
| FMCSA Cargo Securement Rules | Covered commercial road-transport securement requirements reviewed as transport context, not unloading clearance or a device release sequence. |
| OSHA State Plans | Federal baseline and State Plan coverage reviewed. Confirm the applicable state program and employer coverage; this edition does not establish nationwide compliance. |
Selected public official provisions were checked on October 12, 2026. This is not a complete legal audit. No actual equipment manual, site measurements, engineering calculations, product certification or professional technical approval was supplied. Full paid NFPA/ANSI standards and state/local amendments were not reviewed. Check actual equipment, jurisdiction and project requirements before use.
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
10. PDF use and frequently asked questions
PDF A summarizes core controls; B emphasizes technical failures; C covers supervision, records and handover. Each uses six stages from or aligned with the eight-stage body. All actual risk, measurement, check and signature fields are blank. Use a separate linked record where more space is needed.
Can I cut a strap to save time?
No. This scope uses the ratchet release method after load stabilization; cutting unknown tension can cause recoil or collapse.
Which strap comes off first?
Use the load-specific unloading and support plan, not a universal order.
May the driver work alone?
Decide from competence, communication, safe access and load stability; being the driver is not sufficient.
May I open the sideboard to inspect?
Not if cargo may be pressing against it. Assess from a protected position and stabilize first.
Has a professional approved this JSA?
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
11. Authorship and revision history
This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorization are necessary before use.
| Date/version | Editorial history | Technical approval |
|---|---|---|
| 2026-09-25 | Korean source retained as an unchanged snapshot; source ID d5695758-c941-43ac-854c-022d07697ab3 | Not asserted |
| 2026-10-12 / US v1.0 | US localization: Preserves shifted-dunnage/sideboard case, stored restraint forces, no universal release order and residual-strap handover. Distinguishes US workplace handling from FMCSA road securement; no foreign HSE guidance is presented as US law. | Not performed |
