0. JSA Risk Assessment Preview: Tower Crane Foundation Anchor Installation Operations
| No. | Job Step | Hazard Factors | Risk Control Measures | Probability | Severity | Risk Level |
|---|---|---|---|---|---|---|
| 1 | Anchor Material Delivery and Unloading (Mobile Crane) | • Dropped loads due to rigging failure or improper hitching during anchor frame hoisting • Struck-by or crushed-by hazards for workers entering the crane's swing radius | • Rigging must be performed by a Qualified Rigger; inspect slings and shackles prior to lifting • Deploy a dedicated signal person; establish a strict exclusion zone around the swing and hoist radius | 2 | 4 | 8 |
| 2 | Surveying and Foundation Anchor Layout | • Fall hazards from unprotected edges of the excavated foundation pit • Struck-by incidents involving surrounding excavation equipment (e.g., excavators) | • Install OSHA-compliant guardrails and fall protection barricades at the excavation edges • Physically segregate the surveying work area from the travel paths of heavy earthmoving equipment | 2 | 3 | 6 |
| 3 | Anchor Hoisting and Temporary Guying/Support | • Tip-over of the anchor frame/stool due to an unstable center of gravity and inadequate temporary bracing • Pinch point and crushing hazards for hands/feet between the anchor frame and foundation rebar | • Utilize turnbuckles, chain blocks, and guy wires to establish secure 4-way temporary bracing • Do not release the crane load line until fully secured; use pry bars for adjustments to keep hands clear | 2 | 3 | 6 |
| 4 | Anchor Welding/Securing and Plumb/Level Inspection | • Surrounding combustible materials catching fire due to flying sparks from anchor frame tack welding • Asphyxiation or metal fume fever from inhaling welding fumes in confined foundation pits | • Implement a Hot Work Permit; install spark containment blankets and station multiple fire extinguishers • Provide local exhaust ventilation; mandate welding respirators; use total stations for precise plumb checks | 2 | 3 | 6 |
| 5 | Foundation Rebar Assembly and Anchor Tying | • Impalement hazards on protruding rebar ends; musculoskeletal disorders from carrying heavy rebar • Worker engulfment/crushing due to the collapse of unsecured rebar cages | • Cap all exposed rebar ends with OSHA-approved impalement protection caps; enforce 2-person lifting • Secure the rebar structure with robust spacers and tie wires; prohibit standing under active assembly zones | 2 | 2 | 4 |
| 6 | Foundation Concrete Placement and Curing | • Plumb displacement (tilt) of the anchor frame caused by lateral pressure from asymmetrical concrete pouring • Struck-by injuries from whipping concrete pump hoses or the pump boom | • Pour concrete symmetrically (in a zig-zag pattern) around the anchor to evenly distribute lateral pressure • Continuously monitor anchor plumb with surveying instruments during pouring; deploy a pump signal person | 2 | 3 | 6 |
1. On-Site Incident & Hazard Analysis
A. [Hypothetical Sample Case] Anchor Frame Overturn and Worker Crushing Due to Inadequate Temporary Bracing
Note: The following is an illustrative, hypothetical incident designed solely for risk assessment training.
During the construction of a high-rise commercial complex, a rigging crew was installing the tower crane foundation anchor stool inside an excavated pit. The heavy anchor frame was hoisted by a mobile crane and set into its designated position. To accelerate the schedule, the crew ignored the manufacturer's specification requiring 4-way temporary bracing with turnbuckles and chain blocks. Instead, they quickly tack-welded only two sides of the frame to some scrap rebar and signaled the crane operator to slacken and detach the rigging.

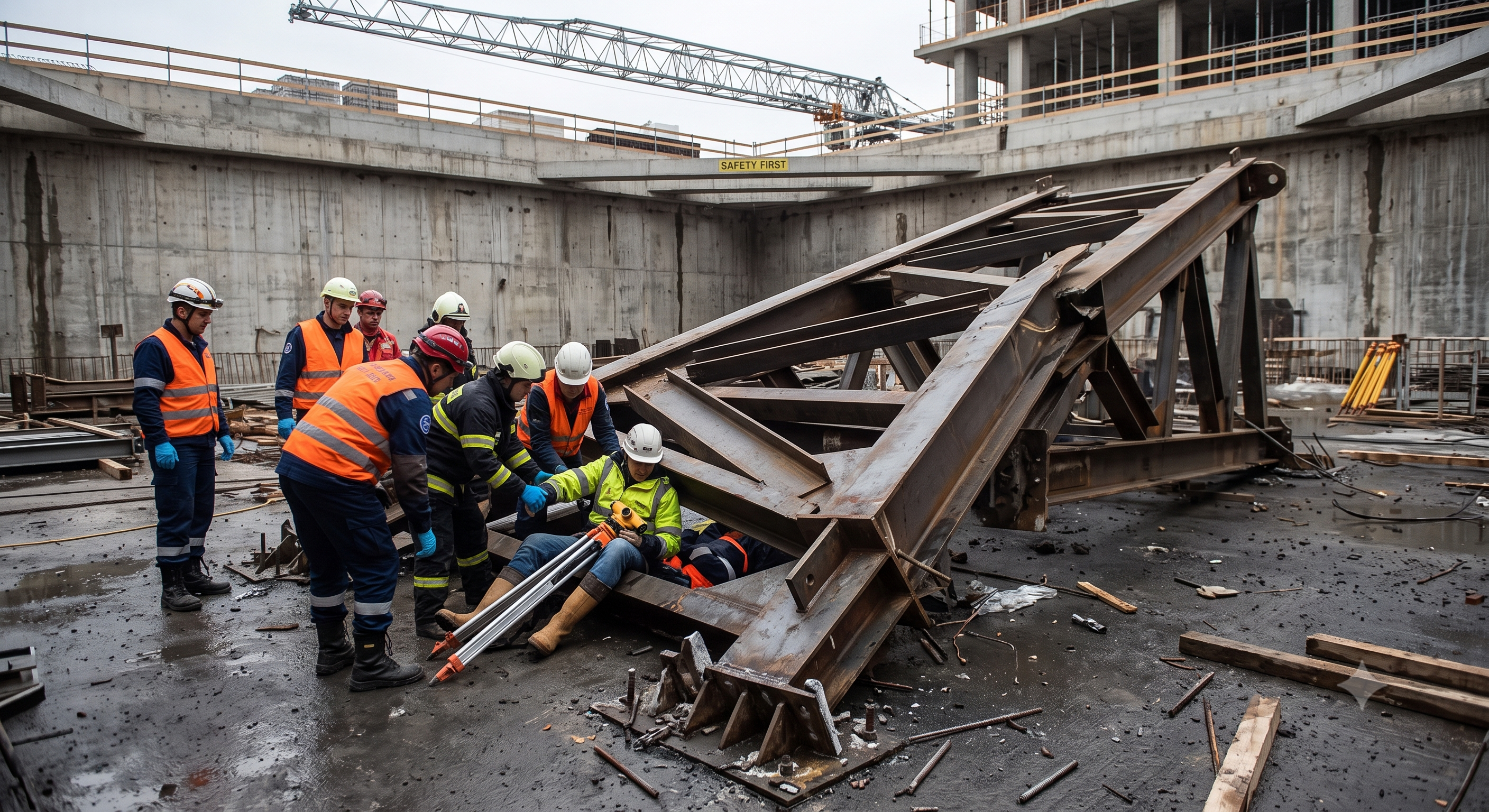

Immediately after the crane load line was detached, the anchor frame succumbed to its own dead weight and a slight unevenness in the subgrade, snapping the inadequate tack welds. The multi-ton anchor frame tipped over rapidly. A surveyor, who was kneeling beneath the frame to check the base level, was catastrophically crushed between the collapsing steel frame and the foundation mat. This hypothetical scenario starkly illustrates the critical engineering principle that crane tension must never be released until the foundation anchor is fully and physically secured in all four directions.
B. Structural, Mechanical, and Regulatory Hazard Mechanisms
The tower crane foundation anchor is the most critical structural component that transfers the entire dead load of the crane, the massive overturning moments during slewing, and dynamic wind loads directly into the ground. If the foundation anchor exceeds the manufacturer's specified plumb and level tolerances (typically within 1/1000), these initial geometric errors will amplify as the mast sections are erected, potentially leading to a catastrophic structural failure of the entire crane.
From a construction engineering perspective, the most hazardous phase is the "freestanding condition" after the anchor is placed but before the concrete is poured. In this state, the heavy frame possesses an unstable center of gravity and can easily tip over from wind gusts or minor physical impacts. Therefore, multi-directional tension bracing using turnbuckles is mandatory. Furthermore, the massive lateral pressure generated during concrete placement can physically push the secured anchor out of alignment. Consequently, asymmetrical pouring is strictly prohibited, and real-time displacement monitoring during the pour is a critical control measure under US construction standards.
🚨 US Federal Regulations & Safety Standards (OSHA & ASME)
OSHA 29 CFR 1926.1402 (Ground Conditions): Mandates that equipment (including tower cranes) must not be assembled or used unless ground conditions are firm, drained, and graded to a sufficient extent so that the equipment manufacturer's specifications for adequate support and degree of level are met.
OSHA 29 CFR 1926.701 (Concrete and Masonry Construction - General Requirements): Requires that all protruding reinforcing steel (rebar), onto and into which employees could fall, must be guarded to eliminate the hazard of impalement.
ASME B30.3 (Tower Cranes): Specifies that foundation anchors must be installed according to the crane manufacturer's instructions. The plumb tolerance of the foundation anchor must be strictly verified before and monitored during the concrete pour to prevent displacement.
OSHA 29 CFR 1926.251 (Rigging Equipment for Material Handling): Requires that rigging equipment for material handling shall be inspected prior to use on each shift and as necessary during its use to ensure that it is safe. Defective rigging equipment shall be removed from service.
2. Standard Data Entry Guide for Smart JSA Bridge
To ensure the Smart JSA Bridge platform generates safety control measures fully compliant with OSHA construction standards and ASME guidelines, enter the following standardized job steps into the system:
[Step 1] Anchor Material Delivery and Unloading (Mobile Crane)
Detailed Description: Utilize Qualified Riggers; inspect all wire ropes and shackles; deploy a signal person; establish a strict exclusion zone under the lift radius.
[Step 2] Surveying and Foundation Anchor Layout
Detailed Description: Install fall protection barricades around the excavation; physically separate surveyors from moving heavy earthmoving equipment.
[Step 3] Anchor Hoisting and Temporary Guying/Support
Detailed Description: Do not detach the crane until 4-way temporary bracing (turnbuckles/chain blocks) is fully secured; use pry bars to avoid hand crush injuries.
[Step 4] Anchor Welding/Securing and Plumb/Level Inspection
Detailed Description: Implement Hot Work Permits and spark containment; wear welding respirators; use a total station to verify plumb within 1/1000 tolerance.
[Step 5] Foundation Rebar Assembly and Anchor Tying
Detailed Description: Install OSHA-compliant impalement caps on all exposed rebar; mandate 2-person lifting for heavy rebar; securely tie the rebar cage to prevent collapse.
[Step 6] Foundation Concrete Placement and Curing
Detailed Description: Execute symmetrical (zig-zag) pouring to balance lateral pressure; continuously monitor anchor plumb; deploy a concrete pump signal person.
3. Recommended Final JSA Document (Database Sample)
Below is the final JSA document generated based on automated system recommendations and adapted for US civil engineering and tower crane installation standards:
| No. | Job Step | Hazard Factors | Risk Control Measures | Probability | Severity | Risk Level |
|---|---|---|---|---|---|---|
| 1 | Anchor Material Delivery and Unloading (Mobile Crane) | • Dropped loads due to rigging failure or improper hitching during anchor frame hoisting • Struck-by or crushed-by hazards for workers entering the crane's swing radius | • Rigging must be performed by a Qualified Rigger; inspect slings and shackles prior to lifting • Deploy a dedicated signal person; establish a strict exclusion zone around the swing and hoist radius | 2 | 4 | 8 |
| 2 | Surveying and Foundation Anchor Layout | • Fall hazards from unprotected edges of the excavated foundation pit • Struck-by incidents involving surrounding excavation equipment (e.g., excavators) | • Install OSHA-compliant guardrails and fall protection barricades at the excavation edges • Physically segregate the surveying work area from the travel paths of heavy earthmoving equipment | 2 | 3 | 6 |
| 3 | Anchor Hoisting and Temporary Guying/Support | • Tip-over of the anchor frame/stool due to an unstable center of gravity and inadequate temporary bracing • Pinch point and crushing hazards for hands/feet between the anchor frame and foundation rebar | • Utilize turnbuckles, chain blocks, and guy wires to establish secure 4-way temporary bracing • Do not release the crane load line until fully secured; use pry bars for adjustments to keep hands clear | 2 | 3 | 6 |
| 4 | Anchor Welding/Securing and Plumb/Level Inspection | • Surrounding combustible materials catching fire due to flying sparks from anchor frame tack welding • Asphyxiation or metal fume fever from inhaling welding fumes in confined foundation pits | • Implement a Hot Work Permit; install spark containment blankets and station multiple fire extinguishers • Provide local exhaust ventilation; mandate welding respirators; use total stations for precise plumb checks | 2 | 3 | 6 |
| 5 | Foundation Rebar Assembly and Anchor Tying | • Impalement hazards on protruding rebar ends; musculoskeletal disorders from carrying heavy rebar • Worker engulfment/crushing due to the collapse of unsecured rebar cages | • Cap all exposed rebar ends with OSHA-approved impalement protection caps; enforce 2-person lifting • Secure the rebar structure with robust spacers and tie wires; prohibit standing under active assembly zones | 2 | 2 | 4 |
| 6 | Foundation Concrete Placement and Curing | • Plumb displacement (tilt) of the anchor frame caused by lateral pressure from asymmetrical concrete pouring • Struck-by injuries from whipping concrete pump hoses or the pump boom | • Pour concrete symmetrically (in a zig-zag pattern) around the anchor to evenly distribute lateral pressure • Continuously monitor anchor plumb with surveying instruments during pouring; deploy a pump signal person | 2 | 3 | 6 |
4. JSA Engineering Mechanism for Crane Foundations: Overturn Prevention and Precision Construction
Tower crane foundation anchor installation is a high-risk heavy material handling operation and a high-precision construction phase that dictates the future structural integrity of the entire crane. Vague instructions such as "be careful not to let it fall" or "make sure it is straight" are entirely inadequate for OSHA compliance audits and fail to prevent catastrophic structural collapses on jobsites.
Smart JSA Bridge utilizes an automated risk analysis algorithm calibrated against OSHA 29 CFR 1926 Subpart CC and ASME B30.3 standards to deliver real-time, actionable hazard controls.
By inputting 6 structured job steps, the algorithm calculates required technical controls—including criteria for lifting and rigging detachment, load analysis for 4-way temporary bracing, displacement prevention protocols against concrete lateral pressure, and fire prevention measures for welding.
Project Managers, Safety Directors, and Equipment Superintendents can customize these parameters with a single click to match specific tower crane specifications and manufacturer installation manuals across US construction projects.
Streamline your safety documentation workflow while ensuring total statutory compliance for high-risk temporary structures. Generate your customized risk assessment today.
👉 Enter job steps on Smart JSA Bridge and generate your custom JSA (smartjsabridge.com)
