Unloading, positioning and securing an air receiver, connecting its drain piping while isolated and depressurized, and handing the installation over for a separately controlled initial pressurization. Identify every connection to compressors, other receivers, headers and automatic drain power before opening the system.
Stop for uncertain isolation, residual pressure, damaged lifting points, unsupported pipe forces, a blocked relief path, leaks or unverified vessel ratings.
Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.
1. Legal and technical scope
For general-industry air receivers, OSHA 1910.169 addresses installation access, drainage, gauges and relief protection. For construction employment, check 1926.306. General-industry servicing energy control is addressed by 1910.147 within its stated scope; that section excludes construction employment. Determine the applicable construction energy and electrical provisions separately. State or local pressure-vessel rules and permits must also be identified for the actual location.
Determine Federal OSHA or the applicable OSHA-approved State Plan, including public/private employer coverage. State Plans must be at least as effective and can impose different or additional requirements. The actual activity determines construction versus general-industry scope. Manufacturer instructions, consensus standards, project design and site approvals have distinct roles; this page is not a finding of nationwide compliance.
| Basis | Application and limits |
|---|---|
| OSHA 1910.169 | Receiver access, drains, gauges and relief protection; scope exclusions and historically incorporated ASME edition. No site vessel certification performed. |
| OSHA 1926.306 | Construction receiver requirements. Scope and installation provisions only; no site inspection. |
| OSHA 1910.147 | General-industry service energy control and scope exclusions. Not presented as the construction lockout rule. |
2. Scope and required inputs
Included: Unloading, positioning and securing an air receiver, connecting its drain piping while isolated and depressurized, and handing the installation over for a separately controlled initial pressurization. Identify every connection to compressors, other receivers, headers and automatic drain power before opening the system.
Separate review: Pressure-vessel repair, welding or drilling the vessel, live tightening, pressure testing, and commissioning beyond the documented handover require separate procedures. Installation completion does not authorize operation.
| Input | Required evidence |
|---|---|
| Plan receiver | Vessel ID and rating; Mass and support basis; Anchor drawing revision; Drain and gauge access |
| Isolate and vent | Isolation boundary record; Zero-energy verification; Automatic functions isolated; Residual pockets addressed |
| Connect drain | Fitting and seal identity; Nozzle load and alignment; Collection arrangement; Drain access and protection |
| Hand over | Installation acceptance; Pressurization authority; Open items and restrictions; Operator handover record |
Confirm vessel pressure rating, drain component compatibility, lifting configuration, support reactions and anchor requirements from the actual documents. Select eye, hand, foot and other protection for lifting, sharp parts and condensate exposure. Record the applicable value, units, document revision and acceptance method.
3. Eight-stage JSA
P = likelihood; S = severity; R = risk under the site method; A = acceptance or authorization as defined by the site. Leave these blank until actual assessment and control verification. A low score does not override a legal requirement, product limit or unreleased hold point.
| Job stage | Hazards and effects | Failure factors | Required controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Plan receiver | 1. Vessel rupture2. Foundation overload3. Receiver overturning4. Maintenance obstruction | 1. Wrong vessel rating2. Unknown operating mass3. Anchor layout conflict4. Drain access blocked | 1. Verify vessel documents2. Check foundation reactions3. Match anchors to design4. Reserve service access | 1. Vessel ID and rating2. Mass and support basis3. Anchor drawing revision4. Drain and gauge access | ||||
| 2. Unload and move | 1. Dropped receiver2. Swinging load strike3. Nozzle damage4. Pinch injury | 1. Wrong lifting points2. Unstable travel route3. Rigging bears on fittings4. Hands under the base | 1. Use approved lift points2. Prepare route and exclusion3. Protect vessel fittings4. Use hands-clear positioning | 1. Shipping mass and CG2. Rigging inspection3. Route bearing capacity4. Signals and clearance | ||||
| 3. Isolate and vent | 1. Pressure jet2. Backfeed injury3. Automatic restart4. Condensate splash | 1. Common header overlooked2. Blocked gauge connection3. Drain power still live4. Trapped pipe pocket | 1. Isolate every pressure feed2. Verify designated venting3. Control drain power4. Collect discharge safely | 1. Isolation boundary record2. Zero-energy verification3. Automatic functions isolated4. Residual pockets addressed | ||||
| 4. Seat and secure | 1. Receiver movement2. Anchor failure3. Base distortion4. Crushed fingers | 1. Uneven base contact2. Wrong anchor installation3. Forced bolt alignment4. Premature sling release | 1. Check level and contact2. Install specified anchors3. Resolve fit without force4. Release after stable support | 1. Support contact record2. Anchor installation check3. Alignment acceptance4. Stability before unhooking | ||||
| 5. Connect drain | 1. Fitting ejection2. Nozzle overload3. Slippery condensate4. Freeze blockage | 1. Wrong fitting rating2. Unsupported pipe weight3. Unsafe discharge route4. Drain slope unsuitable | 1. Match gas pressure ratings2. Support piping separately3. Route to safe collection4. Review slope and freezing | 1. Fitting and seal identity2. Nozzle load and alignment3. Collection arrangement4. Drain access and protection | ||||
| 6. Inspect devices | 1. Vessel overpressure2. Undetected pressure3. Blocked drainage4. Unsafe maintenance | 1. Relief path isolated2. Gauge not readable3. Drain point obstructed4. Device details unverified | 1. Keep relief path open2. Check gauge access3. Verify low-point drainage4. Inspect specified devices | 1. Relief path inspection2. Gauge identity and range3. Drain arrangement check4. Device documents available | ||||
| 7. Hold on leakage | 1. Air or liquid jet2. Fitting separation3. Repeat pressure release4. Uncontrolled restart | 1. Tightening while live2. Fault cause unknown3. Temporary repair accepted4. Boundary changed unnoticed | 1. Stop and isolate again2. Depressurize before repair3. Use approved repair scope4. Repeat affected inspections | 1. Defect and isolation record2. Cause and repair evidence3. Retest procedure reference4. Revised boundary check | ||||
| 8. Hand over | 1. Early pressurization2. Unreleased defect3. Unsafe vent discharge4. Future isolation error | 1. Mechanical finish assumed2. Test scope not defined3. People remain exposed4. Drawings not updated | 1. Issue installation record2. Use separate test procedure3. Clear the affected area4. Transfer isolation drawings | 1. Installation acceptance2. Pressurization authority3. Open items and restrictions4. Operator handover record |
4. Hypothetical scenario and failure mechanisms

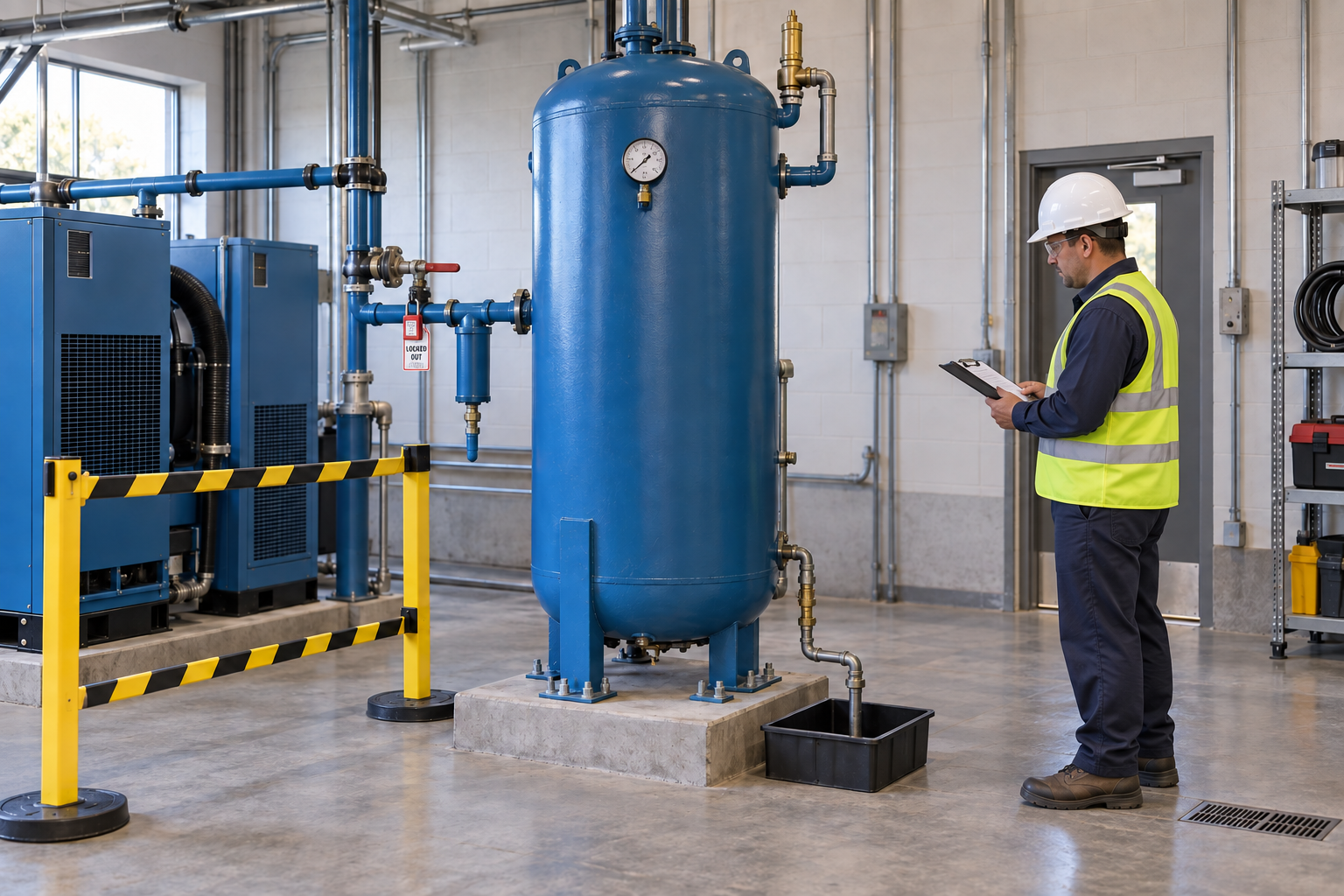

Retained source illustration: an AI-generated educational concept, not a real incident photograph or evidence of equipment suitability.The following scenario, comparisons and example records are hypothetical teaching material. They do not reproduce actual incidents, measurements, signatures or approvals.
| Item | Hypothetical situation |
|---|---|
| Initial state | A crew prepares to connect a receiver drain after stopping its compressor. |
| Change | The gauge reads zero, but another receiver remains connected through the common header. |
| Failure path | A blocked gauge connection or an overlooked backfeed can leave pressure at the union. Loosening it to check pressure opens an uncontrolled release path. |
| Possible harm | An air jet, expelled fitting or hot oily condensate could strike the worker. |
| Barrier | Identify and isolate all feeds; use the designed vent and verification method. Hold the opening until the actual boundary and zero-energy evidence agree. |
A stopped compressor is a control state, not an isolation boundary. A shared header, a second receiver or automatic restart can supply energy after the local machine stops. Verify the complete system boundary before opening the drain.
A zero indication is useful evidence only when the instrument and its connection are reliable and the relevant trapped volumes are addressed. Never create a test opening by cracking a union or removing a plug. Keep the vent discharge directed to a safe place.
Piping weight, forced alignment and thermal movement can load a receiver nozzle. Provide designed independent supports and compatible fittings; anchors secure the receiver but do not make an incorrectly loaded nozzle acceptable.
Relief protection and condensate drainage have different functions. Verify the unrestricted relief path, accessible gauge and low-point drain arrangement. Freeze protection, oily-condensate collection and later maintenance access remain part of installation handover.
| Decision | Reason and evidence |
|---|---|
| Known facts | The gauge reads zero, but another receiver remains connected through the common header. |
| Unresolved | A blocked gauge connection or an overlooked backfeed can leave pressure at the union. Loosening it to check pressure opens an uncontrolled release path. |
| Hold reason | Stop for uncertain isolation, residual pressure, damaged lifting points, unsupported pipe forces, a blocked relief path, leaks or unverified vessel ratings. |
| Evidence needed | Fitting and seal identity; Nozzle load and alignment; Collection arrangement; Drain access and protection. |
| Next decision | Identify and isolate all feeds; use the designed vent and verification method. Hold the opening until the actual boundary and zero-energy evidence agree. |
5. Conditional decisions and common errors
| Condition | Action | Evidence | Proceed when |
|---|---|---|---|
| Isolation uncertain | Hold opening; identify all feeds and trapped volumes. | Boundary, vent and zero-energy records. | All pressure sources controlled. |
| Drain misaligned | Support and realign without loading the nozzle. | Support drawing and fitting identification. | Supported, compatible connection. |
| Relief path uncertain | Hold pressurization and inspect the complete path. | Device and connection records. | Unrestricted relief path. |
| Leak found | Stop, isolate, depressurize and correct by procedure. | Defect, repair and retest records. | Repair passes controlled retest. |
| Comparison | Situation A | Situation B |
|---|---|---|
| Zero gauge | All supply paths isolated and the designated vent verified. | Only the compressor stop button was pressed. |
| Connection complete | Supports, ratings, devices and inspection records match the installation. | The joint looks tight, but pressurization and device checks remain open. |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Work supervisor | Confirm scope, task sequence, exclusion and stop authority. Coordinate plan receiver with affected operations. |
| Technical reviewer | Resolve the actual design and equipment limits: Vessel ID and rating; Mass and support basis; Anchor drawing revision; Drain and gauge access. |
| Work crew | Perform isolate and vent using the approved procedure; report any mismatch before proceeding. |
| Inspector / assessor | Verify Relief path inspection; Gauge identity and range; Drain arrangement check; Device documents available. Record what was actually checked and what remains unresolved. |
| Release / receiving authority | Confirm Installation acceptance; Pressurization authority; Open items and restrictions; Operator handover record. Transfer restrictions and the next permitted stage. |
These are responsibility examples, not invented statutory credentials. Meet the actual training, competent-person, qualified-person and licensing requirements for the assigned work. Anyone may raise a hazard and request a stop; only the designated authority may release the affected stage after evidence is reviewed.
7. Hold points and record comparison
| Hold point | Evidence before release | Confirmation / approval |
|---|---|---|
| HP-0 Start | Scope, jurisdiction, equipment identity, responsible people and emergency arrangements. | |
| HP-1 Isolate and vent | Isolation boundary record; Zero-energy verification; Automatic functions isolated; Residual pockets addressed | |
| HP-2 Connect drain | Fitting and seal identity; Nozzle load and alignment; Collection arrangement; Drain access and protection | |
| HP-3 Inspect devices | Relief path inspection; Gauge identity and range; Drain arrangement check; Device documents available | |
| HP-4 Hand over | Installation acceptance; Pressurization authority; Open items and restrictions; Operator handover record |
Hold points are internal evidence gates. They do not replace statutory permits or actual signatures. Recheck affected gates after a change, abnormal event or shift transfer. The blank record must identify the evidence, person, time, limits and release scope.
| Record | Insufficient record | Record checklist |
|---|---|---|
| Vessel | Tank is OK | □ Vessel ID and rating□ Mass and support basis□ Anchor drawing revision□ Drain and gauge access |
| Isolation | Gauge is zero | □ Isolation boundary record□ Zero-energy verification□ Automatic functions isolated□ Residual pockets addressed |
| Connection | Pipe installed | □ Fitting and seal identity□ Nozzle load and alignment□ Collection arrangement□ Drain access and protection |
| Handover | Ready to run | □ Installation acceptance□ Pressurization authority□ Open items and restrictions□ Operator handover record |
The □ boxes are static prompts, not saved or interactive approvals. Each checks one record element. A tick alone does not establish suitability or permission to restart. Link equipment IDs and supporting records; retain unresolved matters and the earlier record when conditions change.
8. Site checklist and emergency response
| Check item | Result | Person / action |
|---|---|---|
| Vessel ID and rating | ||
| Shipping mass and CG | ||
| Isolation boundary record | ||
| Support contact record | ||
| Fitting and seal identity | ||
| Relief path inspection | ||
| Defect and isolation record | ||
| Installation acceptance | ||
| Emergency arrangements and unresolved restrictions communicated |
Stop work: Stop for uncertain isolation, residual pressure, damaged lifting points, unsupported pipe forces, a blocked relief path, leaks or unverified vessel ratings.
Emergency response: Keep people out of the jet, fitting-ejection and potential vessel-failure area. Stop and isolate from a safe location if trained and able to do so; do not approach a leaking pressurized fitting. Activate the site emergency plan and call 911 for an injury or uncontrolled hazardous release. Recovery and depressurization require a reviewed method.
9. Sources and review limits
Official-source review date: October 12, 2026. The following review is limited to the public provisions or selected manufacturer material identified below. It does not establish that any authority approved this article or the actual installation.
- OSHA 1910.169: Receiver access, drains, gauges and relief protection; scope exclusions and historically incorporated ASME edition. No site vessel certification performed.
- OSHA 1926.306: Construction receiver requirements. Scope and installation provisions only; no site inspection.
- OSHA 1910.147: General-industry service energy control and scope exclusions. Not presented as the construction lockout rule.
- OSHA State Plans: jurisdiction and coverage overview; identify the actual state program before use.
Paid consensus standards and site-specific calculations, manuals, inspection records and product certificates were not independently obtained or verified unless specifically identified. Korean legal citations remain in the preserved Korean source as source history; they are not represented as US legal duties.
10. PDF guidance and FAQ
PDF A covers basic task controls; B examines technical failures; C focuses on supervision, evidence and handover. Each has six rows and three items per main cell. They are complementary extracts: apply all eight body stages and the applicable site procedure. An omitted stage is not permission to omit its controls. PDF HP-0 through HP-4 are worksheet labels; match the event, evidence and authority rather than assuming they match another permit by number.
P/S/R/A, actual measurements, confirmations and signatures remain blank. The PDFs are uncompleted reference worksheets, not issued work permits.
Content group ID: jsa-airreceiver-installation
Does zero on the gauge prove it is safe to open?
No. Verify isolation, the instrument path and all trapped volumes using the approved procedure; do not loosen a fitting as a pressure test.
Can a valve be fitted between the receiver and its safety valve?
The cited OSHA receiver provisions prohibit a valve between the receiver and its safety valve or valves. Verify the actual relief arrangement before release.
Does this sheet authorize a pressure test?
No. Use a separately reviewed test and commissioning procedure with its own boundaries, instruments, limits and release authority.
Has a professional verified or approved this document?
No. This is AI-assisted reference material. Editorial and layout checks are not a physical inspection or professional technical approval. Obtain qualified professional review and required site approval before use.
11. Revision history and authorship
Reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and site approval are required before use.
This system has not physically inspected the equipment, structures, ground, atmosphere or worksite. The document does not replace legal advice, manufacturer procedures, engineering design, inspection certificates, qualification evidence, the site risk assessment or an actual work permit.
Before use, a suitably qualified and authorized person must review the actual equipment, loads, methods, protection, inspection and emergency arrangements and resolve open issues. Record the real reviewer, organization, qualifications, delegated authority, reviewed documents, date, signature, exclusions and conditions of approval separately.
