Singapore JSA: Controlled Steel Heat Forming

Loss of valid temperature measurement holds the affected zone and cycle. Restoring the instrument provides a new reading but does not reconstruct the earlier unmeasured heat history.

AI-generated reference material. It has not been verified or approved by a professional. Before use, a qualified person must review and adapt it to applicable Singapore requirements, the actual equipment and site, and approved safe work procedures.

1. Singapore legal and technical basis

Singapore WSH hot-work, fire and exposure controls apply to the gas system and heating area. The responsible designer or technical authority must accept the actual material-specific forming plan and inspections. Foreign bridge guidance on temperature measurement is technical background; it does not approve the grade, support forces or heating and cooling limits for this member.

Use Singapore requirements and SI units. Manufacturer limits apply to the actual model. Foreign technical examples do not establish Singapore statutory duties. A job safety analysis or completed checklist is not a permit or approval.

2. Scope and required inputs

Included

Support, heat, monitor deformation, cool and inspect an identified unloaded steel member within a reviewed material-specific forming plan.

Separate assessment

Heating an in-service loaded beam, designing unapproved temperature/force limits, improvised quenching and unreviewed reheating are excluded.

Select task-appropriate eye, hand, foot, skin and hearing protection from the exposure assessment. Where respiratory protection is necessary, use the applicable respiratory-protection program; PPE does not replace isolation, guarding, support or ventilation.

Singapore application

Identify whether the process relies primarily on thermal contraction or external bending force. Use the actual approved plan for material identity, prior heat history, temperature method, restraint, cooling, reheat and tests. Do not transfer a heat-curving recipe to force-dominated hot bending or an in-service loaded member.

3. Eight-stage JSA

P/S/R/A and actual measurements, checks, names and signatures remain blank for the site assessment. A score cannot waive a required control.

4. Hypothetical scenario and failure mechanisms

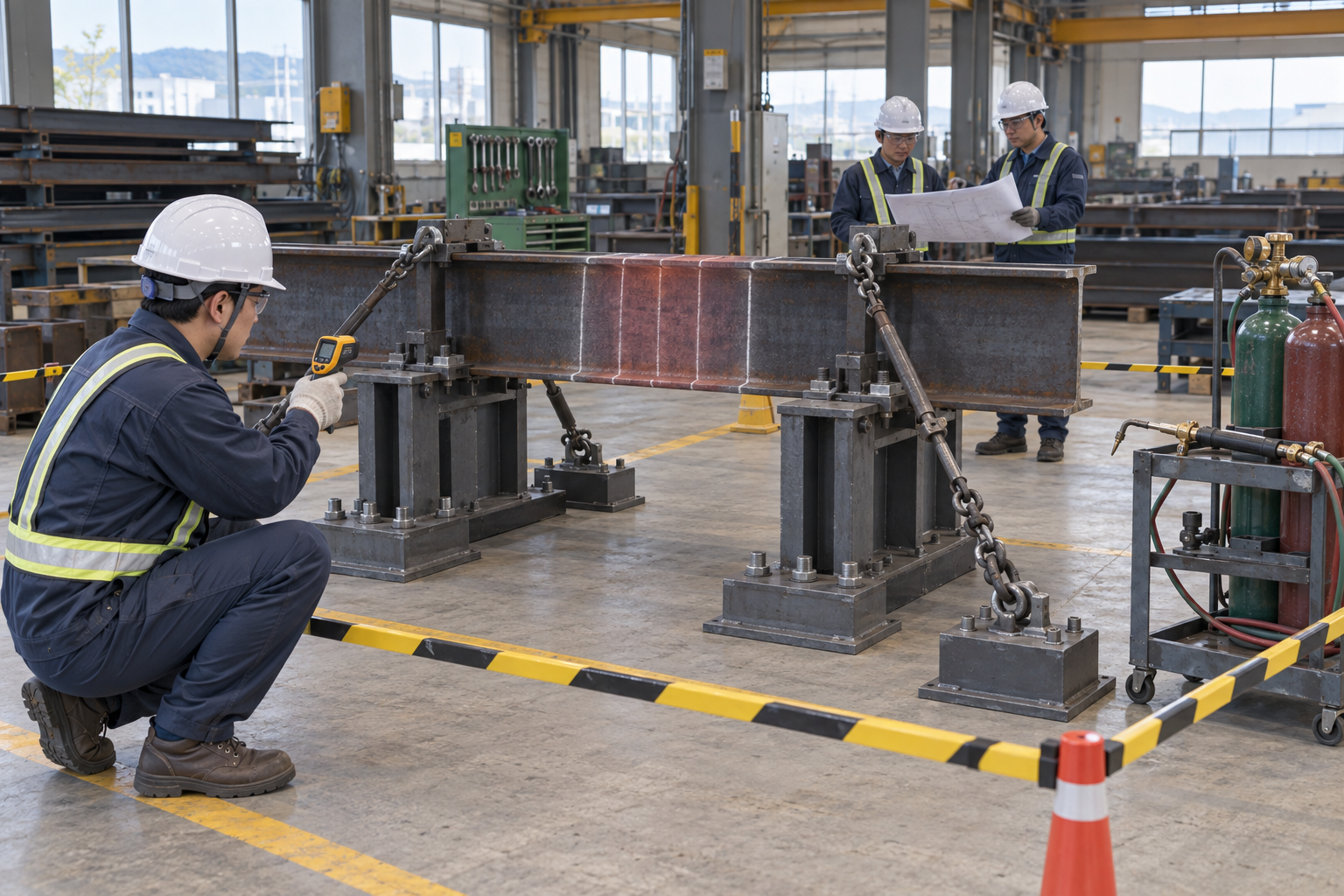

The retained illustration is an AI-generated educational image from the Korean source. It is not an actual incident photograph, approved drawing, equipment certification or proof that the depicted arrangement is safe.

Thermal expansion and contraction interact with colder steel and external restraint. Heat curving primarily uses this thermal response; force-dominated hot bending is a different process and cannot inherit a heat-curving recipe.

Steel colour changes with viewing and lighting conditions and cannot replace the specified temperature method. Restoring the instrument gives a current reading; it does not reconstruct an unmeasured earlier peak or duration.

An unexplained displacement or shifting reaction point is a separate stop condition. Do not add jack force because the desired curve has not appeared; the hot member and restraint system need engineering review.

Final curvature, twist, material condition and authorisation for use are separate. Preserve original cycle records and append rework decisions without filling gaps with guessed temperatures.

Hypothetical decision example

Hypothetical example: temperature readings become invalid during a planned heating cycle, but the operator continues because the steel colour looks familiar. The affected zone is held, the last valid record and gap are identified, and both instrument validity and the earlier material exposure are reviewed before restart.

The example is fictional; no incident, measurement, inspection or approval is asserted.

Task flow: Identify member and boundary → Prepare work area → Review forming plan → Set supports and gas → Heat and monitor → Cool and inspect → Hold anomaly and reassess → Close and transfer

5. Hold and proceed decisions

Similar observation, different conclusion

6. Roles and supervision

These are responsibility examples, not invented statutory credentials. Verify actual competence, training and authority for the assigned work.

Supervision and handover controls

Singapore application

The technical authority disposes of any missing heat-history interval and defines further checks. The heating team retains the last valid record and marks the affected member. Geometry acceptance, material inspection, safe temperature for handling and authorisation for installation remain separate handover decisions.

7. Hold points and record quality

Hold points are internal evidence gates. They do not establish that a statutory permit exists or has been approved. Recheck affected gates after changes, faults and shift handover.

Record comparison - hypothetical templates

The 16 boxes below identify record elements, not completed checks or approvals. They are static symbols. Link equipment/location, date, actual findings and the separate record reference; preserve unresolved items.

8. Pre-work checks and emergency response

Stop work

Do not heat unknown steel or an unreviewed support arrangement. Stop for loss of valid temperature measurement, unplanned displacement, support movement or gas leakage; hold the affected member until disposition is established.

Emergency response

Stop heating and isolate gas by the planned procedure only when safe. Clear the hot-member, reaction and possible fragment paths; do not stabilize a moving beam with the body or approach a leaking/fire-exposed cylinder. Activate fire response, evacuate for uncontrolled gas/fire and contact the site emergency responders for serious burns, crush injury or fire. Give responders the gas type, hot zones and support/restraint state.

9. Sources and review limits

Public-source review: 14 October 2026. Only the material and limits identified below were reviewed.

Selected public official sources were reviewed on 14 October 2026 within the recorded scope. No full consolidated legal audit, paid Singapore Standard, actual model manual, site inspection, engineering calculation or professional approval is claimed. Verify current detailed requirements and actual equipment/site records before use.

AI-generated reference material. It has not been verified or approved by a professional. Before use, a qualified person must review and adapt it to applicable Singapore requirements, the actual equipment and site, and approved safe work procedures.

10. PDF use and frequently asked questions

PDF A summarizes core controls; B emphasizes technical failures; C covers supervision, records and handover. Each uses six stages from or aligned with the eight-stage body. All actual risk, measurement, check and signature fields are blank. Use a separate linked record where more space is needed.

Can colour replace a failed thermometer?

No. Stop and resolve both measurement validity and the affected historical gap.

Can extra jack force finish the bend?

Only within the reviewed material/process plan; do not add force by judgment alone.

May water speed up cooling?

Use the specified cooling method. Any unplanned quench needs an identified hold and technical disposition.

Does correct shape authorize shipment?

Complete the required material/geometry inspections, restriction review and use authorisation first.

Has a professional approved this JSA?

This is reference content written and revised with AI. It has not been verified or approved by a professional. Review by a suitably qualified professional and required site authorisation are necessary before use.

Singapore application

Read A, B and C together with all eight JSA stages and the approved work procedure. The sheets are complementary extracts, not separate work authorisations.
