An unglazed frame can still overturn, rotate or sweep into an opening. Several helpers holding it do not establish a reliable load path. Plan the handling aid, temporary restraint and protected working positions before standing it up.
AI-generated reference material; not professionally verified or approved. Before use, a qualified person must review and adapt it to Singapore requirements, the actual equipment/site and approved safe work procedures.
Stop before starting
Stop for missing opening protection, unstable platform or temporary restraint, uncontrolled wind/frame movement, unknown services, anchor spin, cracking or an unapproved fixing detail. Keep temporary support until the release conditions are verified.
1. Legal and technical scope
| Basis | Scope and limits |
|---|---|
| MOM: Risk management | Assess frame movement, handling and affected trades. Official explanation of statutory duties; linked SSO text was not independently read for this item. This is not a legal opinion. |
| WSH Council: Preventing Falls from Height | Plan protected indoor access and opening protection during every stage. Official explanatory guidance; the stated PTW scope is not a general exemption from fall controls below that height. Actual premises classification must be checked. |
| BCA: Windows safety | Verify contractor/builder and trained installer arrangements for window works. SS 212 full text and project design not independently obtained. Bare-frame stage acceptance does not certify complete window works. |
| UK HSE CN3: Drilling with hand-held rotary power tools | Use drilling-specific dust-control principles; foreign technical guidance only. Foreign technical guidance only. UK APF, duration categories, statutory test intervals and record periods are not Singapore requirements. |
| SCDF: Emergency Medical Services | Link site fall/crush response to 995. Official emergency-response information, not a site-specific rescue plan or authorisation for untrained rescue. |
Apply Singapore WSH risk management and fall prevention to handling, openings, drilling and temporary support. BCA identifies approved window contractors (RW01), builders (GB1/GB2) and trained window installers for window works; verify the actual responsible business and installer relationship and project requirements. Use the accepted window/anchor design and product instructions. The bare-frame hold point does not replace completion obligations for the whole window installation.
2. Scope and required inputs
Included work

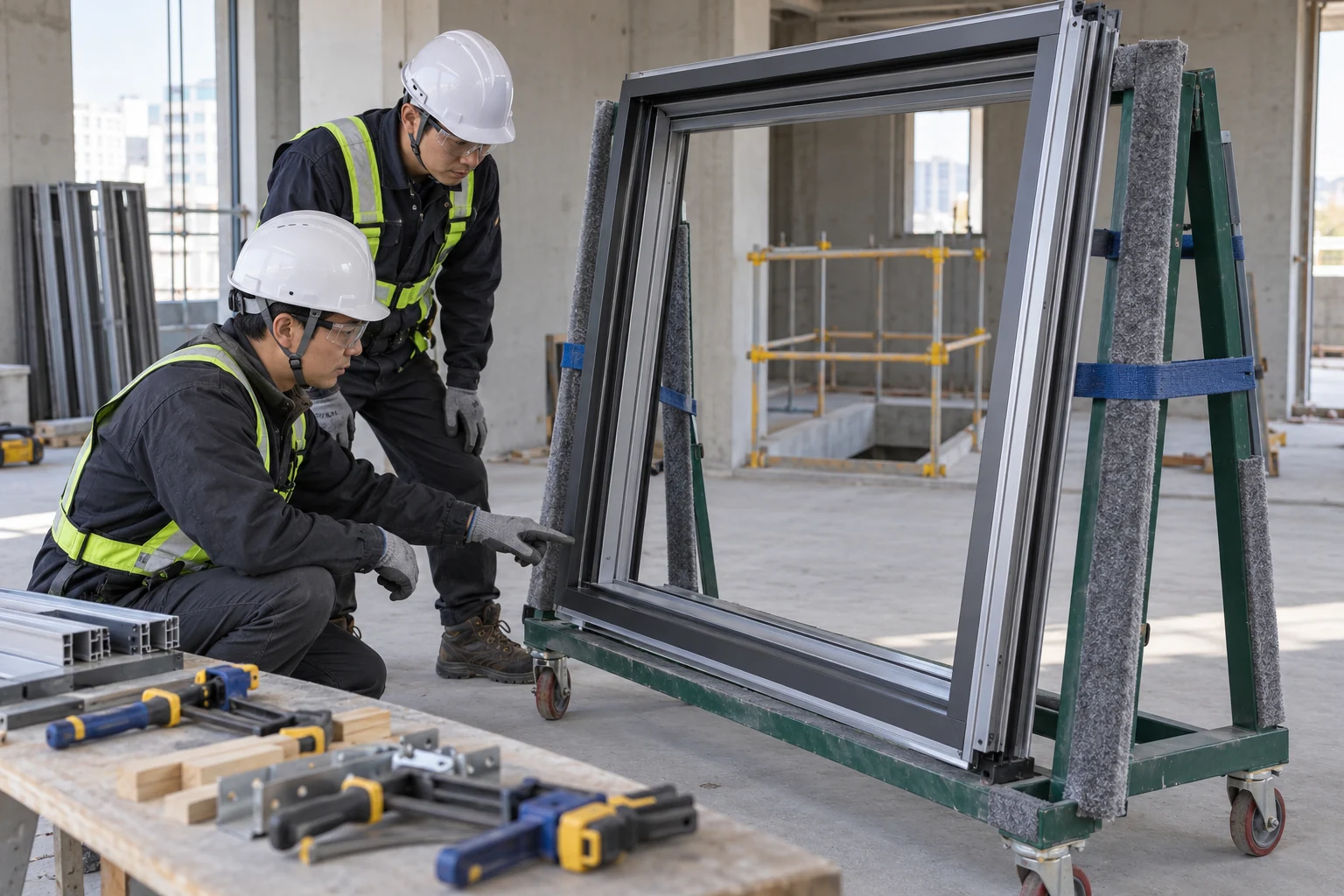

Handling and installing unglazed metal outer frames from an accepted indoor work platform at protected openings, using specified shims, temporary restraints and mechanical anchors, then handing over to later trades.
Separate assessment
Glazing, sash lifting, large curtain-wall units, rope or suspended access, external sealing, old-frame removal, welding and structural opening alteration require separate methods.
| Required input | Evidence to obtain |
|---|---|
| Review frame and opening | Frame ID and orientation; Opening dimensions; Anchor and shim detail; Handling and fall plan |
| Receive and move | Weight and trolley; Load restraint; Travel and turns; Edge condition |
| Prepare supports | Opening safeguards; Platform acceptance; Shim and brace setup; Service information |
| Stand and align | Lift and guide positions; Temporary restraint; Plumb square and gap; Wind and access |
No actual equipment model, site measurements, design calculations or signed approval was supplied. Check the applicable Singapore requirements and approved safe work procedures against the actual equipment and site before use. Statutory duties, official guidance and manufacturer limits serve different purposes; editorial checks do not establish legal or professional approval.
Singapore site application
Coordinate the window installer, main contractor and glazing/sealing trades. Identify each opening and the owner of its protection; a frame without glazing is not a guard. BCA cites SS 212 for aluminium alloy windows; its full text and this project’s fixing design were not obtained here.
Record frame mass in kg, dimensions and anchor embedment in mm, and any specified torque in N·m with the product reference. Do not invent a universal wind limit or anchor spacing. Dust control must match the drilling substrate and actual tool; keep cables and extraction hoses out of protected access.
3. Eight-stage JSA
| Job stage | Hazards and effects | Failure factors | Technical and procedural controls | Site verification | P | S | R | A |
|---|---|---|---|---|---|---|---|---|
| 1. Review frame and opening | 1. Wrong frame2. Opening fall3. Weak fixing4. Handling overload | 1. ID mismatch2. Protection absent3. Substrate unknown4. Weight assumed | 1. Match approved detail2. Plan opening protection3. Review anchor substrate4. Identify handling load | 1. Frame ID and orientation2. Opening dimensions3. Anchor and shim detail4. Handling and fall plan | ||||
| 2. Receive and move | 1. Frame overturn2. Hand crush3. Route collision4. Edge laceration | 1. Frame leaned loose2. Grip in pinch zone3. Turn space narrow4. Edges exposed | 1. Use restrained trolley2. Plan safe grips3. Clear full turning route4. Protect sharp edges | 1. Weight and trolley2. Load restraint3. Travel and turns4. Edge condition | ||||
| 3. Prepare supports | 1. Fall through opening2. Unstable platform3. Frame tilt4. Hidden-service strike | 1. Guard removed early2. Base weak3. Shims improvised4. Drill zone unchecked | 1. Maintain accepted protection2. Inspect work platform3. Use specified shims4. Review service locations | 1. Opening safeguards2. Platform acceptance3. Shim and brace setup4. Service information | ||||
| 4. Stand and align | 1. Frame rotation2. Finger crush3. Member drop4. Opening exposure | 1. Helpers substitute restraint2. Hands under frame3. Support moved early4. Wind changes | 1. Use planned handling aid2. Keep pinch zones clear3. Secure temporary braces4. Hold changed conditions | 1. Lift and guide positions2. Temporary restraint3. Plumb square and gap4. Wind and access | ||||
| 5. Drill and anchor | 1. Silica exposure2. Service contact3. Anchor failure4. Electric injury | 1. Dust control incomplete2. Location assumed3. Hole unprepared4. Supply damaged | 1. Apply drilling controls2. Verify safe hole location3. Follow anchor procedure4. Inspect tool and supply | 1. Dust-control method2. Hole and substrate3. Embedment and fastening4. Tool and supply checks | ||||
| 6. Inspect before release | 1. Frame shift2. Premature unclamping3. Hidden fixing fault4. Opening fall | 1. Geometry equals capacity2. Inspection omitted3. Torque guessed4. Protection not restored | 1. Inspect specified fixing2. Verify frame stability3. Record product criteria4. Maintain opening protection | 1. Anchor installation2. Geometry record3. Release authority4. Protection arrangement | ||||
| 7. Hold fixing defects | 1. Substrate breakout2. Repeated anchor failure3. Frame collapse4. Unapproved alteration | 1. Crack ignored2. Extra holes improvised3. Brace removed4. Repair not reviewed | 1. Retain safe support2. Mark affected opening3. Review repair detail4. Inspect corrected fixing | 1. Defect and location2. Support retained3. Repair approval4. Reinspection result | ||||
| 8. Hand over openings | 1. Wrong trade release2. Hidden defect3. Guard responsibility gap4. Loose material fall | 1. Held frame unmarked2. Records absent3. Protection owner unknown4. Debris left | 1. Separate accepted and held2. Transfer geometry records3. Assign guard responsibility4. Clear loose items | 1. Frame acceptance list2. Held items and limits3. Protection recipient4. Next-trade authorisation |
P = likelihood; S = severity; R = risk under the site method; A = site-defined acceptance/authorization. These actual assessment cells are blank. A low score never overrides a missing safeguard or a legal or manufacturer restriction.
4. Fictional scenario and failure mechanisms
This illustration provides educational context. It is not an actual incident photograph or evidence of equipment suitability; any AI-generated depiction is illustrative only.
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Stage | Fictional situation |
|---|---|
| Initial situation | A fictional crew aligns a bare frame at an exterior opening. |
| Changed condition | One anchor spins while the frame still appears vertical. |
| Failure path | A helper proposes releasing the temporary clamp to start the next opening. |
| Possible outcome | The frame could shift or fall before its permanent load path is established. |
| Prevention barrier | Retain safe support and opening protection, hold the frame, review substrate and anchor repair and inspect the completed fixing before release. |
Failure mechanisms
An unglazed frame can still overturn, rotate or sweep into an opening. Several helpers holding it do not establish a reliable load path. Plan the handling aid, temporary restraint and protected working positions before standing it up.
A plumb, square frame is not proof of anchor capacity. Check the specified substrate, hole preparation, embedment and installation criteria. A spinning anchor or cracked substrate requires a hold and reviewed repair, not arbitrary retightening or extra holes.
The frame is not an opening guard. If installation conflicts with existing protection, establish the accepted alternative before removing that protection. Temporary clamps are released only after the permanent fixing and frame stability have been accepted.
Decision sequence
| Step | Decision |
|---|---|
| Known | One anchor spins while the frame appears plumb. |
| Unknown | Substrate condition and permanent load path are unverified. |
| Hold | Retain temporary support and independent opening protection. |
| Evidence | Reviewed anchor/substrate repair, installed detail, geometry and fixing inspection. |
| Release | Remove support only in the accepted sequence; transfer opening protection to the next trade. |
Work sequence: Review frame and opening → Receive and move → Prepare supports → Stand and align → Drill and anchor → Inspect before release → Hold fixing defects → Hand over openings. This is a teaching flow, not a device drawing or a complete operating procedure.
5. Conditional decisions and common errors
| Situation | Required action | Evidence | Proceed when |
|---|---|---|---|
| Opening guard conflicts | Establish alternative protection | Opening and access arrangement | Protection accepted |
| Frame unstable | Keep restraint in place | Handling and support plan | Stable support |
| Anchor spins | Hold permanent fixing | Substrate and repair review | Repair inspected |
| Clamp release requested | Check permanent stability | Anchor and geometry records | Release authorised |
Similar observations, different decisions
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
| Observation | Insufficient conclusion | Required distinction |
|---|---|---|
| Frame is plumb | Geometry observed | Anchor capacity separate |
| No glass fitted | Lower component weight | Overturn and fall remain |
| Frame fills opening | Physical obstruction | Not accepted fall protection |
6. Roles and responsibilities
| Role | Responsibility |
|---|---|
| Window contractor/builder and supervisor | Verify applicable BCA registration and installer arrangements, scope, drawing and work sequence. |
| Trained window installer | Work within the applicable authorised organisation and assigned window scope; maintain temporary support and stop defective fixing. |
| Design / anchor reviewer | Resolve substrate, embedment, shims, fixing defects and support-release criteria using actual project evidence. |
| Crew and inspection lead | Maintain handling and fall controls; record geometry and specified fixing checks before release. |
| Glazing/sealing receiving lead | Accept only identified released frames and take custody of opening protection, holds and next-stage limits. |
Supervision and handover focus
| Stage | Management action | Evidence |
|---|---|---|
| Review frame and opening | 1. Record frame id and orientation2. Record opening dimensions3. Record anchor and shim detail | 1. Frame ID and orientation2. Opening dimensions3. Anchor and shim detail |
| Receive and move | 1. Record weight and trolley2. Record load restraint3. Record travel and turns | 1. Weight and trolley2. Load restraint3. Travel and turns |
| Stand and align | 1. Record lift and guide positions2. Record temporary restraint3. Record plumb square and gap | 1. Lift and guide positions2. Temporary restraint3. Plumb square and gap |
| Drill and anchor | 1. Record dust-control method2. Record hole and substrate3. Record embedment and fastening | 1. Dust-control method2. Hole and substrate3. Embedment and fastening |
| Hold fixing defects | 1. Record defect and location2. Record support retained3. Record repair approval | 1. Defect and location2. Support retained3. Repair approval |
| Hand over openings | 1. Record frame acceptance list2. Record held items and limits3. Record protection recipient | 1. Frame acceptance list2. Held items and limits3. Protection recipient |
7. Hold points and record comparison
| Hold point | Evidence before release | Actual approval |
|---|---|---|
| HP-0 Scope | Handling and installing unglazed metal outer frames from an accepted indoor work platform at protected openings, using specified shims, temporary restraints and mechanical anchors, then handing over to later trades. | |
| HP-1 Receive and move | Weight and trolley; Load restraint; Travel and turns; Edge condition | |
| HP-2 Stand and align | Lift and guide positions; Temporary restraint; Plumb square and gap; Wind and access | |
| HP-3 Hold fixing defects | Defect and location; Support retained; Repair approval; Reinspection result | |
| HP-4 Hand over openings | Frame acceptance list; Held items and limits; Protection recipient; Next-trade authorisation |
Hold points are internal project checks. They are not universal statutory permits and do not grant work permission. Reassess after defects, changed conditions and shift changes.
Record comparison
The scenario and record comparisons are fictional teaching examples, not records of real incidents, measurements, inspections, signatures or approvals.
The boxes are static record prompts, not interactive or saved approvals. A tick does not establish suitability or permission to restart. Record the evidence, person, time and unresolved issues; retain the change history.
| Record | Insufficient record | Record checklist |
|---|---|---|
| Review frame and opening | Only marked “OK” | □ Frame ID and orientation□ Opening dimensions□ Anchor and shim detail□ Handling and fall plan |
| Stand and align | Only marked “OK” | □ Lift and guide positions□ Temporary restraint□ Plumb square and gap□ Wind and access |
| Hold fixing defects | Only marked “OK” | □ Defect and location□ Support retained□ Repair approval□ Reinspection result |
| Hand over openings | Only marked “OK” | □ Frame acceptance list□ Held items and limits□ Protection recipient□ Next-trade authorisation |
8. Site checklist and emergency response
| Site check | Actual result | Person / action |
|---|---|---|
| Review frame and opening: Frame ID and orientation; Opening dimensions; Anchor and shim detail; Handling and fall plan | ||
| Receive and move: Weight and trolley; Load restraint; Travel and turns; Edge condition | ||
| Prepare supports: Opening safeguards; Platform acceptance; Shim and brace setup; Service information | ||
| Stand and align: Lift and guide positions; Temporary restraint; Plumb square and gap; Wind and access | ||
| Drill and anchor: Dust-control method; Hole and substrate; Embedment and fastening; Tool and supply checks | ||
| Inspect before release: Anchor installation; Geometry record; Release authority; Protection arrangement | ||
| Hold fixing defects: Defect and location; Support retained; Repair approval; Reinspection result | ||
| Hand over openings: Frame acceptance list; Held items and limits; Protection recipient; Next-trade authorisation |
Stop work
Stop for missing opening protection, unstable platform or temporary restraint, uncontrolled wind/frame movement, unknown services, anchor spin, cracking or an unapproved fixing detail. Keep temporary support until the release conditions are verified.
Emergency response
Clear the frame fall path and area below, secure access and activate the site fall/crush rescue plan. Do not catch a falling frame or improvise support under load. Call 995 for a serious injury or fire/rescue emergency.
9. Sources and review limits
Public-source access/review: 2026-10-14.
| Official source | Reviewed scope and limits |
|---|---|
| MOM: Risk management | Assess frame movement, handling and affected trades. Official explanation of statutory duties; linked SSO text was not independently read for this item. This is not a legal opinion. |
| WSH Council: Preventing Falls from Height | Plan protected indoor access and opening protection during every stage. Official explanatory guidance; the stated PTW scope is not a general exemption from fall controls below that height. Actual premises classification must be checked. |
| BCA: Windows safety | Verify contractor/builder and trained installer arrangements for window works. SS 212 full text and project design not independently obtained. Bare-frame stage acceptance does not certify complete window works. |
| UK HSE CN3: Drilling with hand-held rotary power tools | Use drilling-specific dust-control principles; foreign technical guidance only. Foreign technical guidance only. UK APF, duration categories, statutory test intervals and record periods are not Singapore requirements. |
| SCDF: Emergency Medical Services | Link site fall/crush response to 995. Official emergency-response information, not a site-specific rescue plan or authorisation for untrained rescue. |
No actual equipment model, site measurements, design calculations or signed approval was supplied. Check the applicable Singapore requirements and approved safe work procedures against the actual equipment and site before use. Statutory duties, official guidance and manufacturer limits serve different purposes; editorial checks do not establish legal or professional approval.
10. PDF guidance and FAQ
PDF A covers basic task controls; B focuses on technical failures; C covers supervision, records and handover. The article has eight stages with four items per main cell; each PDF has six key stages with three items per main cell. P/S/R/A, measurements, confirmations and signatures remain blank for actual site assessment.
PDFs are complementary six-stage extracts. Apply all eight body stages and the actual equipment/site procedure.
Can a spinning anchor simply be tightened harder?
No. Hold the fixing and use an accepted substrate and anchor repair decision.
When can temporary clamps be removed?
After the specified permanent fixing, geometry and stability are inspected and release is authorised.
Does a frame replace the opening guard?
No. Maintain fall protection appropriate to the actual opening and work.
Has a professional verified or approved this document?
AI-generated reference material; not professionally verified or approved. Before use, a qualified person must review and adapt it to Singapore requirements, the actual equipment/site and approved safe work procedures.
11. Revision history and authorship
AI-generated reference material; not professionally verified or approved. Before use, a qualified person must review and adapt it to Singapore requirements, the actual equipment/site and approved safe work procedures.
| Date | Version | Change | Review status |
|---|---|---|---|
| 2026-10-14 | SG 1.0 | New Singapore edition from assigned Korean source; task decisions, records and PDFs localized. | AI editorial review; no professional technical approval |
Korean edition revision history: 2026-10-08 (v1.0): initial article, sources, fictional analysis and PDF editorial checks. These are editorial records, not professional technical approval. Singapore v1.0 adapts the earlier edition to Singapore requirements and terminology.
Site reviewers must add their actual qualifications, scope, date and approval only after the review occurs.
