Boiler Lifting and Positioning JSA

Planning the actual shipping configuration, unloading and lifting a boiler body, seating its saddles or base, checking alignment and supports, and handing over the mechanically secured installation.

Stop for unknown shipping mass or centre of gravity, unverified lifting points, inadequate foundation reactions, tilt, settlement, support gaps, anchor conflicts or lost signals.

AI-generated reference material. It has not been professionally verified or approved. Before use, a suitably qualified person must review and adapt it to applicable Singapore requirements, the actual equipment and site, and approved safe work procedures.

1. Legal and technical scope

Use Singapore WSH risk management and the actual lifting plan for boiler handling, crane support and controlled load transfer. The boiler owner must separately determine the applicable MOM pressure-vessel registration and examination requirements and engage the appropriate Authorised Examiner or MOM-authorised boiler inspector. Mechanical seating is not permission to connect fuel, pressurise or fire. Confirm the relevant boiler-room layout and downstream installation documentation before positioning creates an unresolvable access or maintenance conflict.

Assess the actual activity under the applicable Singapore WSH requirements. Statutory duties, official guidance, manufacturer instructions and approved project documents have distinct roles. A site hold point is not automatically a statutory permit. Use competent local review to resolve the applicable industry, installation, access and permit requirements.

2. Scope and required inputs

Included: Planning the actual shipping configuration, unloading and lifting a boiler body, seating its saddles or base, checking alignment and supports, and handing over the mechanically secured installation.

Separate review: Fuel, water and steam connection completion, pressure testing, firing and performance commissioning are separate releases. Unapproved changes to lifting lugs, saddles, anchors or base details are outside this scope.

Confirm actual shipping configuration, mass and centre of gravity, approved lifting points, local foundation reactions, saddle contact, fixed/sliding details, grout strength and anchor procedure. Coordinate the intended installed position with the owner and pressure-vessel examination team. Codes and standards named on the MOM registration page were not read in full; this worksheet supplies no design certification or universal installation clearance.

3. Eight-stage JSA

P = likelihood; S = severity; R = risk under the site method; A = acceptance or authorization as defined by the site. Leave these blank until actual assessment and control verification. A low score does not override a legal requirement, product limit or unreleased hold point.

4. Hypothetical scenario and failure mechanisms

The following scenario, comparisons and example records are hypothetical teaching material. They do not reproduce actual incidents, measurements, signatures or approvals.

Shipping mass includes the actual accessories, packing and any retained fluids, not just catalog dry mass. The centre of gravity and approved lifting points must match that configuration. Foundation review must consider local reactions and the erection sequence.

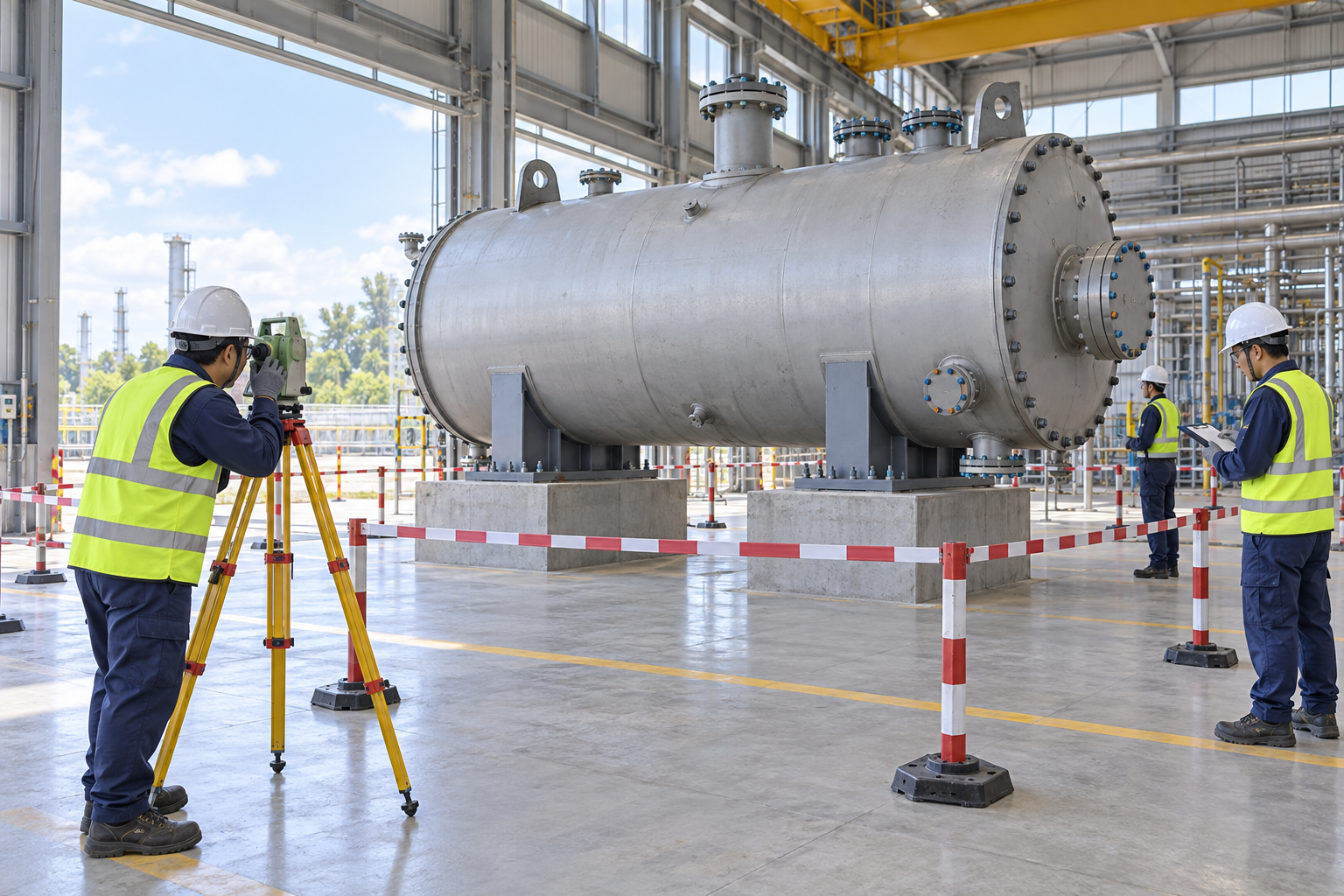

A saddle can be fixed or designed to allow movement. Blocking an intended sliding support can restrain thermal expansion later. Verify which components locate, support or permit movement before fitting anchors.

A support gap is not automatically an anchor-tightening problem. Pulling a base into contact can introduce unintended stress. Correct level, contact and grout conditions by the design method, including any required curing strength before load transfer.

Mechanical placement, piping connection and first firing are different acceptance states. Later piping loads and thermal movement can change the installed load path. Record installation restrictions and transfer them to the next trade.

Before the mechanical handover, identify who will supply the owner and examination team with the installed survey, support records and remaining restrictions. The statutory pressure-vessel file and subsequent fuel, steam-piping and first-use releases remain separate from this lifting worksheet. Do not describe a crane-release signature as boiler approval.

5. Conditional decisions and common errors

6. Roles and responsibilities

These are responsibility examples, not invented statutory credentials. Meet the actual training, competent-person, qualified-person and licensing requirements for the assigned work. Anyone may raise a hazard and request a stop; only the designated authority may release the affected stage after evidence is reviewed.

7. Hold points and record comparison

Hold points are internal evidence gates. They do not replace statutory permits or actual signatures. Recheck affected gates after a change, abnormal event or shift transfer. The blank record must identify the evidence, person, time, limits and release scope.

The □ boxes are static prompts, not saved or interactive approvals. Each checks one record element. A tick alone does not establish suitability or permission to restart. Link equipment IDs and supporting records; retain unresolved matters and the earlier record when conditions change.

8. Site checklist and emergency response

Stop work: Stop for unknown shipping mass or centre of gravity, unverified lifting points, inadequate foundation reactions, tilt, settlement, support gaps, anchor conflicts or lost signals.

Emergency response: Stop lifting or positioning on tilt, settlement or support loss and clear the possible fall and movement zone. Do not enter beneath an unstable boiler to insert shims or tighten anchors. Use a separately reviewed stabilisation or recovery plan. Activate the site emergency response and call SCDF 995 for serious injury or urgent rescue; provide load state and safe access information.

9. Sources and review limits

Official-source review date: October 14, 2026. The following review is limited to the public provisions or selected manufacturer material identified below. It does not establish that any authority approved this article or the actual installation.

• MOM risk management: Official explanation: risk assessment, control, monitoring and communication for routine and non-routine work, including maintenance; reviewed 14 October 2026.
• WSHC Planning a Lift: Official lifting guidance: risk-supported lift plan, safe work procedure, permit arrangements, load/equipment/crew/environment details and stop when conditions differ. Confirm the applicable statutory permit scope separately.
• MOM pressure vessel registration: Official registration categories, exemptions and owner/AE documentation duties, including steam boilers and applicable boiler inspector arrangements. Mechanical placement is not registration or firing approval.
• SCDF emergency medical services: Official 995 emergency ambulance service information; use emergency services for actual emergencies.

Paid consensus standards and site-specific calculations, manuals, inspection records and product certificates were not independently obtained or verified unless specifically identified. Korean and overseas legal references are source history, not Singapore statutory duties. Singapore Standards and model-specific limits were not read in full unless expressly identified.

10. PDF guidance and FAQ

PDF A covers basic task controls; B examines technical failures; C focuses on supervision, evidence and handover. Each has six rows and three items per main cell. They are complementary extracts: apply all eight body stages and the applicable site procedure. An omitted stage is not permission to omit its controls. PDF HP-0 through HP-4 are worksheet labels; match the event, evidence and authority rather than assuming they match another permit by number.

P/S/R/A, actual measurements, confirmations and signatures remain blank. The PDFs are uncompleted reference worksheets, not issued work permits.

Content group ID: jsa-boiler-positioning

May anchors pull a saddle down into contact?

Do not use anchor force to conceal a support gap. Obtain the designed leveling, shimming or grout correction and verify the load path.

Is catalog dry weight sufficient for the lift?

No. Confirm the actual shipping configuration, accessories, retained contents and centre of gravity.

Can the boiler be fired after the crane is released?

No. Mechanical positioning does not release pressure testing, fuel systems, controls or first firing.

Has a professional verified or approved this document?

AI-generated reference material. It has not been professionally verified or approved. Before use, a suitably qualified person must review and adapt it to applicable Singapore requirements, the actual equipment and site, and approved safe work procedures.

11. Revision history and authorship

AI-generated reference material. It has not been professionally verified or approved. Before use, a suitably qualified person must review and adapt it to applicable Singapore requirements, the actual equipment and site, and approved safe work procedures.

This system has not physically inspected the equipment, structures, ground, atmosphere or worksite. The document does not replace legal advice, manufacturer procedures, engineering design, inspection certificates, qualification evidence, the site risk assessment or an actual work permit.

Before use, a suitably qualified and authorized person must review the actual equipment, loads, methods, protection, inspection and emergency arrangements and resolve open issues. Record the real reviewer, organization, qualifications, delegated authority, reviewed documents, date, signature, exclusions and conditions of approval separately.
